Zavedení
The Bose SoundTouch SA-4 amplifier is designed to pair with your choice of speakers for streaming music. It provides wireless access to Internet radio, music services, and your music library. The system features proprietary signal processing for rich lows and includes a SoundTouch controller for convenient operation.
Image: Bose SoundTouch SA-4 Amplifier with its wireless adapter and circular controller.
Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- SoundTouch SA-4 ampdoživotní
- SoundTouch wireless adapter
- SoundTouch controller
- USB kabel
- AC napájecí kabel
Image: All components included with the Bose SoundTouch SA-4 Amplifier, laid out for inspection.
Pokyny pro nastavení
1. Připojení reproduktorů
The SoundTouch SA-4 amplifier is designed for easy connection to your chosen speakers. Ensure speakers are compatible with the amplifier's impedance range (4-16 Ohms).
2. Připojení napájení
Připojte napájecí kabel střídavého proudu k amplifier and then to a power outlet. The amplifier is designed to enter sleep mode after 20 minutes of inactivity.
3. Wireless Adapter Setup
Connect the SoundTouch wireless adapter to the amplifier. This adapter enables wireless access to Internet radio, music services, and your music library.
4. SoundTouch Controller Pairing
The SoundTouch controller provides intuitive access to your music. Pair the controller with the system for immediate access to personalized presets and volume control. A wall-mounted cradle with an included bracket is available for convenient placement.
5. SoundTouch App Installation
Download and install the free SoundTouch app on your computer, smartphone, or tablet. Use the app to configure your system, drag and drop music sources to your six presets, and explore other music options from your library or online services. The app also allows you to play different music in different rooms if you have multiple SoundTouch systems.
6. Auxiliary and Ethernet Connections
An auxiliary port is available for connecting other audio sources, such as an MP3 player. An Ethernet port allows for easy connection to a home network via an Ethernet cable. A USB input is also provided for system setup via a computer.

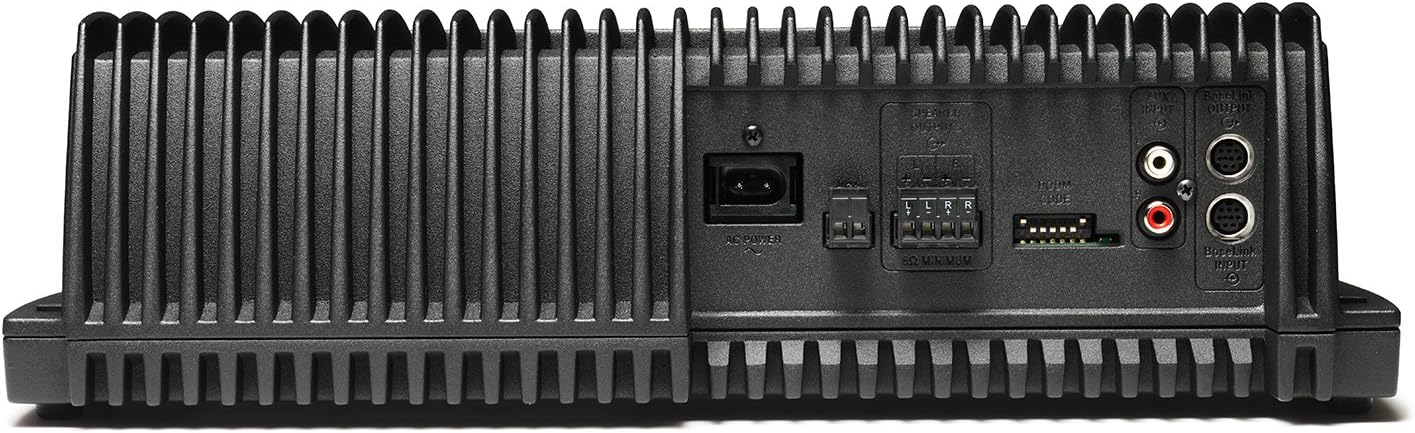

Obrázek: Zadní view of the Bose SoundTouch SA-4 Amplifier, detailing connection ports.
Video: Generál skončilview of Bose Professional AudioPack installation. While not specific to the SA-4, it provides context for setting up Bose audio systems.
Operace
SoundTouch Controller
The SoundTouch controller allows for direct control of your music. Use it to adjust volume, skip or pause songs, and power the system on or off. Personalized presets provide one-touch access to your favorite music.
Obrázek: Přední strana view of the Bose SoundTouch SA-4 Amplifier and its controller.
SoundTouch App
The SoundTouch app offers comprehensive control over your system. Manage music sources, customize presets, and browse your music library or online services. For multi-room setups, the app enables playing the same music everywhere or different music in different rooms.
AirPlay Functionality
The amplifier supports AirPlay, allowing you to stream audio directly from compatible Apple devices.
Údržba
To ensure optimal performance and longevity of your Bose SoundTouch SA-4 amplifier, keep the unit clean and free from dust. Use a soft, dry cloth for cleaning. Avoid exposing the amplifier to excessive moisture or extreme temperatures. Ensure proper ventilation to prevent overheating.
Odstraňování problémů
If you encounter issues with your SoundTouch SA-4 amplifier, consider the following general troubleshooting steps:
- Bez napájení: Ensure the AC power cord is securely connected to both the ampzáchranář a funkční elektrickou zásuvku.
- Žádný zvuk: Verify that speakers are correctly connected to the amplifier. Check volume levels on both the amplifier and the SoundTouch controller/app. Ensure the correct input source is selected.
- Problémy s bezdrátovým připojením: Confirm your Wi-Fi network is active and the SoundTouch wireless adapter is properly connected. Restart your router and the amplifier. For Bluetooth, ensure the device is in pairing mode and within range.
- Ovladač nereaguje: Check the batteries in the SoundTouch controller. Ensure it is within range of the ampživější.
- Problémy s aplikací: Ensure the SoundTouch app is updated to the latest version. Restart the app or your device.
For more detailed troubleshooting or persistent issues, refer to the official Bose support resources or contact customer service.
Specifikace
| Značka | Bose |
| Název modelu | SoundTouch SA 4 |
| Číslo modelu položky | 361755-1100 |
| Rozměry produktu | 5.5"H x 14.25"Š x 4.25"V |
| Hmotnost položky | 11 libry |
| Technologie připojení | Wi-Fi |
| Technologie bezdrátové komunikace | Wi-Fi |
| Režim zvukového výstupu | Stereo |
| Kontrolní metoda | App |
| Zdroj napájení | Elektrický kabel |
| Typ montáže | Floor Standing, Wall Mount |
| Speciální funkce | Bass Boost |
| Doporučená použití pro produkt | Hudba |
| Kompatibilní zařízení | MP3 přehrávač |
| Barva | Černý |
| UPC | 017817598323 |

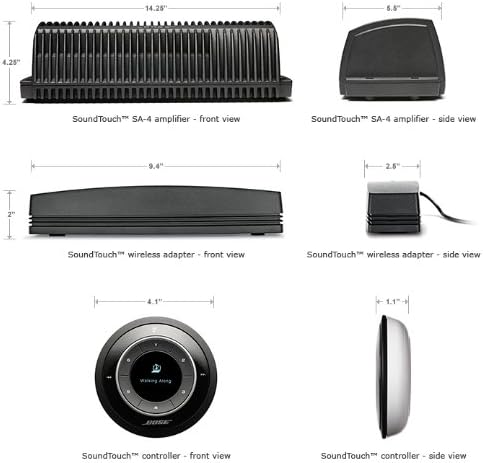

Image: Dimensions of the amplifier and accessories.
Záruka a podpora
The Bose SoundTouch SA-4 amplifier comes with a limited warranty. For specific warranty details, please refer to the documentation included with your product or visit the official Bose website. For technical support, product registration, or service inquiries, please contact Bose customer support directly.
Další zdroje a kontaktní informace naleznete na Bose Store.
