GIMA Pentax Light Source Adapter

1. Úvod

Thank you for choosing the GIMA Pentax Light Source Adapter, Model 30837. This manual provides essential information for the correct setup, operation, and maintenance of your adapter. Please read these instructions carefully before use to ensure safe and efficient operation.

2. Konec produktuview

The GIMA Pentax Light Source Adapter is designed to facilitate the connection of GIMA Fiber Optic (F.O.) cables to Pentax light sources. This adapter ensures compatibility and reliable light transmission for various medical and industrial applications.

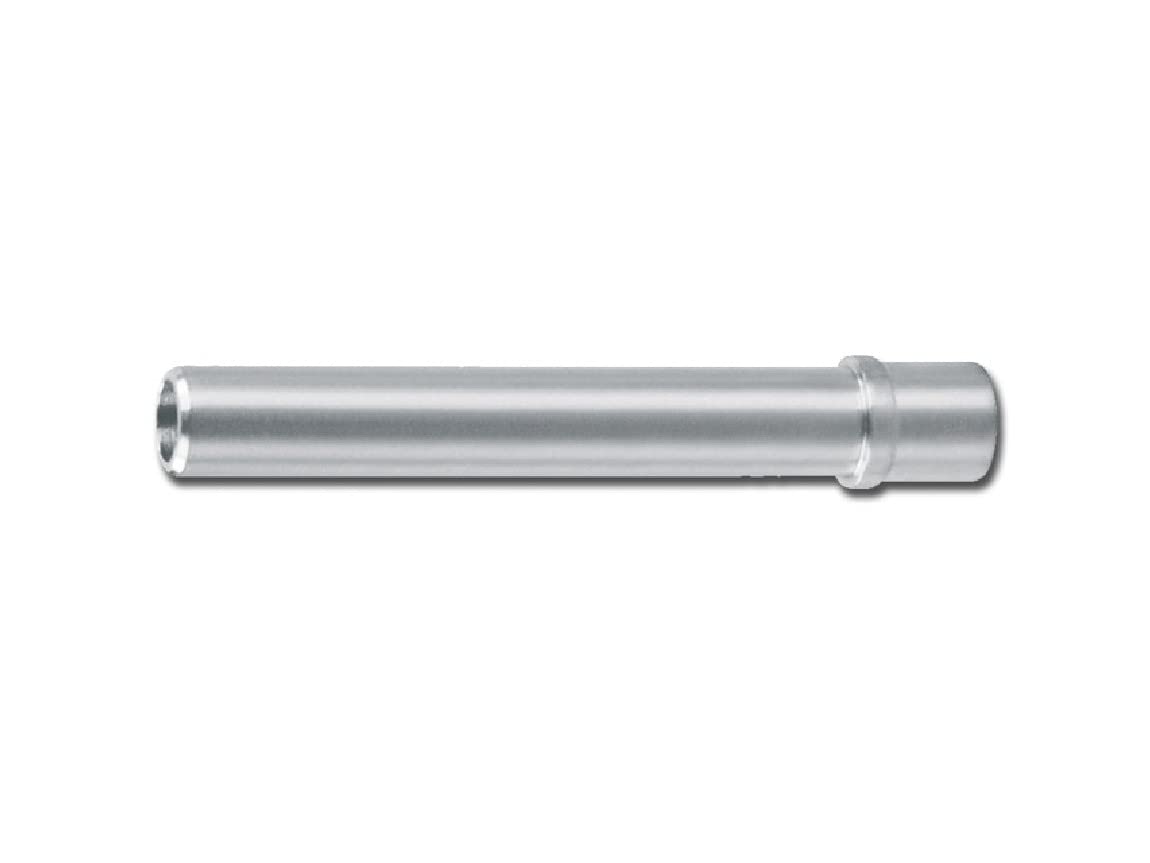

Obrázek 1: GIMA Pentax Light Source Adapter, Model 30837. This image shows the compact design of the adapter, illustrating its connection points for fiber optic cables and light sources.

3. Pokyny k nastavení

1. Rozbalení: Carefully remove the GIMA Pentax Light Source Adapter from its packaging. Inspect for any visible damage.
2. Identifikujte komponenty: Ensure you have the adapter and the GIMA Fiber Optic cable you intend to connect.
3. Connect GIMA F.O. Cable: Insert the GIMA Fiber Optic cable into the designated port on the adapter. Ensure a secure and firm connection.
4. Connect to Pentax Light Source: Attach the adapter, with the GIMA F.O. cable connected, to the Pentax light source. Align the connectors properly and push firmly until it clicks into place or is securely fastened.
5. Ověřit připojení: Gently tug on the connections to ensure they are secure and will not accidentally disconnect during use.

Poznámka: Always handle fiber optic cables and adapters with care to prevent damage to the optical surfaces.

4. Návod k obsluze

The GIMA Pentax Light Source Adapter is designed for straightforward operation once properly installed.

• Power On Light Source: After connecting the adapter and fiber optic cable, power on your Pentax light source according to its specific operating instructions.
• Přenos světla: The adapter will transmit light from the Pentax source through the GIMA F.O. cable to the intended instrument or area.
• Odpojení: To disconnect, power off the light source first. Then, carefully disconnect the adapter from the light source and the F.O. cable from the adapter by pulling straight, avoiding twisting or bending.

This adapter is designed for ease of use, providing a reliable interface between your GIMA F.O. cables and Pentax light sources.

5. Údržba

Proper maintenance ensures the longevity and optimal performance of your adapter.

• Čištění: Use a soft, dry, lint-free cloth to wipe the exterior of the adapter. Do not use abrasive cleaners or solvents.
• Optical Surfaces: If the optical connection surfaces require cleaning, use specialized fiber optic cleaning tools and solutions. Consult a qualified technician if unsure.
• Skladování: Store the adapter in a clean, dry environment, away from direct sunlight and extreme temperatures, when not in use.
• Inspekce: Periodically inspect the adapter for any signs of wear, damage, or loose connections.

6. Řešení problémů

If you encounter issues with your GIMA Pentax Light Source Adapter, consider the following common solutions:

• No Light Transmission:
  • Ensure the Pentax light source is powered on and functioning correctly.
  • Check all connections (F.O. cable to adapter, adapter to light source) are secure and fully inserted.
  • Inspect the F.O. cable for damage or kinks.
  • Verify the adapter is correctly oriented and not obstructed.
• Přerušované světlo:
  • Check for loose connections at both ends of the adapter.
  • Ensure the F.O. cable is not being bent or stressed during use.
• Obtížnost s připojením:
  • Ensure you are using compatible GIMA F.O. cables and a Pentax light source.
  • Do not force connections. If resistance is met, re-align the connectors.
  • Check for any debris or damage in the connection ports.

If problems persist, contact GIMA customer support for assistance.

7. Specifikace

8. Záruka a podpora

For warranty information, technical support, or service inquiries regarding your GIMA Pentax Light Source Adapter, please refer to the warranty card included with your product or visit the official GIMA webwebu. Uschovejte si účtenku jako doklad o koupi.

GIMA Customer Service: Prosím navštivte www.gimaitaly.com pro kontaktní údaje a další pomoc.
