Hobart Legacy Planetary Mixer HL300-1

1. Úvod

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hobart Legacy Planetary Mixer HL300-1. This commercial-grade mixer features a 3/4 Hp motor, 30-quart capacity, three fixed speeds, a gear-driven transmission, and a 15-minute timer. Please read this manual thoroughly before operating the mixer to ensure proper usage and to prevent injury or damage.

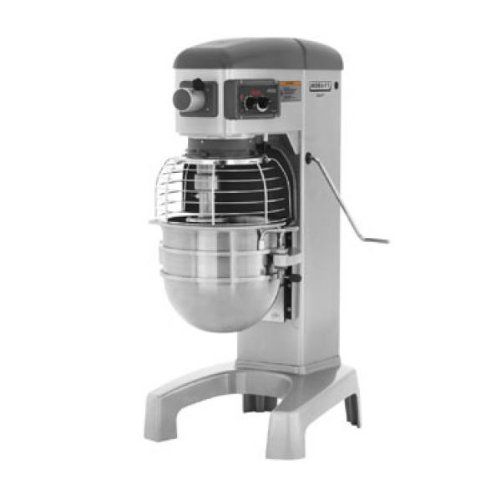

Obrázek 1: Přední view of the Hobart Legacy Planetary Mixer HL300-1. This image shows the main body of the mixer, the bowl lift mechanism, and the control panel.

2. Bezpečnostní informace

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This mixer is designed for commercial use and should only be operated by trained personnel.

• Přečtěte si všechny pokyny: Familiarize yourself with the mixer's operation before use.
• Elektrická bezpečnost: Ensure the mixer is connected to a properly grounded electrical supply (200-240V, 50/60Hz, 3-phase) as specified on the rating plate. Do not use extension cords.
• Pohyblivé části: Během provozu držte ruce, vlasy, oděv a náčiní v dostatečné vzdálenosti od pohyblivých částí, abyste předešli zranění.
• Bowl Guard: Never operate the mixer without the stainless steel bowl guard properly in place.
• Unplug Before Cleaning/Servicing: Always disconnect power before cleaning, adjusting, or servicing the mixer.
• Dozor: Když je jakýkoli spotřebič používán v blízkosti dětí nebo nezpůsobilých osob, je nutný přísný dohled.
• Stabilní povrch: Operate the mixer on a stable, level surface to prevent tipping.

3. Nastavení

3.1 Vybalení

Carefully remove the mixer from its packaging. Inspect for any shipping damage. Retain packaging materials for future transport if needed. Ensure all accessories, such as the mixing bowl and attachments, are present.

3.2 Umístění

Place the mixer on a sturdy, level surface capable of supporting its weight. Ensure adequate clearance around the mixer for ventilation and ease of operation. Avoid placing near heat sources or in direct sunlight.

3.3 Elektrické připojení

Connect the mixer to a dedicated 200-240V, 50/60Hz, 3-phase electrical outlet. A qualified electrician should perform the initial connection to ensure proper grounding and compliance with local electrical codes. Do not use adapters or extension cords.

3.4 Installing the Bowl and Attachments

1. Ensure the mixer is unplugged and the bowl lift is in the lowered position.
2. Place the 30-quart stainless steel mixing bowl onto the bowl support pins and rotate it slightly to lock it into place.
3. Select the desired attachment (e.g., flat beater, wire whip, dough hook).
4. Insert the attachment shaft into the planetary shaft, aligning the pin on the attachment with the slot on the planetary shaft. Rotate the attachment until it locks into place.
5. Raise the bowl using the bowl lift mechanism until it is securely in the mixing position.
6. Ensure the stainless steel bowl guard is closed and latched before operation.

4. Návod k obsluze

4.1 Ovládací panel Overview

The mixer features a simple control panel with a knob for speed selection and a timer. The mixer has three fixed speeds.

• Knoflík pro regulaci rychlosti: Used to select one of the three fixed mixing speeds. Always change speeds only when the mixer is stopped.
• Tlačítka Start/Stop: Initiate and halt mixer operation.
• 15minutový časovač: Sets the desired mixing duration. The mixer will automatically stop when the timer expires.

4.2 Základní obsluha

1. Ensure the mixer is properly set up with the bowl and desired attachment.
2. Přidejte přísady do mixovací nádoby.
3. Raise the bowl to the operating position using the bowl lift.
4. Close the stainless steel bowl guard.
5. Pomocí ovladače rychlosti zvolte požadovanou rychlost.
6. Set the 15-minute timer if a specific mixing duration is required.
7. Stisknutím tlačítka START spusťte míchání.
8. To stop the mixer manually, press the STOP button.
9. After mixing, lower the bowl using the bowl lift and carefully remove the attachment and bowl.

4.3 Using the #12 Taper Attachment Hub

The mixer is equipped with a #12 taper attachment hub for various accessories (e.g., meat grinder, vegetable slicer). To use:

1. Ensure the mixer is OFF and unplugged.
2. Sejměte kryt náboje.
3. Insert the accessory shaft into the hub, aligning the keyway.
4. Tighten the thumbscrew to secure the accessory.
5. Operate the mixer at the recommended speed for the specific accessory.

5. Údržba

Regular cleaning and maintenance will extend the life of your Hobart Legacy Planetary Mixer HL300-1.

5.1 Čištění

• Denní úklid: After each use, unplug the mixer. Remove the bowl and attachments. The stainless steel bowl and attachments are dishwasher safe.
• Otřete vnější povrch mixéru reklamouamp cloth and mild detergent. Do not use abrasive cleaners or immerse the mixer in water.
• Clean the bowl guard thoroughly.
• Ensure all parts are dry before reassembly or next use.

5.2 Obecná péče

• Pravidelně kontrolujte utažení všech šroubů a upevňovacích prvků.
• Inspect the power cord for any signs of damage. If damaged, contact a qualified service technician.
• Do not attempt to lubricate internal components; this should only be done by authorized service personnel.

6. Řešení problémů

This section addresses common issues you might encounter with your mixer. For problems not listed here, contact customer support.

7. Specifikace

Technical specifications for the Hobart Legacy Planetary Mixer HL300-1.

8. Záruka a podpora

For warranty information, please refer to the documentation provided with your purchase or contact Hobart customer service. Keep your purchase receipt as proof of purchase.

For technical assistance, parts, or service, please contact an authorized Hobart service representative. Do not attempt to repair the mixer yourself, as this may void your warranty and pose safety risks.
