LaMotte 3366 Model PM-41 Pool Manager Water Test Kit User Manual

Zavedení

This manual provides comprehensive instructions for the proper use, maintenance, and troubleshooting of the LaMotte 3366 Model PM-41 Pool Manager Water Test Kit. This kit is designed for public pool operators to accurately test water parameters using the precise Octa-Slide Comparator system, ensuring compliance with regulatory standards.

The kit includes diagrammed instructions, a saturation index calculator, a water quality handbook, and an eight-standard Octa-Slide Comparator system for chlorine and pH. All components are housed in a durable, blow-molded carrying case.

Obsah sady

The LaMotte 3366 Model PM-41 Pool Manager Water Test Kit contains the following items:

• Octa-Slide Comparator system for Free Chlorine, Total Chlorine, and pH
• Tablet reagents for 50 tests each of Free Chlorine, Total Chlorine, and pH
• Tablet reagents for 20 tests each of Alkalinity, Hardness, and Cyanuric Acid
• Water Quality Handbook
• Saturation Index Calculator
• Diagrammed Instructions
• Blow-molded carrying case
• Test tubes and water sample láhev

Obrázek: Overview of the LaMotte 3366 Pool Manager Water Test Kit components, including the carrying case, test tubes, reagent tablets, and comparator slides.

Nastavení

Before beginning any water testing, ensure all components are present and in good condition. Familiarize yourself with the diagrammed instructions provided within the kit lid.

1. Open the blow-molded carrying case and verify all reagents and testing apparatus are securely stored.
2. Review the "Jump Start" instructions located on the inside of the case lid for a quick overview of testing procedures.
3. Ensure test tubes and the water sample bottle are clean and free from contaminants. Rinse with distilled water if necessary.

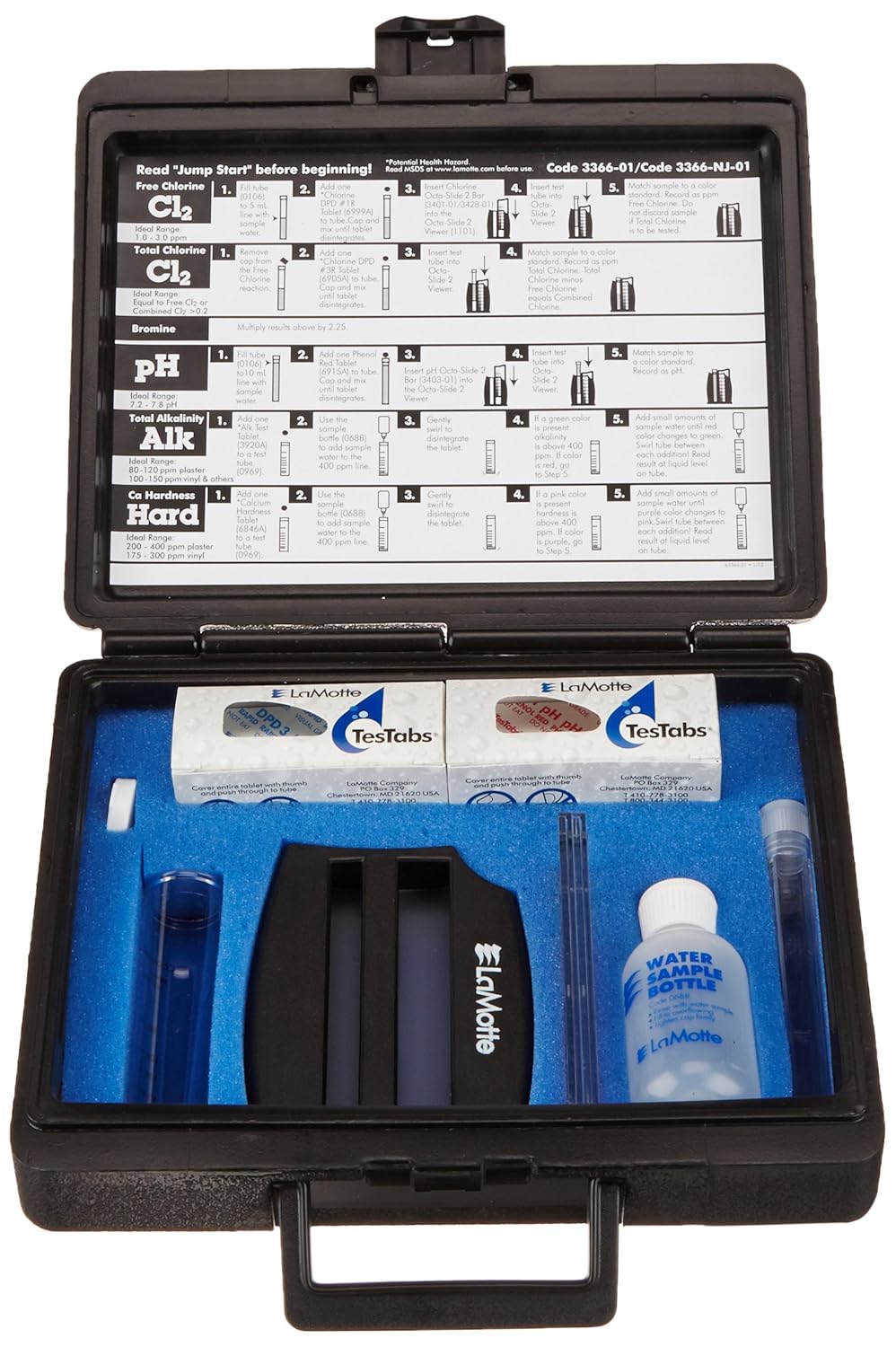

Image: The LaMotte 3366 Pool Manager Water Test Kit opened, showing the internal layout of components and the quick-start instructions printed on the lid.

Návod k obsluze

Follow these steps for accurate water testing using the LaMotte 3366 kit. Always refer to the detailed instructions for each specific test provided within your kit.

Free Chlorine and Total Chlorine Test (DPD Method)

1. Fill a clean test tube to the 10 mL mark with the water sample.
2. Add one DPD #1 tablet for Free Chlorine. Cap and shake until dissolved.
3. Insert the test tube into the Octa-Slide Comparator. Match the color to determine Free Chlorine residual. Record the result.
4. For Total Chlorine, add one DPD #3 tablet to the same sample. Cap and shake until dissolved.
5. Re-insert into the comparator and match the color to determine Total Chlorine residual. Record the result.

pH Test (Phenol Red Method)

1. Fill a clean test tube to the 10 mL mark with the water sample.
2. Add one Phenol Red tablet. Cap and shake until dissolved.
3. Insert the test tube into the Octa-Slide Comparator. Match the color to determine the pH value. Record the result.

Test celkové alkality

1. Fill a clean test tube to the 20 mL mark with the water sample.
2. Add one Alkalinity tablet. Cap and shake until dissolved.
3. Add one drop at a time of the Acid Demand Reagent (if provided, or follow specific tablet instructions), counting drops, until the color changes from blue to yellow.
4. Multiply the number of drops by 10 to get the Total Alkalinity in ppm. Record the result.

Zkouška tvrdosti vápníku

1. Fill a clean test tube to the 20 mL mark with the water sample.
2. Add one Hardness tablet. Cap and shake until dissolved.
3. Add one drop at a time of the Hardness Titrant (if provided, or follow specific tablet instructions), counting drops, until the color changes from red to blue.
4. Multiply the number of drops by 10 to get the Calcium Hardness in ppm. Record the result.

Cyanuric Acid Test

1. Fill a clean test tube to the 10 mL mark with the water sample.
2. Add one Cyanuric Acid tablet. Cap and shake until dissolved.
3. Povolit sample to stand for 2 minutes for full color development.
4. Insert the test tube into the comparator and match the turbidity to determine the Cyanuric Acid level. Record the result.

Údržba

Proper maintenance ensures the longevity and accuracy of your LaMotte test kit.

• Čištění: After each use, thoroughly rinse all test tubes, comparators, and the water sample bottle with distilled or deionized water. Allow them to air dry completely before storing.
• Skladování: Store the kit in its blow-molded carrying case in a cool, dry place away from direct sunlight and extreme temperatures. Ensure all reagent bottles are tightly capped.
• Doba použitelnosti činidla: Reagents have a limited shelf life. Check expiration dates on reagent packaging and replace expired tablets promptly to ensure accurate results.
• Comparator Care: Handle the Octa-Slide Comparator with care. Avoid scratching the color standards. Clean with a soft, damp v případě potřeby hadříkem.

Odstraňování problémů

This section addresses common issues encountered during water testing.

Specifikace

Key specifications for the LaMotte 3366 Model PM-41 Pool Manager Water Test Kit:

• Číslo modelu: 3366
• Značka: LaMotte
• Parametry testu: Free Chlorine, Total Chlorine, pH, Total Alkalinity, Calcium Hardness, Cyanuric Acid
• Reagent Capacity: 50 tests for Free Chlorine, Total Chlorine, pH; 20 tests for Alkalinity, Hardness, Cyanuric Acid
• Comparator Type: Octa-Slide Comparator
• Typ pouzdra: Blow-molded carrying case
• Rozměry balení: Přibližně 10 x 8.39 x 3.03 palce
• Hmotnost položky: Approximately 0.01 ounces (Note: This weight from source may refer to a single component or be a placeholder. Actual kit weight will be higher.)

Záruka a podpora

For information regarding product warranty, technical support, or to order replacement reagents and parts, please contact LaMotte Customer Service directly.

Výrobce: Společnost LaMotte

Please refer to the official LaMotte website or the documentation included with your purchase for the most current contact information and warranty details. Keep your purchase receipt as proof of purchase for warranty claims.
