Zavedení
This manual provides essential information for the proper installation, operation, and maintenance of your MTX Audio 5512-44 5500 Series Subwoofer. The 5512-44 is a 12-inch dual voice coil subwoofer designed to deliver high SPL (Sound Pressure Level) and powerful bass. It features a 400 Watt RMS power handling and a 4 Ohm impedance, making it suitable for various car audio applications. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your subwoofer.
Konec produktuview
Obrázek 1: Přední strana View of the 5512-44 Subwoofer. This image displays the front of the subwoofer, highlighting the durable cone, the red stitching around the surround, and the dual terminal connections for wiring.
Obrázek 2: Zadní View of the 5512-44 Subwoofer. Tento view shows the robust magnet assembly and the radial ribbed t-yoke designed for heat dissipation and reduced distortion.

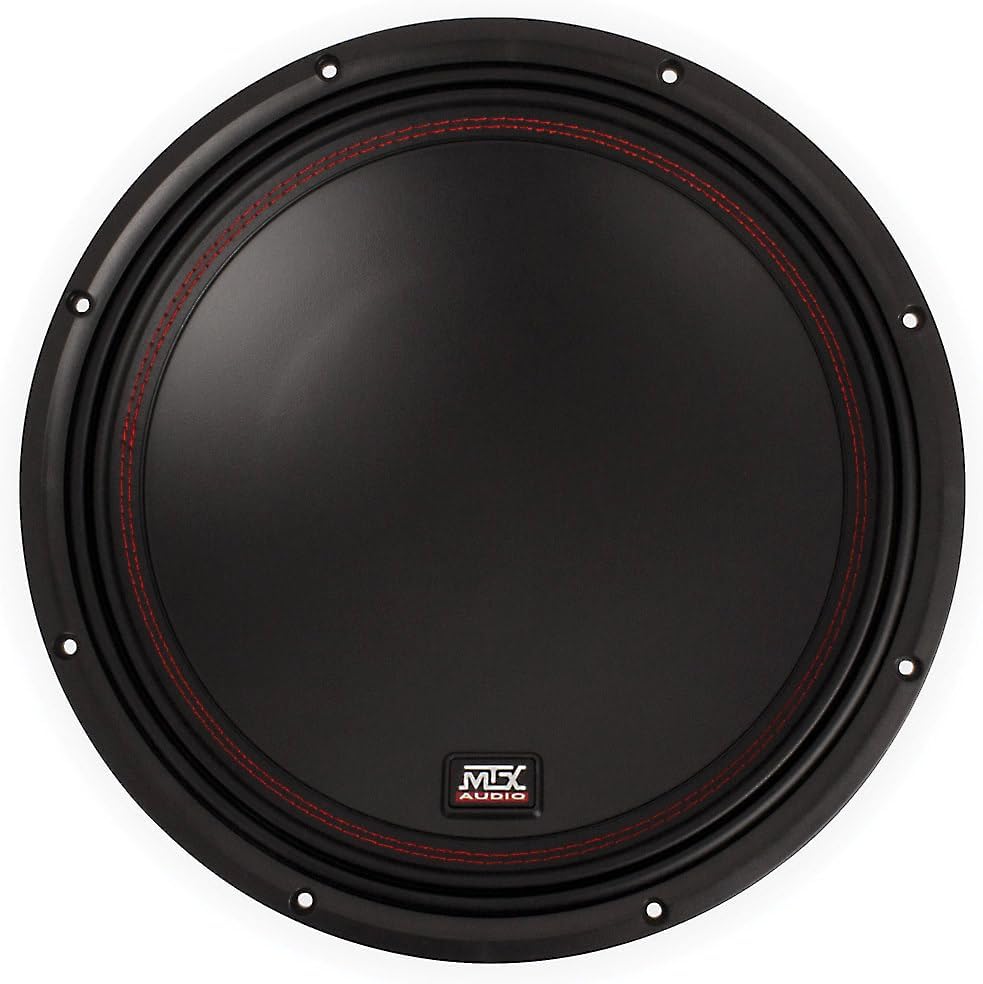

Obrázek 3: Nahoře View of the 5512-44 Subwoofer Cone. This image emphasizes the expanded surface area of the cone and the inverted Apex surround, crucial for increased volume displacement and controlled excursion.
Klíčové komponenty:
- Kužel: The primary radiating surface that moves air to produce sound.
- Prostorový: The flexible ring connecting the cone to the basket, allowing for cone movement. The 5512-44 features an Inverted Apex surround.
- Hlasová cívka: The coil of wire attached to the cone, which interacts with the magnetic field to move the cone. This model uses 2.0" high-temperature voice coils.
- Struktura magnetu: Provides the magnetic field for the voice coil to operate within.
- Basket (Frame): The rigid structure that holds all the components together.
- Terminály: Connection points for amplifier wiring. The 5512-44 has dual 4 Ohm voice coils, requiring specific wiring configurations.
Nastavení a instalace
Správná instalace je klíčová pro výkon a dlouhou životnost vašeho subwooferu. Doporučuje se, aby instalaci provedl kvalifikovaný odborník.
1. Enclosure Recommendations:
The MTX 5512-44 subwoofer is designed to perform optimally in a properly constructed enclosure. Common enclosure types include sealed and ported (vented) enclosures. Consult the MTX Audio website or a car audio specialist for specific enclosure volume and port tuning recommendations for your vehicle and desired sound characteristics.
2. Wiring Configurations:
The 5512-44 features dual 4 Ohm voice coils. This allows for flexible wiring options to match your amplifier's impedance requirements. Below are common configurations:
- Zatížení 1 Ohm (paralelní zapojení): Spojte kladné svorky obou kmitací cívek dohromady a záporné svorky obou kmitací cívek dohromady. Poté připojte tyto kombinované svorky k amplifier. This configuration results in a 1 Ohm load, suitable for ampŽivotnosti stabilní při 1 Ohmu.
- Zatížení 8 ohmů (sériové zapojení): Připojte kladný pól jedné kmitací cívky k zápornému pólu druhé kmitací cívky. Poté připojte zbývající kladný a záporný pól k amplifier. This configuration results in an 8 Ohm load.
Důležité: Vždy se ujistěte, že vaše amplifier is stable at the impedance load you choose. Incorrect wiring can damage your amplifier or subwoofer. Refer to your amplifier's manual for its impedance capabilities.
3. Montáž:
- Ensure the mounting surface is flat and free of obstructions.
- Use the provided mounting screws and ensure they are tightened securely but do not overtighten.
- Verify that there is adequate clearance behind the subwoofer for proper excursion and cooling.
Návod k obsluze
Initial Power-Up and Break-In:
After installation, it is recommended to allow a break-in period for your new subwoofer. During the first 20-30 hours of use, operate the subwoofer at moderate volume levels. This allows the suspension components (surround and spider) to loosen up and reach their optimal compliance, improving long-term performance and reliability.
Ladění audiosystému:
- Nastavení zesílení: Nastavte ampsprávně nastavte zesílení lifieru tak, aby odpovídalo výstupní hlasitostitage of your head unit. An improperly set gain can lead to distortion and potential damage.
- Nízkopropustný filtr (LPF): Use the low-pass filter on your amplifier or head unit to ensure only low frequencies are sent to the subwoofer. A typical LPF setting for subwoofers is between 80Hz and 120Hz, but this can be adjusted based on your system's overall sound.
- Podzvukový filtr: Pokud váš amplifier has a subsonic filter, enable it and set it slightly below the tuning frequency of your ported enclosure (if applicable) to protect the subwoofer from over-excursion at very low frequencies.
- Fázové řízení: Experimentujte s fázovým přepínačem (0° nebo 180°) na vašem amplifier to achieve the best blend with your front speakers and maximize bass impact.
Pozor: Avoid prolonged operation at high distortion levels, as this can cause permanent damage to the subwoofer. If you hear distortion, reduce the volume immediately.
Údržba
The MTX 5512-44 subwoofer requires minimal maintenance to ensure its longevity and performance.
- Čištění: K otření membrány a jejího obložení použijte měkký, suchý hadřík. Nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky.
- Inspekce: Periodically inspect the subwoofer for any signs of damage, such as tears in the surround or cone, loose connections, or unusual noises during operation.
- Prostředí: Ensure the subwoofer is installed in a dry environment, protected from extreme temperatures and direct sunlight.
Odstraňování problémů
If you experience issues with your MTX 5512-44 subwoofer, refer to the table below for common problems and their solutions.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádný zvuk ze subwooferu |
|
|
| Zkreslený zvuk |
|
|
| Slabé nebo tlumené basy |
|
|
If the problem persists after attempting these solutions, please contact MTX Audio customer support or a qualified car audio technician.
Specifikace
| Funkce | Detail |
|---|---|
| Název modelu | 5512-44 |
| Typ reproduktoru | Subwoofer |
| Průměr měniče subwooferu | 12 palce (30.5 cm) |
| RMS Power Handling | 400 wattů |
| Špičkový výkon | 800 wattů |
| Impedance | Dual 4 Ohm Voice Coils |
| Frekvenční odezva | 26 - 130 Hz |
| Citlivost | 85.7 dB |
| Průměr kmitací cívky | 2.0 palců (5.08 cm) |
| Peak Excursion (Xmax) | 1.52 cm |
| Rozměry produktu (D x Š x V) | 6.19 cm x 11.09 cm x 12.34 cm |
| Hmotnost položky | 10.7 libry |
| Zahrnuté komponenty | Subwoofer |
| Výrobce | MTX audio |
Informace o záruce
The MTX Audio 5512-44 Subwoofer comes with a Omezená záruka. This warranty covers defects in materials and workmanship under normal use. The duration and specific terms of the warranty may vary. For complete and up-to-date warranty details, including coverage, exclusions, and how to make a claim, please refer to the official MTX Audio website or contact their customer support directly. Retain your proof of purchase for warranty service.
Podpora
For additional support, technical assistance, or frequently asked questions, please visit the official MTX Audio webmísto:
You may also contact MTX Audio customer service through the contact information provided on their webmísto.
