Mastercool 90413 Adapter 1/4-5/16 Instruction Manual

Zavedení

This instruction manual provides essential information for the safe and effective use of your Mastercool 90413 Adapter. Please read this manual thoroughly before installation and operation to ensure proper function and to prevent damage to the adapter or connected equipment. Retain this manual for future reference.

Bezpečnostní informace

Always observe the following safety precautions when working with refrigeration or automotive systems and tools:

• Používejte vhodné osobní ochranné prostředky (OOP), včetně ochranných brýlí a rukavic.
• Ensure all connections are secure and leak-free before pressurizing any system.
• Do not overtighten connections, as this can damage threads or seals.
• Verify compatibility of the adapter with the specific refrigerants and pressures of your system.
• Keep the adapter clean and free from debris to prevent contamination of refrigeration systems.

Konec produktuview

The Mastercool 90413 Adapter is designed to facilitate connections between refrigeration or HVAC equipment that utilize different sized service ports or hoses. Specifically, it converts a 1/4-inch SAE flare connection to a 5/16-inch SAE flare connection, commonly found in newer R-410A systems. This brass adapter ensures a reliable and leak-proof transition between these two standard sizes.

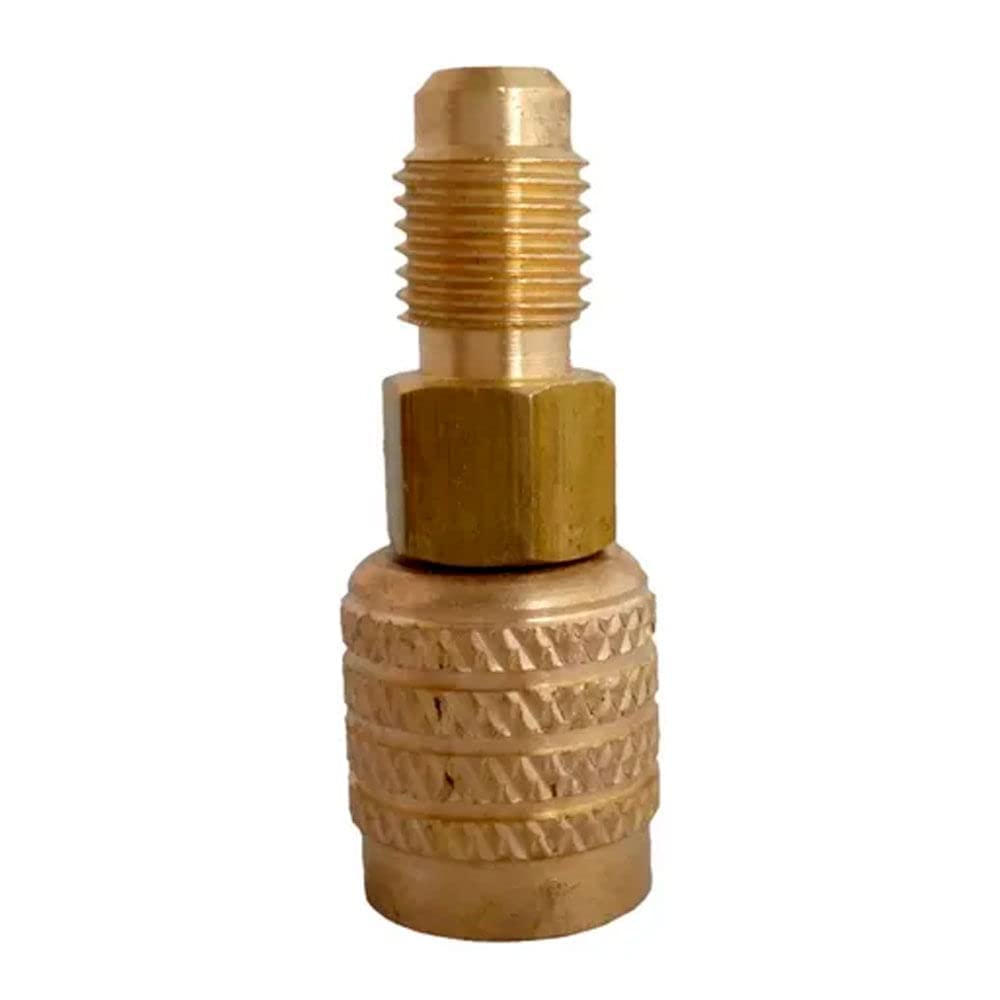

This image displays the Mastercool 90413 Adapter, a precision-machined brass component. It features a 1/4-inch male flare fitting at the top, characterized by its threaded design, and a 5/16-inch female flare fitting at the bottom, which has a knurled grip for easier handling. The adapter is used to bridge connections between refrigeration or HVAC equipment with differing port sizes.

Nastavení

Follow these steps to properly connect the Mastercool 90413 Adapter:

1. Zkontrolujte adaptér: Before each use, visually inspect the adapter for any signs of damage, wear, or debris. Ensure the flare surfaces are clean and free of scratches.
2. Příprava připojení: Ensure the 1/4-inch and 5/16-inch ports or hoses you intend to connect are clean and free of contaminants.
3. Connect 1/4-inch Side: Thread the 1/4-inch male flare end of the adapter onto the corresponding 1/4-inch female port or hose. Hand-tighten first, then use an appropriate wrench to snug it securely. Do not overtighten.
4. Connect 5/16-inch Side: Thread the 5/16-inch female flare end of the adapter onto the corresponding 5/16-inch male port or hose. Hand-tighten first, then use an appropriate wrench to snug it securely. The knurled grip on this end assists with initial hand-tightening.
5. Kontrola těsnosti: After all connections are made, perform a leak check using an approved leak detection method (e.g., soap bubbles, electronic leak detector) before fully operating the system.

Návod k obsluze

Once the Mastercool 90413 Adapter is securely installed and leak-checked, it functions as a passive connector. Its operation is integrated with the overall refrigeration or automotive service procedure you are performing. Ensure that the adapter is not subjected to pressures exceeding the maximum ratings of the connected equipment or the adapter itself.

• Use the adapter only for its intended purpose of connecting 1/4-inch and 5/16-inch SAE flare fittings.
• Monitor system pressures and temperatures during operation as per standard service procedures.
• Avoid applying excessive torque when connecting or disconnecting hoses to the adapter.

Údržba

Proper maintenance extends the life of your Mastercool 90413 Adapter and ensures reliable performance:

• Čištění: After each use, wipe the adapter clean with a dry, lint-free cloth. If necessary, use a mild solvent to remove any residue, ensuring it is completely dry before storage.
• Inspekce: Regularly inspect the threads and flare surfaces for any signs of wear, corrosion, or damage. Damaged adapters should be replaced immediately.
• Skladování: Store the adapter in a clean, dry environment, protected from dust and physical impact. Consider using protective caps for the ends if available.

Odstraňování problémů

If you encounter issues while using the Mastercool 90413 Adapter, consider the following:

• Netěsnosti v místech připojení:
  • Ensure connections are properly tightened.
  • Inspect flare surfaces for damage or debris.
  • Check for damaged O-rings or gaskets in the connected hoses/equipment (if applicable).
• Obtížnost s připojením:
  • Verify that the correct thread sizes (1/4-inch and 5/16-inch) are being matched.
  • Check for cross-threading; ensure the adapter is started straight onto the mating threads.
  • Clean threads of any dirt or burrs.
• Restricted Flow:
  • Ensure the adapter's internal passage is clear of obstructions.

Specifikace

Záruka a podpora

Mastercool products are manufactured to high standards of quality and performance. For specific warranty information or technical support regarding your 90413 Adapter, please refer to the official Mastercool webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi.

Kontaktní informace Mastercoolu:
Please visit the official Mastercool webweb s nejaktuálnějšími kontaktními údaji a zdroji podpory.
