VTech CS6114-11 DECT 6.0 Cordless Phone User Manual

Zavedení

This manual provides instructions for the VTech CS6114-11 DECT 6.0 Cordless Phone. It covers the installation, operation, and maintenance of your new telephone system. The DECT 6.0 digital technology ensures clear communication and enhanced security.

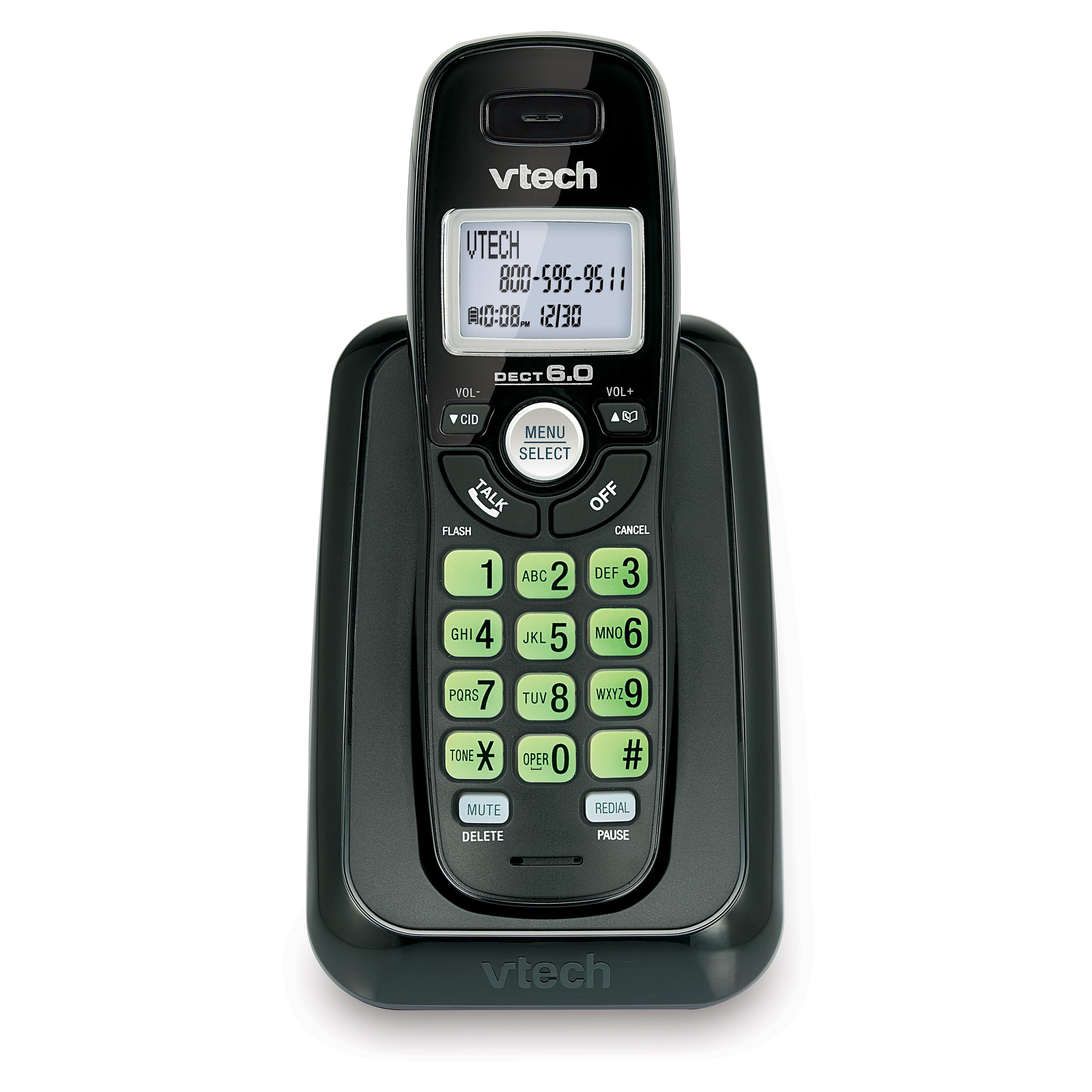

Obrázek: Přední strana view of the VTech CS6114-11 DECT 6.0 Cordless Phone, showing the handset in its charging base.

Nastavení

1. Obsah balení

Ujistěte se, že váš balíček obsahuje následující položky:

• One cordless handset
• One telephone base
• One power adapter for the telephone base
• One telephone line cord
• Two AAA rechargeable batteries
• Tato uživatelská příručka

2. Instalace baterie

Install the provided rechargeable AAA batteries into the handset.

1. Najděte kryt přihrádky na baterie na zadní straně sluchátka.
2. Posuňte kryt dolů a sejměte ho.
3. Insert the two AAA rechargeable batteries, observing the correct polarity (+ and - markings).
4. Nasaďte zpět kryt přihrádky na baterie jeho posunutím nahoru, dokud nezacvakne.

Obrázek: Boční view of the VTech CS6114-11 DECT 6.0 Cordless Phone handset, showing its profile and the charging contacts.

3. Connecting the Telephone Base

1. Plug one end of the telephone line cord into the TEL LINE jack on the back of the telephone base.
2. Zapojte druhý konec telefonního kabelu do telefonní zásuvky ve zdi.
3. Plug the small end of the power adapter into the POWER jack on the back of the telephone base.
4. Zapojte větší konec napájecího adaptéru do elektrické zásuvky, která není ovládána vypínačem ve zdi.

Důležité: Use only the power adapter provided with this product.

4. Nabíjení sluchátka

Place the handset in the telephone base to charge. The handset will begin charging automatically. Allow the handset to charge for at least 12 hours before initial use to ensure optimal battery performance.

5. Initial Handset Setup

After the handset is charged, you may need to set the language, date, and time.

• Jazyk: The phone offers trilingual prompts (English, Spanish, French). Follow the on-screen prompts to select your preferred language.
• Datum a čas: The date and time will typically set automatically with Caller ID service. If not, refer to the "Settings" section under "Operation" to manually adjust.

Operace

Uskutečňování a přijímání hovorů

• Chcete-li zavolat: Stiskněte MLUVITa poté vytočte telefonní číslo.
• Chcete-li přijmout hovor: Stiskněte libovolnou klávesu (kromě VYPNUTO or ZRUŠIT) when the phone rings.
• Ukončení hovoru: Stiskněte VYPNUTO or place the handset back in the telephone base.
• Opakované vytáčení posledního čísla: Stiskněte OPAKOVAT/PAUZA to redial the last 5 numbers called.

ID volajícího a čekající hovor

This phone supports Caller ID and Call Waiting services. A subscription to these services from your telephone service provider is required.

• The handset displays the name, number, time, and date of incoming calls.
• The phone stores up to 30 Caller ID entries.
• A Voicemail Waiting Indicator (icon and text message) on the handset alerts you to new voicemail messages (requires voicemail service from your provider).

Telefonní seznam

The phonebook can store up to 30 names and numbers for quick dialing.

• To add an entry: Stiskněte MENU/SELECT, navigate to Phonebook, then select Add New Entry. Follow the prompts to enter the name and number.
• To dial from phonebook: Stiskněte CID or VOL- to scroll through entries, then press MLUVIT vytočit.

Nastavení sluchátka

• Ovládání hlasitosti: Použijte VOL+ a VOL- buttons on the side of the handset to adjust the earpiece volume during a call.
• Hlasitost vyzvánění: Stiskněte MENU/SELECT, navigate to Ringer Volume, and adjust as desired.
• Podsvícená klávesnice a displej: The keypad and LCD screen illuminate for easier viewv tlumeném světle.
• Nastavení jazyka: To change the display language, press MENU/SELECT, navigate to Settings, then Language.

Digitální technologie DECT 6.0

This phone utilizes DECT 6.0 digital technology, which operates on the latest available frequency band. This technology provides:

• Superior voice and sound quality.
• Enhanced protection against eavesdropping.
• Interference-free communication with other wireless devices.

Údržba

Čištění telefonu

Telefon a základnu čistěte měkkým hadříkemamp cloth. Do not use cleaning sprays or harsh chemicals, as these can damage the finish or electrical components.

Péče o baterie

• Always use the provided rechargeable AAA batteries.
• For optimal performance, keep the handset in the base when not in use to ensure it is fully charged.
• Pokud se sluchátko nebude delší dobu používat, vyjměte baterie, abyste zabránili jejich vytečení.
• Replace batteries when the handset indicates low battery or when talk time significantly decreases.

Odstraňování problémů

Žádný oznamovací tón

• Ensure the telephone line cord is securely plugged into both the telephone base and the wall jack.
• Verify that the power adapter is correctly connected to the telephone base and a working electrical outlet.
• Check if other phones on the same line have a dial tone. If not, contact your telephone service provider.

Poor Sound Quality or Interference

• Přesuňte sluchátko blíže k telefonní základně.
• Avoid placing the telephone base near other electronic devices such as microwaves, Wi-Fi routers, or computers, which can cause interference.
• DECT 6.0 technology minimizes interference, but extreme proximity to other devices can still affect performance.
• Ujistěte se, že jsou baterie sluchátka plně nabité.

Sluchátko se nenabíjí

• Ensure the power adapter is securely plugged into the telephone base and a working electrical outlet.
• Verify that the handset is correctly seated in the charging cradle of the telephone base. The charge indicator on the handset should illuminate.
• Clean the charging contacts on both the handset and the base with a dry cloth.
• The batteries may need replacement if they no longer hold a charge.

Specifikace

Záruka a podpora

Informace o záruce

VTech products are manufactured with high-quality components. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official VTech webwebu. Uschovejte si účtenku jako doklad o koupi.

Zákaznická podpora

If you require assistance with your VTech CS6114-11 Cordless Phone, please visit the VTech support website or contact their customer service line. Contact information can typically be found on the VTech official webmístě nebo na obalu produktu.
