Uživatelská příručka k multifunkční tiskárně Canon PIXMA MX 897 Inkoust

1. Úvod

This manual provides instructions for the Canon PIXMA MX 897 Ink All-in-One Printer. The device integrates print, scan, copy, and fax functionalities, along with network and Wi-Fi capabilities. It features a 3.0-inch LCD screen for user interaction.

Mezi klíčové vlastnosti patří:

• ISO standard print speed (A4): up to 12.5 images per minute (ipm) for monochrome and 9.3 ipm for color.
• Capable of printing a 10 x 15 cm borderless photo in approximately 20 seconds.
• Functions: Print, Scan, Copy, Fax, Networkable, Wi-Fi, and Card Direct.

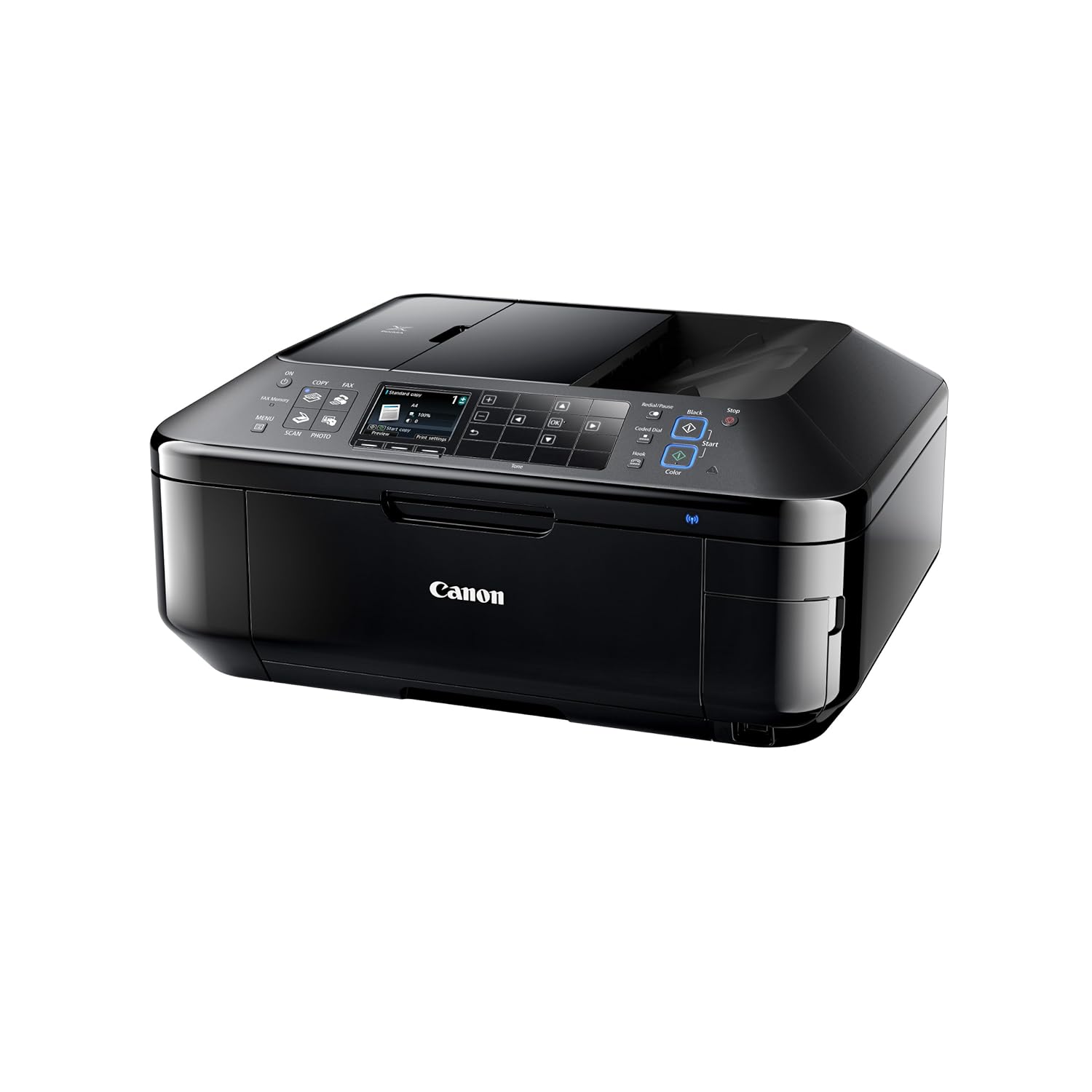

Obrázek 1: Přední strana view of the Canon PIXMA MX 897 All-in-One Printer. This image displays the printer's overall design, including the control panel and paper output tray.

2. Nastavení

Follow these general steps to set up your Canon PIXMA MX 897 printer. Refer to the quick start guide included in the packaging for detailed, step-by-step instructions.

1. Rozbalení: Carefully remove the printer from its packaging and remove all protective materials and tapes.
2. Připojení napájení: Connect the power cord to the printer and then to a power outlet. Turn on the printer.
3. Instalace inkoustové kazety: Open the printer cover and install the compatible ink cartridges (PG740 and CL741) into their designated slots. Ensure they are securely latched.
4. Vkládání papíru: Load appropriate paper (e.g., A4 plain paper or glossy photo paper) into the paper tray. Adjust the paper guides to fit the paper size.
5. Initial Setup on LCD: Follow the on-screen instructions on the 3.0-inch LCD panel to select language, region, and perform print head alignment.
6. Nastavení připojení:
   • Wi-Fi připojení: Navigate to the Wi-Fi setup menu on the LCD panel. Select your wireless network and enter the password.
   • USB připojení: Connect the printer to your computer using a USB cable (not included).
7. Instalace ovladače: Install the printer drivers and software on your computer from the provided CD-ROM or by downloading them from the official Canon webmísto.

3. Návod k obsluze

The Canon PIXMA MX 897 features a dual-function panel and a 3.0-inch LCD screen for intuitive operation across its various functions.

3.1. Ovládací panel Overview

The printer's control panel utilizes an alternating keypad interface on a single touch panel. This design displays only the keys relevant to the specific function currently in use, enhancing user efficiency.

Obrázek 2: Detail view of the Canon PIXMA MX 897 control panel and paper output tray. The image highlights the touch-sensitive buttons and the integrated LCD screen.

3.2. Tisk

To print documents or photos:

1. Ujistěte se, že je tiskárna zapnutá a připojená k počítači nebo síti.
2. Load the desired paper type and size into the paper tray. The printer supports A4 and glossy photo paper.
3. V počítači otevřete dokument nebo obrázek, který chcete vytisknout.
4. Select "Print" from the application's menu. Adjust print settings such as paper size, type, and print quality in the printer driver dialog box.
5. Click "Print" to start the printing process.

The printer offers ISO standard print speeds of up to 12.5 ipm for monochrome and 9.3 ipm for color A4 documents. Borderless 10 x 15 cm photos can be printed in approximately 20 seconds.

Figure 3: The Canon PIXMA MX 897 printer actively printing a document. Paper is visible exiting the output tray, demonstrating the printing function.

3.3. Scanning and Copying

The printer is equipped with a fully integrated Auto Document Feeder (ADF) that can hold up to 35 sheets of regular A4 paper for scanning and copying tasks.

• Snímání: Place documents on the scanner glass or in the ADF. Use the "Scan" function on the control panel or initiate scanning from your computer using the installed software.
• Kopírování: Place documents on the scanner glass or in the ADF. Select "Copy" on the control panel, adjust settings like number of copies or quality, and press the start button.

3.4. Faxing

To send or receive faxes, ensure the printer is connected to a telephone line. Use the "Fax" function on the control panel to dial numbers and manage fax settings.

3.5. PIXMA Cloud Link

The PIXMA Cloud Link feature allows direct access to online content without a computer:

• Online Photo Albums: Print photos directly from supported online photo services.
• Web Šablony: Access and print various stationery templates directly from the Canon server.
• Tisk z Google Cloudu: Tisknout z web-connected devices using Google Cloud Print.

4. Údržba

Pravidelná údržba zajišťuje optimální výkon a dlouhou životnost vaší tiskárny.

4.1. Výměna inkoustové kazety

When an ink cartridge runs low or is empty, a message will appear on the LCD screen. Replace cartridges with genuine Canon PG740 (Black) and CL741 (Color) cartridges. Follow the on-screen instructions or refer to the full manual for detailed replacement steps.

4.2. Čištění

• Vnější: Otřete vnější povrch tiskárny měkkým,amp, hadřík nepouštějící vlákna.
• Interiér: Periodically clean the paper feed rollers and print head using the utility functions available through the printer's control panel or computer software.
• Sklo skeneru: Clean the scanner glass with a soft, lint-free cloth and a non-abrasive glass cleaner to prevent streaks on scanned or copied documents.

4.3. Print Head Alignment and Nozzle Check

If print quality deteriorates (e.g., blurry text, incorrect colors), perform a print head alignment and nozzle check from the printer's maintenance menu to resolve common issues.

5. Řešení problémů

This section addresses common issues you might encounter with your Canon PIXMA MX 897 printer.

5.1. Printer Not Responding

• Zkontrolujte napájení: Ujistěte se, že je tiskárna zapojena a zapnuta.
• Zkontrolujte připojení: Verify that the USB cable is securely connected to both the printer and the computer, or that the Wi-Fi connection is active and stable.
• Printer Status: Check the printer's LCD screen for any error messages.
• Restartujte zařízení: Turn off the printer and computer, then restart them.

5.2. Print Quality Issues

• Low Ink: Check ink levels and replace any empty or low cartridges.
• Ucpání trysky: Perform a nozzle check and print head cleaning from the maintenance menu.
• Zarovnání tiskové hlavy: If prints are misaligned, perform print head alignment.
• Typ papíru: Ensure the correct paper type is selected in the print settings.

5.3. Paper Jams

• Volná cesta: Carefully remove any jammed paper from the paper input tray, output tray, or inside the printer.
• Správné nabití: Ujistěte se, že je papír správně vložen a není přeplněný.
• Paper Condition: Use new, uncreased paper.

5.4. Problémy s připojením k síti

• Router: Ujistěte se, že váš Wi-Fi router je zapnutý a funguje správně.
• Síla signálu: Check the Wi-Fi signal strength on the printer's LCD.
• Překonfigurovat: Re-enter Wi-Fi settings on the printer if necessary.

6. Specifikace

7. Záruka a podpora

7.1. Informace o záruce

The Canon PIXMA MX 897 Ink All-in-One Printer comes with a 2 rok zárukaUschovejte si prosím doklad o koupi pro případ reklamace.

7.2. Zákaznická podpora

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Canon customer support. Refer to the official Canon website or the documentation included with your product for contact details specific to your region.

Mezi další zdroje může patřit:

• Canon Official Support Webmísto (Napřampodkaz, skutečný odkaz se může lišit v závislosti na regionu)
• Online Často kladené otázky a znalostní báze.
• Driver and software downloads.
