Zavedení
The Rane Sixty-Two is a professional two-channel DJ mixer designed for seamless integration with Serato DJ Pro. It offers robust features for live performance, including dual USB ports for easy DJ changeovers, comprehensive software control, and a high-quality internal effects engine. This manual provides essential information for setting up, operating, and maintaining your Rane Sixty-Two mixer.
Klíčové vlastnosti:
- Two-deck digital vinyl simulation
- SP-6 sample player integration
- Bundled with Serato DJ Pro software
- Fully integrated MIDI controller functionality
- Includes 2 each vinyl and CD control discs
- Dual USB ports for connecting two computers simultaneously
- 32-bit floating point audio processing at 48 kHz
- Mic/line input with gain trim and two-band EQ
- Internal Effects Engine with Filter, Flanger, Phaser, Echo, Robot, and Reverb
- Magnetic crossfader and channel faders with reverse and contour controls
Obsah balení
Upon opening the package, please verify that all components are present and in good condition. The Rane Sixty-Two package typically includes:
- Rane Sixty-Two DJ Mixer
- Napájecí kabel
- USB kabely (x2)
- Serato DJ Pro Software License (or download instructions)
- Serato Control Vinyl (x2)
- Serato Control CDs (x2)
- Uživatelská příručka (tento dokument)
Image: The Rane Sixty-Two DJ Mixer is typically shipped in a sturdy brown cardboard box, featuring the Rane logo and shipping information. This image shows the exterior of the product packaging.
Nastavení
Follow these steps to set up your Rane Sixty-Two DJ Mixer for optimal performance.
1. Připojení napájení
Connect the provided power cable to the mixer's power input on the rear panel and then to a suitable electrical outlet. Ensure the power switch is in the OFF position before connecting.
2. Connecting Audio Inputs and Outputs
The Sixty-Two offers a variety of input and output options. Refer to the rear panel diagram below for connection points.
- Hlavní výstup: Připojte se k hlavnímu zvukovému systému nebo amplifier using XLR or 1/4-inch TRS cables.
- Booth Out: Connect to your booth monitor speakers using 1/4-inch TRS cables.
- Session Out/In: Use these RCA connections for linking multiple mixers or recording your set.
- Analog Inputs (Phono/CD): Connect turntables (Phono) or CDJs/line-level devices (CD) to the respective RCA inputs. Use the INPUT SELECT switch to toggle between Phono and CD for each channel.
- FlexFX Loop: Connect external effects units using the Send and Return 1/4-inch TRS jacks.
- Vstup mikrofonu: Connect a microphone to the XLR/TRS combo jack.

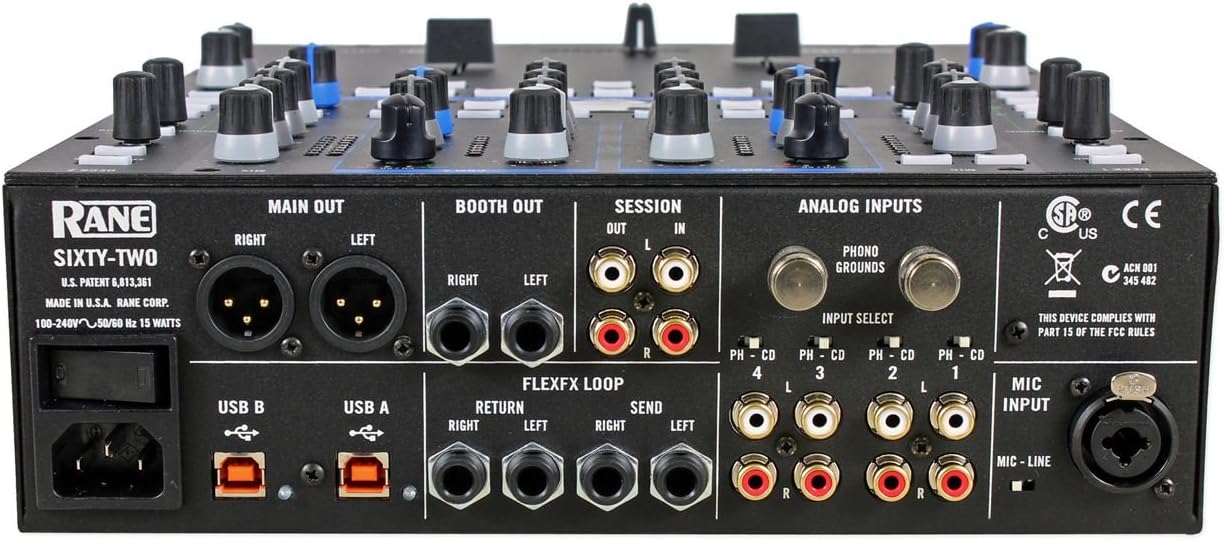

Image: This image displays the rear panel of the Rane Sixty-Two DJ Mixer, highlighting all available input and output ports including Main Out, Booth Out, Session I/O, Analog Inputs (Phono/CD), FlexFX Loop, USB ports, and Mic Input.
3. Připojení USB
The Rane Sixty-Two features two USB ports (USB A and USB B) for connecting to two separate computers simultaneously. This allows for seamless DJ changeovers. Connect a USB cable from either USB port on the mixer to an available USB port on your computer.
4. Software Installation (Serato DJ Pro)
The Rane Sixty-Two is designed to work with Serato DJ Pro. Ensure you have the latest version of Serato DJ Pro installed on your computer. Drivers for the Sixty-Two are typically included with the Serato DJ Pro installation. Visit the official Serato website for software downloads and installation instructions.
Operating Your Rane Sixty-Two
Tato sekce poskytuje přesview ovládacích prvků a základního provozu mixážního pultu.
1. Mixer Layout Overview
The Rane Sixty-Two features a clear and intuitive layout, with controls logically grouped for efficient performance.

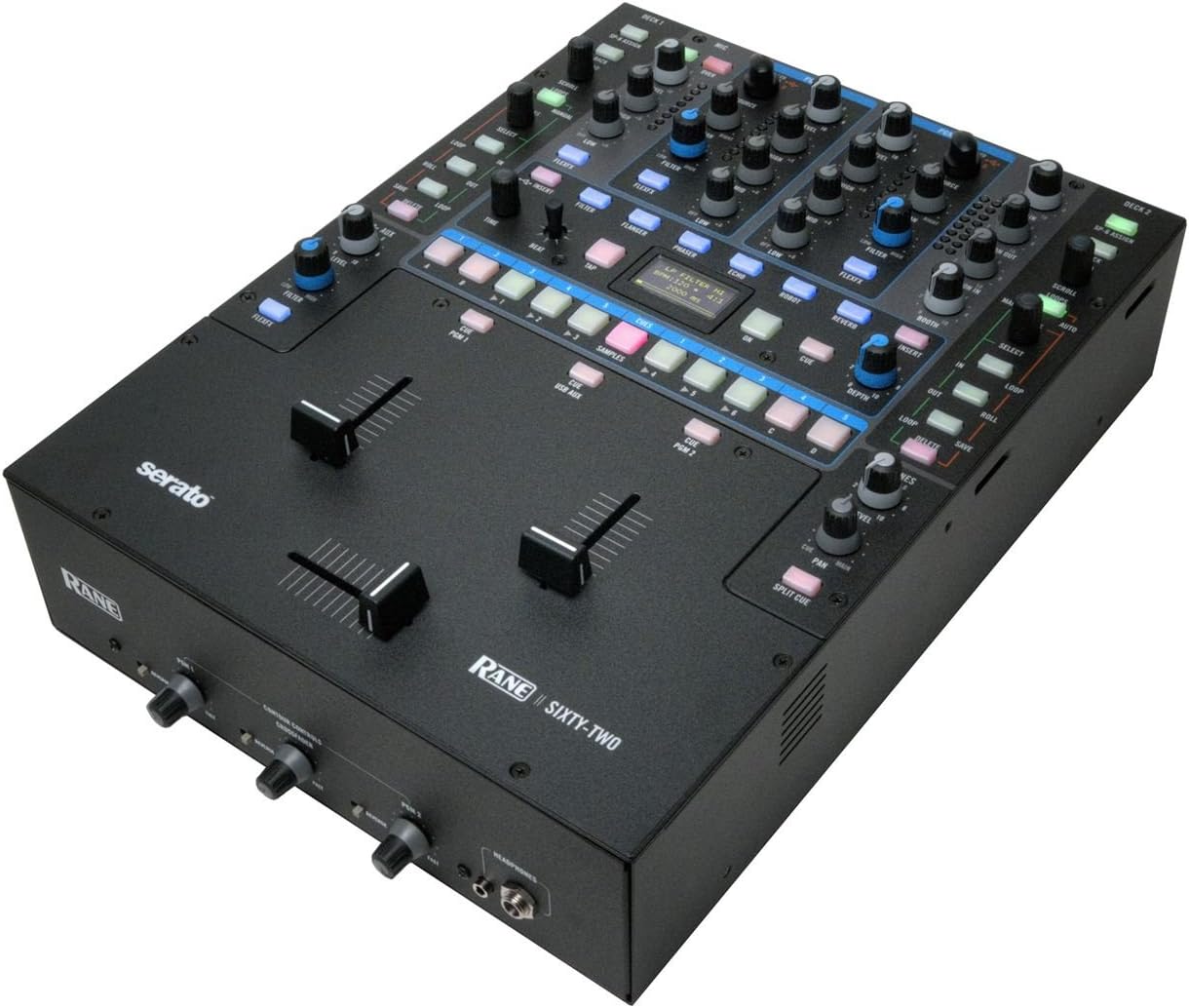

Obrázek: Komplexní pohled shora dolů view of the Rane Sixty-Two DJ Mixer, illustrating the arrangement of its various knobs, buttons, and faders, including the main channels, effects section, and crossfader area.
2. Ovládání kanálů
Each of the two main channels features:
- Knoflík zisku: Adjusts the input level for the channel.
- EQ Knobs (High, Mid, Low): Three-band equalizer for shaping the sound.
- Knoflík filtru: Applies a high-pass or low-pass filter.
- Flex FX Assign Buttons: Routes the channel audio to the internal or external effects loop.
- Tlačítko Cue: Sends the channel audio to the headphone output for monitoring.
- Fader kanálu: Controls the volume of the channel.
3. Crossfader and Faders
The Sixty-Two is equipped with Rane's renowned magnetic faders, known for their durability and smooth performance.
- Crossfader: Blends audio between Channel 1 and Channel 2.
- Zpětný spínač: Reverses the direction of the crossfader.
- Contour Control: Adjusts the curve of the crossfader and channel faders, from sharp cuts to smooth fades.
Obrázek: Přímá fronta view of the Rane Sixty-Two DJ Mixer, focusing on the crossfader, channel faders, and the headphone output section with its dedicated volume controls.
4. Effects Engine
The internal effects engine provides a range of high-quality effects that can be applied to individual channels or the master output.
- Effect Select: Choose from Filter, Flanger, Phaser, Echo, Robot, and Reverb.
- Ovládání parametrů: Adjust specific parameters for each effect (e.g., depth, rate, feedback).
- Klepněte na tlačítko: Manually tap the tempo for time-based effects.
5. Serato DJ Pro Integration
The Sixty-Two offers deep integration with Serato DJ Pro, allowing direct control of software functions from the mixer.
- Library Navigation: Browse your music library directly from the mixer.
- Ovládání smyčky: Create and manipulate loops.
- Cue Points: Nastavení a spouštění startovacích bodů.
- SP-6 Sampler: Control the Serato SP-6 sample přehrávač.
- Softwarový FX: Access and control Serato's internal software effects.
6. Duální porty USB
The dual USB ports are a key feature, enabling two DJs to connect their laptops simultaneously. This facilitates smooth transitions between performers without interrupting the music.
Údržba
Proper maintenance will ensure the longevity and optimal performance of your Rane Sixty-Two mixer.
- Čištění: Regularly wipe the mixer's surface with a soft, dry, lint-free cloth. For stubborn dirt, a slightly damp Lze použít hadřík a ihned osušit. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Péče o fadery: The magnetic faders are designed for high durability. Avoid spilling liquids into the fader slots. If fader performance degrades, consult a qualified service technician.
- Skladování: When not in use, store the mixer in a clean, dry environment, away from direct sunlight, extreme temperatures, and excessive dust. Using a dust cover is recommended.
- Správa kabelů: Ensure all cables are connected securely and are not under undue strain. Avoid sharp bends or kinks in cables.
Odstraňování problémů
If you encounter issues with your Rane Sixty-Two, refer to the following common problems and solutions.
- Žádný zvukový výstup:
- Check all audio cable connections (Main Out, Booth Out) to your sound system/speakers.
- Ensure the Master Volume and Channel Faders are turned up.
- Verify that the correct input source (Phono/CD) is selected for each channel.
- Confirm that Serato DJ Pro is running and audio is routed correctly within the software.
- Serato DJ Pro Not Connecting/Recognizing Mixer:
- Ensure the USB cable is securely connected to both the mixer and your computer.
- Zkuste jiný USB port na počítači nebo jiný USB kabel.
- Restart both the mixer and your computer.
- Verify that the latest Serato DJ Pro software and drivers are installed.
- Check your computer's sound settings to ensure the Rane Sixty-Two is selected as the audio device.
- Zkreslený zvuk:
- Check the Gain levels on each channel and the Master Volume. Ensure no input or output is clipping (indicated by red lights).
- Verify that the correct input type (Phono/CD) is selected for your source. Phono inputs are for turntables, CD inputs are for line-level devices.
- Zkontrolujte audio kabely, zda nejsou poškozené nebo zda nejsou uvolněné.
- Fader Issues (Sticking, Bleeding):
- Ensure no debris has entered the fader slot.
- If issues persist, professional servicing may be required. Do not attempt to disassemble the faders yourself.
Technické specifikace
Below are the key technical specifications for the Rane Sixty-Two DJ Mixer:
| Specifikace | Hodnota |
|---|---|
| Hmotnost položky | 13.5 libry |
| Rozměry produktu | 19.1 x 15.2 x 7.6 palce |
| Číslo modelu položky | Sixty-Two |
| Datum první dostupnosti | 13. února 2012 |
| Kompatibilní zařízení | CDJs, Laptop, Turntables |
| Počítačová platforma | Mac nebo PC |
| Hardwarové rozhraní | USB |
| Podporovaný software | Serato |
| Počet kanálů mixéru | 2 |
| Zdroj napájení | Elektrický kabel |
| Number of Channels (Internal) | 20 (referring to internal audio channels) |
| Technologie připojení | USB |
| Frequency (Sampmník) | 48 kHz |
Informace o záruce
Rane products are manufactured to high standards and come with a limited warranty. The specific terms and duration of the warranty may vary by region and product. Please refer to the warranty card included with your product or visit the official Rane webPodrobné informace o záruce a postupech registrace naleznete na webových stránkách. Uschovejte si doklad o koupi pro případ reklamace.
Zákaznická podpora
For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact Rane customer support. You can find contact information, FAQs, and additional resources on the official Rane webmísto:
