Ground Zero GZIA 4115HPX 4kanálové autorádio Amplifier Uživatelská příručka

1. Úvod

Thank you for choosing the Ground Zero GZIA 4115HPX 4-Channel Car Audio Amplifikátor. Tento amplifier is designed to deliver high-quality audio performance for your vehicle's sound system. This manual provides essential information for the proper installation, operation, and maintenance of your amplifier. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.

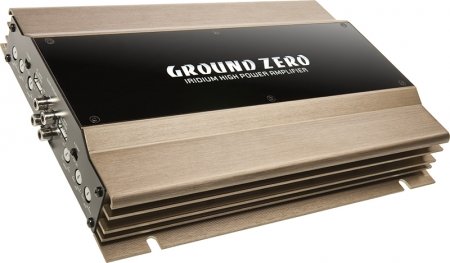

Figure 1: Ground Zero GZIA 4115HPX 4-Channel Car Audio Amplifier. This image displays the external casing z amplifier, highlighting its compact design and heat sink fins.

2. Bezpečnostní pokyny

Důležité bezpečnostní informace: Improper installation or use can lead to serious injury, damage to the amplifier, or damage to your vehicle.

• Před zahájením jakýchkoli elektrických prací vždy odpojte záporný pól baterie vozidla.
• Ensure all wiring is properly routed and secured to prevent pinching, chafing, or short circuits.
• Use appropriate gauge wiring for power, ground, and speaker connections as recommended by the manufacturer.
• Install a fuse or circuit breaker on the main power wire as close to the battery as possible.
• Vyhněte se montáži ampUchovávejte zařízení na místech vystavených přímému slunečnímu záření, nadměrnému teplu, vlhkosti nebo prachu.
• Neobsluhujte amplifier if it is damaged or malfunctioning. Seek professional assistance.
• Udržujte amplifier's ventilation areas clear to prevent overheating.

3. Nastavení a instalace

Správná instalace je klíčová pro výkon a dlouhou životnost vašeho ampPokud si nejste jisti některou částí instalačního procesu, poraďte se s profesionálním instalatérem autorádií.

3.1 Vybalení

Opatrně vyjměte amplifier from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. Retain the packaging for future transport or service needs.

3.2 Montáž

The GZIA 4115HPX amplifier is designed for surface mount installation. Choose a mounting location that is:

• Secure and stable, preventing vibration.
• Dobře větrané pro zajištění správného odvodu tepla.
• Protected from moisture and direct sunlight.
• Přístupný pro zapojení a nastavení.

Use the provided mounting screws to secure the amplifier to a solid surface in your vehicle. Ensure no existing wiring, fuel lines, or brake lines are damaged during drilling.

3.3 Zapojení kabeláže

Refer to the connection diagrams below for proper wiring. All connections should be tight and secure to prevent signal loss or electrical issues.

3.3.1 Power and Ground Wiring

• Výkon (B+): Connect a suitable gauge power cable directly from the positive terminal of the vehicle's battery to the amplifier's B+ terminal. Install an inline fuse (not included) within 18 inches (45 cm) of the battery.
• Zem (GND): Connect a suitable gauge ground cable from the amplifier's GND terminal to a clean, unpainted metal surface of the vehicle's chassis. Ensure a good electrical connection. The ground cable should be as short as possible.
• Dálkové ovládání (REM): Připojte kabel pro dálkové zapnutí z výstupu dálkového ovládání hlavní jednotky k ampsvorku REM záchranného zařízení. Tento vodič zapíná ampzapínání a vypínání zařízení Lifetimer pomocí hlavní jednotky.

3.3.2 Zapojení reproduktorů

The GZIA 4115HPX is a 4-channel amplifier. Connect your speakers to the corresponding speaker output terminals (CH1, CH2, CH3, CH4). Ensure correct polarity (+ to + and - to -) for each speaker.

• For stereo operation, connect one speaker per channel.
• For bridged operation (e.g., for a subwoofer), refer to the specific bridging instructions on the amplifier or in a detailed wiring diagram.

3.3.3 RCA Input Connections

Připojte kabely RCA z předzesilovače hlavní jednotkyamp výstupy do amplifier's RCA input jacks (INPUT CH1/2, INPUT CH3/4).

Obrázek 2: Vnitřní view of the Ground Zero GZIA 4115HPX amplifier's circuit board. This image shows the internal components, including capacitors, resistors, and the transformer, which are responsible for audio processing and power delivery.

Figure 3: Detailed internal view of the Ground Zero GZIA 4115HPX amplifier. This image provides a closer look at the power supply section and output stage components, indicating the amplifier's robust construction.

3.4 Počáteční úpravy

Before powering on, ensure all connections are correct and secure.

• Gain Control: Set the gain controls (LEVEL) on the amplifier to their minimum position.
• Nastavení přechodu: Pokud váš amplifier has built-in crossovers (HPF/LPF), set them according to your speaker type. For full-range speakers, you might use the HPF (High Pass Filter) to protect them from low frequencies. For subwoofers, use the LPF (Low Pass Filter).

4. Obsluha Ampdoživotní

Po instalaci, amplifier will turn on automatically with your head unit via the remote wire.

4.1 Setting Gain Levels

The gain control is not a volume knob; it matches the output voltage of your head unit to the input sensitivity of the ampživější.

1. Turn your head unit volume to about 75-80% of its maximum.
2. Pomalu zvyšujte ampOvládejte zesílení na lifieru, dokud neuslyšíte mírné zkreslení, poté jej mírně snižte, dokud nebude zvuk čistý.
3. Repeat for all channels if independent gain controls are present.

4.2 Adjusting Crossovers and Bass Boost

• Vysokopropustný filtr (HPF): Used for full-range speakers to block low frequencies that they cannot reproduce effectively. Adjust to protect speakers and improve clarity.
• Nízkopropustný filtr (LPF): Used for subwoofers to allow only low frequencies to pass through. Adjust to blend with your main speakers.
• Zesílení basů: Use sparingly. Excessive bass boost can lead to distortion and potential damage to speakers or the amplifier. Adjust to enhance low-frequency response as desired, but avoid overdriving the system.

5. Údržba

The Ground Zero GZIA 4115HPX ampZáchranný ventil vyžaduje minimální údržbu.

• Čištění: Periodically wipe the exterior of the amplifier with a soft, dry cloth to remove dust. Do not use harsh chemicals or abrasive cleaners.
• Větrání: Ujistěte se, že amplifier's heat sink fins and surrounding area remain free of obstructions to allow for proper airflow and cooling.
• Kontrola připojení: Occasionally check all power, ground, remote, and speaker connections to ensure they remain tight and free of corrosion.

6. Řešení problémů

Pokud máte problémy s vaším ampPokud používáte záchranný pás, před kontaktováním podpory si přečtěte následujícího průvodce řešením problémů.

7. Specifikace

The following are the technical specifications for the Ground Zero GZIA 4115HPX 4-Channel Car Audio Ampživější:

8. Informace o záruce

Ground Zero products are designed and manufactured to the highest quality standards. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Ground Zero webUschovejte si doklad o koupi pro případné reklamace.

9. Zákaznická podpora

If you require further assistance or have questions not covered in this manual, please contact Ground Zero customer support or your authorized dealer. Contact information can typically be found on the official Ground Zero webmísto.
