Duravit D-Code 07053600092 Handrise Basin Návod k použití

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your Duravit D-Code 07053600092 Handrise BasinPřed zahájením instalace si pečlivě přečtěte všechny pokyny a uschovejte si tento návod pro budoucí použití.

Bezpečnostní informace

Během instalace a používání dodržujte následující bezpečnostní opatření:

• Před zahájením instalace se ujistěte, že jsou všechny přívody vody uzavřeny.
• Používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochrana očí.
• Handle ceramic products with care to prevent chipping or breakage.
• Pokud si nejste jisti některou částí instalace, poraďte se s kvalifikovaným instalatérem.
• Do not use abrasive cleaners or harsh chemicals on the basin povrch.

Obsah balení

Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:

• Duravit D-Code Handrise Basin (Model: 07053600092)
• Fixings (Included)
• Hardware (součástí balení)
• Installation Template (if applicable, check packaging)

Nastavení a instalace

This section outlines the steps for properly installing your handrise basin. Ensure you have all necessary tools and materials before proceeding.

Kontroly před instalací

• Inspect the basin for any damage prior to installation. Do not install damaged products.
• Confirm that the wall structure is adequate to support the weight of the basin and any associated plumbing.
• Ensure water supply and drainage connections are correctly positioned according to local plumbing codes.

Mounting the Basin

1. Determine the desired mounting height for the basin. The typical height for the top rim of a basin is 80-85 cm (31.5-33.5 inches) from the finished floor.
2. Mark the positions for the mounting bolts on the wall using the provided template or by carefully measuring the basin's fixing points.
3. Drill holes at the marked positions, ensuring they are appropriate for the supplied fixings.
4. Insert the wall plugs (if provided) and secure the mounting bolts into the wall. Ensure they are firmly anchored.
5. Carefully lift the basin and align the mounting holes on the basin with the bolts protruding from the wall.
6. Posuňte basin onto the bolts. Install washers and nuts, then tighten them securely but do not overtighten, as this can crack the ceramic.
7. Connect the water supply lines to the faucet (not included) and the drain assembly to the basin. Ensure all connections are watertight.
8. Apply a bead of silicone sealant around the back edge of the basin where it meets the wall to prevent water ingress.

Obrázek 1: Shora dolů view with key dimensions for the Duravit D-Code Handrise Basin. Dimensions include 345mm width, 360mm total width, 270mm depth, and 130mm from the back edge to the center of the tap hole.

Obrázek 2: Strana view with key dimensions for the Duravit D-Code Handrise Basin. Dimensions include 160mm tap platform width, 45mm from back edge to basin rim, 130mm basin depth, 850mm recommended total height from floor, and specific measurements for mounting points (655mm, 605mm) and drain center (120mm).

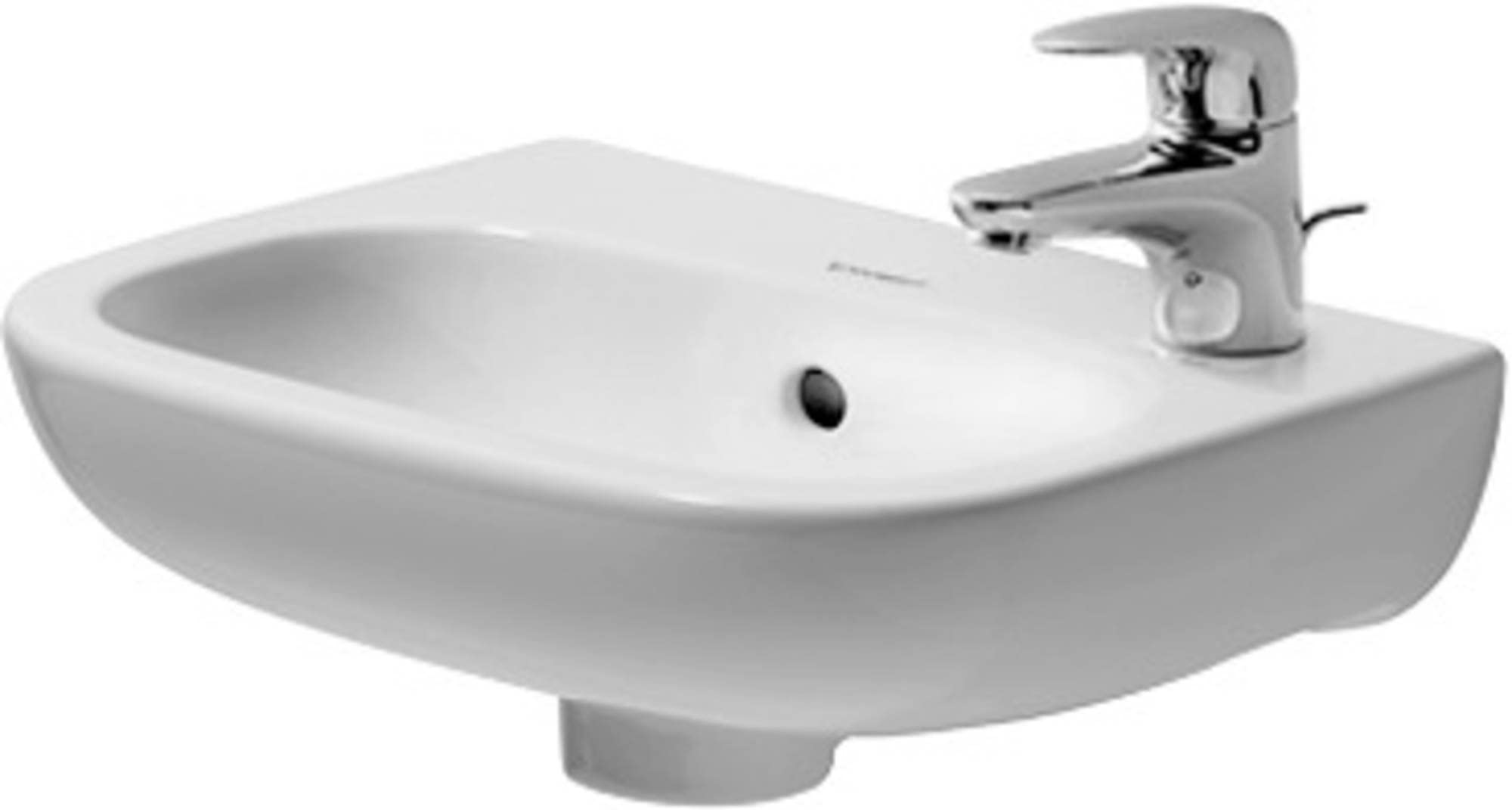

Figure 3: Duravit D-Code 14 1/8" Handrise Basin, Alpine White, showcasing its design and tap platform.

Návod k obsluze

The Duravit D-Code Handrise Basin is designed for standard bathroom use. Operate the faucet (not included) as per its manufacturer's instructions to control water flow and temperature. The basin features a tap platform and a left hole tapping for faucet installation.

Údržba

Proper care will ensure the longevity and appearance of your Duravit basin.

• Čištění: Wipe with a dry cloth after each use to prevent water spots and mineral buildup. For deeper cleaning, use a mild, non-abrasive cleaner and a soft cloth. Rinse thoroughly with water and dry.
• Vyhněte se: Do not use abrasive powders, scouring pads, strong acids, or alkaline cleaners, as these can damage the ceramic surface.
• Vypouštění: Regularly clean the drain area to prevent blockages.

Odstraňování problémů

Pokud narazíte na problémy, podívejte se na následující běžná řešení:

• Leaking around connections: Check all plumbing connections for tightness. Ensure thread sealant or plumber's tape was used correctly.
• Pomalé odvodnění: The drain may be partially clogged. Remove the drain stopper and clear any debris. If the issue persists, a plumber may be required.
• Water spots/stains: Refer to the cleaning instructions in the Maintenance section. Persistent hard water stains may require specialized ceramic cleaner.

Specifikace

Záruka a podpora

For warranty information or technical support, please refer to the official Duravit webwebu nebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi.

Online podpora: www.duravit.us
