Zavedení
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your KOSHIN SEV-50X Petrol Water Pump. Koshin Ltd., founded in 1948 in Kyoto, Japan, is a renowned manufacturer known for high-quality and high-performance pumps. The SEV-50X is a self-priming 2-inch petrol engine pump designed for service water applications, capable of handling solid particles up to 3 mm.
Figure 1: KOSHIN SEV-50X Petrol Water Pump. This image shows the compact design of the pump with its sturdy tubular frame, engine, and pump housing.
Bezpečnostní informace
Always prioritize safety when operating any machinery. Read and understand all safety warnings before use. Failure to follow these instructions may result in serious injury or property damage.
- Manipulace s palivem: Petrol is highly flammable. Always refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the pump.
- Výfukové plyny: The engine produces carbon monoxide, a colorless, odorless, poisonous gas. Operate the pump only in open, well-ventilated areas. Never operate indoors.
- Horké povrchy: The engine and pump components become very hot during operation. Avoid contact with hot surfaces to prevent burns. Allow the pump to cool before handling or servicing.
- Pohyblivé části: Keep hands, feet, and clothing away from moving parts such as the pull starter and any rotating components.
- Elektrická bezpečnost: While this is a petrol pump, ensure no electrical connections are exposed to water.
- Stabilní umístění: Čerpadlo vždy provozujte na stabilním a rovném povrchu, aby se nepřevrátilo.
- Osobní ochranné prostředky (OOP): Wear appropriate PPE, including eye protection and gloves, when operating or servicing the pump.
Nastavení
- Vybalení a kontrola: Carefully remove the pump from its packaging. Inspect for any shipping damage. Ensure all standard accessories are present: 1 engine tool, 2 hose couplings, 3 hose clamps, and 1 filter (2-inch suction basket).
- Přidejte motorový olej: Locate the oil filling screw. Fill the engine with the recommended 4-stroke engine oil (refer to engine manual for specific type and quantity) until the correct level is reached. The pump features oil deficiency protection, which will prevent operation if oil is too low.
- Přidat palivo: The pump operates on petrol. Locate the 3.6 L fuel tank. Fill the tank with fresh, clean petrol. Do not overfill. Securely close the fuel cap.
- Připojte hadice:
- Sací hadice: Attach a 2-inch suction hose to the suction connection of the pump using a hose coupling and clamp. Ensure the suction basket filter is attached to the end of the suction hose that will be submerged in the water source. Ensure all connections are airtight to prevent air leaks, which can affect priming.
- Vypouštěcí hadice: Attach a 2-inch discharge hose to the pressure connection of the pump using a hose coupling and clamp. Direct the discharge hose to where the water needs to be moved.
- Naplňte čerpadlo: The SEV-50X is a self-priming pump, but it requires initial priming. Locate the water filling nozzle on the pump casing. Remove the cap and fill the pump casing completely with water before starting the engine. Replace the cap securely.
- Umístění: Place the pump on a firm, level surface near the water source. Ensure the suction height does not exceed 8 meters for optimal performance.

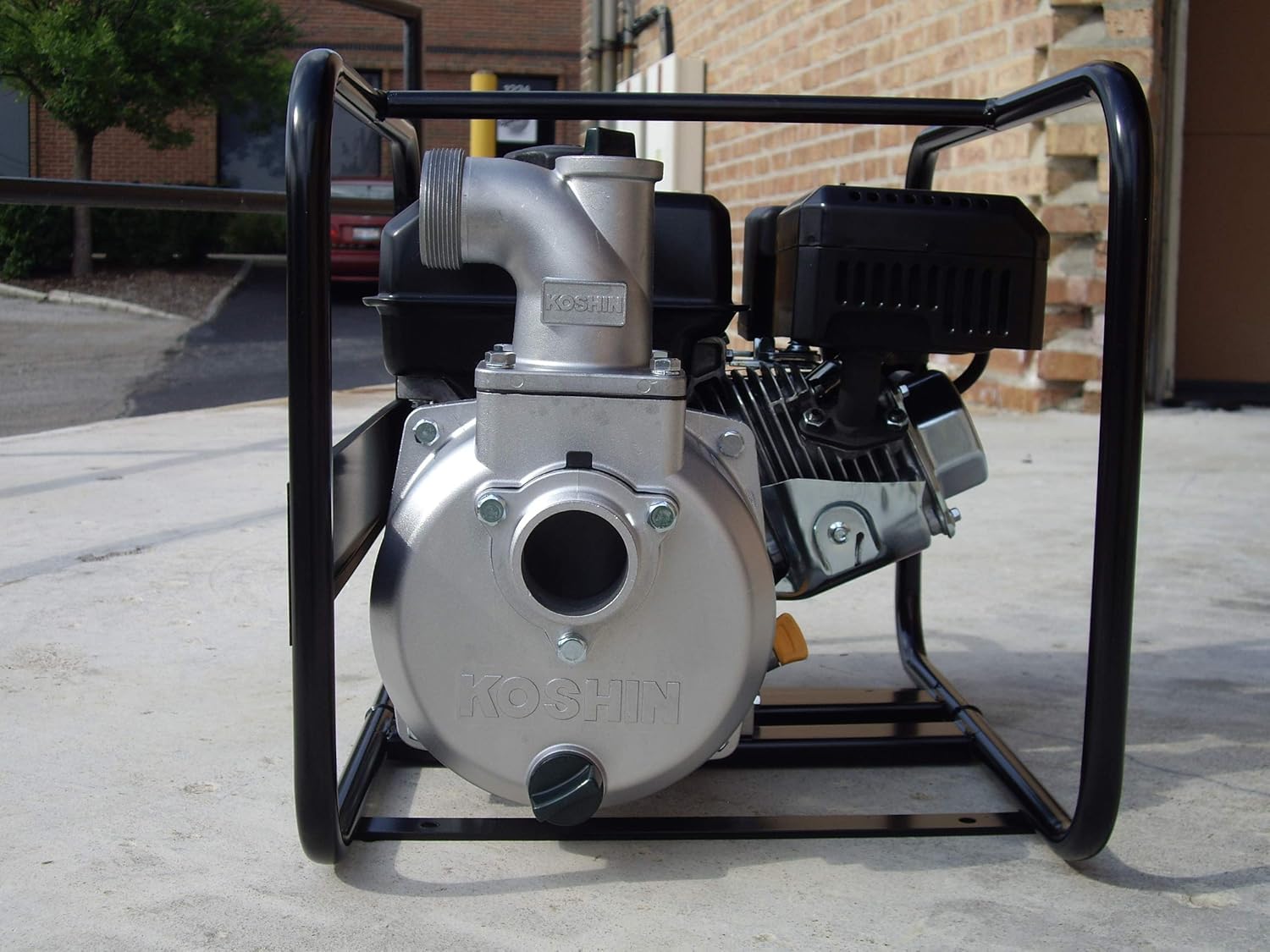

Obrázek 2: Strana view of the KOSHIN SEV-50X pump, showing the robust tubular frame and pump connections. Note the suction and discharge ports, and the oil and water filling points.
Operace
- Předstartovní kontroly: Before each use, verify engine oil level, fuel level, and ensure all hose connections are secure and airtight. Confirm the pump casing is filled with water for priming.
- Startování motoru:
- Open the fuel valve (if applicable).
- Set the choke lever to the "CHOKE" position (for cold starts).
- Set the engine switch to "ON".
- Pevně a plynule táhněte za startovací lanko, dokud motor nenaskočí.
- Jakmile motor nastartuje, postupně přesuňte páčku sytiče do polohy „RUN“.
- Provoz čerpání: Once the engine is running, the pump will begin to draw water. Monitor the flow rate and ensure consistent operation. The pump has an operating time of approximately 2 hours on a full 3.6 L tank.
- Vypínání:
- If possible, allow the engine to idle for a few minutes to cool down.
- Set the engine switch to "OFF".
- Close the fuel valve (if applicable).
Údržba
Regular maintenance ensures the longevity and optimal performance of your KOSHIN SEV-50X pump.
- Po každém použití:
- Vypusťte veškerou zbývající vodu z čerpadla casing using the water drain screw to prevent freezing or corrosion.
- Clean the suction basket filter to ensure unrestricted water flow.
- Wipe down the exterior of the pump to remove dirt and debris.
- Motorový olej: Check the engine oil level before each use. Change the engine oil according to the engine manufacturer's recommendations (typically after the first 20 hours, then every 50-100 hours of operation).
- Vzduchový filtr: Pravidelně kontrolujte a čistěte vzduchový filtr. Pokud je poškozený, vyměňte ho.
- Zapalovací svíčka: Inspect the spark plug periodically and clean or replace as needed.
- Palivový systém: If storing the pump for an extended period, drain the fuel tank and carburetor to prevent fuel degradation issues.
- Generální inspekce: Periodically check all nuts, bolts, and fasteners for tightness. Inspect hoses for cracks or wear.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Motor nestartuje | No fuel; Engine switch OFF; Low oil level; Choke incorrect; Fouled spark plug | Add fuel; Turn switch ON; Add oil; Adjust choke; Clean/replace spark plug |
| Pump does not prime / No water flow | Čerpadlo casing not filled; Air leak in suction hose; Suction hose clogged; Suction height too high | Naplňovací čerpadlo casing; Check/tighten all suction connections; Clear obstruction; Reduce suction height (max 8m) |
| Nízký průtok vody / Nízký tlak | Clogged filter; Partial air leak; Worn impeller/seals | Clean filter; Check all connections; Contact service for inspection |
| Nadměrné vibrace | Unstable surface; Loose components | Place on level surface; Check and tighten all fasteners |
Technické specifikace
| Funkce | Detail |
|---|---|
| Model | SEV-50X |
| Číslo dílu | SEV50XBAE |
| Typ motoru | KOSHIN K180 4-stroke petrol engine, air-cooled |
| Zdvihový objem motoru | 179 ccm |
| Výkon motoru | 3.1 kW (4.2 HP) při 3600 XNUMX ot./min |
| Průtok (max.) | 37 m³/h = 620 L/min |
| Discharge Head (Max) | 25 m (82 stop) |
| Suction Height (Max) | 8 m (26 stop) |
| Typ paliva | Benzín |
| Kapacita nádrže | 3.6 l |
| Provozní doba (plná nádrž) | Přibl. 2 hodin |
| Připojení sání | 2 palců |
| Tlakové připojení | 2 palců |
| Max Solid Particle Size | 3 mm |
| Materiál pouzdra čerpadla | Aluminium die-cast |
| Rozměry (D x Š x V) | 514 x 410 x 426 mm (20.2 x 16.1 x 16.8 palce) |
| Hmotnost | 24.2 kg (53.4 lb) |
| Barva | Černobílý |
Standardní příslušenství
- 1 x Engine Tool
- 2 x Hose Couplings
- 3 x Hadice Clamps
- 1 x Filter (2-inch suction basket)

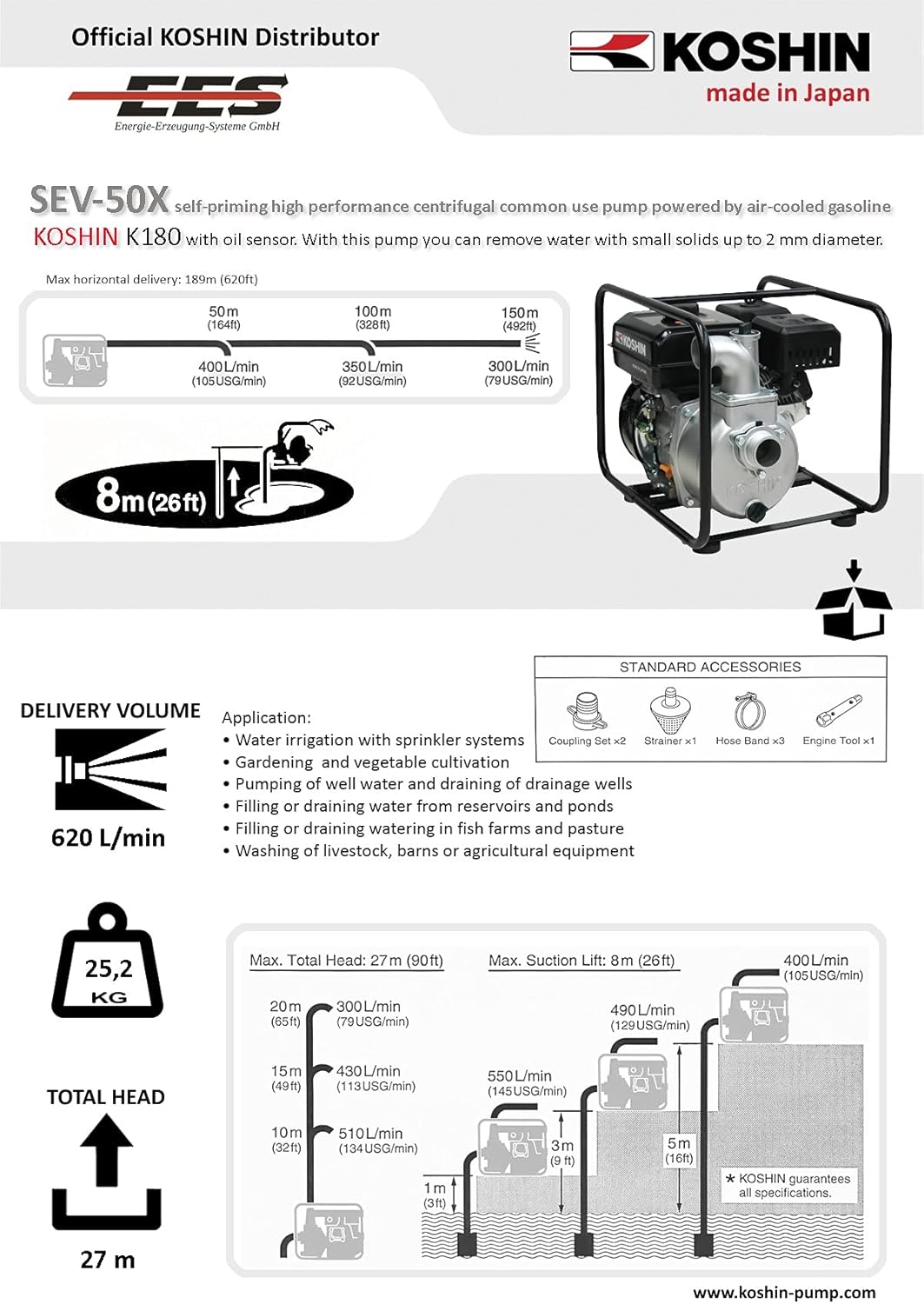

Figure 3: Performance diagram for KOSHIN SEV-50X, illustrating delivery volume, total head, and suction lift capabilities. This diagram also shows standard accessories.
Figure 4: Detailed specifications and performance curve for KOSHIN SEV-50X, providing comprehensive technical data and graphical representation of pump performance.
Záruka a podpora
KOSHIN Ltd. is committed to the quality of its products. Information regarding the specific warranty period for your SEV-50X pump should be available with your purchase documentation or from your authorized dealer. KOSHIN ensures EU spare part availability for a duration of 25 years.
For technical support, spare parts, or service inquiries, please contact your authorized KOSHIN dealer or visit the official KOSHIN webstránky pro kontaktní informace.
Official KOSHIN Webmísto: www.koshin-pump.com
