Craftmade 4565UF Triple Capacitor Instruction Manual

1. Úvod

This instruction manual provides essential information for the safe and correct installation, operation, and maintenance of your Craftmade 4565UF Triple Capacitor. This component is designed as a replacement part for ceiling fans, facilitating proper motor function and speed control. Please read this manual thoroughly before attempting any installation or repair.

2. Bezpečnostní informace

VAROVÁNÍ: Electrical shock hazard. Always disconnect power at the circuit breaker or fuse box before installing, servicing, or cleaning the ceiling fan or its components. Failure to do so can result in serious injury or death.

• Installation should be performed by a qualified electrician or a person with experience in electrical wiring.
• Ujistěte se, že všechny kabelové spoje jsou bezpečné a řádně izolované.
• Verify that the replacement capacitor matches the specifications of the original capacitor to ensure compatibility and safe operation.
• Do not use this capacitor for purposes other than its intended application in ceiling fans.
• Keep the capacitor dry and away from moisture.

3. Konec produktuview

The Craftmade 4565UF is a triple capacitor designed for use in ceiling fan applications. Capacitors are crucial components in ceiling fans, responsible for storing electrical energy and releasing it to create a phase shift in the motor windings, which is necessary for starting the motor and controlling its speed. A triple capacitor typically combines multiple capacitance values within a single unit to manage different fan speeds (e.g., high, medium, low) and sometimes the fan's light function.

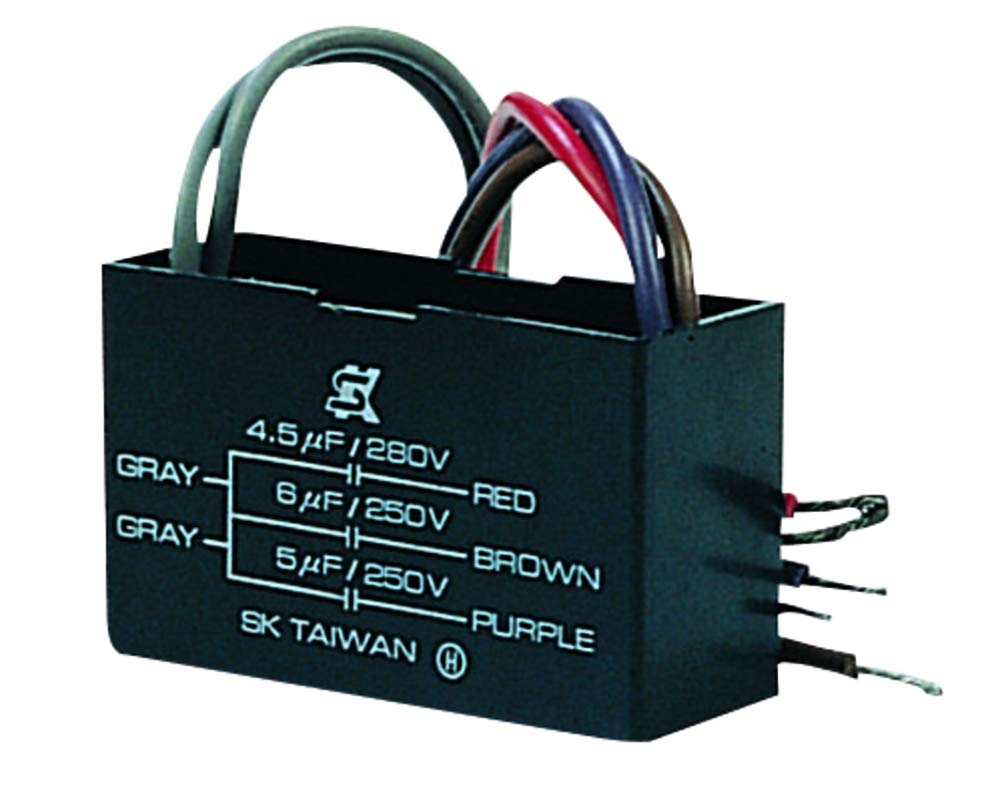

Image 1: Craftmade 4565UF Triple Capacitor. This image shows the black rectangular body of the capacitor with several colored wires extending from one end, indicating its multiple connections for a ceiling fan.

This capacitor is UL certified, ensuring it meets specific safety and quality standards.

4. Nastavení a instalace

This section outlines the general steps for replacing a ceiling fan capacitor. Specific wiring configurations may vary by fan model. Always refer to your ceiling fan's original instruction manual for precise wiring diagrams.

1. Odpojit napájení: Before beginning, ensure the power to the ceiling fan is completely turned off at the circuit breaker. Test with a voltagtesterem, abyste se ujistili, že není přivedeno napájení.
2. Access Fan Housing: Carefully lower the fan's canopy or light kit to expose the wiring compartment where the existing capacitor is located.
3. Identify Existing Capacitor: Locate the old capacitor. Note its physical appearance, number of wires, and wire colors. It is highly recommended to take a photograph of the existing wiring connections before disconnecting anything.
4. Disconnect Old Capacitor: Carefully disconnect the wires from the old capacitor, one by one, matching them to the new capacitor's wires. If the new capacitor has different wire colors, consult a wiring diagram or a professional. Typically, capacitors have a common wire (often grey or black) and several colored wires corresponding to different capacitance values (e.g., brown, purple, red for fan speeds, and sometimes a separate wire for the light).
5. Connect New Capacitor: Connect the wires from the Craftmade 4565UF Triple Capacitor to the corresponding wires in the ceiling fan. Use appropriate wire connectors (e.g., wire nuts) and ensure all connections are tight and secure. Double-check all connections against your photograph or wiring diagram.
6. Secure Capacitor: Place the new capacitor securely within the fan's housing, ensuring it does not interfere with any moving parts.
7. Znovu sestavte ventilátor: Carefully reattach the fan's canopy or light kit.
8. Obnovit napájení: Turn the power back on at the circuit breaker and test the fan's operation at all speeds and light functions.

Note: The Craftmade 4565UF is a triple capacitor, meaning it contains three capacitance values. These are typically marked on the capacitor body (e.g., 4µF, 5µF, 6.5µF). Ensure these values match or are very close to your original capacitor's specifications.

5. Principy fungování

Once correctly installed, the Craftmade 4565UF Triple Capacitor works in conjunction with your ceiling fan's motor to regulate its speed and, in some cases, the light. When you select a fan speed (e.g., high, medium, low) via the pull chain or remote control, the fan's internal switch directs power through the appropriate section of the capacitor. This alters the electrical characteristics of the motor, causing it to operate at the desired speed. A properly functioning capacitor ensures smooth starting and consistent speed control.

6. Údržba

The Craftmade 4565UF Triple Capacitor is a sealed, maintenance-free component. Regular maintenance is not required for the capacitor itself. However, periodic inspection of the ceiling fan's wiring and components is recommended:

• Ujistěte se, že všechna elektrická spojení zůstávají pevná a bez koroze.
• Check for any signs of physical damage to the capacitor or its wiring, such as bulging, leaks, or frayed insulation.
• Keep the fan's housing clean and free of dust, which can contribute to overheating.

Pokud se vyskytnou jakékoli problémy, okamžitě odpojte napájení a obraťte se na kvalifikovaného technika.

7. Řešení problémů

If your ceiling fan is experiencing issues after capacitor replacement, or if you suspect the capacitor is failing, consider the following:

• Fan Does Not Start or Starts Slowly: This is a common symptom of a faulty capacitor. Ensure all wiring connections are secure. If the fan hums but doesn't turn, the capacitor may be completely dead.
• Fan Runs Only on High Speed: If the fan only operates at its highest speed, it often indicates that the lower speed sections of the capacitor have failed.
• Fan Runs at Wrong Speeds: If the fan runs slower or faster than expected for a given setting, the capacitor values may be incorrect or partially failed.
• Fan Overheats: A failing capacitor can cause the motor to work harder, leading to overheating.
• Pach spáleniny: A burning smell from the fan is a serious indicator of an electrical problem, potentially a shorted or failing capacitor. Disconnect power immediately.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified electrician or the fan manufacturer's support.

8. Specifikace

Note on Capacitance and Dimensions: The provided data for "Capacitance" (4565 Microfarad), "Dimensions" (6 x 10 x 10 inches), and "Item Weight" (9.75 pounds) appear to be unusually high for a single ceiling fan capacitor. Typical ceiling fan capacitors have capacitance values in the range of 1-10 microfarads (µF) and are much smaller and lighter. Please verify these specifications with the actual product or manufacturer's documentation if there is any discrepancy. The model number "4565UF" might imply the capacitance values (e.g., 4.5µF, 5µF, 6.5µF) rather than a single 4565µF value.

9. Záruka a podpora

Popis záruky: This Craftmade 4565UF Triple Capacitor comes with a 1 Year Manufacturer Warranty.

For technical support, warranty claims, or further assistance, please contact Craftmade customer service. Refer to the official Craftmade webNejnovější kontaktní informace naleznete na webových stránkách nebo na obalu produktu.

Craftmade Official Webmísto: www.craftmade.com (This is a placeholder link, as no specific link was provided in the input. Users should verify the correct URL.)
