Uživatelská příručka pro stereofonní headset Logitech H150

Zavedení

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Logitech Stereo Headset H150. Designed for clear communication and comfortable use, this headset is ideal for voice and video calls on compatible devices.

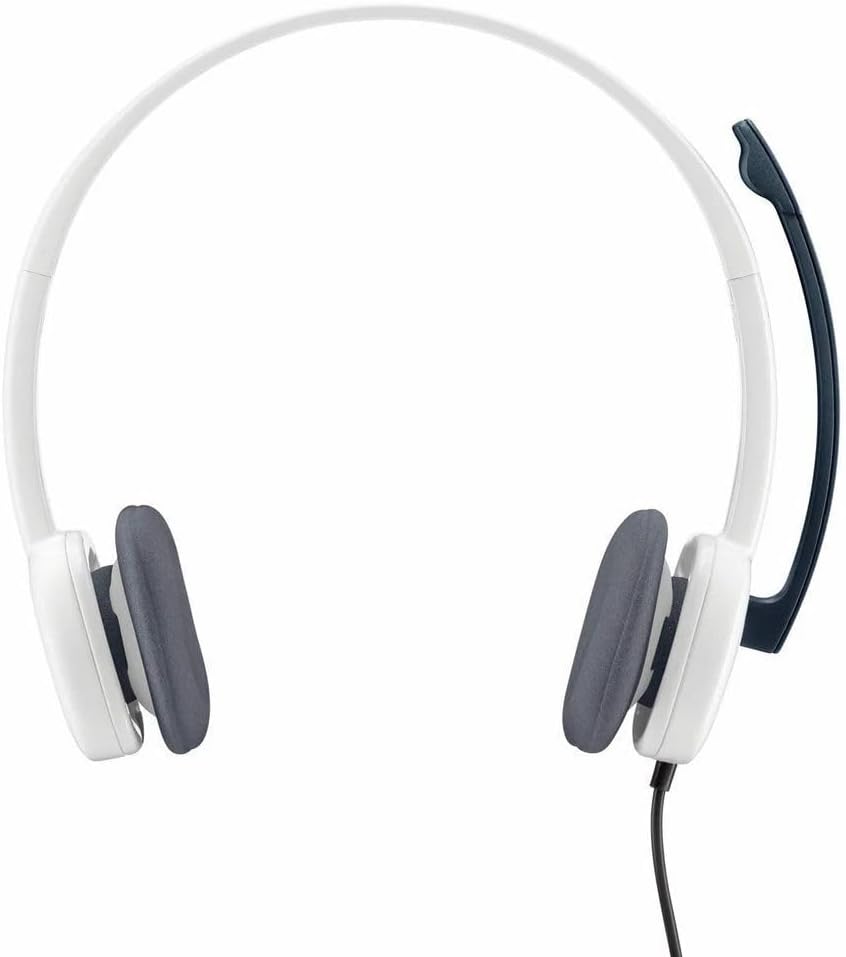

Figure 1: Logitech Stereo Headset H150, Cloud White model.

Klíčové vlastnosti

• Full Stereo Sound: Experience clear and crisp audio for internet calls and music.
• Mikrofon s potlačením šumu: Reduces background noise for clear voice transmission.
• Nastavitelný design: Features an adjustable headband and comfortable foam ear cups for a personalized fit.
• Versatile Microphone Placement: The rotating microphone boom can be positioned for optimal voice pickup or moved out of the way when not in use. It can be worn on either the left or right side.
• In-line ovládání: Conveniently adjust volume and mute the microphone directly from the headset cable.
• Jednoduché připojení: Connects via standard 3.5 mm audio jacks for broad compatibility.

Pokyny pro nastavení

1. Identifikace zvukových portů: Locate the 3.5 mm audio input (microphone) and output (headphone) jacks on your computer or laptop. These are typically color-coded (pink for microphone, green for headphones) or marked with corresponding icons.
2. Připojení headsetu: Plug the pink 3.5 mm jack from the headset into your computer's microphone input port. Plug the green 3.5 mm jack from the headset into your computer's headphone output port.
3. Rozpoznávání systému: Your computer should automatically detect the headset. If not, check your operating system's sound settings to ensure the Logitech H150 is selected as the default audio input and output device.
4. Počáteční nastavení hlasitosti: Use the in-line volume control on the headset cable to set an initial comfortable listening level.

Figure 2: The headset features standard 3.5mm audio jacks for universal connectivity.

Návod k obsluze

Nastavení náhlavní soupravy

• čelenka: Gently slide the ear cups up or down along the headband to achieve a comfortable and secure fit on your head.
• Rameno mikrofonu: The microphone boom can be rotated 270 degrees. Position it near your mouth for optimal voice clarity during calls. When not in use, rotate it upwards and out of the way. The microphone can be worn on either the left or right side of your head.

Using In-Line Controls

The in-line control unit on the headset cable provides quick access to audio functions:

• Ovládání hlasitosti: Use the volume dial or buttons (if present) to increase or decrease the listening volume.
• Ztlumení mikrofonu: Press the mute button to temporarily disable the microphone. Press it again to unmute.

Figure 3: The headset features an adjustable headband and a rotating microphone for user comfort and versatility.

Oficiální video produktu

Údržba

• Čištění: Use a soft, dry cloth to wipe down the headset, including the ear cups and microphone. Avoid using harsh chemicals or abrasive materials.
• Skladování: Store the headset in a clean, dry place away from extreme temperatures and direct sunlight. Avoid tangling the cable to prevent damage.
• Péče o kabely: Netahejte za kabel, abyste odpojili sluchátka. Vždy pevně uchopte zástrčku.

Odstraňování problémů

• Žádný zvuk:
  • Ensure both 3.5 mm jacks are fully inserted into the correct ports on your computer.
  • Check the in-line volume control on the headset and your computer's master volume settings.
  • Verify that the headset is selected as the default playback device in your computer's sound settings.
• Mikrofon nefunguje:
  • Ensure the microphone mute button on the in-line control is not activated.
  • Verify the pink 3.5 mm jack is fully inserted into the correct microphone input port.
  • Check that the headset is selected as the default recording device in your computer's sound settings.
• Špatná kvalita zvuku:
  • Ujistěte se, že jsou všechna připojení bezpečná.
  • Test the headset on another device to rule out a computer-specific issue.
  • Adjust the microphone boom position for better voice clarity.

Specifikace

Záruka a podpora

For warranty information, technical support, or further assistance, please visit the official Logitech support website or refer to the user documentation included with your product.
