Menabo Steelbike Rear Bicycle Carrier (Model 192546) Instruction Manual

1. Úvod

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your Menabo Steelbike Rear Bicycle Carrier. Designed for transporting up to three bicycles, this carrier features a sturdy steel tubular construction and a secure six-strap fitting system. Please read these instructions carefully before use to ensure safe and correct operation.

2. Bezpečnostní informace

• Maximální nosnost: Do not exceed the maximum load of 45 kg (99 lbs) or transport more than 3 bicycles.
• Kompatibilita vozidla: Always verify your vehicle's compatibility using the provided charts. This carrier is suitable for most hatchbacks and saloons.
• Trailer Board: The use of an additional trailer board is recommended for some vehicles to ensure visibility of license plates and rear lights.
• E-Bikes: This carrier is not recommended for e-bikes due to their increased weight.
• Spoilers/Plastic Profiles: This carrier is not suitable for vehicles with spoilers or plastic profiles on the tailgate that would interfere with the carrier's attachment points.
• Bezpečná příloha: Ensure all straps and securing mechanisms are tightly fastened before each journey. Regularly check tension during travel.
• Rychlost jízdy: Adjust driving speed according to road conditions and always adhere to local traffic laws. Avoid sudden braking or sharp turns.

3. Obsah balení

Před zahájením montáže se ujistěte, že jsou přítomny všechny komponenty:

• Steelbike Rear Bicycle Carrier frame
• Alloy Rails (3 sets)
• 6-strap fitting system
• Bike frame holders/clamps
• Wheel straps
• Assembly hardware (bolts, knobs, Allen key)

Image: All components included with the Menabo Steelbike Rear Bicycle Carrier, laid out for inspection. This includes the main frame, various straps, bike frame clamps, wheel cradles, and assembly hardware.

4. Nastavení a instalace

4.1. Carrier Assembly

1. Unfold the main carrier frame.
2. Attach the alloy rails to the main frame using the provided hardware. Ensure they are securely fastened.
3. Install the bike frame holders/clamps onto the upper support bar. Adjust their position to accommodate different bike frame sizes.
4. Attach the wheel straps to the alloy rails.

4.2. Vehicle Mounting

1. Zkontrolujte kompatibilitu: Refer to Section 5 for vehicle compatibility. Ensure your vehicle's tailgate is free of spoilers or plastic profiles that could obstruct proper attachment.
2. Umístění nosiče: Carefully place the carrier onto the vehicle's tailgate. The lower support arms should rest on the bumper or lower part of the tailgate, and the upper hooks should engage with the top edge of the tailgate.
3. Připevnění popruhů: Connect the six straps to the designated attachment points on the carrier and secure them to the edges of the vehicle's tailgate (top, sides, and bottom).
4. Tighten Straps: Systematically tighten all six straps, ensuring even tension. The carrier should be firmly secured to the vehicle with no movement. Double-check all connections.

Image: The fully assembled Menabo Steelbike Rear Bicycle Carrier, showcasing its robust steel frame, three alloy rails for bikes, and adjustable bike frame holders. This image represents the carrier ready for installation on a vehicle.

5. Kompatibilita s vozidly

The Menabo Steelbike Rear Bicycle Carrier is designed for a wide range of vehicles. It is crucial to consult the manufacturer's compatibility charts to ensure proper fitment for your specific car model. The charts indicate suitable attachment points and any specific requirements.

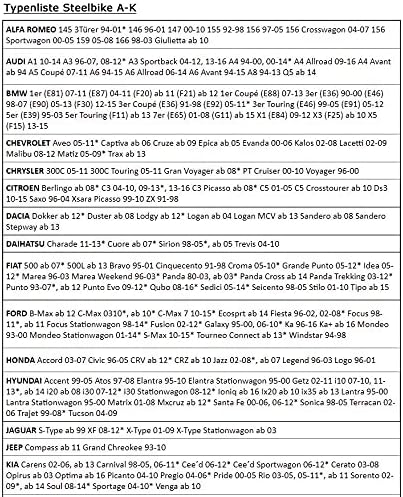

5.1. Compatibility List A-K

Image: A detailed list of compatible vehicle models from manufacturers A through K, indicating specific models and years for the Menabo Steelbike carrier. Users should cross-reference their vehicle with this chart.

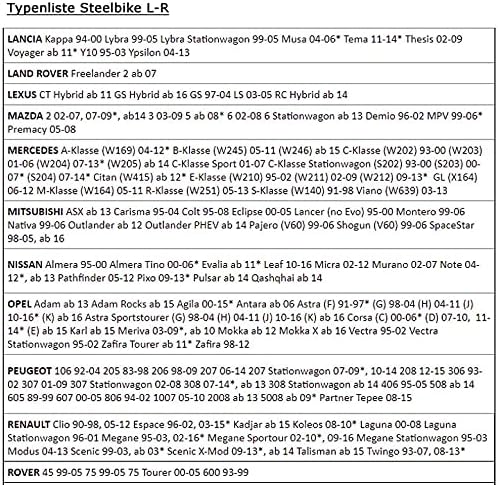

5.2. Compatibility List L-R

Image: A detailed list of compatible vehicle models from manufacturers L through R, indicating specific models and years for the Menabo Steelbike carrier. Users should cross-reference their vehicle with this chart.

5.3. Compatibility List S-V

Image: A detailed list of compatible vehicle models from manufacturers S through V, indicating specific models and years for the Menabo Steelbike carrier. Users should cross-reference their vehicle with this chart.

Důležitá poznámka: The compatibility lists also include a disclaimer regarding vehicles with plastic profiles or spoilers on the tailgate, which may prevent proper installation of the bicycle carrier.

6. Návod k obsluze

6.1. Nakládání jízdních kol

1. Ensure the carrier is securely mounted to the vehicle.
2. Place the first bicycle onto the innermost rail, positioning its wheels in the wheel cradles.
3. Secure the bicycle frame to the carrier's frame holder using the provided clamps. Tighten firmly.
4. Fasten the wheels to the rails using the wheel straps.
5. Repeat for additional bicycles, ensuring even weight distribution and that no bicycle obstructs vehicle lights or license plate.

6.2. Unloading Bicycles

1. Bezpečně zaparkujte vozidlo.
2. Release the wheel straps and frame clamps for each bicycle.
3. Carefully lift each bicycle off the carrier.

7. Údržba

• Čištění: Clean the carrier regularly with mild soap and water. Avoid abrasive cleaners.
• Inspekce: Before each use, inspect all straps, clamps, and frame components for signs of wear, damage, or corrosion. Replace any damaged parts immediately.
• Mazání: Periodically lubricate moving parts and threads of tightening knobs to ensure smooth operation.
• Skladování: When not in use, fold the carrier for easy storage in a dry place to protect it from elements.

8. Řešení problémů

• Carrier Movement: If the carrier moves or shifts during transport, immediately pull over and re-tighten all six straps. Ensure the carrier is correctly seated on the tailgate.
• Bicycles Not Stable: Verify that bike frames are securely clamped and wheel straps are tight. Adjust the position of bikes for better balance if necessary.
• Obtížnost instalace: Re-check vehicle compatibility. Ensure no spoilers or plastic profiles are interfering with the attachment points. Consult the manual's diagrams for correct strap routing.

9. Specifikace

10. Informace o záruce

The Menabo Steelbike Rear Bicycle Carrier comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Menabo customer support.

11. Podpora

For further assistance, technical support, or inquiries regarding parts and accessories, please refer to the contact information provided in your product packaging or visit the official Menabo webweb. Při žádosti o podporu vždy uveďte číslo modelu produktu (192546).
