Zavedení
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Taco 110 Cast-Iron In-Line Circulator. Please read this manual thoroughly before attempting to install or operate the unit.
The Taco 110-24 is a 1/12 HP three-piece in-line circulator pump designed for residential and commercial applications, primary-secondary systems, and parallel pumping designs. It features a rugged motor and Bio Barrier protection for rotors and bearings.
Bezpečnostní informace
Vždy dodržujte základní bezpečnostní opatření, abyste snížili riziko požáru, úrazu elektrickým proudem a zranění osob.
- Před instalací nebo údržbou se ujistěte, že je odpojeno napájení.
- Instalaci by měl provádět kvalifikovaný odborník.
- Používejte vhodné osobní ochranné prostředky (OOP).
- Neprovozujte čerpadlo, pokud je poškozené.
- Pro správnou instalaci se řiďte místními předpisy a předpisy.
Konec produktuview
The Taco 110 Cast-Iron In-Line Circulator is engineered for reliable performance in various heating and cooling systems. Its robust design ensures longevity and quiet operation.

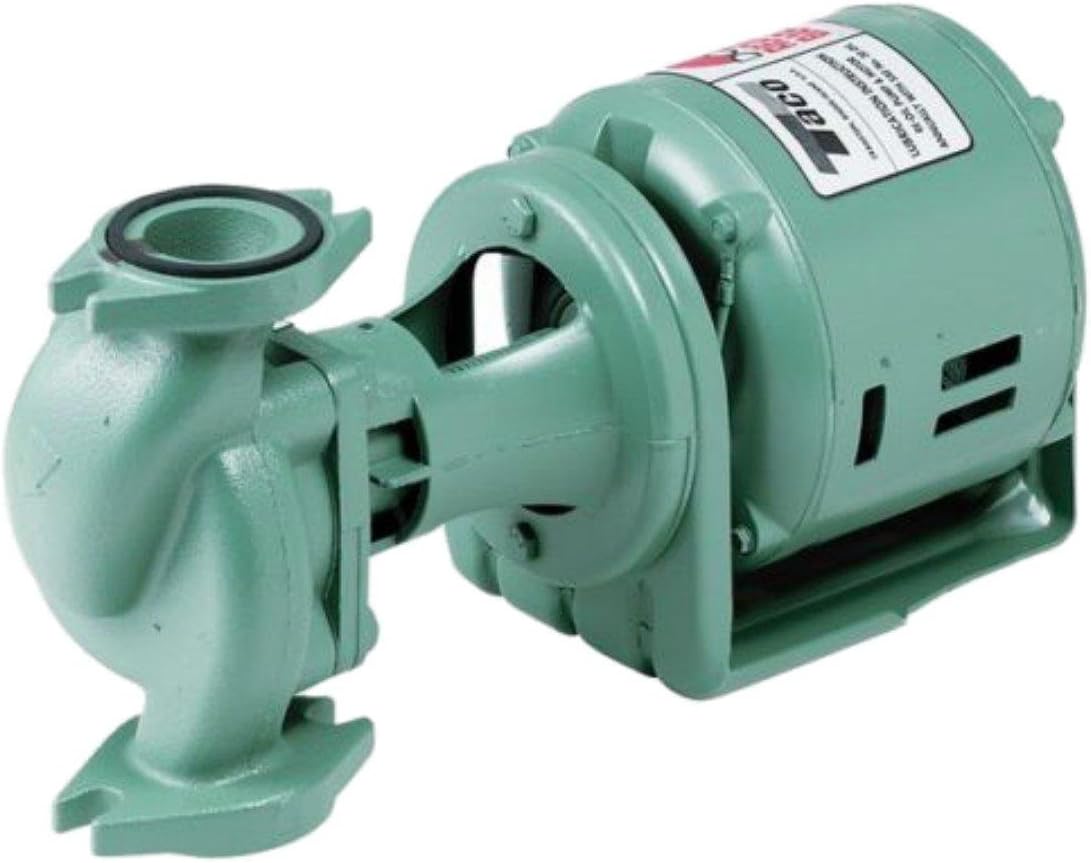

Image: Taco 110 Cast-Iron In-Line Circulator Pump. This image shows the green cast-iron pump body connected to the electric motor, with the inlet/outlet flanges visible.
Klíčové vlastnosti:
- Motor 1/12 HP
- Three-piece in-line design
- Litinová konstrukce
- Bio Barrier protection for rotors and bearings
- Vhodné pro rezidenční i komerční aplikace
Nastavení a instalace
Proper installation is crucial for the optimal performance and longevity of the circulator pump.
Kontrolní seznam před instalací:
- Verify that the power supply matches the pump's requirements (110 Volts).
- Ensure adequate space for installation and future maintenance.
- Inspect the pump for any shipping damage.
- Gather necessary tools and materials (wrenches, pipe sealant, etc.).
Kroky instalace:
- Izolujte systém: Turn off the main power to the heating/cooling system and close isolation valves to drain the section where the pump will be installed.
- Namontujte čerpadlo: Install the circulator in the piping system. Ensure the flow direction arrow on the pump body aligns with the system's flow. The pump can be installed horizontally or vertically, but the motor should not be below the pump housing.
- Připojení potrubí: Use appropriate fittings and pipe sealant to connect the pump to the system piping. Avoid overtightening.
- Elektrické připojení: Connect the pump to a dedicated electrical circuit according to local electrical codes. Ensure proper grounding. Refer to the wiring diagram on the motor housing.
- Fill and Vent: Slowly refill the system, ensuring all air is purged from the pump and piping. Open any air vents.
- Zkontrolujte netěsnosti: Inspect all connections for leaks before restoring full power.
Návod k obsluze
Once installed and the system is filled and vented, the circulator is ready for operation.
- Počáteční spuštění: Restore power to the system. The pump should start operating. Listen for unusual noises.
- Monitorování výkonu: Observe the system's heating/cooling performance. The circulator should operate smoothly and quietly.
- Nepřetržitý provoz: The Taco 110 circulator is designed for continuous duty in appropriate applications.
Poznámka:
- Do not run the pump dry. Ensure the system is always adequately filled with fluid.
- The pump is designed to circulate water or water/glycol solutions. Do not use with other fluids without consulting the manufacturer.
Údržba
Regular maintenance ensures the longevity and efficient operation of your circulator pump.
Roční údržba:
- Mazání: The motor may require periodic lubrication. Refer to the motor label for specific lubrication instructions and frequency.
- Zkontrolujte netěsnosti: Check all pipe connections and the pump housing for any signs of leaks.
- Check for Noise/Vibration: Listen for any unusual noises or excessive vibration, which could indicate a problem.
- Kvalita systémové kapaliny: Ensure the system fluid is clean and free of debris.
Disassembly and Reassembly (for qualified personnel only):
The three-piece design allows for easy servicing of the motor and impeller assembly without disturbing the piping. Consult a qualified technician for internal component maintenance.
Odstraňování problémů
Tato část obsahuje řešení běžných problémů, se kterými se můžete setkat.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Čerpadlo se nespustí | No power; tripped breaker; faulty wiring; seized motor. | Check power supply and breaker. Verify wiring. Consult a technician if motor is seized. |
| Pump runs but no flow | Air in system; closed valves; clogged impeller. | Vent air from system. Open all isolation valves. Inspect impeller for obstructions. |
| Nadměrný hluk nebo vibrace | Air in system; cavitation; worn bearings; improper mounting. | Vent air. Ensure adequate system pressure. Check mounting. Consult technician for worn bearings. |
| Leaking from pump | Volné spoje; opotřebovaná těsnění. | Tighten connections. Replace seals if necessary (professional service recommended). |
Specifikace
Detailed technical specifications for the Taco 110-24 Circulator Pump.
- Model: 110-24
- Číslo dílu: 110-24S (also referred to as 110)
- Výkon: 0.0833 HP (1/12 HP)
- svtage: 110 voltů
- Wattage: 200 wattů
- Materiál: Cast-Iron (Pump Body), Bronze (Finish/Material)
- Hmotnost položky: 10.84 libry
- Rozměry produktu: 1 x 1 x 1 inches (Note: These dimensions may be indicative and not represent the full physical size.)
- Výrobce: TACO
Záruka a podpora
For warranty information and technical support, please contact Taco customer service or visit their official webwebu. Uschovejte si účtenku jako doklad o koupi.
Výrobce: Taco
Webmísto: www.tacocomfort.com
For further assistance, refer to the contact information provided with your product packaging or on the manufacturer's webmísto.
