1. Úvod
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Vortex Powerfans VTX400 4-inch inline duct fan. Please read this manual thoroughly before using the product and retain it for future reference.
The Vortex VTX400 is a high-performance inline duct blower designed for various ventilation applications. It features a durable steel construction, a hammertone powder coat finish, and a balanced motorized impeller for quiet, vibration-free operation.
2. Bezpečnostní informace
Vždy dodržujte základní bezpečnostní opatření, abyste snížili riziko požáru, úrazu elektrickým proudem nebo zranění osob.
- Elektrická bezpečnost: Ujistěte se, že napájení odpovídá výkonu ventilátoru.tage (120V AC). Disconnect power before servicing or cleaning the unit. Do not operate with a damaged cord or plug.
- Instalace: Install the fan securely using the provided mounting brackets. Ensure proper duct connections to prevent air leakage. Do not install in locations where it may be exposed to water or excessive humidity.
- Operace: Keep fingers and foreign objects away from the fan blades during operation. This fan is designed for ventilation purposes; do not use it for purposes other than its intended use.
- Údržba: Only perform maintenance as described in this manual. Refer all other servicing to qualified personnel.
3. Obsah balení
Ověřte, zda jsou v balení přítomny všechny komponenty:
- Vortex Powerfans VTX400 Inline Duct Fan
- 6-foot Power Cord (factory installed)
- Galvanized Mounting Brackets
4. Nastavení a instalace
The Vortex VTX400 fan is designed for easy installation in various configurations.

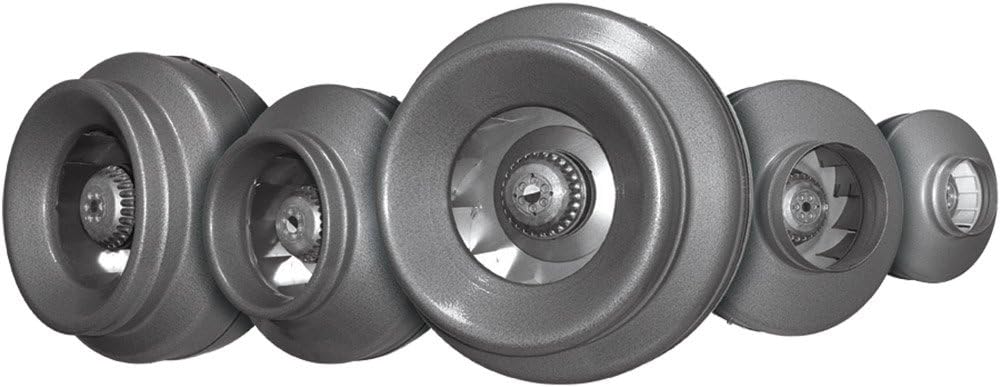

Image: A selection of Vortex inline duct fans, showcasing different sizes and the robust construction.
4.1 Montáž
The galvanized mounting brackets allow for both horizontal and vertical installation. Choose a secure location that can support the weight of the fan and any attached ductwork. Use appropriate fasteners (not included) for your mounting surface.
4.2 Připojení potrubí
The fan features an extended collar and lip for easy duct hook-up. Connect 4-inch diameter ducting to both the inlet and outlet of the fan. Secure the ducting with duct clamps or tape to ensure an airtight seal and prevent air leakage.

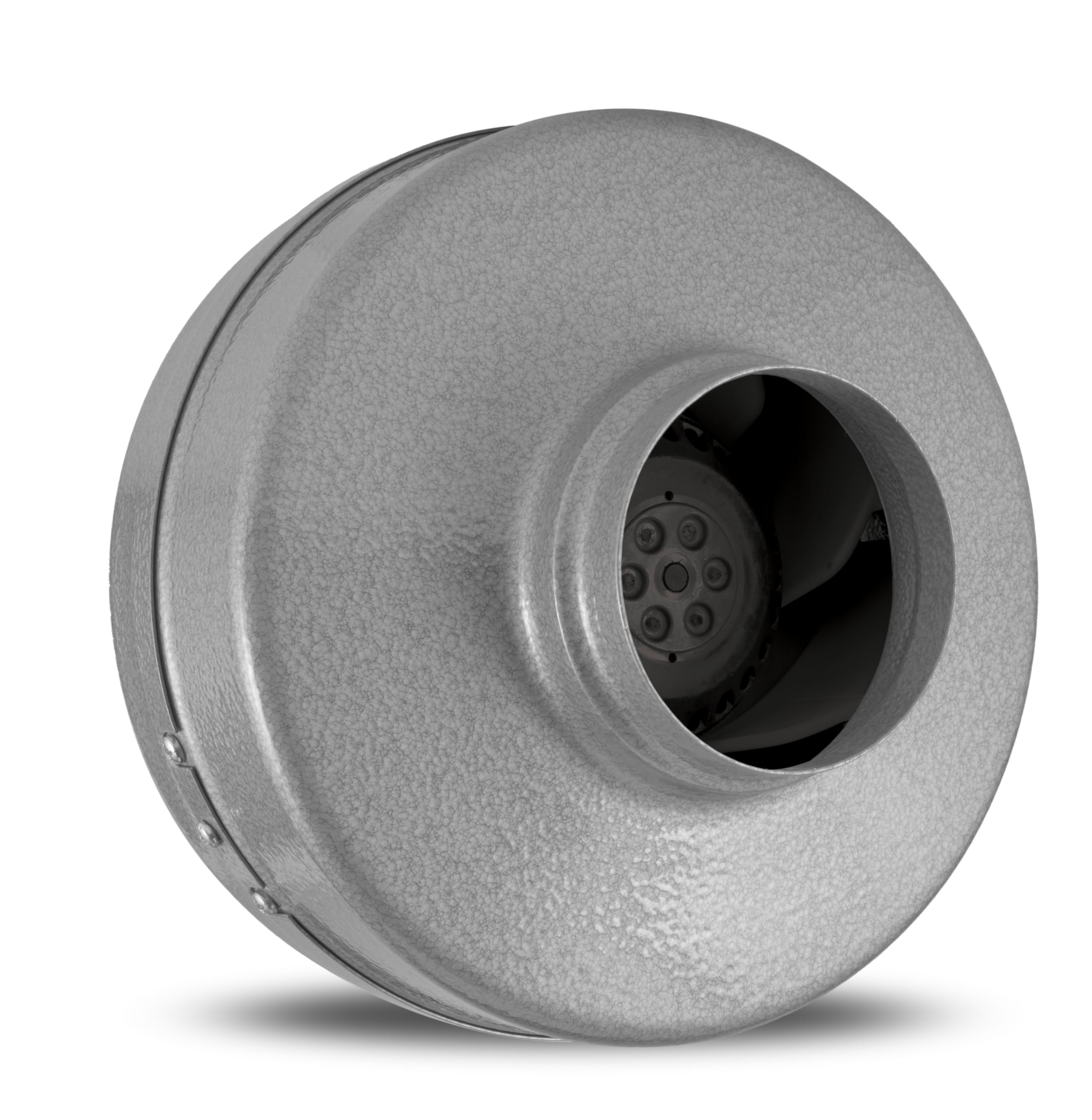

Obrázek: Podrobný view of the Vortex VTX400 fan, highlighting the impeller and the extended collar designed for duct attachment.
4.3 Elektrické připojení
The fan comes with a factory-installed 120V power cord. Plug the power cord into a standard 120V AC electrical outlet. Ensure the outlet is properly grounded.
5. Návod k obsluze
The Vortex VTX400 fan is designed for straightforward operation.
5.1 Zapnutí/vypnutí
To turn the fan on, plug the power cord into a live 120V AC outlet. To turn it off, unplug the power cord or use an external switch if one is installed in your system.
5.2 Ovládání rychlosti
The VTX400 is 100% speed controllable. If you wish to adjust the fan's speed, you will need to integrate an external speed controller (sold separately) compatible with 120V AC motors. Follow the instructions provided with your speed controller for proper installation and use. The fan itself features a button control method with 3 power levels if an integrated controller is present, otherwise, it operates at full speed when powered.
6. Údržba
Pravidelná údržba zajistí optimální výkon a dlouhou životnost vašeho ventilátoru.
6.1 Čištění
Periodically inspect the fan blades and housing for dust and debris accumulation. Disconnect the fan from power before cleaning. Use a soft cloth or brush to gently clean the exterior and the impeller blades. Do not use harsh chemicals or abrasive cleaners.
6.2 Mazání
The motor is equipped with permanently lubricated ball bearings, requiring no additional lubrication throughout the fan's lifespan.
7. Řešení problémů
If you encounter issues with your Vortex VTX400 fan, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Ventilátor se nezapne | No power supply; Loose electrical connection; Faulty motor | Check power outlet and circuit breaker; Ensure power cord is securely plugged in; Contact qualified technician for motor inspection. |
| Snížené proudění vzduchu | Blocked ducting; Dirty fan blades; Incorrect speed setting (if using a controller) | Inspect and clear ductwork; Clean fan blades (refer to Maintenance section); Adjust speed controller to a higher setting. |
| Neobvyklý hluk nebo vibrace | Loose mounting; Debris in fan housing; Damaged impeller | Ensure fan is securely mounted; Disconnect power and inspect for debris, remove if found; If impeller is damaged, contact support. |
Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu nebo kvalifikovaného technika.
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Vír |
| Název modelu | VTX400 |
| Velikost | 4 palců |
| Proud vzduchu | 172 kubických stop za minutu (CFM) |
| svtage | 120 voltů (AC) |
| Wattage | 92 wattů |
| Hmotnost položky | 8.8 libry |
| Rozměry produktu | 10.2 x 11.7 x 9.8 palce |
| Materiál | Legovaná ocel |
| Typ dokončení | Powder Coated (Hammertone) |
| Speciální funkce | Speed Control (with external controller) |
| Kontrolní metoda | Button Control (if integrated) |
| Vnitřní/venkovní použití | Venkovní |
| Typ instalace | Jízdní |
9. Informace o záruce
The Vortex Powerfans VTX400 comes with a 10letá omezená záruka. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Vortex product documentation or contact customer support.
10. Kontakt a podpora
For technical assistance, replacement parts, or warranty inquiries, please contact Vortex customer support. Refer to the product packaging or the official Vortex webstránky s nejaktuálnějšími kontaktními informacemi.
