WATTS WUV6-110 6GPM UV Disinfection System Instruction Manual

1. Úvod

This manual provides essential instructions for the installation, operation, and maintenance of your WATTS WUV6-110 6GPM UV Disinfection System. This system is designed to provide effective water disinfection by utilizing ultraviolet light to neutralize harmful microorganisms. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

2. Bezpečnostní informace

VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést ke zranění nebo poškození majetku.

• Před prováděním jakékoli údržby nebo servisu vždy odpojte napájení.
• Do not look directly at the illuminated UV lamp. UV light can cause severe eye damage.
• Před spuštěním systému se ujistěte, že jsou všechna vodovodní připojení bezpečná a bez úniků.
• This system operates with electricity. Avoid contact with water and electrical components.
• Install the system in a location protected from direct sunlight, freezing temperatures, and excessive humidity.

3. Konec produktuview

The WATTS WUV6-110 UV Disinfection System is engineered for reliable water purification. Key components include:

• 304 Stainless Steel Chamber: Houses the UV lamp and quartz sleeve, ensuring durability and corrosion resistance.
• UV L.amp: Emits germicidal ultraviolet light to inactivate bacteria, viruses, and other microorganisms. Rated for 9,000 hours of effective operation.
• Elektronický předřadník: Powers the UV lamp and features audible and visual alarms to indicate lamp status or malfunction.
• Křemenný rukáv: Protects the UV lamp from water while allowing UV light to pass through.

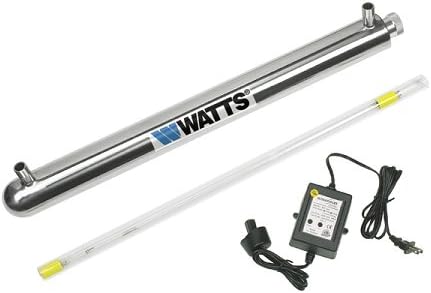

This image displays the main components of the WATTS WUV6-110 UV Disinfection System. It features the elongated stainless steel chamber, a long tubular UV lamp, and the electronic ballast with its power cord.

4. Nastavení a instalace

Proper installation is crucial for the effective operation of your UV disinfection system. It is recommended that installation be performed by a qualified professional.

1. Montáž: Securely mount the stainless steel chamber horizontally or vertically to a sturdy surface using appropriate mounting hardware (not included). Ensure sufficient clearance for lamp nahrazení.
2. Vodovodní přípojky: Connect the water inlet and outlet to your existing plumbing using the 1/2 inch MPT (Male Pipe Thread) connections. Ensure all connections are watertight. A pre-filter is highly recommended to remove sediment that could shield microorganisms from UV light.
3. Nainstalujte UV Lamp and Quartz Sleeve: Carefully insert the quartz sleeve into the chamber. Then, gently slide the UV lamp into the quartz sleeve. Connect the lamp to the electronic ballast.
4. Elektrické připojení: Connect the electronic ballast to a grounded 110V electrical outlet. The system is designed for 110V operation.
5. Kontrola těsnosti: Slowly turn on the water supply and check for any leaks at the plumbing connections. Address any leaks before proceeding.

5. Návod k obsluze

Once installed and leak-checked, the system is ready for operation.

• Zapnutí: Plug the electronic ballast into the 110V power outlet. The ballast will emit a visual indicator (e.g., a green light) and may produce an audible beep to confirm operation.
• Stav systému: The electronic ballast includes an audible and visual alarm system. A steady green light typically indicates normal operation. An alarm (audible beep and/or red light) signifies a lamp failure or other system malfunction. Refer to the Troubleshooting section for alarm interpretation.
• Nepřetržitý provoz: For continuous disinfection, the system should remain powered on at all times.

6. Údržba

Regular maintenance ensures the continued effectiveness of your UV disinfection system.

• UV L.amp Nahrazení: UV lamp has an effective life of approximately 9,000 hours (approximately 12 months of continuous operation). Replace the lamp annually to ensure optimal disinfection performance, even if the lamp appears to be working. Disconnect power before replacing.
• Quartz Sleeve Cleaning: Periodically (e.g., every 6-12 months, or as water quality dictates), the quartz sleeve may need cleaning to remove mineral deposits or fouling that can reduce UV light transmission. Disconnect power, drain the chamber, and carefully remove and clean the sleeve with a soft cloth and a mild acid solution (e.g., vinegar) if necessary. Rinse thoroughly before reinstallation.
• Pre-filter Maintenance: If a pre-filter is installed, follow its manufacturer's recommendations for replacement or cleaning to prevent sediment buildup in the UV chamber.

7. Řešení problémů

8. Specifikace

9. Záruka a podpora

For warranty information, technical support, or replacement parts, please contact Watts customer service. Refer to the official Watts webKonkrétní záruční podmínky a kontaktní údaje naleznete na webových stránkách nebo v dokumentaci k nákupu.

Watts Official Webmísto: www.watts.com
