1. Úvod
This manual provides detailed instructions for the installation, function, maintenance, and troubleshooting of the Watts 0887709 Float & Vent Kit. This kit is specifically designed to repair the float and vent assembly in Watts 800M4-1/2 and 800M4-3/4 series vacuum breakers, restoring their proper operation and preventing backflow in plumbing systems.
2. Bezpečnostní informace
- Always turn off the main water supply to the vacuum breaker before beginning any repair or maintenance.
- Během instalace používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochrana očí.
- Ensure all connections are properly tightened to prevent leaks.
- Pokud si nejste jisti některým krokem, poraďte se s kvalifikovaným instalatérem.
3. Součásti zahrnuty
The Watts 0887709 Float & Vent Kit includes the following essential components for repairing your vacuum breaker:
- Vent Disc Holder Assembly
- Větrací pružina
- O-kroužek kapoty

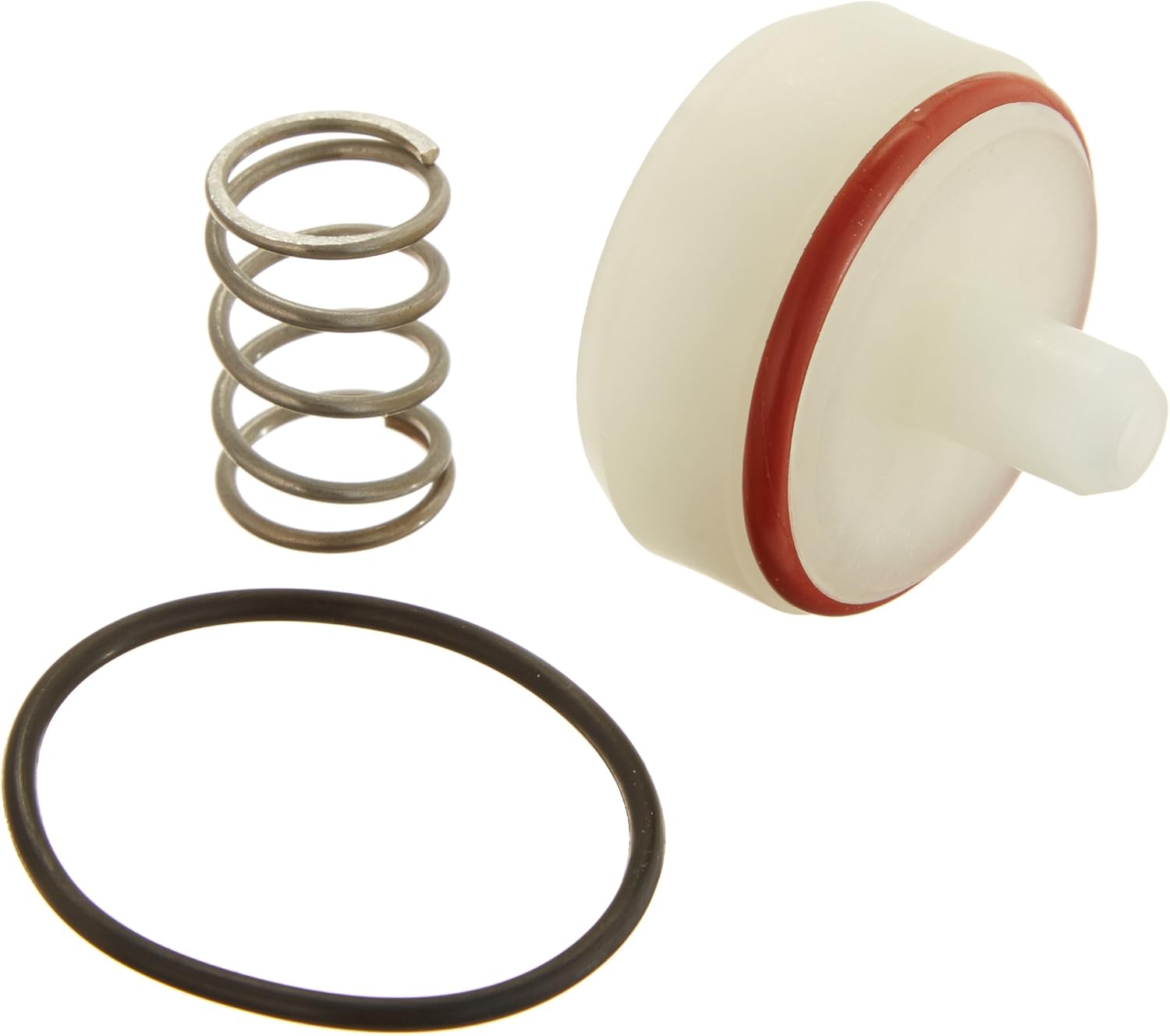

Obrázek 1: The Watts 0887709 Float & Vent Kit, showing the vent disc holder assembly (white plastic with red O-ring), a coiled metal spring, and a black rubber O-ring.
4. Instalace (Nastavení)
Follow these steps to replace the float and vent components in your Watts 800M4 vacuum breaker:
- Vypněte přívod vody: Locate the main water shut-off valve for the irrigation system or the specific line connected to the vacuum breaker and turn it off completely.
- Uvolněte tlak: Open any downstream valves or faucets to relieve pressure in the system.
- Disassemble the Bonnet: Carefully unscrew the bonnet of the Watts 800M4 vacuum breaker. This may require a wrench.
- Odstraňte staré komponenty: Once the bonnet is removed, extract the old vent disc holder assembly, vent spring, and bonnet O-ring. Note their orientation for correct reassembly.
- Vyčistěte skříň: Clean any debris or mineral deposits from the interior of the vacuum breaker housing and the bonnet.
- Instalace nových komponent:
- Place the new bonnet O-ring into its groove within the bonnet.
- Insert the new vent spring into its designated position.
- Carefully place the new vent disc holder assembly into the vacuum breaker body, ensuring it seats correctly.
- Reassemble the Bonnet: Screw the bonnet back onto the vacuum breaker body. Hand-tighten first, then use a wrench to snug it securely, but do not overtighten.
- Obnovení zásobování vodou: Pomalu znovu zapněte hlavní přívod vody.
- Zkontrolujte netěsnosti: Inspect the vacuum breaker for any signs of leaks. If leaks are present, turn off the water, re-check component seating, and tighten connections as necessary.
Obrázek 2: Detailní záběr view of the vent disc holder assembly, a key component of the repair kit, showing its white plastic body and red sealing O-ring.
5. Function (Operating Principle)
The float and vent assembly within the Watts 800M4 vacuum breaker plays a critical role in preventing backflow. When the water supply pressure drops or a vacuum condition occurs, the float drops, opening the vent. This allows air to enter the system, breaking the vacuum and preventing contaminated water from being siphoned back into the potable water supply. When pressure is restored, the float rises, sealing the vent and allowing normal water flow.
6. Údržba
Regular inspection and maintenance can extend the life of your vacuum breaker and ensure its continued effectiveness:
- Roční kontrola: Visually inspect the vacuum breaker annually for any signs of wear, cracks, or leaks.
- Kontrola součástí: Periodically check the vent disc holder assembly and O-rings for signs of deterioration, such as hardening, cracking, or deformation. Replace components from this kit if wear is observed.
- Čištění: If mineral deposits or debris accumulate, disassemble the unit (following installation steps 1-4) and clean the components with a soft brush and water. Avoid harsh chemicals.
- Zazimování (pokud existuje): In freezing climates, ensure the vacuum breaker is properly drained or protected from freezing temperatures to prevent damage.
7. Řešení problémů
Zde jsou běžné problémy a jejich možná řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Constant Leakage | Worn or improperly seated O-ring; damaged vent disc holder assembly. | Turn off water, disassemble, inspect and replace O-rings and vent disc holder assembly. Ensure proper seating. |
| High-Pitched Whining Noise | Worn or deformed O-ring, causing vibration. | Turn off water, disassemble, inspect and replace the bonnet O-ring and other seals. |
| Failure to Prevent Backflow | Damaged or stuck float/vent assembly. | Turn off water, disassemble, inspect the vent disc holder assembly and spring for damage or obstruction. Replace if necessary. |
| Snížený průtok vody | Debris obstructing the vent or internal components. | Turn off water, disassemble, and clean all internal components. |
8. Specifikace
- Číslo modelu: 0887709
- Číslo dílu: RK800M4V1/2-3/4
- Kompatibilita: Watts 800M4-1/2 and 800M4-3/4 Vacuum Breakers
- Materiál: Rubber, Silicone (for seals), Plastic (for disc holder assembly), Metal (for spring)
- Hmotnost položky: Přibližně 0.8 unce
- Zahrnuté komponenty: Vent Disc Holder Assembly, Vent Spring, Bonnet O-ring
9. Informace o záruce
For specific warranty details regarding the Watts 0887709 Float & Vent Kit, please refer to the official Watts manufacturer's warranty policy. Warranty terms typically cover defects in materials and workmanship under normal use and service. Proof of purchase may be required for warranty claims.
10. Zákaznická podpora
If you require further assistance, have questions about installation, or need to report a product issue, please contact Watts customer support directly. You can typically find contact information, including phone numbers and online support portals, on the official Watts webweb (www.watts.com).
