This manual provides essential information for the safe and efficient operation of your ONKYO AERO Sound System iPod Dock CD Tuner Amplifier System CBX-500. Please read it thoroughly before using the unit and keep it for future reference.

The CBX-500 is a compact audio system that integrates a CD player, amplifier, tuner, and speakers, along with a dedicated iPod/iPhone dock. It is designed to deliver high-quality audio by transmitting music data from iPods and iPhones digitally, minimizing sound degradation. Key features include Onkyo's proprietary 'AERO ACOUSTIC DRIVE' bass reflex technology for enhanced low frequencies, a robust power transformer, and a digital amplifier built with carefully selected components. The system also offers convenient features such as a remote control for intuitive iPod/iPhone music library operation, a snooze function with a repeat alarm, and a program timer with up to four modes. The unique slide-out dock port protects the connector when not in use by retracting into the main unit.

Konec produktuview

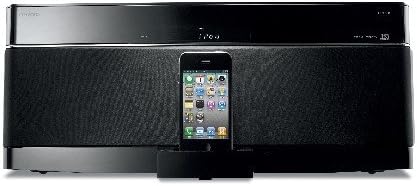

Obrázek 1: Přední strana view of the CBX-500 with an iPhone docked. This image shows the sleek black design of the unit, with the central speaker grille and the retractable dock at the bottom, holding an iPhone.

Obrázek 2: Úhlové view of the CBX-500, highlighting its compact form factor and the integrated iPhone dock. The image provides a perspective of the unit's depth and the placement of the docked device.

Obrázek 3: Shora dolů view of the CBX-500 with the top panel removed, revealing the internal speaker drivers. This view illustrates the integrated speaker design and the compact arrangement of components within the system.

Nastavení

1. Vybalení a umístění

• Opatrně vyjměte přístroj a veškeré příslušenství z obalu.
• Place the CBX-500 on a stable, flat surface, ensuring adequate ventilation around the unit. Avoid placing it near heat sources or in direct sunlight.

2. Připojení napájení

• Connect the power cord securely to the AC inlet on the rear of the unit, then plug the other end into a wall outlet.

3. Připojení antény

• For FM/AM radio reception, connect the supplied FM antenna (if included) to the FM antenna terminal on the rear panel. Extend the antenna for optimal reception. Note: An external antenna may be required for improved reception in some areas.

4. iPod/iPhone Dock Setup

• Press the 'OPEN' button (or slide the dock tray manually) to extend the iPod/iPhone dock.
• Insert the appropriate Universal Dock Adapter for your specific iPod or iPhone model into the dock.
• Carefully place your iPod or iPhone onto the dock connector. Ensure it is seated firmly.
• To protect the connector when not in use, gently push the dock tray back into the unit until it clicks into place.

Návod k obsluze

1. Zapnutí/vypnutí

• Stiskněte tlačítko MOC tlačítko na jednotce nebo dálkovém ovladači pro zapnutí nebo vypnutí systému.

2. Výběr zdroje

• Stiskněte tlačítko FUNKCE button on the unit or the dedicated source buttons (e.g., CD, zařízení iPod/iPhone, TUNER) on the remote control to select your desired audio source.

3. Přehrávání CD

• Vyberte CD funkce.
• Insert a CD into the slot-in CD tray. The unit will automatically load the CD and begin playback.
• Použijte PLAY/PAUSE, ZASTÁVKA, PŘESKOČIT (►►| / |◄◄) tlačítka na jednotce nebo dálkovém ovladači pro správu přehrávání.

4. Přehrávání z iPodu/iPhonu

• Ensure your iPod/iPhone is correctly docked.
• Vyberte zařízení iPod/iPhone funkce.
• Use the remote control to navigate your iPod/iPhone's music library and control playback (e.g., PLAY/PAUSE, PŘESKOČIT).

5. Obsluha ladičky

• Vyberte TUNER funkce.
• Použijte LADĚNÍ buttons on the unit or remote control to scan for radio stations.
• Refer to the full manual for instructions on presetting stations.

6. Ovládání hlasitosti

• Upravte hlasitost pomocí OBJEM +/- tlačítka na jednotce nebo dálkovém ovladači.
• The 'Active BASS Control' circuit automatically optimizes bass output based on the current volume level.

7. Timer and Alarm Functions

• The system includes a snooze function with a repeat alarm and a program timer with up to 4 modes. Consult the detailed instruction manual for setting these features.

Údržba

1. Čištění jednotky

• Before cleaning, ensure the unit is powered off and unplugged from the wall outlet.
• Wipe the exterior surfaces with a soft, dry cloth. For stubborn dirt, use a cloth lightly dampvodou nebo jemným, neabrazivním čisticím prostředkem.
• Nepoužívejte agresivní chemikálie, rozpouštědla nebo abrazivní materiály, protože by mohly poškodit povrchovou úpravu.

2. CD Slot Care

• Periodically use a CD lens cleaner disc to maintain optimal CD playback performance.
• Do not insert foreign objects into the CD slot.

3. iPod/iPhone Dock Care

• Keep the dock connector free from dust and debris. Use a soft, dry brush or compressed air to clean it if necessary.
• Ensure the dock tray slides smoothly. Do not force it if it encounters resistance.

Odstraňování problémů

If you experience issues with your CBX-500, please refer to the following common solutions before contacting customer support.

Žádná síla

• Zkontrolujte, zda je napájecí kabel bezpečně zapojený do jednotky i do zásuvky.
• Zkontrolujte, zda je zásuvka funkční, zapojením jiného zařízení.

Žádný zvuk

• Verify that the correct audio source is selected.
• Zvyšte úroveň hlasitosti.
• Check if the MUTE function is activated.

CD Not Playing or Reading

• Ensure the CD is inserted correctly with the label side facing up.
• Clean the CD with a soft, lint-free cloth, wiping from the center outwards.
• Try a different CD to determine if the issue is with the disc itself.
• The slot-in mechanism can sometimes be sensitive; ensure the CD is inserted smoothly without force.

iPod/iPhone Not Recognized or Playing

• Ensure your iPod/iPhone is properly seated on the dock connector and that the correct Universal Dock Adapter is used.
• Check if the iPod/iPhone is powered on and not in sleep mode.
• Restart your iPod/iPhone and try docking it again.
• Ensure the iPod/iPhone function is selected on the CBX-500.

Špatný příjem rádia

• Adjust the position and orientation of the FM antenna.
• Přemístěte jednotku dále od jiných elektronických zařízení, která by mohla způsobovat rušení.
• Consider connecting an external antenna for stronger reception.

Dálkové ovládání nefunguje

• Zkontrolujte a v případě potřeby vyměňte baterie v dálkovém ovladači.
• Ensure there are no obstructions between the remote control and the unit's remote sensor.
• Point the remote control directly at the unit.

Specifikace

Poznámka: Specifikace se mohou změnit bez předchozího upozornění z důvodu vylepšení produktu.

Záruka a podpora

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Onkyo webUschovejte si účtenku jako doklad o koupi pro případné reklamace.

For further assistance, you may contact Onkyo customer service through their official channels. Contact details are typically available on the manufacturer's webmístě nebo na obalu produktu.
