Zavedení
The Oasis OH-6 Case Humidifier with OH-2 Digital Hygrometer is designed to provide reliable and long-lasting humidification for wooden instruments, preventing damage such as warping, shrinking, and cracking. This manual provides essential information for the proper setup, operation, and maintenance of your humidifier and hygrometer.
Nastavení
1. Filling the Humidifier
The Oasis Case Humidifier uses a reusable sponge that holds a significant amount of water. For initial filling, it requires approximately 3+ syringes (10cc each) of distilled water. Subsequent refills typically require 1+ syringe.
- Remove the sponge from the humidifier unit.
- Submerge the sponge in distilled water. Gently massage any hard spots to ensure full saturation.
- Apply a small squeeze to remove excess water, ensuring the sponge is damp ale nekape.
- Insert the re-wet sponge back into the humidifier holder.
Důležité: Always use distilled water. Tap and bottled water contain minerals that can clog the liner and shorten the humidifier's lifespan.

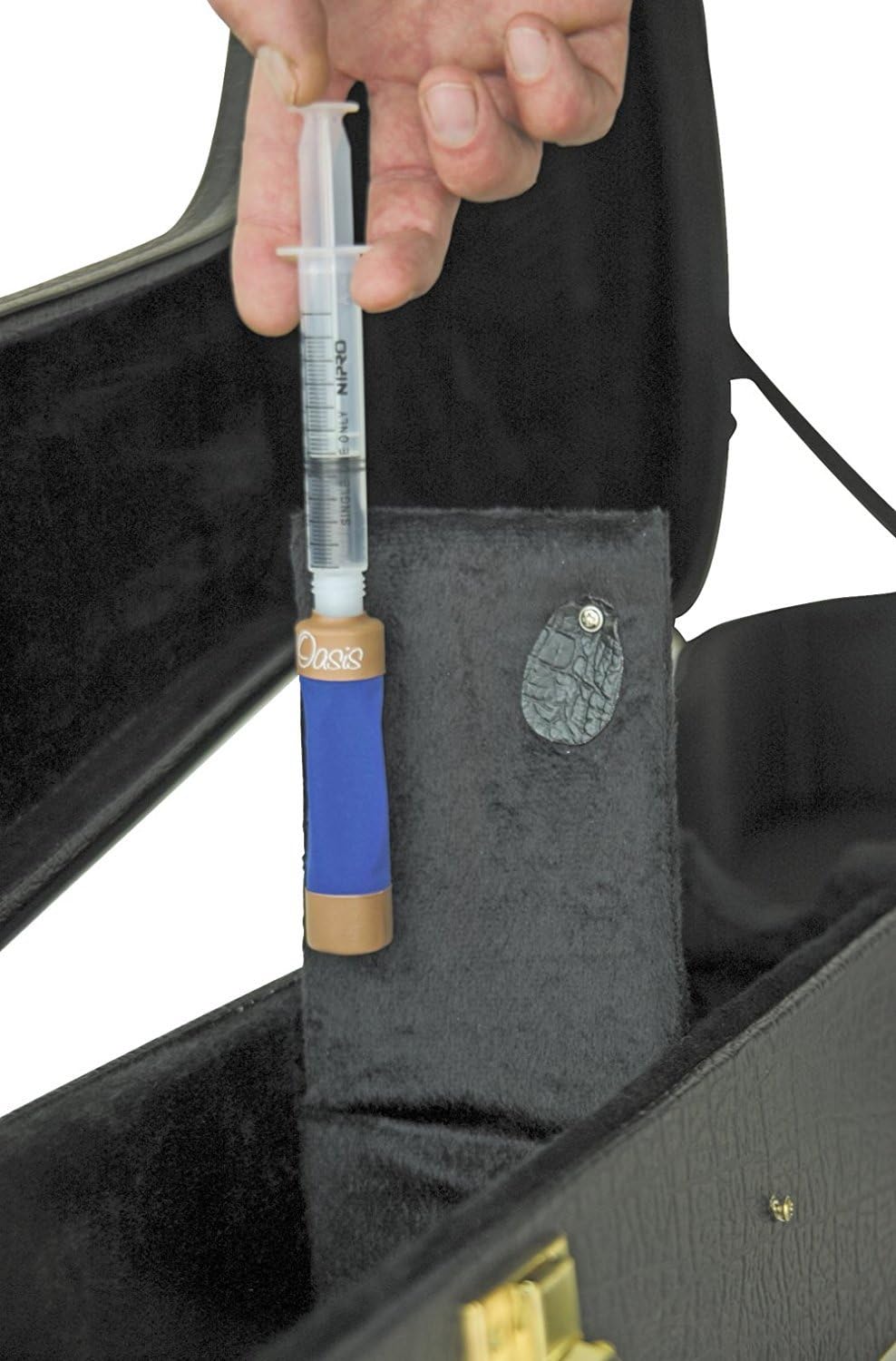

Image: Hand filling the Oasis humidifier sponge with a syringe.
2. Attaching the Humidifier to your Instrument Case
The Oasis Case Humidifier offers flexible attachment options:
- Steel Belt-Style Clip: This clip fits over the side of your instrument case, providing a flat vertical surface for the humidifier's neodymium magnet to adhere to.
- Stainless Steel Strip with Adhesive Backing: This strip allows for vertical or horizontal attachment anywhere there is a flat surface inside the case.
Securely attach the humidifier using one of the provided methods. The magnetic attachment allows for easy removal and re-attachment.
Image: Oasis humidifier attached inside a guitar case, positioned above the strings.
3. Alternative Soundhole Humidifier Setup (General Guide)
While the OH-6 is a case humidifier, some instruments may benefit from soundhole humidifiers. The following video demonstrates the general concept of installing a soundhole humidifier and filling it with water. Note that the product shown in the video is different from the Oasis OH-6, but the principles of humidification and installation into the soundhole can be illustrative.
Video: A general guide demonstrating the installation and water filling process for a soundhole humidifier (different product shown).
Návod k obsluze
1. Monitoring Humidity with the OH-2 Digital Hygrometer
The OH-2 Digital Hygrometer provides accurate readings of humidity and temperature, monitoring your instrument's environment every 20 seconds. It displays current humidity and temperature, as well as maximum and minimum ranges, which can be reset at any time. The ideal "safe zone" for most wooden instruments is 40%-55% humidity and 70-78°F (21-26°C).
If your room environment is already within the safe 40-55% humidity range, humidification may not be necessary. In such cases, you can use the hygrometer feature without humidifying:
- Možnost 1: Remove the sponge from the humidifier and store it in a clean bag. Then, slide the humidifier unit (without the sponge) into the strings of your guitar.
- Možnost 2: Remove the hygrometer lid by pressing the tab on the back and sliding it off the case holder. The hygrometer can then be placed directly on the strings.
2. General Humidification Practices (Illustrative Video)
Toto video poskytuje obecný přehledview of how to humidify a guitar using a humidifier and hygrometer. While it features a different product (MusicNomad Humitar ONE), the concepts of maintaining proper humidity levels and monitoring them are universally applicable to instrument care.
Video: General guidance on humidifying a guitar and using a hygrometer (features a different product).
Údržba
1. Refilling the Humidifier
Regularly check the humidifier sponge. If it feels dry or hard, it's time to rehydrate. Simply lift the top of the humidifier, touch the sponge, and if it's dry, follow the filling instructions in the Setup section.
When refilling, it is recommended to thoroughly flush out any remaining crystals from previous refills and start fresh. This helps ensure proper humidification and prevents clogging.
2. Distilled Water Usage
To prolong the life of your humidifier and prevent mineral buildup, always use distilled water. Tap and bottled water contain dissolved minerals that can clog the humidifier's liner.
3. Hygrometer Battery Replacement
The OH-2 Digital Hygrometer uses a long-lasting AG13 battery. If the display becomes wonky or stops working, try rebooting it by sliding out the battery holder and reinserting it. If the issue persists, replace the battery.
Odstraňování problémů
1. Humidifier Not Shrinking/Drying Out Quickly
If the humidifier does not seem to be releasing moisture or dries out unusually fast, consider the ambient humidity levels. This model is most effective when the humidity is at least 25%. In extremely dry environments (below 25%), a more robust humidification solution, such as a "Plus" model, might be required.
2. Únik
The Oasis humidifier is designed with two levels of leak protection to prevent leakage due to overfilling. Ensure the sponge is not oversaturated and that the unit is properly assembled. If leakage occurs, inspect the unit for any damage or improper sealing.
3. Inaccurate Hygrometer Readings
If the hygrometer provides inconsistent or inaccurate readings, try resetting it by removing and reinserting the battery. Ensure the sensor is not obstructed and that the unit is placed in a stable environment. If the issue persists after battery replacement, the unit may be defective.
Specifikace
| Rozměry produktu | 5.6 x 2.5 x 1.4 palce |
| Hmotnost položky | 2.89 unce |
| Výrobce | Oáza |
| ASIN | B00189Y832 |
| Číslo modelu položky | OH-3C (Note: Product title refers to OH-6) |
| Jsou vyžadovány baterie | No (for humidifier), Yes (for hygrometer - AG13) |
| Importovat | Vyrobeno v USA |
Záruka a podpora
Informace o záruce
Maintaining proper humidity levels for your wooden instrument is crucial. Humidity levels consistently below 40% or above 55% for extended periods can void your instrument's warranty. The Oasis OH-6 Humidifier and OH-2 Digital Hygrometer help you maintain these optimal conditions.
For specific warranty details regarding the Oasis humidifier and hygrometer, please refer to the product packaging or contact Oasis customer service directly.
Zákaznická podpora
If you encounter any issues or have questions regarding your Oasis OH-6 Case Humidifier or OH-2 Digital Hygrometer, please contact the manufacturer, Oasis, for assistance. Contact information can typically be found on the product packaging or their official webmísto.
