1. Úvod
This manual provides instructions for the proper installation, operation, and maintenance of the Sloan EBV-145-A Inside Cover Assembly with Solenoid. This component is an original equipment manufacturer (OEM) replacement part designed to restore optimal functionality to compatible Sloan sensor flushometers. Adhering to these instructions will ensure reliable performance and extend the lifespan of your flushometer system.
2. Bezpečnostní informace
Během instalace a údržby vždy dodržujte následující bezpečnostní opatření:
- Turn off the water supply to the flushometer before beginning any work.
- Disconnect electrical power to the flushometer if applicable.
- Používejte vhodné osobní ochranné prostředky (OOP), jako jsou ochranné brýle a rukavice.
- Ujistěte se, že všechna připojení jsou bezpečná, aby nedošlo k únikům.
- If you are unsure about any step, consult a qualified plumber or technician.
3. Kompatibilita
The Sloan EBV-145-A Inside Cover Assembly with Solenoid is specifically designed for use with the following Sloan sensor flushometer series:
- G2 Series Flushometers
- ECOS Series Flushometers
- SOLIS Series Flushometers
- Optima Plus Sensor Flushometers
This assembly is suitable for both urinal and water closet applications within these series. Verify your flushometer model number to ensure compatibility before installation.
4. Obsah balení
The EBV-145-A kit includes the following components:
- Inside Cover Assembly
- Solenoid EBV-136-A

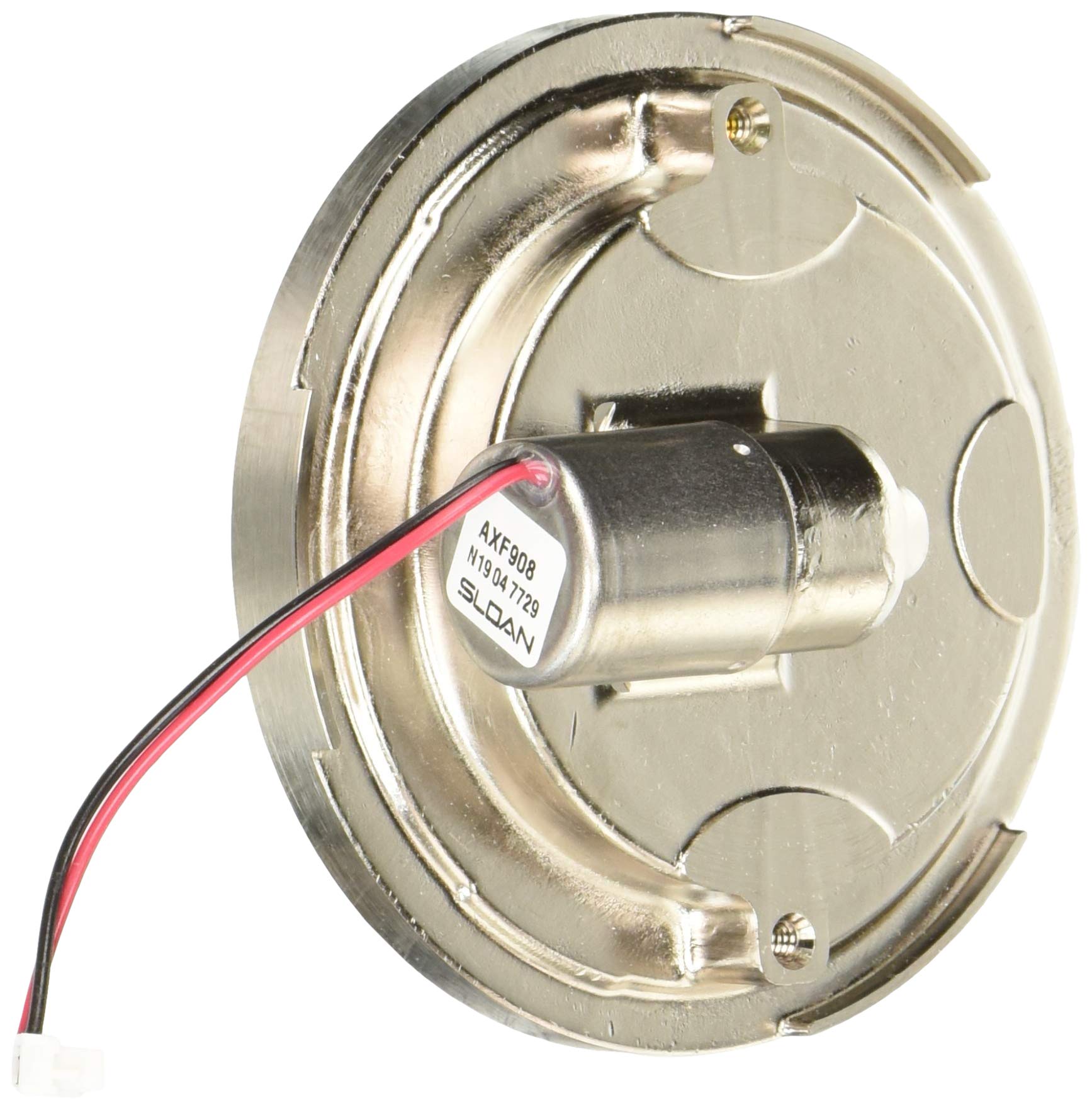

Image 4.1: Sloan EBV-145-A Inside Cover Assembly with Solenoid. This image shows the complete assembly, including the cover and the attached solenoid with wiring.
Image 4.2: Assortment of Sloan flushometer replacement parts. This image displays several components, including diaphragms, covers, and other internal parts for Sloan flushometers.
5. Pokyny k instalaci
Follow these steps to replace the inside cover assembly and solenoid:
- Prepare the Flushometer:
- Turn off the main water supply to the flushometer at the control stop.
- Activate the flushometer to relieve any remaining water pressure.
- Disconnect the power supply to the sensor unit.
- Remove Existing Cover Assembly:
- Carefully unscrew the existing cover assembly from the flushometer body.
- Disconnect the solenoid wiring from the sensor unit.
- Remove the old inside cover assembly and solenoid.
- Install New Solenoid and Cover Assembly:
- Connect the wiring of the new EBV-136-A solenoid to the sensor unit. Ensure proper polarity if indicated.
- Align the new inside cover assembly with the flushometer body.
- Carefully screw the new cover assembly into place. Do not overtighten.
- Obnovení vody a elektřiny:
- Slowly turn on the water supply at the control stop.
- Check for any leaks around the newly installed cover assembly.
- Reconnect the electrical power to the sensor unit.
- Testovací provoz:
- Test the flushometer several times to ensure it operates correctly and flushes properly.
- Verify that the solenoid activates and deactivates as expected.
Obrázek 5.1: Výřez view of a Sloan flushometer. This diagram illustrates the internal components and water flow path within a typical Sloan flushometer, aiding in understanding the assembly's placement.
Video 5.1: Sloan Genuine Parts OverviewToto video poskytuje obecný přehledview of Sloan genuine replacement parts, highlighting their quality and importance for maintaining Sloan products.
6. Provoz
Once the EBV-145-A Inside Cover Assembly with Solenoid is correctly installed, the flushometer will operate as designed. The solenoid is an electromagnetic valve that controls the water flow to initiate and terminate the flush cycle in response to signals from the sensor. Proper installation ensures the solenoid functions accurately, providing consistent and efficient flushing.
7. Údržba
Regular maintenance helps ensure the longevity and performance of your Sloan flushometer and its components:
- Pravidelná prohlídka: Annually inspect the cover assembly and solenoid for any signs of wear, corrosion, or damage.
- Čištění: Clean the exterior of the flushometer and sensor lens with a mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the finish or electronic components.
- Kontroly těsnosti: Periodically check for any water leaks around the flushometer connections. Address any leaks promptly to prevent water waste and potential damage.
- Solenoid Function: If the flushometer exhibits inconsistent flushing, the solenoid may require inspection or replacement.
8. Řešení problémů
Refer to the following table for common issues and their potential solutions related to the EBV-145-A assembly:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Flushometer does not flush. | Faulty solenoid or wiring. | Check solenoid wiring connections. Test solenoid for continuity. Replace solenoid if faulty. |
| Flushometer continuously flushes. | Solenoid stuck open or debris in valve. | Turn off water, remove solenoid, inspect for debris. Replace solenoid if it remains stuck. |
| Water leaks from cover assembly. | Improperly seated cover or damaged gasket. | Ensure cover is tightened correctly. Inspect and replace any damaged gaskets or O-rings. |
9. Specifikace
| Specifikace | Detail |
|---|---|
| Číslo dílu | 3325456 |
| Hmotnost položky | 8 unce |
| Rozměry produktu | 3.25 x 3.25 x 2.75 palce |
| Výrobce | Sloan Valve Co. |
| Číslo modelu | 3325456 |
10. Záruka
Sloan products are manufactured under strict quality control standards. For specific warranty information regarding the EBV-145-A Inside Cover Assembly with Solenoid, please refer to the official Sloan warranty documentation provided with your purchase or visit the official Sloan website. Using genuine Sloan replacement parts is crucial for maintaining warranty validity and optimal product performance.
11. Podpora
For further assistance, technical support, or to inquire about additional replacement parts, please contact Sloan customer service or visit their official website. You can find contact details on the Sloan webwebu nebo v dokumentaci dodané s vaším produktem.
Sloan Official Webmísto: www.sloan.com
