SKIL 3100-09 X-Bench Jigsaw Insert Plate Instruction Manual

Zavedení

The SKIL 3100-09 X-Bench Jigsaw Insert Plate is an accessory designed to integrate your compatible jigsaw with the SKIL X-Bench portable workbench. This insert plate transforms your handheld jigsaw into a stationary scroll saw, enhancing precision and control for various cutting tasks. It allows for convenient, stable operation, making intricate cuts and detailed work more manageable.

Bezpečnostní informace

Always prioritize safety when operating power tools. Read and understand all instructions in this manual and the manual for your specific jigsaw model before use. Failure to follow safety warnings and instructions may result in electric shock, fire, and/or serious injury.

• Ochrana očí: Vždy používejte vhodnou ochranu očí, jako jsou ochranné brýle nebo ochranné brýle, abyste se chránili před poletujícími úlomky.
• Ochrana sluchu: Během delšího provozu používejte ochranu sluchu.
• Ochrana rukou: Wear gloves to protect hands from sharp blades and rough materials.
• Pracovní oblast: Ujistěte se, že vaše pracovní místo je čisté, dobře osvětlené a bez překážek.
• Zajištění obrobku: Always secure your workpiece firmly to prevent movement during cutting.
• Odpojení napájení: Disconnect the jigsaw from the power source before making any adjustments, changing blades, or performing maintenance.
• X-Bench Safety Switch: Utilize the X-Bench's integral cut-off switch and lock-out key for immediate power disconnection in emergencies.
• Ochrana čepele: Be aware that when mounted in the insert plate, the jigsaw's blade may not have its original guard in place. Exercise extreme caution and keep hands clear of the blade path.
• Větrání: Ensure adequate ventilation to clear sawdust and debris.

Obsah balení

Při vybalení ověřte, zda jsou všechny položky přítomny:

• SKIL 3100-09 X-Bench Jigsaw Insert Plate
• Montážní materiál (šrouby, matice, podložky)
• Návod k použití (tento dokument)

Pokyny pro nastavení

Follow these steps to properly set up your Jigsaw Insert Plate with the SKIL X-Bench.

1. Identify Compatible Jigsaws

The SKIL 3100-09 Jigsaw Insert Plate is designed to accept the following SKIL jigsaw models:

• SKIL 4280
• SKIL 4380
• SKIL 4390
• SKIL 4480
• SKIL 4490
• SKIL 4540
• SKIL 4580
• SKIL 4581
• SKIL 4680
• SKIL 4681
• SKIL 4690

Ensure your jigsaw is one of these models for proper fit and function.

2. Attach Jigsaw to Insert Plate

Carefully align your compatible jigsaw with the mounting holes on the underside of the insert plate. Use the provided mounting hardware (screws, nuts, washers) to securely fasten the jigsaw to the plate. Ensure the jigsaw is oriented correctly, with the blade facing upwards through the plate's opening, and all fasteners are tightened to prevent movement during operation.

3. Install Insert Plate into X-Bench

With the jigsaw securely attached to the insert plate, position the assembly over the designated opening in your SKIL X-Bench tabletop. Gently lower the insert plate into the opening until it sits flush with the workbench surface. The X-Bench's design allows for easy drop-in installation. Ensure the plate is fully seated and stable before proceeding.

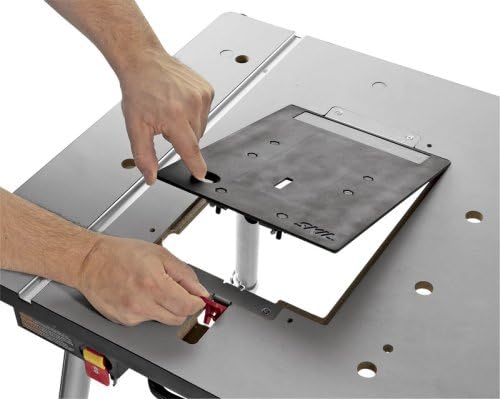

Image: Hands carefully placing the SKIL 3100-09 Jigsaw Insert Plate, with a jigsaw attached underneath, into the rectangular opening of a SKIL X-Bench portable workbench. The plate is designed to sit flush with the workbench surface.

Návod k obsluze

Once the jigsaw and insert plate are securely installed in the X-Bench, you can begin operation. Always ensure your workpiece is stable and you have a clear understanding of the cut you intend to make.

• Zapnutí: Connect the X-Bench to a power source. Use the X-Bench's power switch to turn on the integrated jigsaw.
• Umístění obrobku: Place your workpiece flat on the X-Bench surface, guiding it towards the upward-facing jigsaw blade.
• Technika řezání: Apply steady, even pressure to the workpiece, guiding it through the blade. The inverted setup allows for better visibility of the cutting line from above.
• Zakřivené řezy: For curved cuts, slowly rotate the workpiece around the blade, maintaining contact with the table surface.
• Blade Changes: Refer to your jigsaw's specific manual for instructions on how to safely change blades. Always disconnect power before changing blades.

Image: A person's hands guiding a wooden workpiece across the SKIL 3100-09 Jigsaw Insert Plate, which is installed in a SKIL X-Bench. The jigsaw blade is visible cutting through the wood from below the table surface.

Údržba

Regular maintenance ensures the longevity and safe operation of your Jigsaw Insert Plate.

• Čištění: After each use, disconnect power and clean the insert plate and surrounding X-Bench area of sawdust and debris using a brush or vacuum.
• Inspekce: Periodically inspect the insert plate for any signs of damage, cracks, or wear. Check that all mounting hardware for the jigsaw remains tight.
• Skladování: Store the insert plate and jigsaw assembly in a clean, dry place when not in use.

Odstraňování problémů

Pokud narazíte na problémy, podívejte se na následující běžné tipy pro řešení problémů:

For issues not listed here, refer to your jigsaw's instruction manual or contact SKIL customer support.

Specifikace

• Číslo modelu: 3100-09
• Hmotnost položky: 3.1 libry
• Rozměry balení: 17.5 x 10.3 x 3.6 palce
• Compatible Jigsaws: SKIL 4280, 4380, 4390, 4480, 4490, 4540, 4580, 4581, 4680, 4681, 4690
• Výrobce: Skil

Informace o záruce

This SKIL 3100-09 X-Bench Jigsaw Insert Plate comes with a 1letá záruka výrobce. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized repairs, or normal wear and tear. For full warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official SKIL webmísto.

Podpora

For technical assistance, replacement parts, or further inquiries regarding your SKIL 3100-09 X-Bench Jigsaw Insert Plate, please contact SKIL customer support. You can typically find contact information on the official SKIL website or within the original product packaging. When contacting support, please have your model number (3100-09) and proof of purchase readily available.

Online zdroje: Navštivte úředníka Obchod Skil na Amazonu pro další informace o produktech a příslušenství.
