Zavedení
The TECHKO S063 Portable Door Wedge Guard is designed to enhance security by detecting unauthorized entry through a door. This device functions as a door stop and incorporates both vibration and contact sensors to trigger a loud alarm upon detection of forced entry.
Please read this manual thoroughly before operating the device to ensure proper use and optimal performance.
Bezpečnostní informace
- Toto zařízení je určeno pouze pro vnitřní použití.
- Nevystavujte zařízení vodě ani nadměrné vlhkosti.
- Uchovávejte mimo dosah dětí.
- Ensure correct battery polarity when installing.
- Pokud zařízení nebudete delší dobu používat, vyjměte baterie.
- The alarm produces a loud sound (120 dB). Avoid prolonged exposure to prevent hearing discomfort.
Obsah balení
- 1 x TECHKO S063 Portable Door Wedge Guard
- (Note: 9-volt battery not included)
Konec produktuview

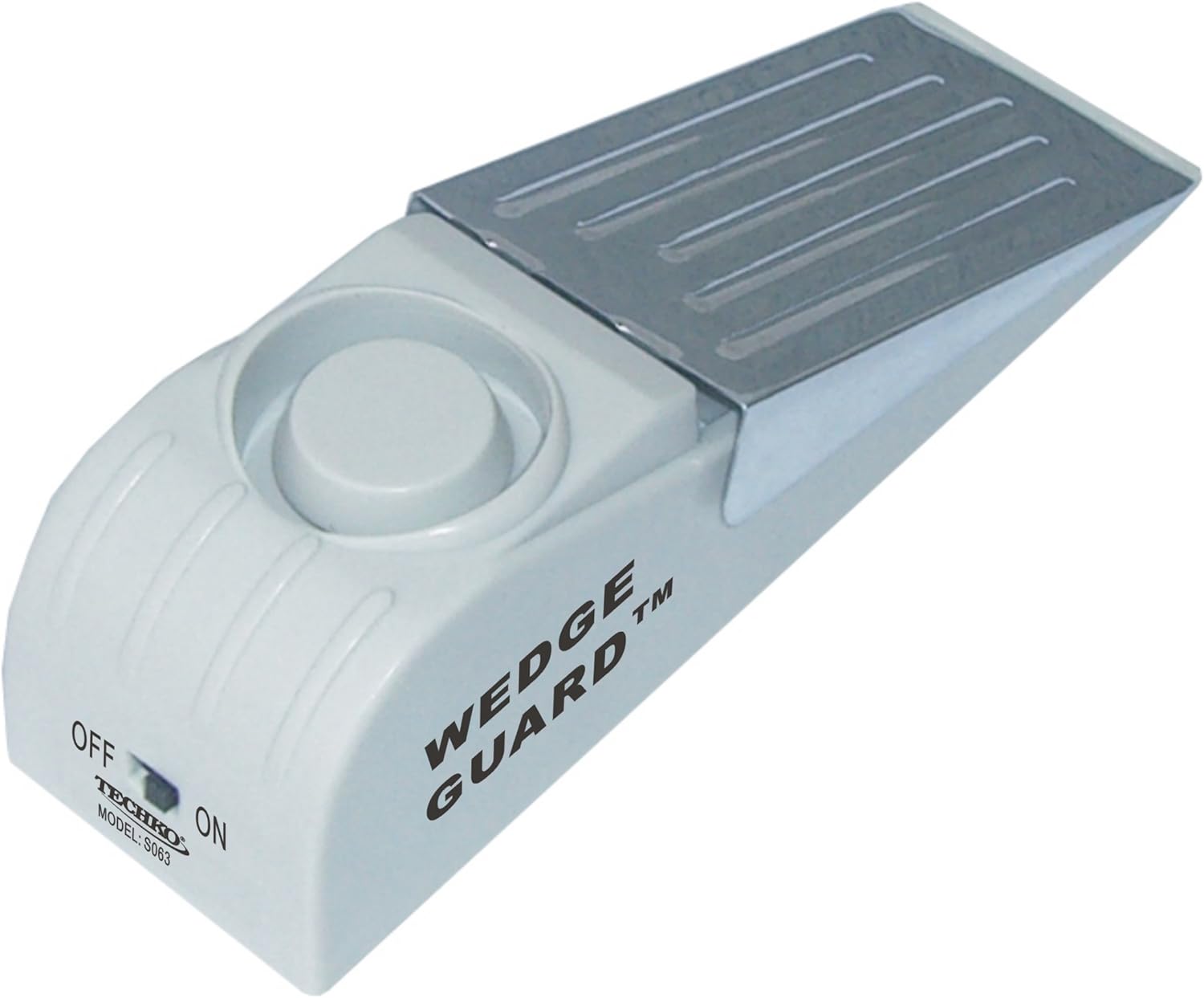

Obrázek 1: The TECHKO S063 Portable Door Wedge Guard. This image shows the device from an angled perspective, highlighting the main body, the ON/OFF switch on the side, and the metal contact plate at the front. The alarm speaker is visible on the top surface.
- Reproduktor budíku: Emits a loud 120 dB alarm.
- Metal Contact Plate: Detects pressure when a door attempts to open over it.
- Přepínač ON/OFF: Activates or deactivates the alarm system.
- Přihrádka na baterie: Located on the underside (not visible in this view), holds one 9-volt battery.
Nastavení
1. Instalace baterie
- Locate the battery compartment cover on the underside of the device.
- Slide or open the cover to access the compartment.
- Insert one standard 9-volt battery, ensuring correct polarity (+ and - terminals match).
- Bezpečně zavřete kryt bateriového prostoru.
2. Umístění
- Place the door wedge guard firmly under the door you wish to secure.
- Ensure the metal contact plate is positioned to be depressed if the door is opened.
- The wedge design should prevent the door from opening while also providing a stable base for the alarm.
Návod k obsluze
- Arming the Device: After placing the device under the door, slide the ON/OFF switch to the "ON" position. The unit will arm after a 10-second delay. This delay allows you to exit the room without triggering the alarm.
- Aktivace alarmu: The alarm will sound instantly if:
- Significant vibration is detected (e.g., someone attempting to force the door open).
- The metal contact plate is depressed (e.g., the door pushes against the wedge).
- Disarming the Device: To stop the alarm, slide the ON/OFF switch to the "OFF" position.
Údržba
Výměna baterie
When the alarm sound becomes weak or the device fails to activate, it is time to replace the 9-volt battery. Follow the battery installation steps outlined in the "Setup" section.
Čištění
Zařízení otřete měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani zařízení neponořujte do vody.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Alarm se nespustí. | Baterie je vybitá nebo nesprávně nainstalovaná. | Vyměňte baterii a dbejte na správnou polaritu. |
| Alarm is too quiet. | Slabá baterie. | Vyměňte baterii. |
| Alarm triggers accidentally. | Device is too sensitive or improperly placed. | Adjust placement to ensure it's stable and not subject to minor vibrations. Ensure the 10-second arming delay is respected. |
| Alarm does not stop. | Switch is stuck or faulty. | Slide the ON/OFF switch to "OFF". If it persists, remove the battery. Contact customer support if the issue continues. |
Specifikace
- Model: S063
- Hlasitost budíku: 120 dB
- Zdroj napájení: 1 x 9-volt battery (not included)
- Detekce: Vibration and Contact Sensor
- Rozměry: Přibližně 21.59 x 15.49 x 4.32 cm (8.5 x 6.1 x 1.7 palce)
- Hmotnost: Přibližně 454 g (1 lb)
- Výrobce: Techko
Záruka a podpora
For warranty information or technical support, please refer to the product packaging or contact TECHKO customer service directly. Contact details are typically available on the manufacturer's official webwebu nebo přiložené dokumentace.
Uschovejte si prosím doklad o koupi pro případ reklamace.
