Moen M-Pact Posi-Temp Pressure-Balancing Rough-In Valve

Zavedení

This manual provides essential information for the installation, operation, and maintenance of your Moen M-Pact Posi-Temp Pressure-Balancing Rough-In Valve, Model 63170. The M-Pact Common Valve System is designed to simplify future upgrades, allowing you to change the trim style or finish of your faucet without altering the in-wall plumbing. This system ensures consistent water temperature and pressure, enhancing your showering or bathing experience.

Image: The Moen 63170 M-Pact Posi-Temp Rough-In Valve, showcasing its brass construction and multiple connection points for water supply and output.

Bezpečnostní informace

Před zahájením instalace si pečlivě přečtěte všechny pokyny. Nedodržení těchto pokynů může vést k poškození majetku nebo zranění osob.

• Always turn off the main water supply before installing or servicing the valve.
• Během instalace používejte vhodné osobní ochranné prostředky (OOP), jako jsou ochranné brýle a rukavice.
• If you are unsure about any part of the installation process, consult a qualified plumbing professional.
• Ensure all local plumbing codes are met during installation.

Vyžadovány komponenty a nástroje

Zahrnuté komponenty:

• Moen M-Pact Posi-Temp Rough-In Valve (Model 63170)
• Protective plaster ground (white cover)
• Installation hardware (screws, mounting bracket)

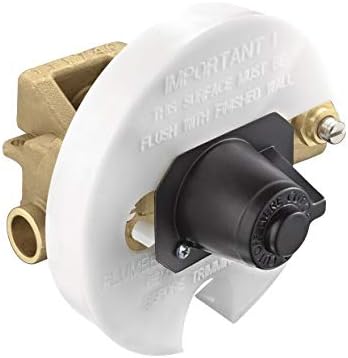

Image: The Moen 63170 valve shown with its white protective plaster ground, which helps protect the valve during wall finishing and indicates the proper depth for installation.

Nástroje, které můžete potřebovat:

• Řezačka trubek nebo pila na železo
• Měřicí páska
• Úroveň
• Šroubovák (Phillips a/nebo plochý)
• Nastavitelný klíč
• Soldering torch and solder (for copper connections) or appropriate tools for CPVC/PEX connections
• Závitová těsnící páska (teflonová páska)

Instalace

This section outlines the general steps for installing the Moen M-Pact Rough-In Valve. Refer to the detailed instructions included with your specific valve packaging for precise measurements and connection methods.

1. Připravte instalační prostor:
   • Turn off the main water supply to the house.
   • Remove any existing fixtures and clear the wall cavity where the valve will be installed.
   • Ujistěte se, že montážní povrch je čistý a stabilní.
2. Namontujte ventil:
   • Position the valve in the wall cavity, ensuring it is level and at the correct depth relative to the finished wall surface. The protective plaster ground should be flush with the finished wall.
   • Secure the valve to the framing using appropriate screws through the mounting tabs.
3. Připojení vodovodního potrubí:
   • Connect the hot water supply line to the port marked "H" (Hot).
   • Connect the cold water supply line to the port marked "C" (Cold).
   • Connect the shower outlet line to the top port.
   • Connect the tub spout outlet line to the bottom port (if applicable).
   • Ensure all connections are secure and leak-free. The valve supports 1/2" connections and is compatible with CPVC.
4. Zkouška těsnosti:
   • Pomalu zapněte hlavní přívod vody.
   • Inspect all connections for any signs of leaks. Tighten connections as necessary.
5. Instalace sady obložení:
   • Once the wall is finished, remove the protective plaster ground.
   • Install your chosen Moen M-Pact compatible trim kit according to its specific instructions. This typically involves installing the cartridge, handle, and escutcheon plate.

Operace

The Moen M-Pact Posi-Temp Rough-In Valve works in conjunction with a Moen Posi-Temp trim kit (sold separately) to control water flow and temperature. The pressure-balancing mechanism maintains water temperature within a safe range, even when other water sources in your home are used, preventing sudden temperature changes.

• Ovládání teploty: The single handle of your trim kit rotates to control the water temperature.
• Řízení toku: The handle also controls the water flow, turning it on and off.
• Pressure Balancing: The internal cartridge automatically adjusts water pressure to maintain a consistent temperature, protecting against scalding or thermal shock.

Údržba

Proper maintenance will ensure the longevity and optimal performance of your Moen valve.

• Pravidelná kontrola: Periodically check for any signs of leaks around the valve body or connections. Address any leaks promptly.
• Výměna kazety: While designed for durability, the Posi-Temp cartridge may eventually require replacement due to wear or mineral buildup. Moen Posi-Temp cartridges are designed for easy replacement without needing to access the in-wall plumbing. Refer to your trim kit's manual for specific cartridge replacement instructions.
• Čištění: Keep the exposed trim clean using a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as they can damage the finish.

Odstraňování problémů

If you encounter issues with your Moen M-Pact Posi-Temp valve, refer to the common problems and solutions below. For more complex issues, contact Moen customer support.

Specifikace

Záruka a podpora

Moen products are manufactured with the highest standards of quality and workmanship. Moen offers a Limited Lifetime Warranty against leaks, drips, and finish defects to the original consumer purchaser. For full warranty details, product registration, or technical support, please visit the official Moen webnebo kontaktujte jejich oddělení zákaznických služeb.

Moen Official Webmísto: www.moen.com

Služby zákazníkům: Viz Moen website for current contact information (phone numbers, chat, email).
