Moen TS214

Moen Waterhill Two-Handle High Arc Roman Tub Faucet

Model: TS214 | Značka: Moen

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your Moen Waterhill Two-Handle High Arc Roman Tub Faucet. The intricate charm of the Waterhill series is designed to add character and enrich your home's aesthetic. Please read this manual thoroughly before beginning installation or operation to ensure proper function and longevity of your product.

Klíčové vlastnosti

Bezpečnostní informace

Always turn off the main water supply before installing or servicing the faucet. Wear appropriate personal protective equipment, such as safety glasses, during installation. If you are unsure about any part of the installation process, consult a qualified plumber.

Obsah balení

Před zahájením instalace ověřte, zda jsou přítomny všechny komponenty.

Note: Moen valves (Valve No. 4992 or 4993) are NOT included and are required for operation. These must be purchased separately.

Průvodce instalací

1. Předinstalace

2. Faucet Assembly and Mounting

  1. Install the Moen M-PACT valve body (sold separately) according to its specific instructions.
  2. Apply a thin bead of plumber's putty or silicone sealant around the base of the faucet spout and handles.
  3. Insert the faucet spout and handle assemblies through the mounting holes on the tub deck.
  4. From underneath the tub deck, secure the faucet and handles using the provided mounting nuts and washers. Tighten firmly but do not overtighten.

3. Water Supply Connections

  1. Connect the hot and cold water supply lines to the corresponding inlets on the valve body. Use an adjustable wrench to tighten connections, ensuring no leaks.
  2. Před zapnutím přívodu vody se ujistěte, že jsou všechna připojení zajištěna.

4. Závěrečné kroky

  1. Turn on the main water supply slowly and check for any leaks.
  2. Remove the aerator from the spout and flush the faucet for a few minutes to clear any debris from the lines. Reinstall the aerator.
  3. Test the hot and cold water flow and temperature control.

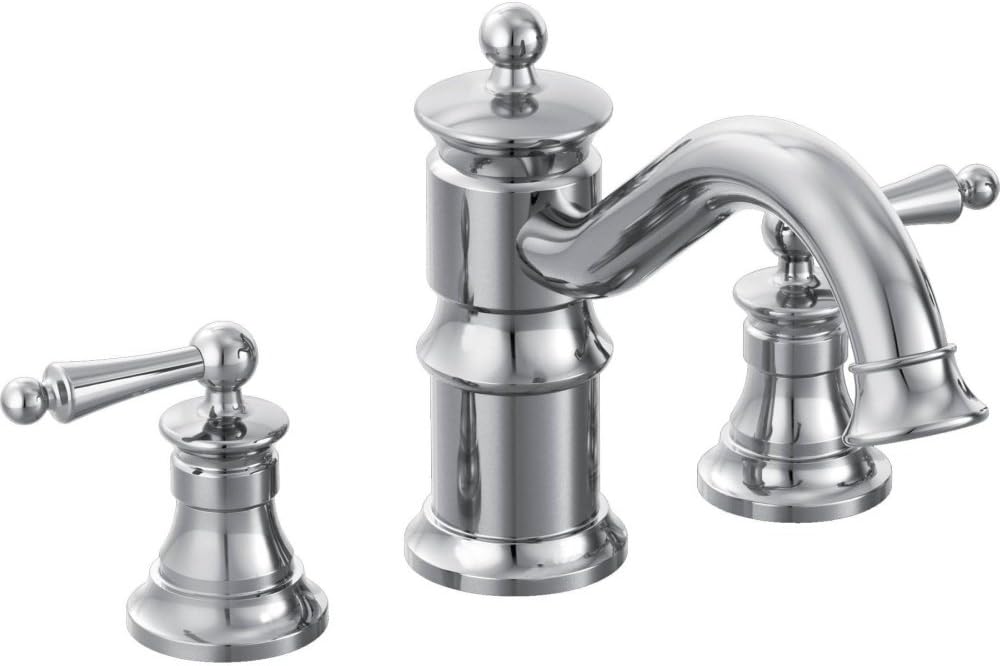

Moen Waterhill Roman Tub Faucet in Chrome

Figure 1: Moen Waterhill Two-Handle High Arc Roman Tub Faucet (TS214) in Chrome finish, showing the spout and two lever handles.

Operace

The Moen Waterhill faucet features two lever handles for independent control of hot and cold water. Turn the left handle counter-clockwise for hot water and the right handle counter-clockwise for cold water. Adjust both handles to achieve the desired water temperature and flow. The high arc spout can be rotated for convenience and locked into position.

Péče a údržba

To maintain the beautiful chrome finish of your Moen faucet, clean it regularly with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish and void your warranty. For stubborn water spots, a mild soap and water solution can be used, followed by rinsing and drying.

Odstraňování problémů

ProblémMožná příčinaŘešení
Nízký průtok vodyUcpaný provzdušňovač; částečně uzavřený uzavírací ventil; nečistoty v přívodním potrubí.Remove and clean aerator; ensure shut-off valves are fully open; flush supply lines.
Únik z výlevkyOpotřebovaná kazeta; nečistoty v kazetě.Replace cartridge (refer to Moen's website for replacement parts and instructions); clean cartridge.
Únik u spodní části kohoutkuImproperly sealed base; loose mounting nuts.Reapply plumber's putty/silicone sealant; tighten mounting nuts.

Specifikace

Záruka a podpora

Tento produkt Moen je kryt Omezená doživotní záruka. For detailed warranty information, product registration, replacement parts, or technical assistance, please visit the official Moen website or contact Moen customer service. Keep your proof of purchase for warranty claims.
