Uživatelská příručka k litinovému zavlažovacímu čerpadlu na trávník WAYNE WLS200 2 HP

1. Úvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your WAYNE WLS200 2 HP Cast Iron High Volume Lawn Sprinkling Pump. The WLS200 is designed for various high-volume water transfer applications, including operating underground sprinkling systems, drawing water from wells, lakes, or ponds for watering, and pool filling. It features a durable cast iron volute and corrosion-resistant thermoplastic components for long-lasting performance.

Image 1.1: The WAYNE WLS200 2 HP Cast Iron Lawn Sprinkling Pump.

2. Bezpečnostní informace

Read and understand all safety warnings and instructions before installing or operating this pump. Failure to follow these instructions can result in serious injury or property damage.

Obecná bezpečnostní opatření:

• Před prováděním servisu čerpadla vždy odpojte napájení.
• Ujistěte se, že je čerpadlo řádně uzemněno, abyste zabránili úrazu elektrickým proudem.
• Do not operate the pump in explosive atmospheres or near flammable liquids.
• Během instalace a údržby používejte vhodné osobní ochranné prostředky (OOP).
• Během provozu držte děti a domácí zvířata v dostatečné vzdálenosti od čerpadla.

Elektrická bezpečnost:

• The pump is factory set to 230V. Ensure your power supply matches this requirement.
• All electrical wiring must comply with local codes and regulations.
• Use a dedicated circuit with appropriate overcurrent protection.
• Nikdy neprovozujte čerpadlo s poškozeným napájecím kabelem nebo zástrčkou.

Bezpečnost vody:

• Do not pump flammable or corrosive liquids.
• Ensure adequate ventilation if operating in an enclosed space.
• Protect the pump from freezing temperatures to prevent damage.

3. Klíčové komponenty

The WAYNE WLS200 pump consists of several key parts that work together to provide efficient water transfer:

• Motor: The 2 HP electric motor provides the power to drive the impeller.
• Závitnice: A heavy-duty cast iron casing that houses the impeller and directs water flow.
• Oběžné kolo: A rotating component that draws water into the pump and forces it out. Made from corrosion-resistant, reinforced thermoplastic.
• Diffuser/Infuser: Works with the impeller to convert velocity energy into pressure. Made from corrosion-resistant, reinforced thermoplastic.
• Suction Port: 2-inch NPT inlet for drawing water into the pump.
• Discharge Port: 1-1/2-inch NPT outlet for expelling water from the pump.

4. Nastavení a instalace

Proper installation is crucial for the pump's performance and longevity. Follow these steps carefully.

4.1 Výběr místa

• Choose a level, stable surface for the pump.
• Protect the pump from direct weather exposure (rain, snow, direct sunlight).
• Zajistěte dostatečné větrání kolem motoru.
• Position the pump as close as possible to the water source to minimize suction lift.

4.2 Vodovodní připojení

1. Sací vedení: Connect a 2-inch NPT pipe to the suction port. Use rigid piping to prevent collapse under vacuum. Ensure all connections are airtight to prevent air leaks, which can cause the pump to lose prime.
2. Výtlačné potrubí: Connect a 1-1/2-inch NPT pipe to the discharge port. A check valve may be installed in the discharge line to prevent backflow, especially in systems with significant elevation changes.
3. Foot Valve/Strainer: Install a foot valve with a strainer at the end of the suction line in the water source to prevent debris from entering the pump and to maintain prime.

Obrázek 4.1: Příkladample installation of the WAYNE WLS200 pump with PVC piping connections.

4.3 Elektrické připojení

• The WLS200 pump requires a 230-volt power supply.
• Consult a qualified electrician for all electrical wiring to ensure compliance with local codes and safety standards.
• Ensure the circuit is properly sized for the pump's 2 HP motor and includes appropriate overcurrent protection.

4.4 Naplnění čerpadla

Before initial operation or after the pump has run dry, it must be primed:

1. Remove the priming plug located on the top of the pump volute.
2. Fill the volute completely with water until it overflows.
3. Vyměňte a utáhněte plnicí zátku.
4. Ensure the suction line is submerged in the water source.
5. Open any valves in the discharge line.

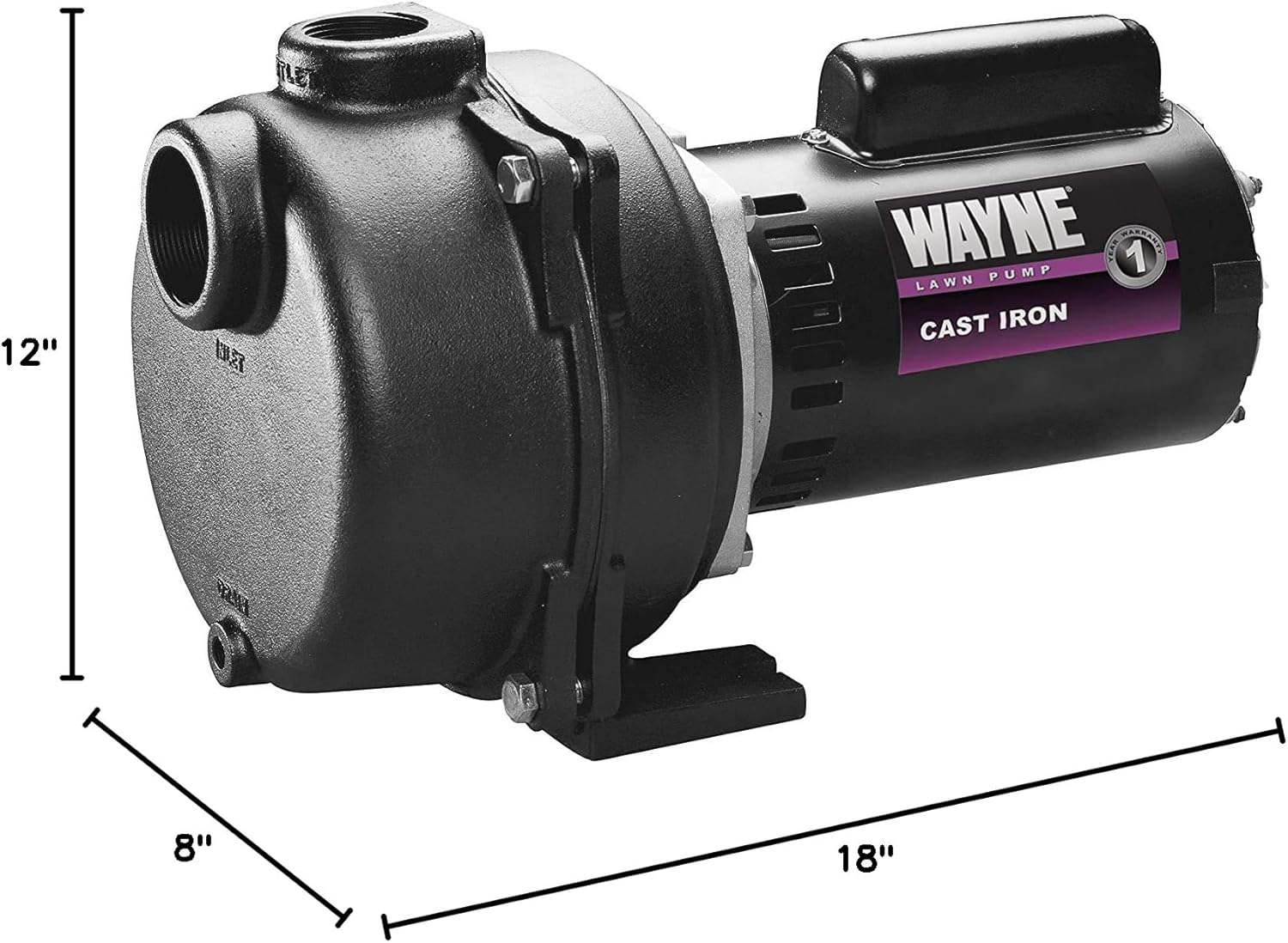

Image 4.2: Dimensions of the WAYNE WLS200 pump, useful for planning installation space.

5. Návod k obsluze

Once the pump is installed and primed, it is ready for operation.

5.1 Spuštění čerpadla

1. Ensure the pump is properly primed and all connections are secure.
2. Verify that the suction line is fully submerged in the water source.
3. Turn on the electrical power to the pump. The pump should start immediately.
4. Monitor the discharge flow to confirm proper operation.

5.2 Nepřetržitý provoz

• Avoid running the pump dry, as this can cause severe damage to the mechanical seal and other components.
• Regularly check for unusual noises or vibrations, which may indicate a problem.
• Ensure the water source remains adequate throughout the pumping cycle.

5.3 Vypnutí čerpadla

1. Vypněte elektrické napájení čerpadla.
2. If the pump will not be used for an extended period, especially in freezing conditions, proceed with winterization steps (see Section 6.2).

6. Údržba

Regular maintenance ensures optimal performance and extends the life of your pump.

6.1 Pravidelné kontroly

• Kontrola připojení: Periodically check all plumbing and electrical connections for leaks or damage.
• Čisté sítko: If a foot valve with a strainer is used, clean it regularly to prevent clogging and maintain flow.
• Ventilace motoru: Ensure the motor's cooling fins are free from dirt and debris to prevent overheating.

6.2 Zazimování

If the pump is exposed to freezing temperatures, it must be properly winterized to prevent damage:

1. Odpojte napájení čerpadla.
2. Drain all water from the pump casing by removing the drain plug (if present) or by disconnecting the suction and discharge lines.
3. Remove the priming plug and ensure all water is drained.
4. Store the pump in a warm, dry location, or ensure it is completely drained and protected from freezing.

7. Řešení problémů

This section addresses common issues you might encounter with your WAYNE WLS200 pump.

8. Specifikace

Technical details for the WAYNE WLS200 2 HP Cast Iron Lawn Sprinkling Pump:

• Model: wls200
• Výkon: 2 HP
• svtage: 230 voltů
• Materiál: Cast Iron (Volute), Reinforced Thermoplastic (Impeller, Infuser)
• Suction Port: 2-palcový NPT
• Discharge Port: 1-1/2-inch NPT
• Maximální průtok: Up to 4,200 Gallons Per Hour (GPH)
• Maximální výška zdvihu: 100 stop
• Rozměry produktu: 18 cm D x 8 cm Š x 12 cm V
• Hmotnost položky: 60 libry
• Zdroj napájení: Elektrický kabel
• Výrobce: Wayne
• UPC: 040066204851

9. Záruka a podpora

9.1 Informace o záruce

The WAYNE WLS200 pump is covered by a 1-year limited warranty from the date of purchase, covering defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or visit the official Wayne webmísto.

9.2 Zákaznická podpora

If you have questions about installation, operation, maintenance, or require technical assistance, please contact Wayne customer service. You can find contact information on the official Wayne webna místě nebo v obalových materiálech.
