Zavedení
This manual provides detailed instructions for the installation and maintenance of your Kuryakyn 9050 Chrome Solenoid Cover. This accessory is designed to enhance the appearance of your motorcycle's starter motor area while providing a protective chrome finish.
Kompatibilita
The Kuryakyn 9050 Solenoid Cover is compatible with the following Harley-Davidson models:
- 1990-2006 Big Twin Starters
- 1991-2019 XL1200
- 1995-2019 XL883
Součásti zahrnuty
Please verify that all parts are present before beginning installation.
- (1) Chrome Solenoid Cover
- (3) M4 x .7 X 12mm Socket Head Cap Screws
Image Description: A chrome solenoid cover, the main component of this kit, shown alongside a smaller accent piece. The larger cover is designed to fit over the motorcycle's solenoid.
Požadované nástroje (nejsou součástí dodávky)
- Sada šestihranných klíčů
- Set of Sockets and Ratchet
Pokyny k instalaci
- Příprava: Ensure the motorcycle is turned off and cool. For safety, disconnect the battery's negative terminal.
- Locate Solenoid: Identify the solenoid area on your Harley-Davidson motorcycle.
- Remove Existing Components (if any): If there is an existing cover or components obstructing the installation, carefully remove them using appropriate tools.
- Umístěte kryt: Place the Kuryakyn Chrome Solenoid Cover over the solenoid, aligning the mounting holes.
- Zajistěte kryt: Use the provided (3) M4 x .7 X 12mm Socket Head Cap Screws to secure the cover. Tighten screws evenly until snug, but do not overtighten to avoid damage.
- Závěrečná kontrola: Verify that the cover is securely mounted and does not interfere with any moving parts or other motorcycle components.
- Znovu připojte baterii: Znovu připojte záporný pól baterie.

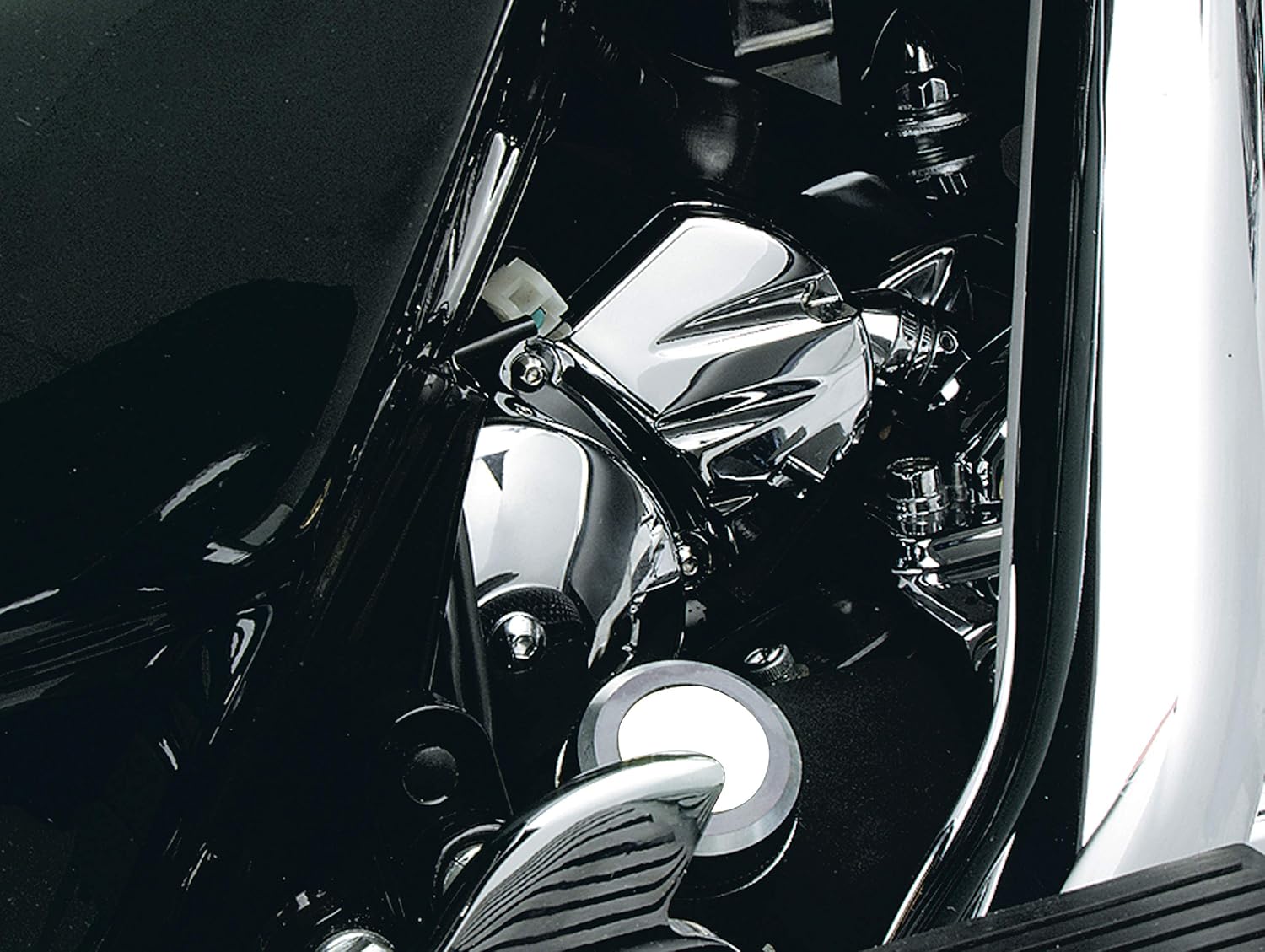

Image Description: A Kuryakyn chrome solenoid cover installed on a Harley-Davidson motorcycle, showcasing its integration with the engine components and overall aesthetic.
Údržba
To maintain the chrome finish of your Kuryakyn Solenoid Cover, regularly clean it with a soft cloth and a non-abrasive chrome cleaner. Avoid harsh chemicals or abrasive materials that could scratch the finish. Periodically check the mounting screws for tightness to ensure the cover remains securely attached.
Odstraňování problémů
Cover Does Not Fit Properly
- Ověřte kompatibilitu: Double-check that your motorcycle model and year are listed in the compatibility section.
- Zkontrolujte překážky: Ensure no other aftermarket parts or factory components are preventing proper seating of the cover.
- Review Kroky instalace: Re-read the installation instructions to confirm all steps were followed correctly.
Loose Cover
- Utáhněte šrouby: Gently tighten the M4 x .7 X 12mm Socket Head Cap Screws. Do not overtighten, as this can strip threads or damage the cover.
- Zkontrolujte montážní body: Check for any damage to the mounting points on the cover or the motorcycle.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | 9050 |
| Značka | Kurjakyn |
| Materiál | Metal (Chrome Plated) |
| Hmotnost položky | 6.9 unce (přibližně 0.43 libry) |
| Rozměry produktu | 7.5 x 5 x 1 palce |
| UPC | 182682078185, 182682100220, 191209007669 |

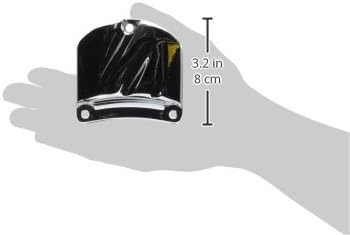

Image Description: A hand holding the smaller chrome accent piece, with an overlay indicating its dimensions: 3.2 inches (8 cm) in height.
Záruka a podpora
For warranty information or technical support, please contact Kuryakyn directly through their official website or authorized dealers. Keep your purchase receipt for warranty claims.
Navštivte Kuryakyn Store pro více produktů a informací.
