The Lightolier ZP600-W Sunrise Preset Decorator Style Incandescent Slide Dimmer is designed to provide smooth, full-range dimming for incandescent lighting fixtures. This dimmer features a convenient slide control for adjusting light levels and a preset button to recall a favorite light setting. It is suitable for single-location or multi-location control of permanently installed incandescent fixtures.
Důležité bezpečnostní pokyny
- VAROVÁNÍ: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before wiring!
- This device is for use with permanently installed incandescent fixtures only. Do not use with fluorescent, LED, or low-voltage lighting unless specifically rated for such use.
- Instalujte v souladu se všemi národními a místními elektrickými předpisy.
- Pokud si nejste jisti jakoukoli částí těchto pokynů, obraťte se na kvalifikovaného elektrikáře.
- Neinstalujte výrobek, pokud se jeví poškozený.
- Pouze pro vnitřní použití.
Obsah balení
- Lightolier ZP600-W Incandescent Slide Dimmer
- Montážní šrouby (obvykle součástí balení)
- Drátěné matice (obvykle součástí balení)
Nastavení a instalace
Schéma zapojení

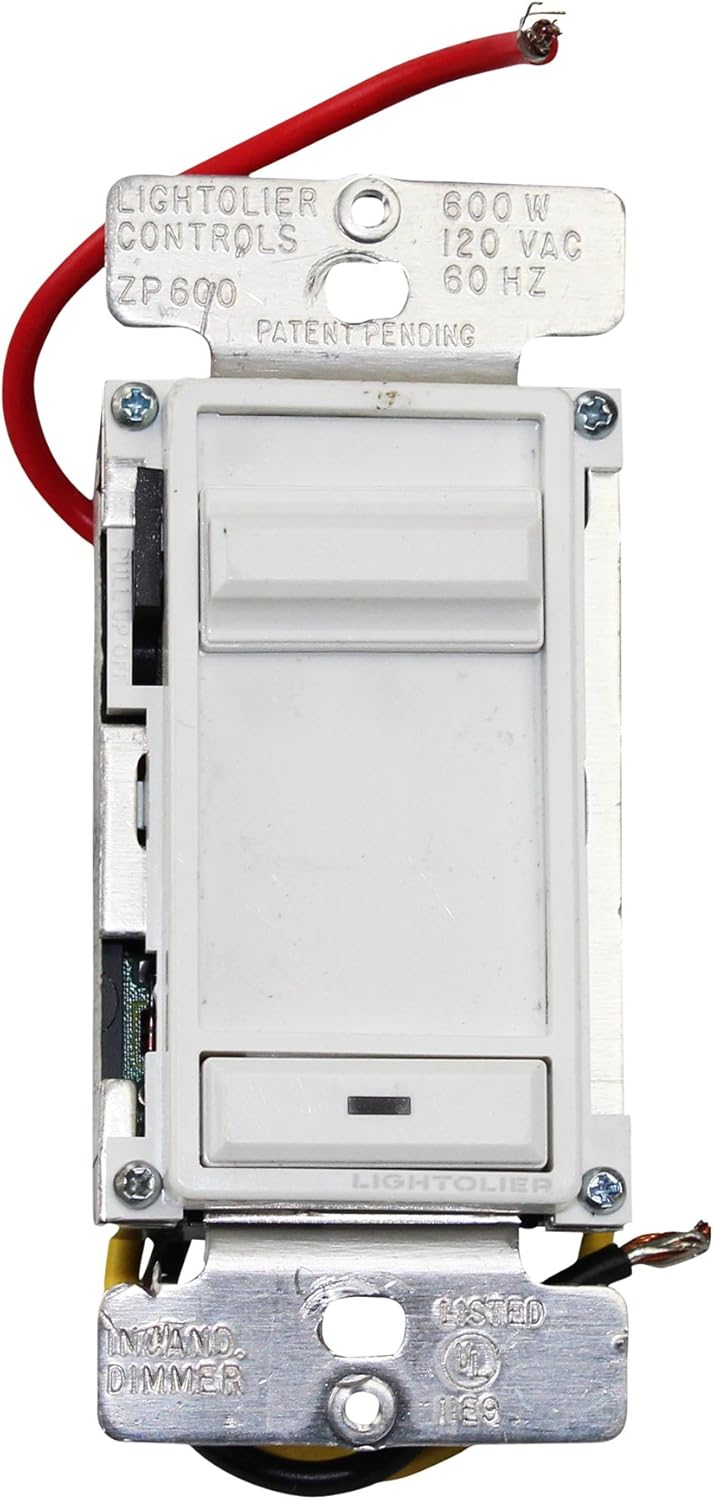

This image shows the Lightolier ZP600-W incandescent slide dimmer from the front, revealing its white faceplate, slide control, and preset button. The top and bottom wires are visible, indicating connection points for electrical installation.
- Vypnout napájení: Before beginning, ensure power is OFF at the circuit breaker or fuse box to avoid electrical shock.
- Demontáž starého spínače: Carefully remove the existing wall switch from the wall box. Disconnect the wires.
- Identifikace vodičů: Identify the LINE (hot) wire, LOAD wire (to the light fixture), and GROUND wire. If installing in a multi-location setup, identify traveler wires as well.
- Připojit dráty:
- Connect the dimmer's LINE wire (usually black or red) to the house LINE wire using a wire nut.
- Connect the dimmer's LOAD wire (usually black or red) to the house LOAD wire using a wire nut.
- Connect the dimmer's GROUND wire (green or bare copper) to the house GROUND wire using a wire nut.
- For multi-location control, connect traveler wires as per specific wiring diagrams provided with the product or by a qualified electrician.
- Držák Dimmer: Carefully fold the wires and push the dimmer into the wall box. Secure the dimmer to the wall box using the provided mounting screws.
- Instalace nástěnné desky: Attach the decorator-style wallplate (not included) over the dimmer.
- Obnovit napájení: Znovu zapněte napájení jističem nebo pojistkovou skříňkou.
Operating Your Dimmer
Ovládání stmívání
The large vertical slide control on the dimmer allows you to adjust the light level. Slide the control up to increase brightness and down to decrease brightness. The light will respond smoothly to your adjustments.
Přednastavená funkce
The smaller button below the slide control is the preset button. Once you have set your desired light level using the slide, press this button to turn the lights ON or OFF at that preset level. To change the preset level, simply adjust the slide control to a new level; the dimmer will automatically remember this new setting.
Péče a údržba
- Stmívač otřete měkkým hadříkem.amp cloth. Do not use abrasive cleaners, solvents, or sprays directly on the dimmer.
- Před čištěním se ujistěte, že je vypnuté napájení.
- No user-serviceable parts inside. Do not attempt to disassemble the dimmer.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Lights do not turn ON or dim. | No power to the dimmer; incorrect wiring; bulb burned out. | Check circuit breaker/fuse. Verify wiring connections. Replace bulb. |
| Světla blikají nebo hučí. | Incompatible bulb type; loose wiring; dimmer overloaded. | Ensure incandescent bulbs are used. Check all wire connections. Verify total wattage nepřesahuje 600W. |
| Dimmer is warm to the touch. | Normal operation; dimmer is dissipating heat. | This is normal. If it feels excessively hot or smells, turn off power and consult an electrician. |
Specifikace

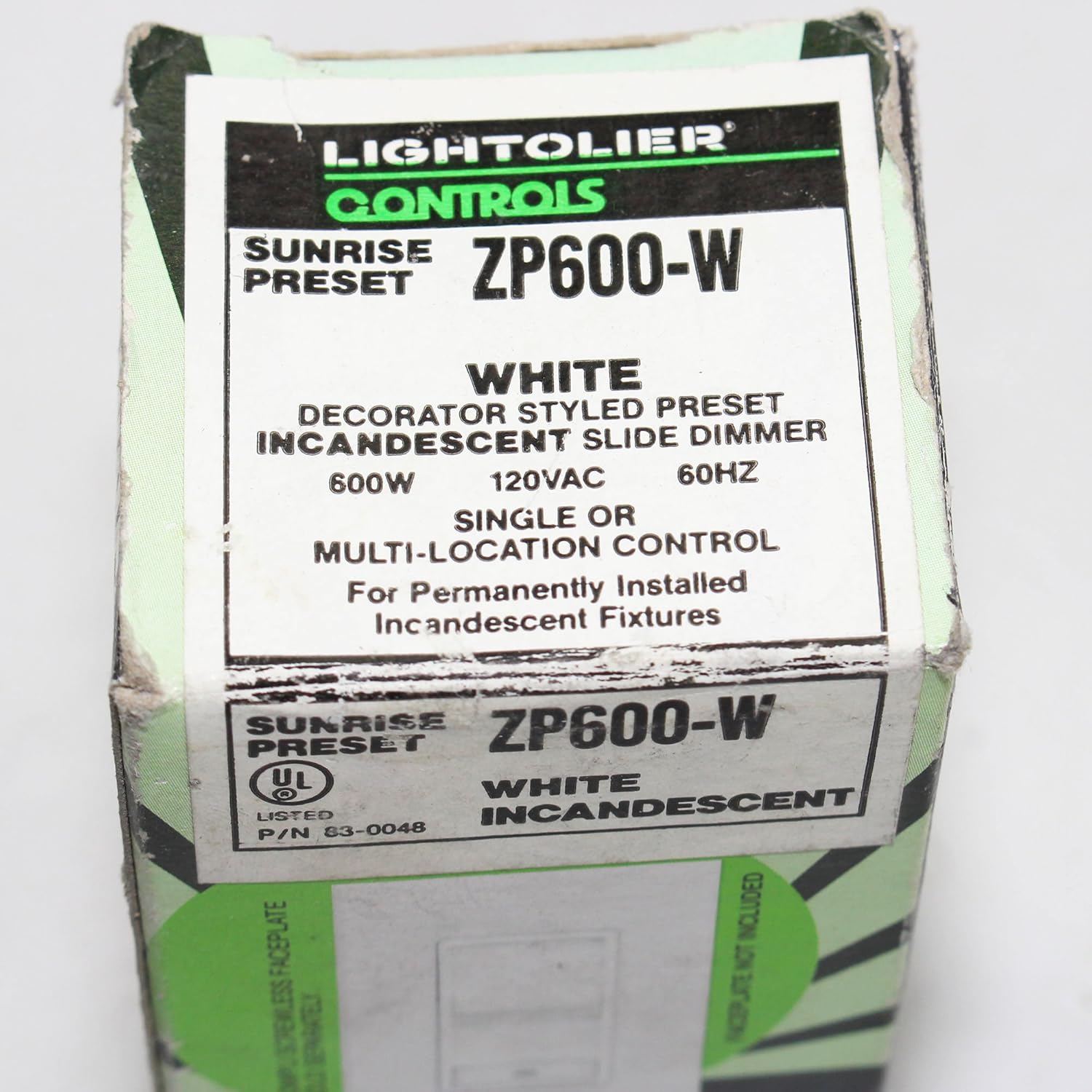

The product packaging for the Lightolier ZP600-W dimmer, displaying the 'Sunrise Preset' and 'Decorator Styled Preset Incandescent Slide Dimmer' labels. Key specifications like 600W, 120VAC, 60Hz, and 'Single or Multi-Location Control' are visible on the box.
| Specifikace | Hodnota |
|---|---|
| Výrobce | Skupina Phillips |
| Číslo dílu | ZP600-W |
| Barva | Bílý |
| Zdroj napájení | Elektrický kabel |
| svtage | 120 voltů |
| Wattage | 600 wattů |
| Počet položek | 1 |
| Jsou vyžadovány baterie | Žádný |
| Rozměry balení | 12.9 x 8.2 x 5.8 cm |
| Hmotnost položky | 0.28 g |
| Číslo modelu | ZP600W |
| ASIN | B000ETVVX2 |
| Hodnocení mezinárodní ochrany | IPX6 |
Informace o záruce
Lightolier products typically come with a limited warranty covering defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official Lightolier website for specific warranty terms and conditions applicable to the ZP600-W dimmer.
Zákaznická podpora
For technical assistance, troubleshooting, or warranty claims, please contact Lightolier customer support. Contact information can typically be found on the product packaging, the manufacturer's website, or by searching for 'Lightolier customer support' online.
