Zavedení
This manual provides essential information for the proper installation, operation, and maintenance of your Standard Motor Products HS242 Blower Switch. The HS242 is designed as a direct replacement component for automotive HVAC systems, controlling the blower motor speed. Please read these instructions thoroughly before proceeding with installation or use to ensure safe and effective operation.
Image: The official logo for Standard Motor Products, featuring "SMP" with a stylized blue swirl and the full company name below.
Bezpečnostní informace
- Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or damage to the vehicle's electrical system.
- Během instalace používejte vhodné osobní ochranné prostředky (OOP), jako jsou ochranné brýle a rukavice.
- Ensure the replacement part matches the original specifications for your vehicle. Consult your vehicle's service manual for specific procedures and torque specifications.
- Pokud si nejste jisti některým krokem, vyhledejte pomoc kvalifikovaného automechanika.
Nastavení a instalace
The installation of the HS242 Blower Switch typically involves replacing an existing faulty switch. The exact procedure may vary depending on your vehicle's make and model. Refer to your vehicle's specific service manual for detailed instructions.
- Příprava: Zaparkujte vozidlo na rovném povrchu a zatáhněte parkovací brzdu. Odpojte záporný pól baterie vozidla.
- Access the Blower Switch: Locate the blower switch assembly. This often requires removing dashboard trim panels or accessing the HVAC unit from under the dashboard.
- Odpojit kabeláž: Carefully disconnect the electrical connector(s) from the old blower switch. Note the orientation of the wiring if not keyed.
- Demontáž starého spínače: Unfasten any mounting screws or clips securing the old blower switch and remove it from its housing.
- Instalace nového přepínače: Position the new Standard Motor Products HS242 Blower Switch into the housing. Secure it with the original mounting screws or clips.
- Připojení kabeláže: Reconnect the electrical connector(s) to the new switch, ensuring a secure connection.
- Znovu sestavit: Reinstall any removed trim panels or components.
- Test funkčnosti: Reconnect the vehicle's battery. Turn the ignition to the "ON" position (without starting the engine) and test the blower switch at all speed settings to ensure proper operation of the blower motor.

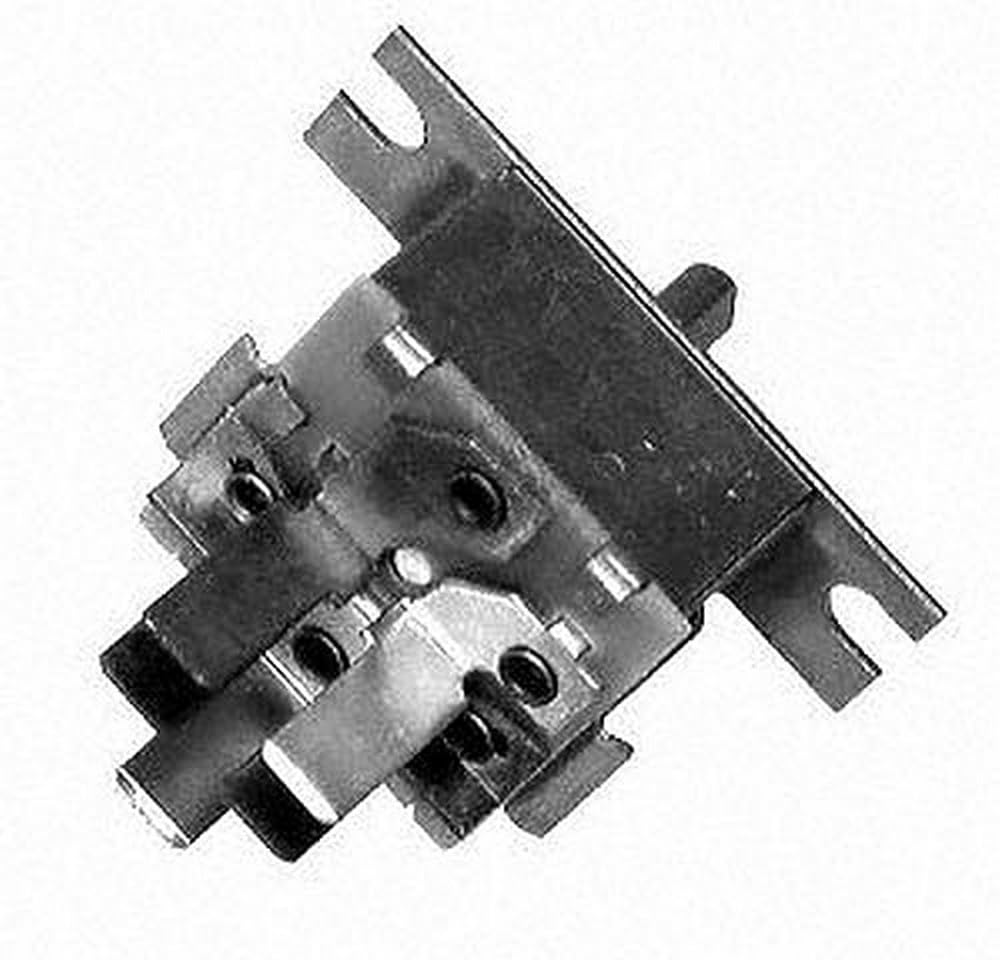

Obrázek: Detailní záběr view of the Standard Motor Products HS242 Blower Switch, showing its electrical connectors and housing.
Návod k obsluze
The Standard Motor Products HS242 Blower Switch functions as a control for your vehicle's HVAC blower motor. Its operation is straightforward:
- Zapnutí/vypnutí: The switch typically has an "OFF" position and multiple speed settings. Rotate or slide the switch to the desired speed setting to activate the blower motor.
- Ovládání rychlosti: Move the switch through its various positions to increase or decrease the fan speed for the vehicle's heating or air conditioning system.
- Integrace systému: The blower switch works in conjunction with other HVAC controls (e.g., temperature control, mode selection) to deliver conditioned air into the cabin.
Údržba
The Standard Motor Products HS242 Blower Switch is a sealed electrical component and generally requires no routine maintenance. However, to ensure its longevity and proper function:
- Udržujte v suchu: Avoid exposing the switch or its connectors to excessive moisture or liquids.
- Čistota: If the switch is exposed, keep the surrounding area free from dust and debris. Use a soft, dry cloth for cleaning.
- Zkontrolujte kabeláž: Periodically inspect the wiring harness connected to the switch for any signs of wear, fraying, or corrosion. Address any issues promptly.
- Odborná kontrola: During routine vehicle maintenance, have a qualified technician inspect all electrical components, including the blower switch, for optimal performance.
Odstraňování problémů
If you experience issues with your vehicle's blower motor after installing or using the HS242 Blower Switch, consider the following common troubleshooting steps:
| Příznak | Možná příčina | Řešení |
|---|---|---|
| Blower motor does not operate at any speed. |
|
|
| Motor ventilátoru pracuje pouze na vysoké otáčky. |
|
|
| Intermittent blower operation. |
|
|
If these steps do not resolve the issue, it is recommended to consult a certified automotive technician for further diagnosis and repair.
Specifikace
- Model: HS242
- Značka: Standardní motorové produkty
- Typ přepínače: Spínač ventilátoru
- Provozní režim: Motor, Electrical
- Aktuální hodnocení: 20 Amps
- Provozní svtage: 5 voltů
- Typ kontaktu: Normálně otevřeno
- Typ konektoru: Krimpovací
- Typ terminálu: Šroub
- Materiál: Měď
- Rozměry produktu (D x Š x V): 5.1 x 3.7 x 8.6 Centimetres (approx. 2.0 x 1.4 x 3.4 inches)
- Hmotnost položky: 18.1 gramů (přibližně 0.04 libry)
- Země původu: Čína
Image: A collection of various automotive components, including sensors, valves, and an AC compressor, showcasing the range of products from Standard Motor Products.
Informace o záruce
Standard Motor Products provides a limited warranty on its products. For specific warranty terms, conditions, and duration applicable to the HS242 Blower Switch, please refer to the official Standard Motor Products webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si doklad o koupi pro případ reklamace.
Note: Warranty coverage typically applies to defects in material and workmanship under normal use and service. Improper installation or misuse may void the warranty.
Zákaznická podpora
For technical assistance, installation questions, or further product information regarding the Standard Motor Products HS242 Blower Switch, please visit the official Standard Motor Products webwebu nebo kontaktujte jejich oddělení zákaznické podpory.
Oficiální Webmísto: www.smpcorp.com
Please have your product model number (HS242) and any relevant vehicle information ready when contacting support.
