West Bend 55108 3-in-1 Coffee Center Instruction Manual

Zavedení

The West Bend 55108 3-in-1 Coffee Center is designed to provide versatile coffee preparation. This appliance combines a 4-cup espresso machine, a 10-cup drip coffee maker, and a milk frother into a single unit. This manual provides essential instructions for safe operation, setup, use, and maintenance of your coffee center.

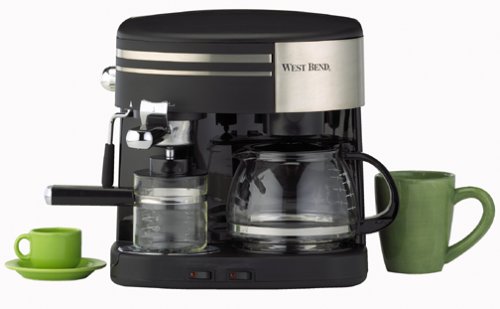

This image displays the West Bend 55108 3-in-1 Coffee Center. On the left, the espresso machine with its portafilter and steam wand is visible, accompanied by a small green espresso cup and saucer. On the right, the drip coffee maker with its glass carafe is shown, next to a larger green coffee mug. The unit is black with stainless steel accents.

Důležité bezpečnostní informace

Please read all instructions carefully before using the appliance. Failure to follow these instructions may result in injury or damage to the appliance.

• Vždy se ujistěte, že je spotřebič umístěn na stabilním, rovném a tepelně odolném povrchu.
• Neponořujte spotřebič, kabel ani zástrčku do vody nebo jiných kapalin.
• Udržujte ruce a kabely v dostatečné vzdálenosti od horkých povrchů a páry.
• Pokud zařízení nepoužíváte a před čištěním jej odpojte ze zásuvky.
• Tento spotřebič je určen pouze pro použití v domácnosti.

Nastavení

1. Rozbalení: Carefully remove all packaging materials and inspect the appliance for any damage. Retain packaging for future transport if needed.
2. Počáteční čištění: Before first use, wash the glass coffee carafe, espresso carafe, removable cone-shaped filter basket, and measuring spoon in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp tkanina.
3. Umístění: Place the coffee center on a dry, stable, and heat-resistant surface, away from the edge of the countertop and out of reach of children. Ensure adequate ventilation around the unit.

Návod k obsluze

The West Bend 55108 allows for simultaneous operation of the coffee maker and espresso machine. Power switches for both functions are located on the front for easy access.

Vaření překapávané kávy

1. Fill the water reservoir for the drip coffee maker with cold, fresh water up to the desired 10-cup maximum, using the easy-to-read water markings.
2. Insert a paper filter into the removable cone-shaped filter basket.
3. Add the desired amount of ground coffee to the filter. The swivel-out brew basket provides convenient access.
4. Place the glass coffee carafe on the warming plate.
5. Press the coffee maker power switch. An indicator light will illuminate.
6. The brew-pause function allows you to temporarily remove the carafe to pour a cup before the brewing cycle is complete. Replace the carafe within 20 seconds to prevent overflow.
7. Once brewing is complete, the warming plate will keep the coffee hot. Turn off the coffee maker when finished.

Výroba espressa

1. Fill the espresso machine's water reservoir with cold, fresh water for up to 4 cups of espresso.
2. Add finely ground espresso coffee to the portafilter and tamp to rovnoměrně.
3. Securely attach the portafilter to the espresso machine head.
4. Place the espresso carafe or espresso cups under the spouts.
5. Press the espresso machine power switch. An indicator light will illuminate.
6. Once the espresso is brewed, turn off the espresso machine.

Napěňování mléka

1. Ensure the espresso machine is heated and ready for steaming.
2. Fill a frothing pitcher with cold milk (dairy or non-dairy) to just below the spout.
3. Submerge the steam nozzle tip just below the surface of the milk.
4. Open the steam valve to release steam. Move the pitcher up and down to incorporate air and create foam.
5. Once desired froth is achieved, close the steam valve and remove the pitcher.
6. Parní trysku ihned otřeteamp hadříkem, aby zbytky mléka nezaschly.

Údržba

Čištění

• Před čištěním spotřebič vždy odpojte a nechte jej zcela vychladnout.
• The glass coffee carafe and espresso carafe are dishwasher safe for easy cleaning.
• The removable cone-shaped filter basket and measuring spoon can be washed in warm, soapy water.
• Otřete vnější část jednotky měkkým, damp tkanina. Nepoužívejte abrazivní čisticí prostředky ani drátěnky.
• Regularly clean the steam wand after each use to prevent milk buildup.

Odvápňování

Mineral deposits from water can build up over time, affecting performance. Descale your coffee center every 2-3 months, or more frequently if you have hard water. Refer to a standard descaling solution's instructions for coffee makers and espresso machines, or use a mixture of white vinegar and water (1:2 ratio).

Odstraňování problémů

• Káva se nevaří: Ensure the unit is plugged in, the power switch is on, and the water reservoir is filled.
• Weak coffee/espresso: Check if enough coffee grounds were used, or if the grind is too coarse.
• No steam from frother: Ensure the espresso machine is fully heated and the steam valve is open. Check for blockages in the steam wand.
• Únik: Ensure all removable parts, such as the portafilter and filter basket, are correctly seated.

Pokud problémy přetrvávají, kontaktujte zákaznickou podporu.

Specifikace

Záruka a podpora

Informace o záruce

The West Bend 55108 3-in-1 Coffee Center comes with a jednoletá omezená záruka from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from misuse, accident, commercial use, or unauthorized modifications.

Zákaznická podpora

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact West Bend customer support. Refer to the product packaging or the official West Bend webstránky s nejaktuálnějšími kontaktními informacemi.
