1. Úvod

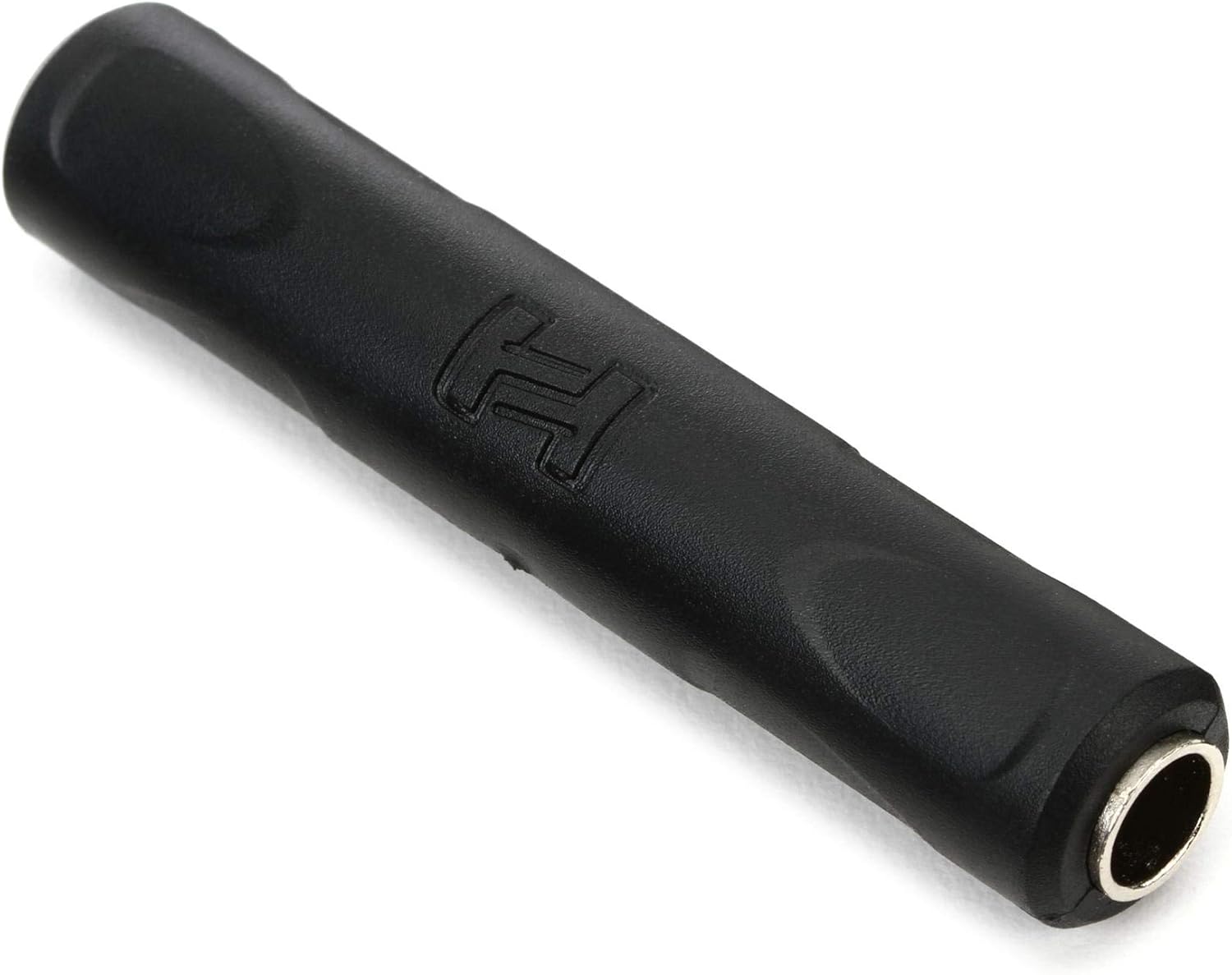

The Hosa GPP-105 adapter is designed to connect two 1/4 inch TRS (Tip-Ring-Sleeve) balanced cables, effectively extending their length. This coupler ensures clear, noise-free audio transmission, making it suitable for various audio applications. Its compact and durable design provides reliable performance for both mono and stereo connections.
2. Klíčové vlastnosti
- TRS Cable Extension: Connects two 1/4 inch TRS balanced cables to extend their length.
- Maintains Balanced Signal: Ensures clear, noise-free audio for professional use.
- Kompaktní design: Small and portable for easy transport and discreet connections.
- Odolná konstrukce: Built for reliable performance and long-lasting use.
- Všestranné použití: Ideal for studio, stage, and instrument connections.
3. Pokyny k nastavení
The Hosa GPP-105 coupler is designed for straightforward plug-and-play functionality. Follow these steps to set up your audio connection:
- Identify Cables: Ensure you have two 1/4 inch TRS cables that you wish to connect or extend. The coupler is compatible with both mono (TS) and stereo (TRS) plugs.
- Insert First Cable: Take one 1/4 inch cable and firmly insert its male plug into one end of the Hosa GPP-105 coupler.
- Insert Second Cable: Take the second 1/4 inch cable and firmly insert its male plug into the other end of the Hosa GPP-105 coupler.
- Zabezpečené připojení: Ensure both cables are fully seated within the coupler for a stable and reliable connection. The coupler is designed to hold cables securely.
Ukázkové video s nastavením
Video 1: This video demonstrates the physical connection process of two 1/4 inch cables using a female-to-female coupler, similar to the Hosa GPP-105. It shows how to insert male plugs into both ends of the coupler to extend an audio cable.
4. Operating the Coupler
Once connected, the Hosa GPP-105 coupler functions as a seamless extension for your audio cables. It is designed to maintain the integrity of your audio signal, whether it's balanced (TRS) or unbalanced (TS).
- Typ signálu: The adapter works with both mono and stereo plugs. When a mono (TS) plug is inserted into one side, the stereo (TRS) functionality on that side will adapt to mono, ensuring compatibility without signal loss.
- Aplikace: Use the coupler to extend instrument cables, headphone cables, or any other audio cables utilizing 1/4 inch connectors. This is particularly useful in studio environments, live stage setups, or home audio systems where longer cable runs are required.
- Kvalita signálu: The coupler is engineered to minimize signal degradation and noise, preserving the quality of your audio.
Konec produktuview Video
Video 2: Toto video poskytuje obecný přehledview of a 1/4 inch audio coupler, demonstrating its use for extending cables and discussing its basic functionality in audio setups.
5. Údržba
To ensure the longevity and optimal performance of your Hosa GPP-105 coupler, follow these simple maintenance guidelines:
- Čištění: Use a soft, dry cloth to wipe the exterior of the coupler. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish or internal components.
- Skladování: Store the coupler in a cool, dry place away from direct sunlight and extreme temperatures. Protect it from dust and moisture when not in use.
- Zacházení: Always grasp the body of the coupler when connecting or disconnecting cables. Avoid pulling on the cables themselves, as this can strain the connections and potentially cause damage.
- Inspekce: Periodically inspect the coupler for any signs of wear, corrosion, or damage to the connectors. If any damage is observed, discontinue use and consider replacement.
6. Řešení problémů
If you encounter issues while using your Hosa GPP-105 coupler, consider the following troubleshooting steps:
- Žádný zvuk nebo přerušovaný zvuk:
- Ensure both 1/4 inch cables are fully and securely inserted into the coupler.
- Check the cables themselves for any damage or loose connections. Test them individually if possible.
- Verify that the audio source and destination devices are properly powered and configured.
- Hučení nebo bzučení:
- Ensure all connections are tight. Loose connections can introduce noise.
- If using unbalanced (TS) cables, try to keep cable runs as short as possible to minimize interference.
- Test the cables and devices without the coupler to isolate the source of the noise.
- Špatná kvalita zvuku:
- Confirm that the cables used are of appropriate quality for your audio application.
- Ensure the coupler's internal contacts are clean and free of debris.
7. Specifikace
| Funkce | Specifikace |
|---|---|
| Číslo modelu | GPP-105 |
| Typ konektoru | 1/4 Inch TRS Female to 1/4 Inch TRS Female |
| Rozměry (D x Š x V) | 6.5 x 2.4 x 2 palce |
| Hmotnost položky | 0.8 unce |
| Barva | Černý |
| Kompatibilní zařízení | Devices with 1/4 inch mono (TS) or stereo (TRS) audio jacks |
8. Záruka a podpora
All Hosa cables and adapters, including the GPP-105, are covered by a limited lifetime warranty. For detailed information regarding warranty terms and conditions, please visit the official Hosa Technology webmísto na www.hosatech.com.
For technical support or further assistance, please refer to the contact information available on the Hosa Technology webmísto.
Additional Information Video
Video 3: This short video provides a quick visual of a 1/4 inch TRS/TS coupler, highlighting its compact form factor and how it can be used to combine or extend audio connections.
