Zavedení
Thank you for choosing the HOMCOM 8 Gallon Pull Out Garbage Bin. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new product. Please read these instructions thoroughly before use and retain them for future reference.
This pull-out garbage bin is designed for under-counter installation, featuring two removable 4-gallon (15L) compartments for easy waste separation and a soft-close mechanism for quiet operation.
Bezpečnostní pokyny
- Ensure all components are securely fastened during installation to prevent accidental detachment.
- Do not overload the bins beyond their stated capacity (4 gallons/15 liters per compartment).
- Keep hands clear of moving parts during operation, especially the soft-close mechanism.
- This product is intended for household waste and recycling. Do not use for hazardous materials.
- Regularly inspect the unit for any signs of wear or damage. Discontinue use if damage is found.
- Keep plastic bags and packaging materials away from children to prevent suffocation hazards.
Obsah balení
Před zahájením montáže se prosím ujistěte, že jsou všechny díly přítomny.
- 1 x Pull Out Garbage Bin Frame with Soft-Close Slides
- 2 x 4-Gallon (15L) Removable Inner Buckets
- 1 x Lid (integrated with frame)
- Montážní materiál (šrouby)
- 1 x Návod k použití
Obrázek 1: Přample obalu produktu.
Nastavení a instalace
This pull-out garbage bin is designed for base-mounted installation inside a kitchen cabinet. Ensure your cabinet meets the minimum dimension requirements before proceeding.
1. Check Cabinet Dimensions
Verify that your cabinet has sufficient space to accommodate the unit. The minimum required internal cabinet dimensions are approximately 40 cm (width) x 50 cm (depth) x 40 cm (height).
Figure 2: Minimum cabinet dimensions for installation.
2. Umístěte jednotku
Place the garbage bin frame inside the cabinet at the desired location. Ensure it is positioned to allow full extension and retraction without obstruction from cabinet doors or plumbing (if installing under a sink).

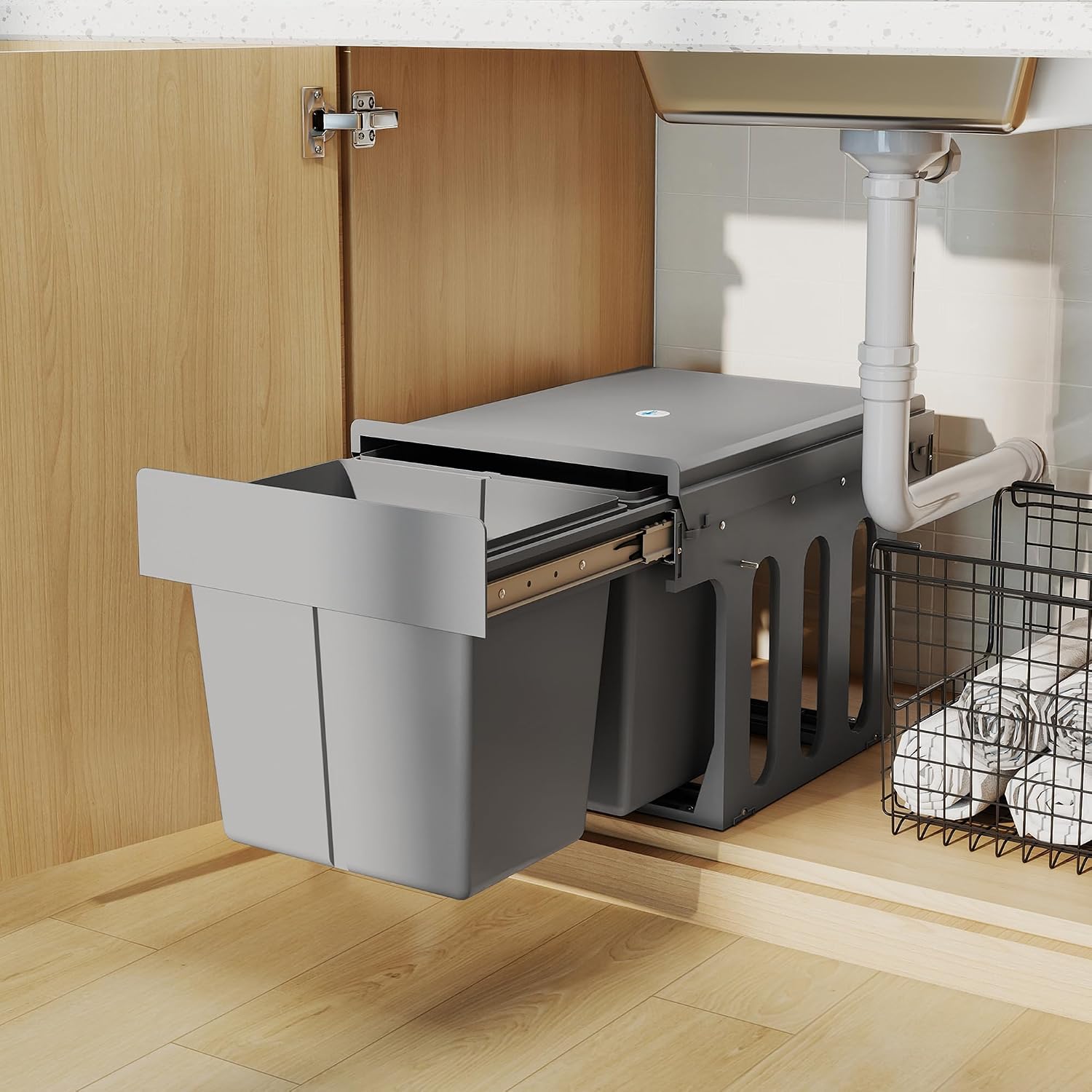

Figure 3: Bin positioned under a sink, demonstrating proper clearance.
3. Secure the Base
Using the provided mounting hardware (screws), secure the base of the bin frame to the cabinet floor. Ensure the unit is stable and does not wobble.
Figure 4: Base mounting detail.
4. Insert Inner Buckets
Place the two removable inner buckets into the frame. The frame is designed to hold two 15-liter buckets side-by-side.
Figure 5: Dual 15L compartments for waste separation.
Návod k obsluze
1. Pulling Out the Bin
Gently pull the front panel of the bin to slide the unit out of the cabinet. The damped metal runners ensure a smooth and quiet glide.
Figure 6: Demonstrating the pull-out action.
2. Likvidace odpadu
Use the two separate compartments for different types of waste, such as general trash and recyclables. The integrated lid helps to block odors when the bin is closed.
3. Closing the Bin
Gently push the bin back into the cabinet. The soft-close feature will engage, ensuring the unit slides back smoothly and quietly without slamming. This feature also provides resistance to prevent accidental pulling out by children or pets.
Figure 7: Soft-close and child safety feature.
4. Removing Inner Buckets
To empty or clean, simply lift the inner buckets directly out of the frame. Replace them securely after emptying.
Figure 8: Removable inner buckets for easy emptying.
Údržba
- Cleaning the Inner Buckets: Remove the inner buckets and wash them with warm, soapy water. Rinse thoroughly and dry before returning them to the frame.
- Čištění rámu: Wipe the exterior of the frame and lid with a damp hadříkem a jemným čisticím prostředkem. Nepoužívejte abrazivní čisticí prostředky, které by mohly poškodit povrchovou úpravu.
- Maintaining the Slides: Periodically check the metal runners for debris. If the glide becomes less smooth, clean the tracks and apply a small amount of silicone-based lubricant if necessary.
- Kontrola zápachu: For persistent odors, sprinkle baking soda in the bottom of the inner buckets or use odor-absorbing packets.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Bin does not slide smoothly. | Debris in slide tracks; slides are dry. | Clean the slide tracks. Apply a silicone-based lubricant to the runners. |
| Bin does not close completely. | Obstruction; bin overloaded; misaligned. | Check for items blocking the bin's path. Ensure bins are not overfilled. Verify the unit is securely mounted and aligned. |
| Nepříjemné pachy přetrvávají. | Bins need cleaning; lid not sealing properly. | Thoroughly clean inner buckets and frame. Ensure the lid is free of debris and closes completely. Use odor absorbers. |
Specifikace
- Číslo modelu: 851-075V00LG
- Značka: HOMCOM
- Kapacita: 8 Gallons (2 x 4 Gallon / 2 x 15 Liters)
- Celkové rozměry (D x Š x V): 48 cm x 34.3 cm x 35.1 cm (18.9" x 13.5" x 13.8")
- Inner Bucket Dimensions (approx.): 29 cm (šířka) x 21.5 cm (hloubka) x 29.5 cm (výška)
- Materiál: PP and ABS Plastic
- Otevírací mechanismus: Vytahovací
- Speciální vlastnosti: Dual Compartment, Soft Close, Removable Buckets, Base Mounted
- Hmotnost položky: 4.4 kg
- Barva: Světle šedá

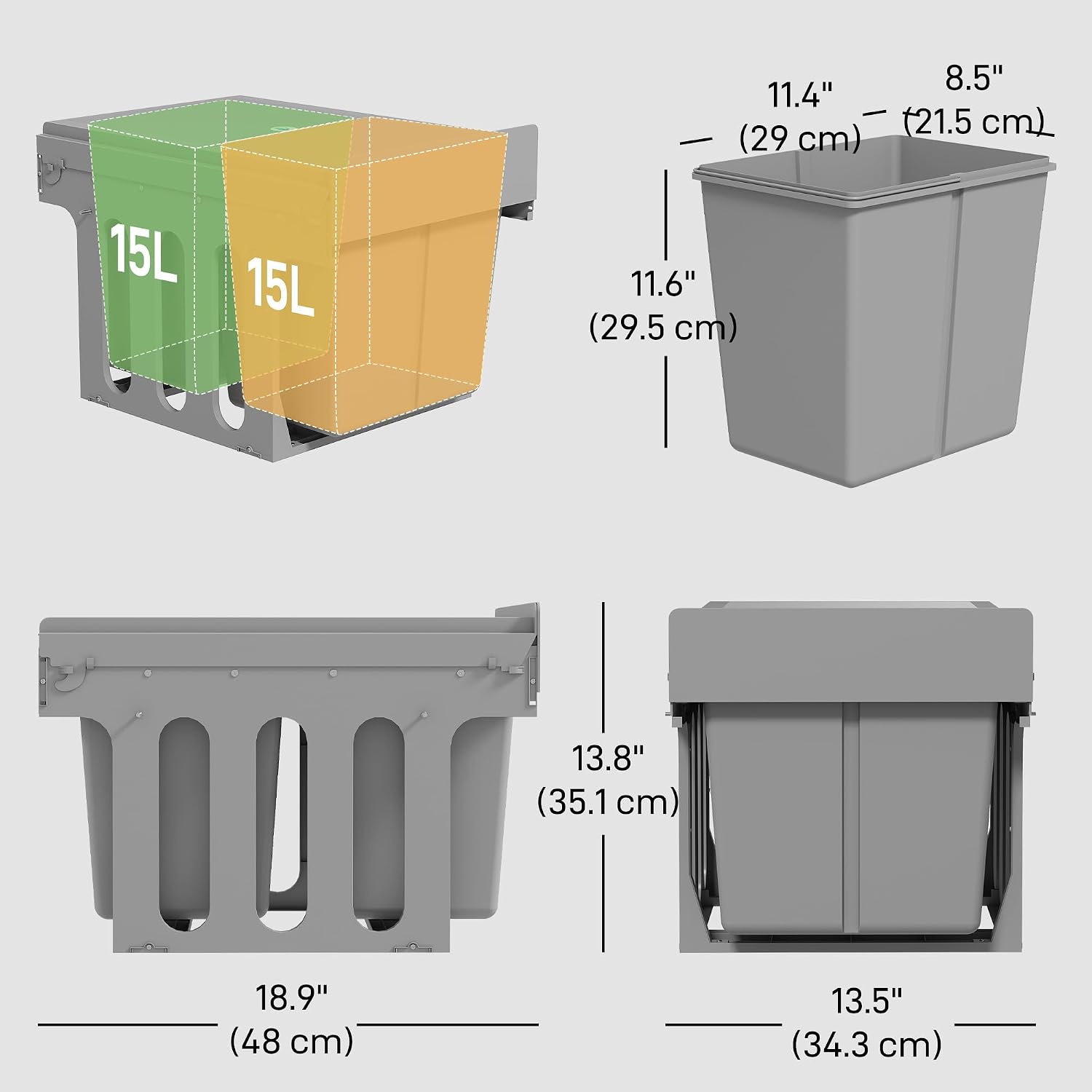

Obrázek 9: Rozměry produktu nadview.
Záruka a podpora
For warranty information or technical support, please contact Aosom Canada, the manufacturer, directly.
- Výrobce: Aosom Kanada
- Kontaktní Telefon: 1-416-792-6088
- Místo podnikání: Markham, Ontario, Kalifornie
Please have your model number (851-075V00LG) and purchase date available when contacting support.
