1. Úvod
Thank you for choosing the FOSSiBOT F1800 Portable Power Station. This device is a versatile and reliable power solution designed for various applications, including outdoor adventures, emergency home backup, and professional use. Featuring a 1024 Wh LiFePO4 battery and an 1800 W continuous AC output, the F1800 provides stable and clean power for your electronic devices and appliances. Please read this manual carefully before operating the device to ensure safe and optimal performance.
2. Bezpečnostní pokyny
To prevent injury, electric shock, fire, or damage to the device, always observe the following safety precautions:
- Jednotku nerozebírejte, neopravujte ani neupravujte.
- Neumisťujte jednotku do blízkosti zdrojů tepla ani na přímé sluneční světlo.
- Nepoužívejte ani neskladujte přístroj v koupelně ani v místech vystavených vodě či dešti.
- Používejte pouze originální nebo certifikované nabíjecí kabely a příslušenství.
- Udržujte jednotku mimo dosah dětí a domácích zvířat.
- Během používání a nabíjení zajistěte dostatečné větrání, aby nedošlo k přehřátí.
- Zabraňte pádům, silným nárazům nebo vibracím.
- V případě požáru použijte práškový hasicí přístroj. Voda může způsobit úraz elektrickým proudem.
Obrázek 2.1: The F1800 features an advanced Battery Management System (BMS) for comprehensive protection against overvoltage, overheating, short circuits, overcharging, and deep discharge, ensuring safety and longevity.
3. Obsah balení
Zkontrolujte prosím, zda jsou v balení obsaženy všechny následující položky:
- 1 x FOSSiBOT F1800 Portable Power Station
- 1 x AC nabíjecí kabel
- 1 x nabíjecí kabel do auta
- 1 x XT60 Solar Charging Cable
- 1 x úložný sáček
- 1 x Uživatelská příručka
4. Konec produktuview
The FOSSiBOT F1800 is designed for ease of use and portability, offering multiple output ports and charging options.

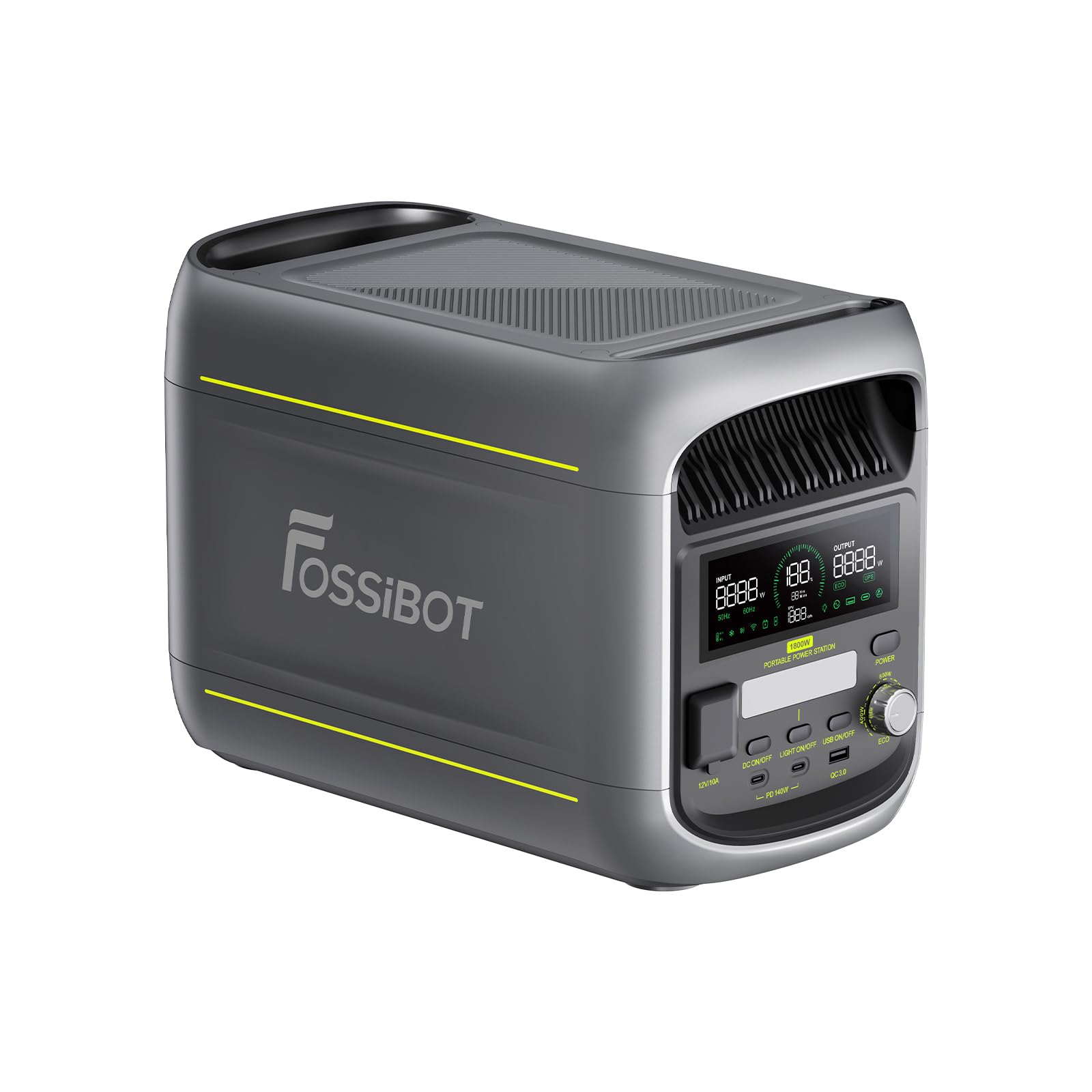

Obrázek 4.1: Přední view of the FOSSiBOT F1800 Portable Power Station, showing the main display and control panel.
Obrázek 4.2: The F1800 features multiple output ports including AC, USB-C, USB-A, and a 12V/10A cigarette lighter port, providing versatile power options for various devices.
4.1 Smart HD Display
The integrated HD display provides real-time information about the power station's status, including battery percentage, vstupní/výstupní hodnotatage, remaining runtime, and safety indicators.
Obrázek 4.3: Detailní view of the F1800's Smart HD display, showing battery level, input/output power, frequency, temperature, fan status, Bluetooth, Wi-Fi, XT60 input, and various output indicators.
5. Nastavení
5.1 Počáteční nabíjení
Before first use, fully charge your FOSSiBOT F1800. Connect the AC charging cable to the AC input port on the power station and then to a wall outlet. The display will show the charging status. A full charge from 0-80% can be achieved in approximately 45 minutes using AC input.
5.2 Připojení solárních panelů
For solar charging, connect compatible solar panels (not included) to the XT60 solar input port using the provided XT60 solar charging cable. Ensure the solar panels are placed in direct sunlight for optimal charging efficiency.
6. Návod k obsluze
6.1 Zapnutí/vypnutí
Stiskněte a několik sekund podržte hlavní tlačítko napájení pro zapnutí nebo vypnutí jednotky. Po aktivaci se rozsvítí displej.
6.2 Použití výstupů AC/DC/USB
Once the unit is on, press the respective AC, DC, or USB power buttons to activate the desired output ports. Connect your devices to the appropriate ports. The display will show the output wattage.
6.3 Adjustable Charging Speed
The F1800 features a unique rotary dial to adjust the AC charging power from 200 W to 1000 W. Turn the dial to select your preferred charging speed. Higher wattage provides faster charging, while lower wattage ensures quieter operation and extends battery life.
Obrázek 6.1: The F1800 offers an exclusive 3-stage regulation dial for adjustable charging power (400W, 800W, 1200W) and demonstrates strong, stable output with a peak power of 3600W.
6.4 Funkce UPS
The F1800 can function as an Uninterruptible Power Supply (UPS). Connect your critical devices to the AC output while the F1800 is connected to an AC wall outlet. In case of a power outage, the F1800 will automatically switch to battery power within 10 milliseconds, ensuring continuous operation for connected devices.
Obrázek 6.2: The F1800 provides seamless UPS functionality with a switching time of less than 10ms, ensuring your devices remain powered during outages.
6.5 ECO režim
Activate ECO mode for energy-saving operation. In this mode, the power station will automatically shut down if the output power is below a certain threshold for an extended period, conserving battery life.
Obrázek 6.3: The F1800's ECO mode helps save energy, making it more efficient for long-term use, especially when paired with solar charging.
6.6 Ovládání aplikace
Download the FOSSiBOT app to control and monitor your F1800 remotely. The app allows you to check battery status, control outputs, adjust settings, and manage charging modes.
Obrázek 6.4: The FOSSiBOT app provides remote control and monitoring capabilities for your F1800, allowing you to manage settings and view status from your smartphone.
6.7 Camping Lamp
The F1800 includes a built-in camping lamp with multiple modes (light, SOS, strobe) for illumination during outdoor activities or emergencies.
7. Způsoby nabíjení
The FOSSiBOT F1800 supports multiple charging methods:
- AC nástěnná zásuvka: Fully charged in approximately 1.1 hours (0-100% at 1200W).
- Solární panely: Up to 500W input, fully charged in about 2 hours.
- Nabíječka do auta: 120W input, fully charged in about 9 hours.
- AC + Solar: Combined input of 1200W AC + 500W Solar, fully charged in 1 hour and 8 minutes.
- Plynový generátor: 1200W input, fully charged in 1 hour and 8 minutes.
- Dynamo: Plně nabité za cca 2 hodiny.
Obrázek 7.1: Nadview of the F1800's versatile charging options, including AC, solar, car, and generator inputs, with estimated charging times.
7.1 Expandable Battery Capacity
The F1800 supports external battery expansion, compatible with lead-acid and lithium batteries (12V / 24V / 48V) for increased capacity.
Obrázek 7.2: The F1800 can be connected to an external battery to significantly extend its power capacity, supporting various battery types.
8. Údržba
8.1 Skladování
Store the F1800 in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to 50-80% every 3-6 months to maintain battery health.
8.2 Čištění
Přístroj otřete suchým, měkkým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani jej neponořujte do vody.
8.3 Péče o baterii
The F1800 uses a durable LiFePO4 battery. Avoid fully discharging the battery frequently to prolong its lifespan. The advanced BMS protects against common battery issues.
9. Řešení problémů
Pokud se s robotem FOSSiBOT F1800 setkáte s problémy, podívejte se na následující běžné problémy a jejich řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Jednotka se nezapne | Baterie je zcela vybitá; Tlačítko napájení nebylo stisknuto dostatečně dlouho. | Charge the unit using the AC adapter; Press and hold the power button for 3-5 seconds. |
| Žádný výstup z portů AC/DC/USB | Output ports not activated; Device connected exceeds power station's output limit; Cable faulty. | Press the respective output button (AC/DC/USB); Check device wattage; Try a different cable. |
| Pomalé nabíjení | Charging speed dial set to low wattage; Solar panels not in direct sunlight or obstructed. | Adjust the charging speed dial to a higher wattage; Reposition solar panels for optimal exposure. |
| Overheating warning on display | Poor ventilation; Unit operating in high ambient temperature. | Ensure adequate airflow around the unit; Move to a cooler environment. |
10. Specifikace
| Funkce | Specifikace |
|---|---|
| Značka | FOSSiBOT |
| Číslo modelu | F1800 |
| Typ baterie | LiFePO4 |
| Kapacita | 1024 Wh |
| Výstupní výkon AC | 1800 W (Continuous), 3600 W (Peak) |
| Celkové elektrické zásuvky | 7 (AC, USB-C, USB-A, DC) |
| AC nabíjecí vstup | Adjustable 200 W - 1000 W |
| Solární nabíjecí vstup | 500 W Max |
| Čas přepínání UPS | < 10 ms |
| Hmotnost položky | 11.5 kg |
| Rozměry položky (D x Š x V) | 39L x 21.6W x 26H cm |
| Provozní teplota | -10 °C až 40 °C |
| Země původu | Čína |
Obrázek 10.1: The F1800 is designed to operate reliably across a wide temperature range, from -10°C to 40°C, making it suitable for diverse environments.
Obrázek 10.2: Weighing only 11.5 kg and featuring a compact design, the F1800 is highly portable, making it easy to transport for camping, travel, or other outdoor activities.
Obrázek 10.3: The F1800 operates with ultra-low noise, typically around 30 dB when under 200W load, ensuring a quiet environment for work or rest.
11. Záruka a podpora
11.1 Informace o záruce
The FOSSiBOT F1800 Portable Power Station comes with a 5-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
11.2 Zákaznická podpora
For technical support, warranty claims, or any questions regarding your FOSSiBOT F1800, please contact our customer service team. Refer to the contact information provided on the FOSSiBOT official webwebu nebo v dokumentaci k nákupu.
