Merax Queen Size Murphy Bed with Sofa and Storage

Zavedení

This manual provides detailed instructions for the assembly, operation, and maintenance of your Merax Queen Size Murphy Bed with integrated sofa, storage shelves, cabinets, and dual lights. Please read all instructions carefully before beginning assembly or use to ensure safe and proper functionality. Keep this manual for future reference.

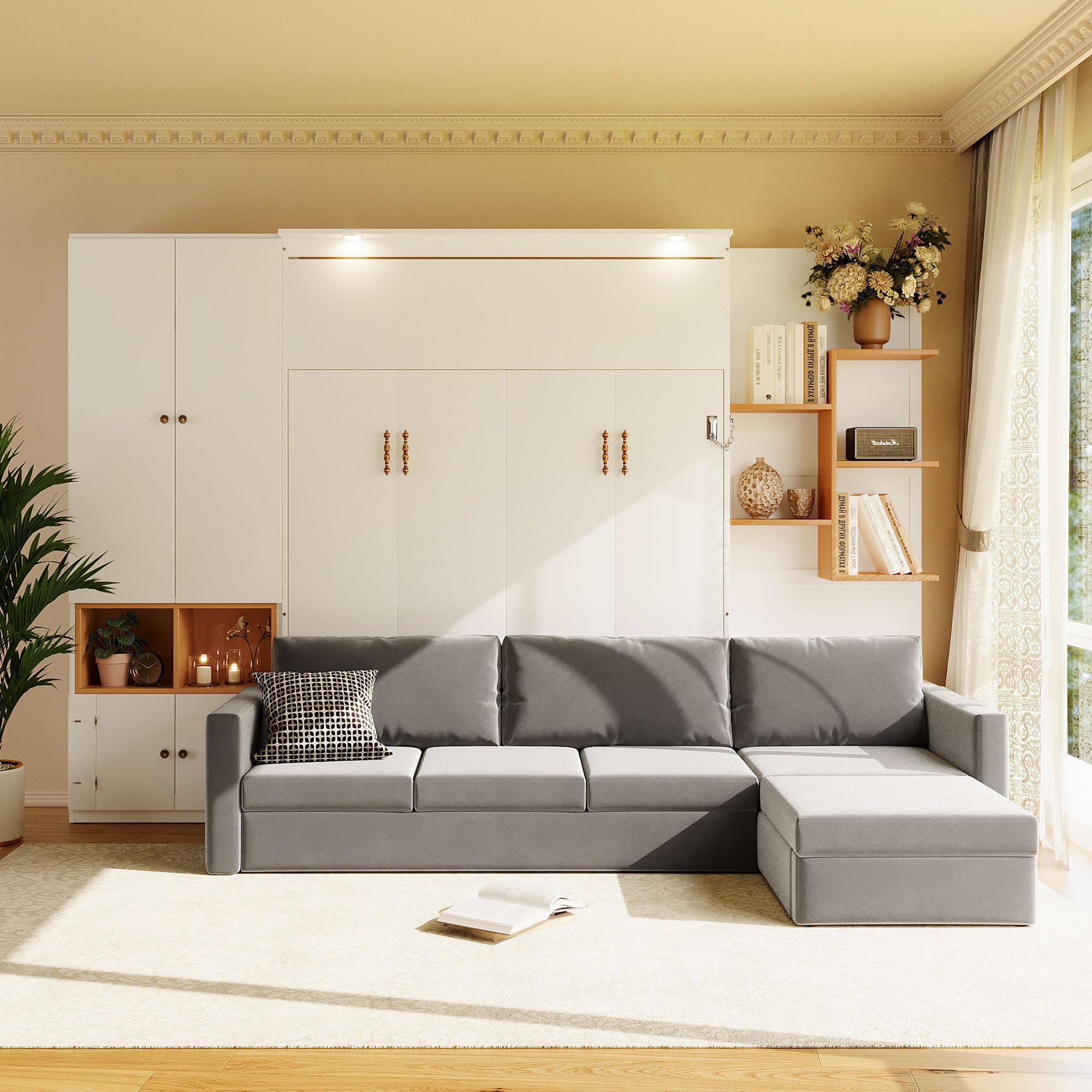

Celkově view of the Merax Queen Size Murphy Bed with integrated sofa and storage units.

Bezpečnostní informace

VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést k vážnému zranění nebo poškození majetku.

• Doporučená profesionální instalace: Due to the complexity and weight of this unit, professional installation is highly recommended. If self-assembling, ensure at least two adults are present.
• Wall Mounting is Mandatory: This Murphy bed unit MOŠT be securely anchored to a structural wall stud using the provided hardware. Failure to properly anchor the unit can result in severe injury or death.
• Nosnost: Nepřekračujte doporučenou nosnost rámu postele. Podrobnosti naleznete v části se specifikacemi.
• Odbavení: Ensure adequate clearance around the unit for safe operation of the bed mechanism and sofa.
• Děti a domácí mazlíčci: Keep children and pets away from the unit during operation (opening and closing the bed).
• Pravidelně kontrolujte: Pravidelně kontrolujte všechny spojovací prvky a spoje, abyste se ujistili, že jsou pevné a bezpečné.
• Elektrická bezpečnost: The dual lights require an electrical connection. Ensure all electrical work is performed by a qualified individual if not pre-wired. Do not overload electrical outlets.
• Požadavky na matraci: Use only a mattress that meets the specified dimensions and weight requirements for a Queen size Murphy bed.

Obsah balení

Před zahájením montáže ověřte, zda jsou přítomny všechny součásti. Pokud některé součásti chybí nebo jsou poškozené, okamžitě kontaktujte zákaznickou podporu.

• Murphy Bed Frame (Queen Size)
• Integrated Sofa Unit
• Storage Cabinet Modules (Left and Right)
• Nastavitelné úložné police
• Dual LED Reading Lights
• Sada montážního hardwaru
• Kotvící kování na zeď
• Návod k použití (tento dokument)

Pokyny k instalaci a montáži

Assembly requires careful attention to detail and adherence to all safety warnings. It is recommended to have at least two adults for assembly. Tools required (not included): Phillips head screwdriver, flathead screwdriver, hammer, drill, stud finder, level, measuring tape.

Krok 1: Připravte oblast

Clear a spacious area for assembly. Ensure the floor is level and protected. Locate wall studs where the unit will be anchored.

Image showing the overall dimensions of the Murphy bed unit: 129.8" width, 87.8" height, and 12.2" depth when closed.

Step 2: Assemble Base Cabinets and Frame

Follow the step-by-step diagrams provided in the separate assembly guide (if applicable) to construct the main cabinet structures and the bed frame. Ensure all cam locks and screws are tightened securely.

The Murphy bed unit in its retracted position, showcasing the integrated sofa and closed bed cabinet.

Step 3: Install Storage Modules

Attach the side storage cabinets and shelves to the main bed unit. Ensure they are aligned and securely fastened. Adjust shelves to desired heights.

Detailní view of the open storage shelves, designed for books or decorative items.

Detailní view of the lower storage cabinets, providing enclosed storage space.

Step 4: Wall Anchoring

This is a critical safety step. Using a stud finder, locate at least two wall studs behind the unit. Mark and drill pilot holes. Securely attach the unit to the wall studs using the provided anti-tip hardware. Double-check that the unit is firmly anchored and cannot tip forward.

Step 5: Install Sofa and Lights

Position the sofa unit in front of the Murphy bed. Connect any necessary electrical wiring for the dual lights, ensuring proper installation and safety. Test the lights.

The Murphy bed frame in its deployed position, ready for a mattress. Note the sofa pushed forward.

Detailní záběr view of one of the integrated dual LED reading lights located above the bed.

Step 6: Mattress Placement

Carefully place your Queen size mattress onto the bed frame. Ensure it fits within the frame and does not interfere with the closing mechanism.

The Merax Murphy bed fully deployed with a mattress and bedding, ready for use.

Image detailing the dimensions of the Murphy bed when fully deployed, showing a maximum length of 87.5" from the wall and a bed frame height of 13" from the floor.

Návod k obsluze

Deploying the Bed

1. Ujistěte se, že prostor před Murphyho postelí je volný.
2. Gently pull the sofa forward to create space for the bed to descend.
3. Locate the bed release mechanism (usually a handle or latch). Engage the mechanism to unlock the bed.
4. Slowly and carefully pull the bed frame downwards until it is fully extended and resting on its support legs.
5. Ensure the support legs are locked into place for stability.

Retracting the Bed

1. Remove all bedding and pillows that might obstruct the closing mechanism.
2. Lift the bed frame from the foot end, guiding it upwards. The hydraulic mechanism will assist in lifting.
3. Push the bed frame firmly into the cabinet until it locks securely into place. You should hear a click or feel it engage.
4. Gently push the sofa back into its original position against the cabinet.

Using the Dual Lights

The integrated dual lights are typically operated by a switch located on the unit or a pull chain. Refer to the specific light fixture instructions for detailed operation. Ensure the unit is plugged into a power source for the lights to function.

Údržba

• Čištění:
  • For wood/MDF surfaces, wipe with a soft, damp hadříkem. Nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky.
  • For the velvet sofa, vacuum regularly with an upholstery attachment. Spot clean with a mild fabric cleaner as needed, testing on an inconspicuous area first.
• Kontrola hardwaru: Periodically inspect all screws, bolts, and wall anchors. Tighten any loose fasteners to maintain stability and safety.
• Mazání mechanismu: If the bed mechanism becomes stiff or noisy, apply a silicone-based lubricant to moving parts as recommended by the manufacturer (consult customer support if unsure).
• Žárovky: Replace LED light bulbs with the same type and wattage if they burn out. Disconnect power before replacing.

Odstraňování problémů

Specifikace

• Číslo modelu: 393
• Velikost: Queen (americký standard)
• Overall Dimensions (Closed): 129.8" (Width) x 87.8" (Height) x 12.2" (Depth from wall)
• Overall Dimensions (Bed Deployed): 129.8" (Width) x 87.8" (Height) x 87.5" (Max Depth from wall, including deployed bed)
• Bed Frame Dimensions (Deployed): 60.2" (Width) x 87.5" (Length) x 13" (Height from floor)
• Materiál: Plywood + MDF + Velvet (Sofa)
• Barva: White & Gray Sofa
• Speciální vlastnosti: Integrated Sofa, Storage Shelves & Cabinets, Dual Lights, No Box Spring Needed
• Požadovaná montáž: Ano
• Hmotnost položky: 480 libry
• Výrobce: THINK 30

Záruka a podpora

For warranty information, please refer to the documentation provided at the time of purchase or contact Merax customer support directly. If you encounter any issues or require assistance with your product, please contact Merax customer service. Have your model number (393) and purchase date ready when contacting support.

Zákaznická podpora Meraxu: Navštivte prosím oficiální stránky Meraxu webkontaktní údaje naleznete na webových stránkách nebo na účtence.
