GYMAX Portable Basketball Hoop (Model GM2486) Instruction Manual

Zavedení

This manual provides detailed instructions for the assembly, operation, and maintenance of your GYMAX Portable Basketball Hoop, Model GM2486. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

The GYMAX Portable Basketball Hoop features a height-adjustable design, a 44-inch shatterproof backboard, and a fillable base for stability. It is designed for outdoor use by teens and adults.

Image: The GYMAX Portable Basketball Hoop set up on an outdoor court, demonstrating its use during a game.

Zahrnuté komponenty

Verify that all components listed below are present in your package before beginning assembly:

• Portable Basketball Hoop (main structure)
• Uživatelská příručka (tento dokument)
• Veškerý potřebný hardware pro montáž

Pokud některé díly chybí nebo jsou poškozené, ihned kontaktujte zákaznickou podporu.

Nastavení a montáž

Assembly is required for this product. It is recommended that two adults perform the assembly. Please follow the step-by-step instructions provided in the included User Guide for detailed assembly procedures. Key steps include:

1. Příprava základny: Position the extra-large HDPE base in the desired location. Fill the base with water or sand for stability. The base can hold up to 97 lbs of water or sand. For additional stability during intense play, a 66 lbs sandbag (not included) can be placed on top of the base.
2. Montáž tyče: The hoop can be assembled with either two or three poles to achieve different height ranges.
   • Použití two poles allows for rim heights between 5.6 ft and 7.5 ft.
   • Použití three poles allows for rim heights between 8 ft and 10 ft.
   Ensure poles are securely bolted together according to the detailed instructions. The top pole, which holds the backboard, slides into the second pole. The adjustment handle bolts to the bottom of the first pole.
3. Backboard and Rim Attachment: Securely attach the 44-inch shatterproof PC backboard and 18-inch standard rim to the assembled poles. Ensure all bolts are tightened to prevent wobbling.

Image: Illustration detailing the quick and tool-free height adjustment mechanism and the different height ranges achievable with two or three poles installed.

Obrázek: Podrobný view of the extra-large, fillable HDPE base, highlighting its triangular support and capacity for water or sand.

Návod k obsluze

Nastavení výšky

The GYMAX Portable Basketball Hoop features a quick and tool-free height adjustment system. Once the initial setup is complete (with either two or three poles), simply use the lift handle located on the main pole to raise or lower the rim to your desired height. The system is designed to adapt to players of all skill levels.

Relocation and Storage

For easy relocation, the base is equipped with two built-in wheels. To move the hoop, tilt the unit slightly and roll it to the new desired location. This allows for seamless portability between different playing areas, such as a driveway, backyard, or indoor court, and simplifies storage when not in use.

Image: An illustration demonstrating the ease of relocating the basketball hoop using its integrated wheels, along with examples of its use in indoor courts, yards, and driveways.

Údržba

To ensure the longevity and optimal performance of your GYMAX Portable Basketball Hoop, consider the following maintenance guidelines:

• Kontrola stability: Regularly inspect the base to ensure it remains adequately filled with water or sand. Refill as necessary to maintain stability, especially after strong winds or heavy use.
• Kontrola hardwaru: Periodically check all bolts and connections for tightness. Tighten any loose hardware to prevent wobbling and ensure structural integrity.
• Čištění: Clean the backboard and frame with a mild soap and water solution. Avoid abrasive cleaners that could damage the materials.
• Čistý stav: The hoop features an all-weather net. However, inspect it periodically for wear and tear. Replace the net if it becomes damaged to ensure continued playability.
• Skladování: While designed for year-round outdoor use, storing the hoop indoors during extreme weather conditions (e.g., heavy snow, prolonged freezing temperatures) can extend its lifespan.

Odstraňování problémů

If you encounter any issues with your GYMAX Portable Basketball Hoop, please refer to the following common solutions:

• Vrávorání nebo nestabilita:
  • Ensure the base is completely filled with water or sand.
  • Zkontrolujte všechny montážní šrouby a utáhněte ty, které jsou uvolněné.
  • Verify that the ground surface is level.
• Obtížnost nastavení výšky:
  • Ensure the adjustment handle mechanism is clear of obstructions.
  • Check that the poles are correctly aligned and not binding.

For issues not covered here, please contact GYMAX customer support.

Specifikace

Image: A diagram illustrating the key dimensions of the GYMAX Portable Basketball Hoop, including backboard, rim, and base measurements, as well as overall height range.

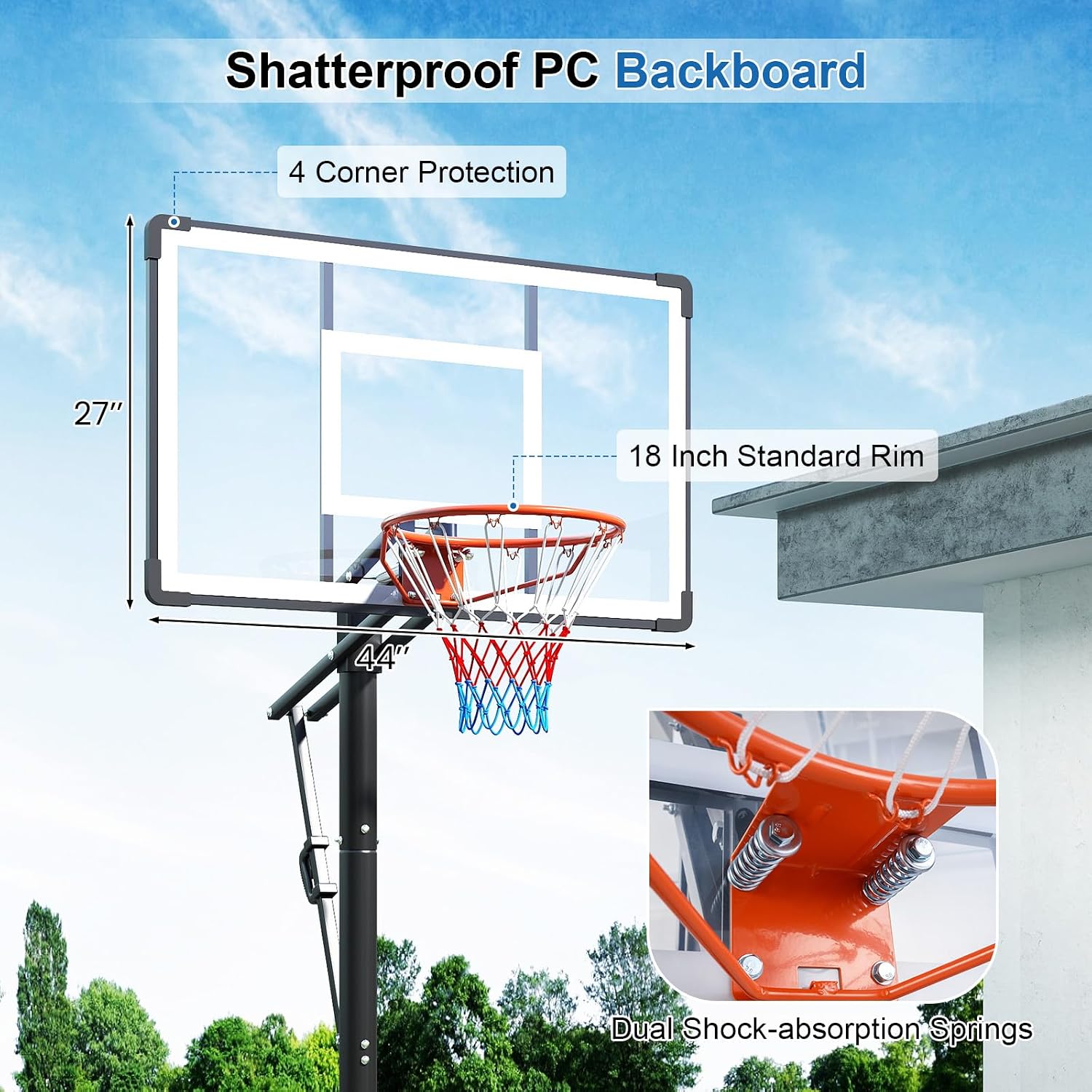

Obrázek: Podrobný view of the shatterproof PC backboard, highlighting its 4-corner protection, 18-inch standard rim, and dual shock-absorbing springs for enhanced durability and rebound.

Informace o záruce

The GYMAX Portable Basketball Hoop (Model GM2486) comes with a 90denní záruka from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from misuse, accidents, improper assembly, or unauthorized modifications.

Uschovejte si prosím doklad o koupi pro případné reklamace.

Zákaznická podpora

For further assistance, questions regarding assembly, operation, maintenance, or warranty claims, please contact GYMAX customer support. Refer to the contact information provided on the product packaging or the official GYMAX webmísto.

Výrobce: GYMAX

Číslo dílu výrobce: GM2486
