Yunseity 1080P WiFi Security Camera User Manual

Zavedení

Thank you for choosing the Yunseity 1080P WiFi Security Camera. This manual provides detailed instructions for setting up, operating, and maintaining your security camera. Please read this manual thoroughly before use to ensure proper functionality and safety.

This camera features 1080P resolution, 360-degree rotation, AI motion detection, infrared night vision, and remote monitoring capabilities for both indoor and outdoor use.

Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• 1 x Yunseity 1080P Rotatable Camera
• 1 x Čtečka karet
• 1 x Návod k obsluze (tento dokument)
• 1 x nabíjecí kabel

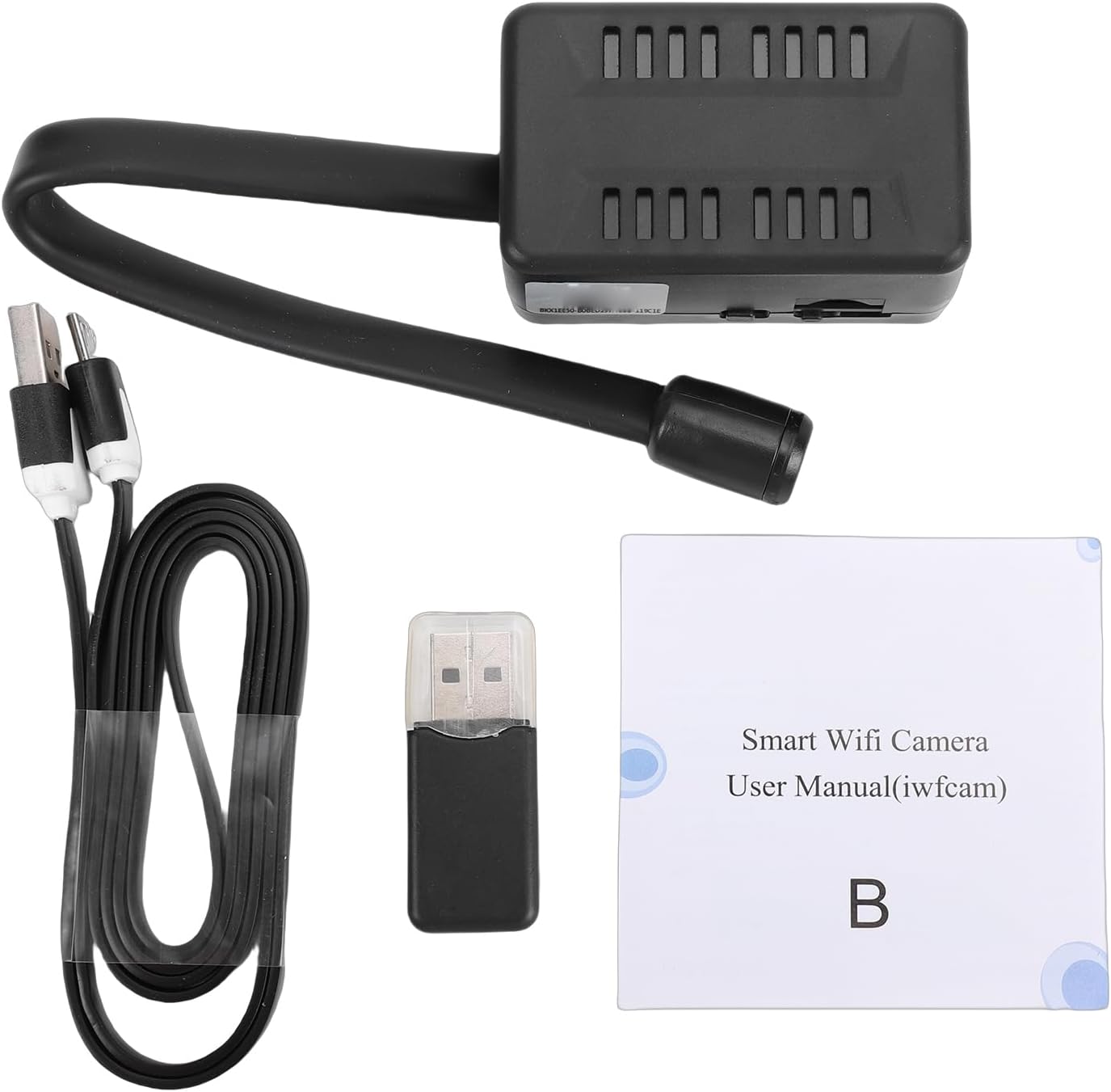

Image: Contents of the Yunseity 1080P WiFi Security Camera package.

Nastavení

1. Nabíjení fotoaparátu

Before initial use, fully charge the camera using the provided charging cable. The camera has a built-in 2000mAh Lithium-ion battery, offering up to 8 hours of backup during power outages.

2. Vložení paměťové karty (volitelné)

For continuous loop recording, insert a small memory card (up to 32GB, not included) into the designated slot on the camera. The camera supports recording in 10-minute segments.

3. Instalace aplikace a připojení k WiFi

Stáhněte a nainstalujte iWFCam application on your smartphone. The camera utilizes an AP hotspot module for initial connection. To enable remote control and monitoring, connect the camera to your home WiFi network through the iWFCam app.

Image: Remote monitoring via the iWFCam app, showing multiple locations.

Ensure your router is turned on during installation. Once connected to your home WiFi, real-time monitoring can be achieved from different places and unlimited distances.

Image: Real-time monitoring of an indoor space through the camera app.

4. Umístění kamery

The camera features a 360-degree adjustable joint for flexible positioning. Choose a location that provides optimal viewing coverage for your desired monitoring area. The camera is suitable for both indoor and outdoor use.

The camera can be wall-mounted. Ensure the mounting surface is stable and secure.

Návod k obsluze

1. Živě View a Nahrávání

Open the iWFCam app on your smartphone to access the live video feed from your camera. You can initiate manual recordings or rely on the continuous loop recording feature if a memory card is installed.

2. Detekce a upozornění lidí pomocí umělé inteligence

The camera's AI recognition system detects human movement. When motion is detected, the camera automatically records video clips (20 seconds to 2 minutes in length) and sends real-time alerts to your phone.

Image: AI Human Detection triggering an alert on a smartphone.

You can customize specific arming areas within the app to focus on critical zones, ensuring alerts are only triggered for areas you care about most.

Image: Customizing the arming area within the camera app.

Image: AI Humanoid Recognition Alarm Push notification on a smartphone.

3. Infračervené noční vidění

The camera is equipped with infrared technology for clear black and white footage in low-light conditions. The night vision function is automatically sensed and activated by the camera.

Image: Night vision capability providing clear images in dark conditions.

Image: Demonstration of the camera's automatic night vision function in an office setting.

4. Synchronized Audio

Enable the audio recording feature within the iWFCam app to capture synchronized audio alongside video footage, even during nighttime surveillance.

Údržba

• Čištění: K čištění objektivu a těla fotoaparátu používejte měkký, suchý hadřík. Nepoužívejte agresivní chemikálie ani abrazivní materiály.
• Péče o baterie: To prolong battery life, avoid extreme temperatures and fully charge the camera periodically if not in continuous use.
• Aktualizace firmwaru: Check the iWFCam app regularly for any available firmware updates to ensure optimal performance and security.

Odstraňování problémů

Kamera se nepřipojuje k Wi-Fi:

• Ujistěte se, že je kamera v dosahu vašeho WiFi routeru.
• Verify that your WiFi password is entered correctly in the iWFCam app.
• Restartujte router a kameru a poté se pokuste znovu připojit.
• Confirm that the camera is connected to a 2.4GHz WiFi network, as 5GHz networks may not be supported.

No video recording to memory card:

• Ensure a memory card (up to 32GB) is properly inserted.
• Check if the memory card is full; format it if necessary (this will erase all data).
• Verify that recording settings are enabled in the iWFCam app.

Špatná kvalita nočního vidění:

• Ujistěte se, že objektiv fotoaparátu je čistý a bez překážek.
• Check for any reflective surfaces close to the camera that might interfere with infrared light.

Specifikace

Záruka a podpora

For warranty information and technical support, please refer to the official Yunseity webwebu nebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi.

Poznámka: Konkrétní záruční podmínky se mohou lišit v závislosti na regionu a prodejci.
