IINE Mini Retro Game Controller User Manual

1. Úvod

Thank you for choosing the IINE Mini Retro Game Controller. This compact, wireless controller is designed to enhance your mobile and PC gaming experience, offering versatile control options in a portable form factor. This manual provides detailed instructions on setup, operation, maintenance, and troubleshooting to ensure optimal use of your device.

2. Konec produktuview

The IINE Mini Retro Game Controller combines classic gaming aesthetics with modern functionality. Its pocket-sized design, complete with a keychain attachment, makes it ideal for gaming on the go. The controller features a D-pad, action buttons (A, B, X, Y), Capture, Home, and Pairing buttons, along with integrated motion control.

Obrázek 2.1: Konecview of the IINE Mini Retro Game Controller, showcasing its compact design and key features like multi-platform support, short video browsing, e-book reading, and mouse & keyboard modes.

Klíčové vlastnosti:

• Pocket-Size Retro Design: Compact and nostalgic, inspired by classic game controllers.
• Bezdrátové připojení: Connects wirelessly to various devices.
• Integrated Motion Control: Features a built-in 6-axis gyroscope for intuitive motion-based gameplay.
• Podpora více režimů: Supports Single Joypad, Switch, Xinput, HID, Multimedia, Touch Control, Mouse, and Keyboard modes.
• Ultra-Portable with Keychain: Easily attaches to keys, backpacks, or bags for convenient travel.

3. Nastavení

3.1 Počáteční nabíjení

Before first use, ensure the controller is fully charged. Connect the controller to a USB power source using a compatible charging cable (not specified in product details, assume standard USB-C).

3.2 Pokyny k párování

The controller supports various pairing modes for different devices. The general pairing process involves holding the [Pairing] button along with a specific directional button.

Image 3.1: Game Controller Mode compatibility and pairing instructions for various platforms.

• Přepínač: Hold the [Pairing] + [Up] buttons.
• PC / iOS: Hold the [Pairing] + [Left] buttons.
• Android: Hold the [Pairing] + [Right] buttons.

3.3 Nintendo Switch (NS2) Wake-Up Steps

To wake up and connect to a Nintendo Switch 2 (NS2) console:

1. On your NS2, select [Controller] → [Change Grip/Order].
2. Stiskněte a podržte [Párování] + [NAHORU] buttons on the controller. Release the buttons when the indicator light flashes rapidly.
3. After pairing is complete, remove both original Joypads from the NS2.
4. Quickly reattach the original left and right Joypads to the NS2.
5. Stiskněte a podržte [Domov] button on the controller to wake up and reconnect.

Image 3.2: Step-by-step guide for waking up and connecting the controller to a Nintendo Switch 2.

4. Návod k obsluze

4.1 Multi-Mode Functionality

The IINE Mini Retro Game Controller offers various modes to suit different applications and devices:

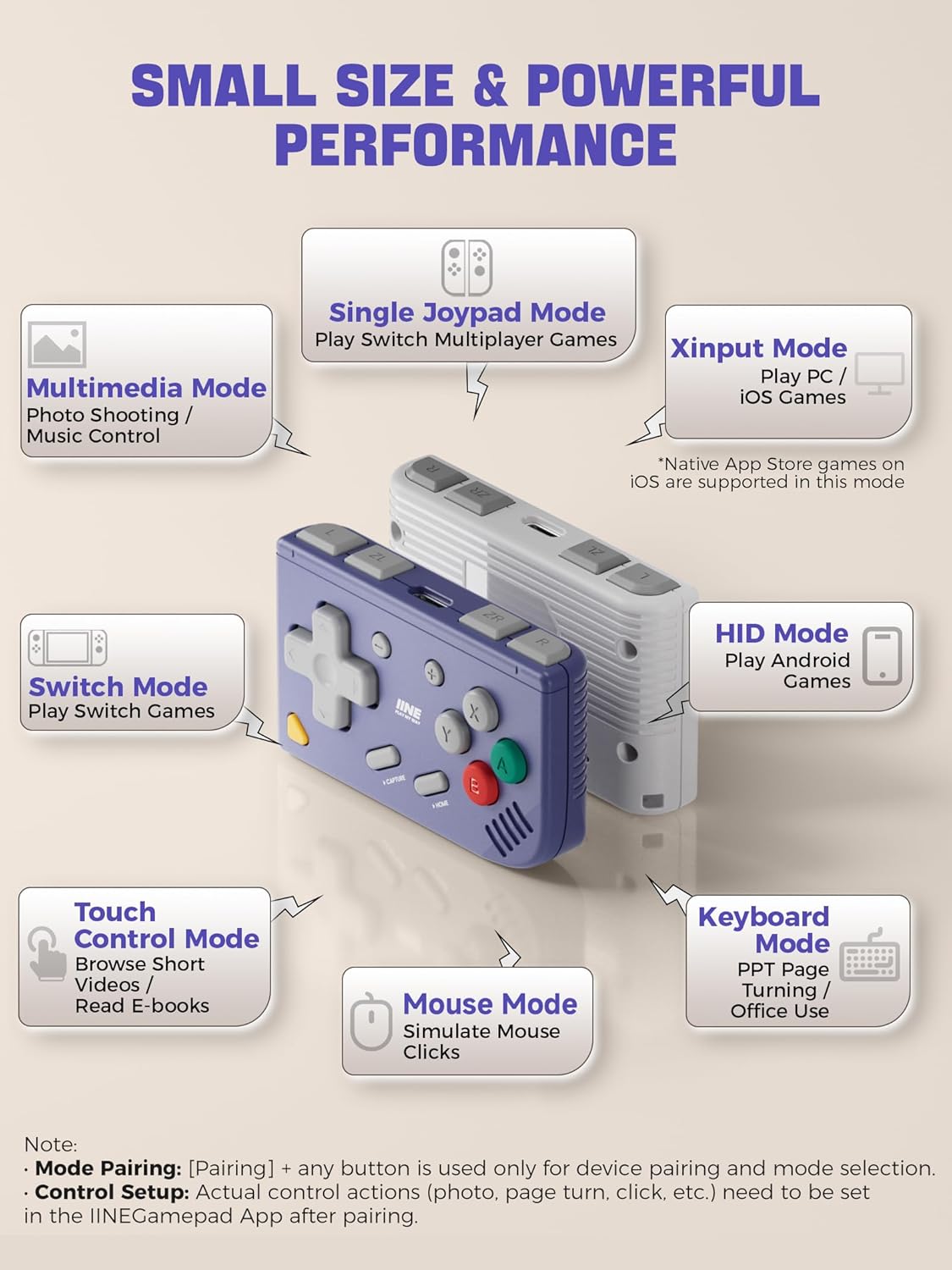

Image 4.1: Detailed breakdown of the controller's various operating modes and their primary uses.

• Single Joypad Mode: For multiplayer games on compatible consoles (right-side use only).
• Přepnout režim: Play compatible Nintendo Switch games.
• Režim vstupu X: Play PC and iOS games. (Native App Store games on iOS are supported in this mode).
• Režim HID: Play compatible Android games.
• Multimediální režim: Control music playback and take photos remotely.
• Režim dotykového ovládání: Navigate short videos or read e-books with hands-free control.
• Režim myši: Simulate mouse clicks for navigation.
• Režim klávesnice: For PPT page turning and office use.

Image 4.2: Visual representation of the controller's versatile functions, including Touch Mode for media, Gamepad Mode, Multimedia Mode, and Keyboard & Mouse Mode.

4.2 New Joypad Mode (Right-Side Only)

This mode allows you to enjoy motion games with friends on compatible consoles. It functions as a right-side Joypad and supports both horizontal and vertical layouts, compatible alongside the original Joypad.

Image 4.3: Instructions for setting up and using the new Joypad Mode, specifically for right-side use with Nintendo Switch.

4.3 6-Axis Motion Control

The controller is equipped with a built-in 6-axis gyroscope, enabling motion-controlled gameplay for a wide range of compatible games.

Image 4.4: Illustration highlighting the new 6-axis motion control feature for enhanced gameplay.

4.4 Turbo Function and Joystick/D-pad Switch

The controller includes a Turbo function for rapid button presses and a switch function to alternate between Joystick and D-pad inputs, offering flexibility in gameplay.

4.5 IINE App Support

The controller supports the IINE App, allowing for advanced customization such as button remapping, keyboard/mouse settings, multimedia controls, and touch control adjustments.

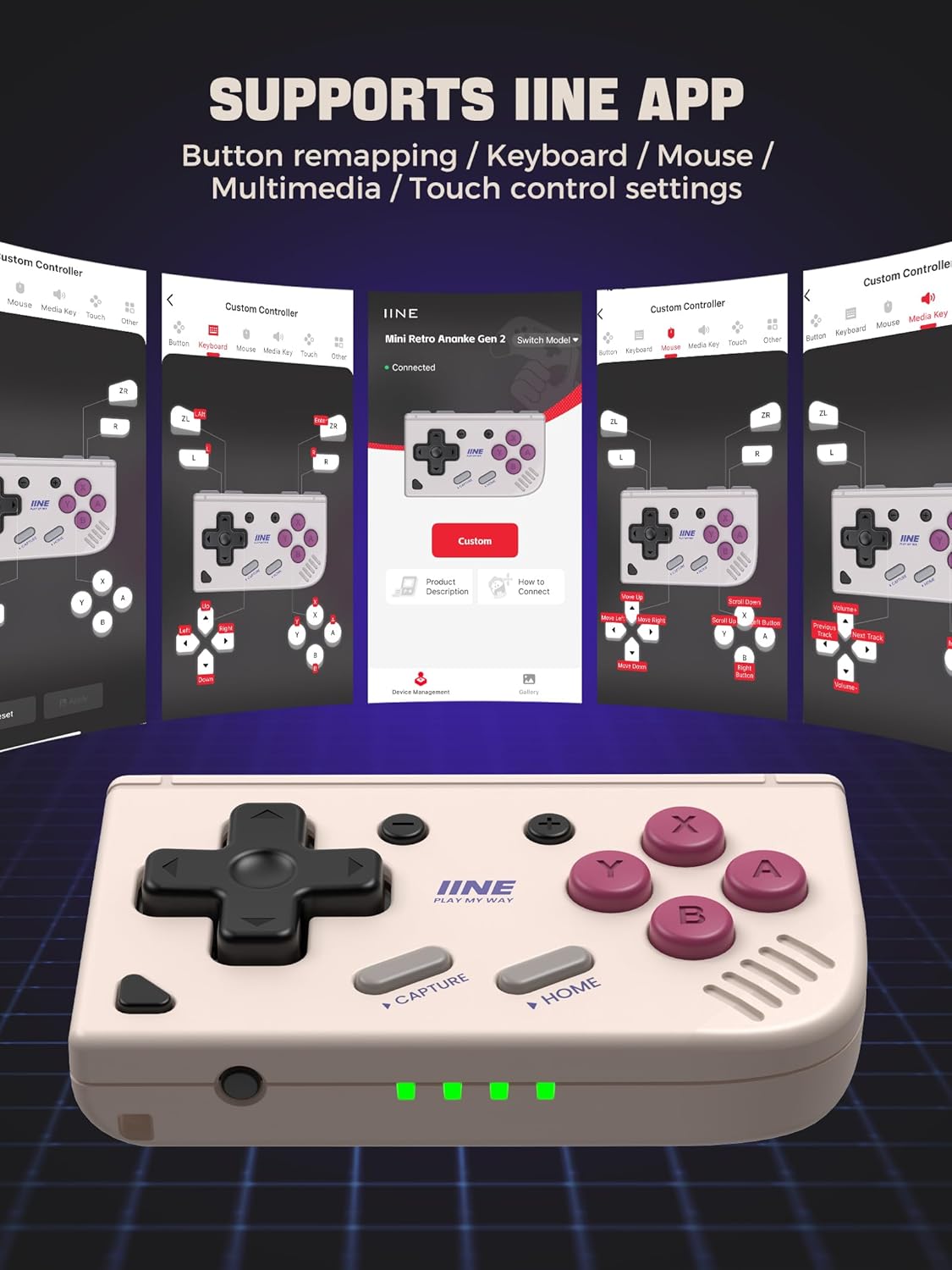

Image 4.5: Screenshots of the IINE App interface, demonstrating options for button remapping and various control settings.

5. Údržba

To ensure the longevity and optimal performance of your IINE Mini Retro Game Controller, follow these maintenance guidelines:

• Čištění: K čištění ovladače používejte měkký, suchý hadřík. Nepoužívejte agresivní chemikálie ani abrazivní materiály.
• Skladování: Regulátor skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Péče o baterie: If not used for extended periods, charge the controller periodically to maintain battery health.
• Vyhněte se kapkám: Chraňte ovladač před pády a nárazy, které by mohly poškodit vnitřní součásti.

6. Řešení problémů

If you encounter issues with your IINE Mini Retro Game Controller, refer to the following common troubleshooting steps:

• Problémy s připojením: Ensure the controller is fully charged. Re-attempt the pairing process as described in Section 3.2. Make sure Bluetooth is enabled on your device.
• Nereagující tlačítka: Check if the controller is properly paired. If using the IINE App, verify button mappings.
• Motion Control Not Working: Ensure the game or application supports motion control and that the controller is in a compatible mode.
• Firmware/Driver Issues: For PC connectivity, ensure you have the latest drivers. Some users have reported differences in performance between different color variants (e.g., Purple vs. Grey) which may indicate slight hardware or driver variations. Check the manufacturer's webstránky pro aktualizace firmwaru.
• Ovladač se nezapíná: Ujistěte se, že je baterie nabitá. Pokud problém přetrvává, kontaktujte podporu.

7. Specifikace

• Baterie: 1 AAA battery required, included.
• Rozměry balení: 8.99 x 6.2 x 3.4 cm
• Hmotnost: 68 g
• Datum vydání: 13. listopadu 2024
• ASIN: B0GHQXSPQF

8. Informace o záruce

Warranty information for the IINE Mini Retro Game Controller is not provided in the product details. Please refer to the retailer or manufacturer's official webkonkrétní záruční podmínky naleznete na webových stránkách.

9. Podpora

For further assistance, technical support, or inquiries regarding your IINE Mini Retro Game Controller, please contact the manufacturer directly through their official website or reach out to the retailer from whom you purchased the product.
