Zebronics Party FYRE 700 Portable Party Speaker

Zavedení

This manual provides essential information for the safe and efficient operation of your Zebronics Party FYRE 700 Portable Party Speaker. Please read this manual thoroughly before using the product and retain it for future reference.

The Zebronics Party FYRE 700 is a high-power portable party speaker designed for various audio applications, including music playback, karaoke, and live performances. It features dual 13.33 cm drivers, a wireless microphone, TWS function, multiple connectivity options, and dynamic RGB lighting.

Image: The Zebronics Party FYRE 700 speaker, showcasing its sleek design and integrated RGB lighting.

Obsah krabice

Ověřte, zda jsou v balení obsaženy všechny níže uvedené položky:

• DJ Speaker - 1 unit
• Remote Control - 1 unit
• Wireless Microphone - 1 unit
• Input Cable - 1 unit
• Charging Cable - 1 unit
• QR Code Guide - 1 unit

Vlastnosti produktu

• Výkonný zvukový výstup: 120W RMS output with dual 13.33 cm full-range drivers for clear and strong bass.
• Rozšířené přehrávání: Up to 7 hours of playback at 50% volume with LED off, supported by rapid charging.
• Karaoke and Recording: Includes a wireless microphone, supports karaoke, mic recording, and live performances.
• Comprehensive Sound Controls: Independent controls for music volume, bass, treble, microphone, guitar, and echo.
• Skutečné bezdrátové stereo (TWS): Wirelessly pair two compatible speakers for an expanded stereo soundstage.
• Vícenásobné připojení: Bluetooth v5.3, USB, and AUX input for versatile audio source connection.
• Dynamické RGB osvětlení: 9 distinct RGB lighting modes to enhance the visual experience.
• Přenosnost: Equipped with a convenient carry handle for easy transport.
• Dálkové ovládání: Pro pohodlné ovládání na dálku.

Obrázek: Detail view of the speaker's dual 13.33cm full-range drivers, illustrating the 120W RMS output capability.

Nastavení

1. Počáteční nabíjení

Before first use, fully charge the speaker using the provided charging cable. Connect the charging cable to the Type-C port on the speaker and a compatible USB power adapter (not included). The charging indicator will show the charging status.

2. Connecting the Wireless Microphone

The speaker comes with a wireless microphone. Ensure the microphone has batteries installed and is powered on. The microphone will automatically pair with the speaker when both are turned on and within range.

Image: A hand holding the wireless microphone, highlighting its use for karaoke and recording.

Návod k obsluze

1. Zapnutí/vypnutí

Press and hold the power button on the speaker's control panel to turn the speaker on or off.

2. Párování Bluetooth

1. Zapněte reproduktor. Automaticky se přepne do režimu párování Bluetooth.
2. Povolte Bluetooth na svém smartphonu nebo jiném zařízení.
3. Hledat "ZEB-PARTY FYRE 700" in the list of available devices and select it to pair.
4. Potvrzovací zvuk signalizuje úspěšné spárování.

3. Přehrávání z USB

Vložte USB flash disk s audio soubory ve formátu MP3 files into the USB port. The speaker will automatically detect and begin playing music from the USB drive.

4. Vstup AUX

Connect an external audio source (e.g., laptop, MP3 player) to the AUX input port using the provided input cable. The speaker will switch to AUX mode automatically.

5. Karaoke and Mic Recording

Use the wireless microphone for karaoke. Connect a guitar to the 6.3mm guitar input if desired. Adjust microphone and guitar volumes using the dedicated controls on the speaker's panel.

Obrázek: Podrobný view of the speaker's input ports (6.3mm Mic In, Guitar In, Type-C, AUX In, USB) and the included remote control and carry handle.

6. Funkce TWS (True Wireless Stereo)

To pair two Party FYRE 700 speakers for a stereo experience:

1. Ujistěte se, že jsou oba reproduktory zapnuté a nejsou připojeny k žádnému zařízení Bluetooth.
2. Na jednom reproduktoru stiskněte tlačítko TWS. Ozve se zvuk, který signalizuje vyhledávání dalšího reproduktoru.
3. The two speakers will automatically connect. A confirmation sound will indicate successful TWS pairing.
4. Connect your device via Bluetooth to the primary speaker. Audio will now play in stereo across both speakers.

Image: Two Zebronics Party FYRE 700 speakers visually linked, representing the True Wireless Stereo (TWS) pairing function.

7. Ovládání zvuku

Use the control panel on top of the speaker or the remote control to adjust:

• Hlasitost hudby: Increase or decrease the overall music playback volume.
• Basy/výšky: Adjust the low and high frequencies of the music.
• Hlasitost mikrofonu/kytary: Control the volume of connected microphones and guitars.
• Echo: Adjust the echo effect for the microphone.

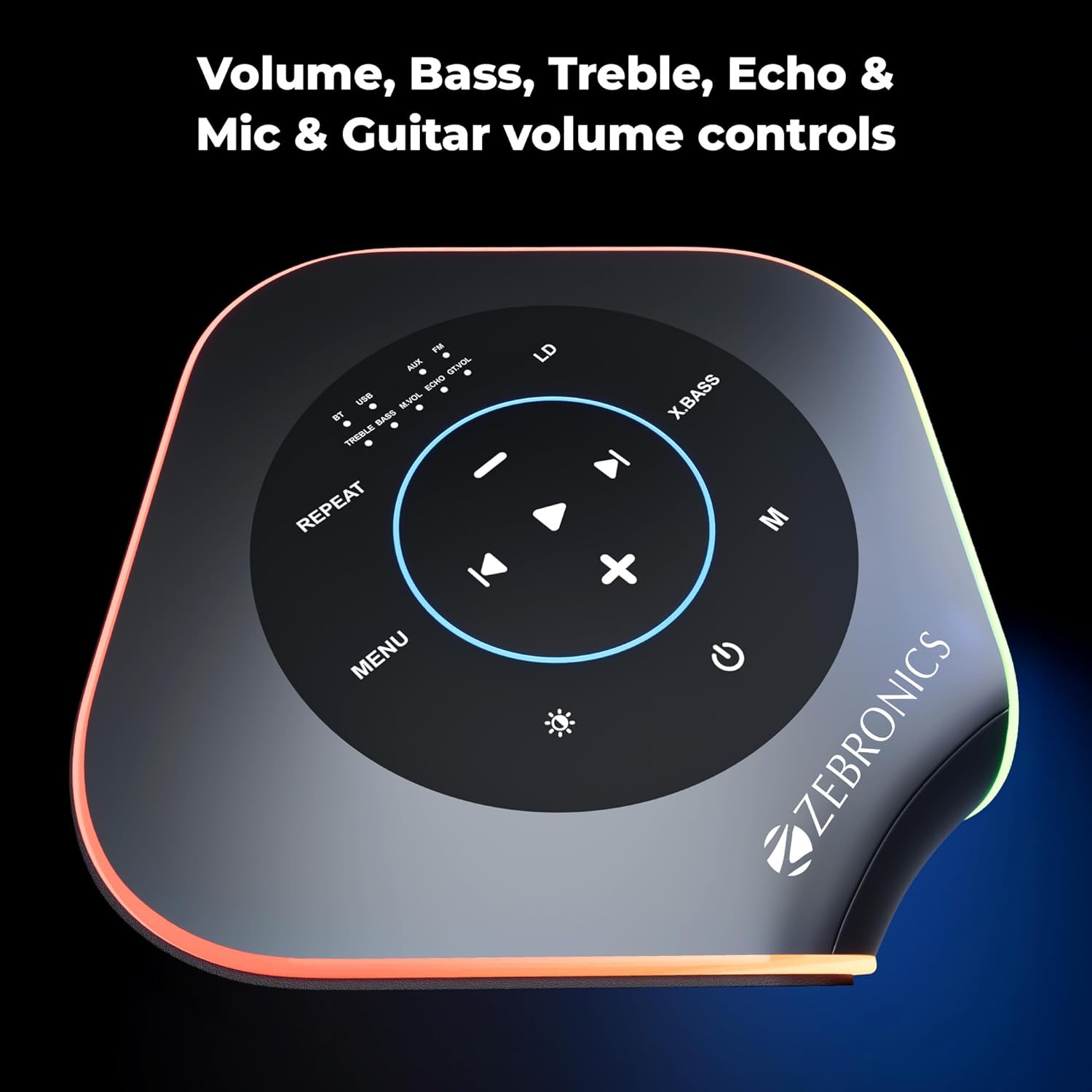

Obrázek: Nad hlavou view of the speaker's control panel, showing buttons for volume, bass, treble, echo, and mic/guitar controls.

8. Režimy RGB osvětlení

The speaker features 9 dynamic RGB lighting modes. Press the dedicated RGB button on the control panel or remote to cycle through the different lighting effects.

Obrázek: Vícenásobný views of the Zebronics Party FYRE 700 speaker, demonstrating the variety of its 9 RGB lighting modes.

Údržba

• Reproduktor čistěte měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
• Avoid exposing the speaker to water, moisture, or extreme temperatures.
• Pokud reproduktor nepoužíváte, skladujte jej na chladném a suchém místě.
• Do not attempt to disassemble or repair the speaker yourself. Contact authorized service personnel for assistance.

Odstraňování problémů

Specifikace

Záruka a podpora

Informace o záruce

The Zebronics Party FYRE 700 comes with a 1-year carry-in warranty. For warranty claims, please carry the product to an authorized service center.

Kontaktní informace výrobce

Zebronics India Pvt Ltd.
No.13/7, Smith Road, Royapettah,
Chennai-600002, Tamil Nadu, India

For further assistance or support, please refer to the QR Code Guide included in your package or visit the official Zebronics webmísto.
