YARDCARE 13-Inch 2-in-1 Electric Dethatcher & Scarifier Instruction Manual

1. Úvod

This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your YARDCARE 13-Inch 2-in-1 Electric Dethatcher & Scarifier. Please read all instructions carefully before use and retain this manual for future reference.

The YARDCARE 2-in-1 Electric Dethatcher & Scarifier is designed to revitalize your lawn by efficiently removing built-up thatch and loosening compacted soil. This dual-function tool improves airflow, water absorption, and nutrient penetration, promoting healthier, greener grass.

2. Důležité bezpečnostní informace

WARNING: Read and understand all instructions before operating this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

• Vždy používejte vhodné osobní ochranné prostředky, včetně ochranných brýlí, rukavic a pevné obuvi.
• Udržujte děti, domácí zvířata a přihlížející osoby mimo provozní prostor.
• Ensure the power cord is in good condition and avoid cutting or damaging it during operation.
• Nepoužívejte stroj za mokra nebo deště.
• Disconnect the power supply before performing any adjustments, cleaning, or maintenance.
• Inspect the work area for rocks, debris, or other objects that could be thrown by the machine.

3. Konec produktuview

The YARDCARE 13-Inch 2-in-1 Electric Dethatcher & Scarifier combines two essential lawn care functions into one powerful tool. It features a robust motor, adjustable depth settings, and a convenient collection bag.

Klíčové vlastnosti:

• 2-in-1 Dethatcher & Scarifier: Easily switch between dethatching and scarifying with interchangeable rollers to remove thatch and loosen compacted soil.
• Adjustable Depth Control: Multiple depth settings (typically 4 positions) allow for tailored lawn care based on your lawn's specific needs.
• Výkonný 12 Amp Motor: Delivers consistent power for effective thatch removal and soil scarification.
• Spacious 8-Gallon Catcher: Collects a significant amount of thatch and debris, reducing the frequency of emptying.
• Designed for Comfort and Ease: Lightweight design with a soft-grip handle and collapsible feature for convenient storage.

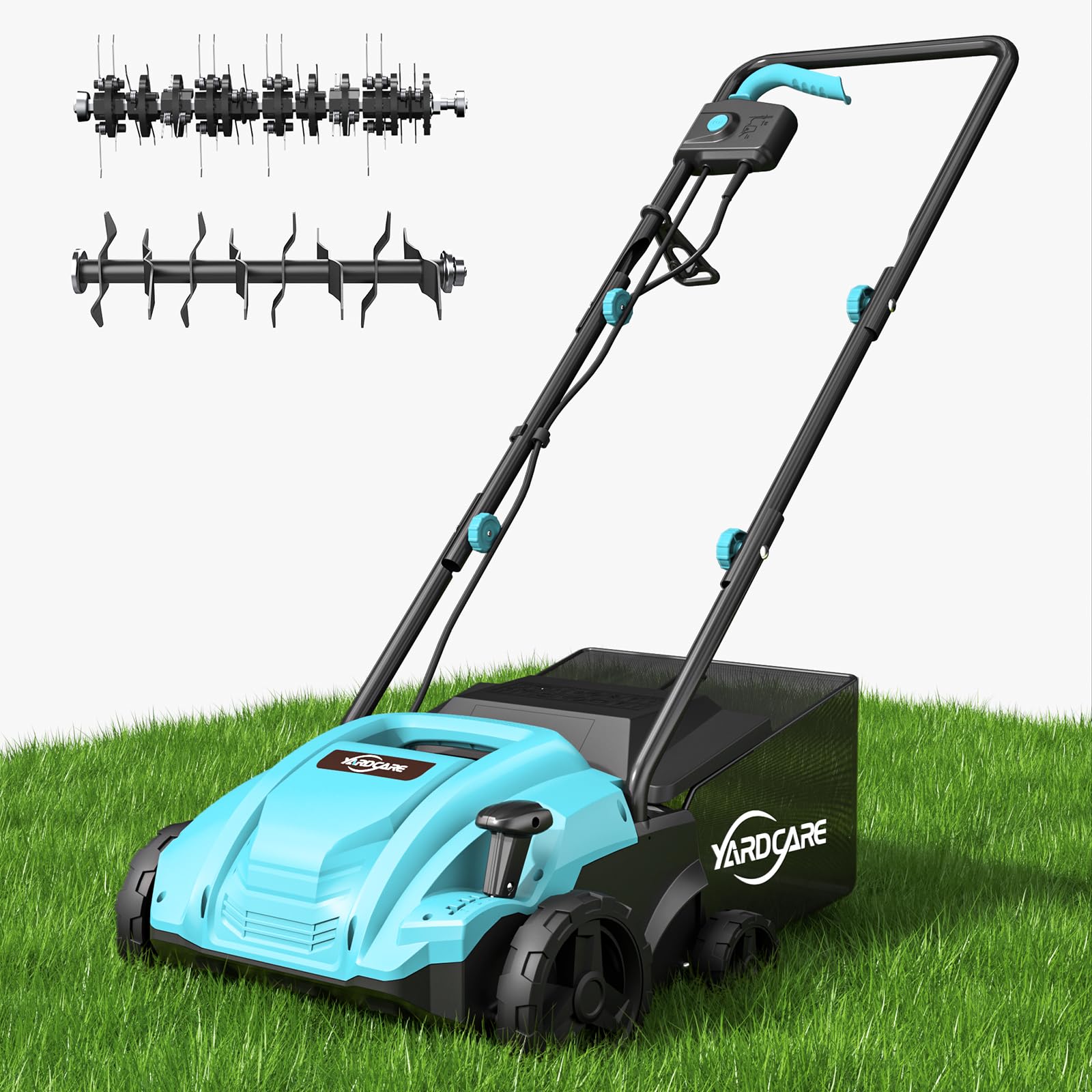

Figure 1: YARDCARE 13-Inch 2-in-1 Electric Dethatcher and Scarifier.

4. Nastavení a montáž

The YARDCARE Dethatcher & Scarifier requires minimal assembly. Follow these steps to prepare your unit for use:

1. Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu. Ujistěte se, že jsou přítomny všechny součásti uvedené v dodacím listu.
2. Sestava rukojeti: Attach the lower handle bars to the main unit using the provided clamp screws. Then, attach the upper handle bar to the lower bars, securing them with the remaining clamp screws. Ensure all connections are tight.
3. Collection Bag Assembly: Assemble the collection bag frame and attach the fabric bag. Secure the assembled bag to the rear of the main unit.
4. Instalace válečků: The unit comes with two interchangeable rollers: one for dethatching (tines) and one for scarifying (blades). To install or change a roller, ensure the machine is unplugged. Locate the roller release mechanism on the underside of the unit. Remove the currently installed roller by disengaging the lock and sliding it out. Insert the desired roller, ensuring it clicks securely into place.

Figure 2: Interchangeable rollers for dethatching and scarifying.

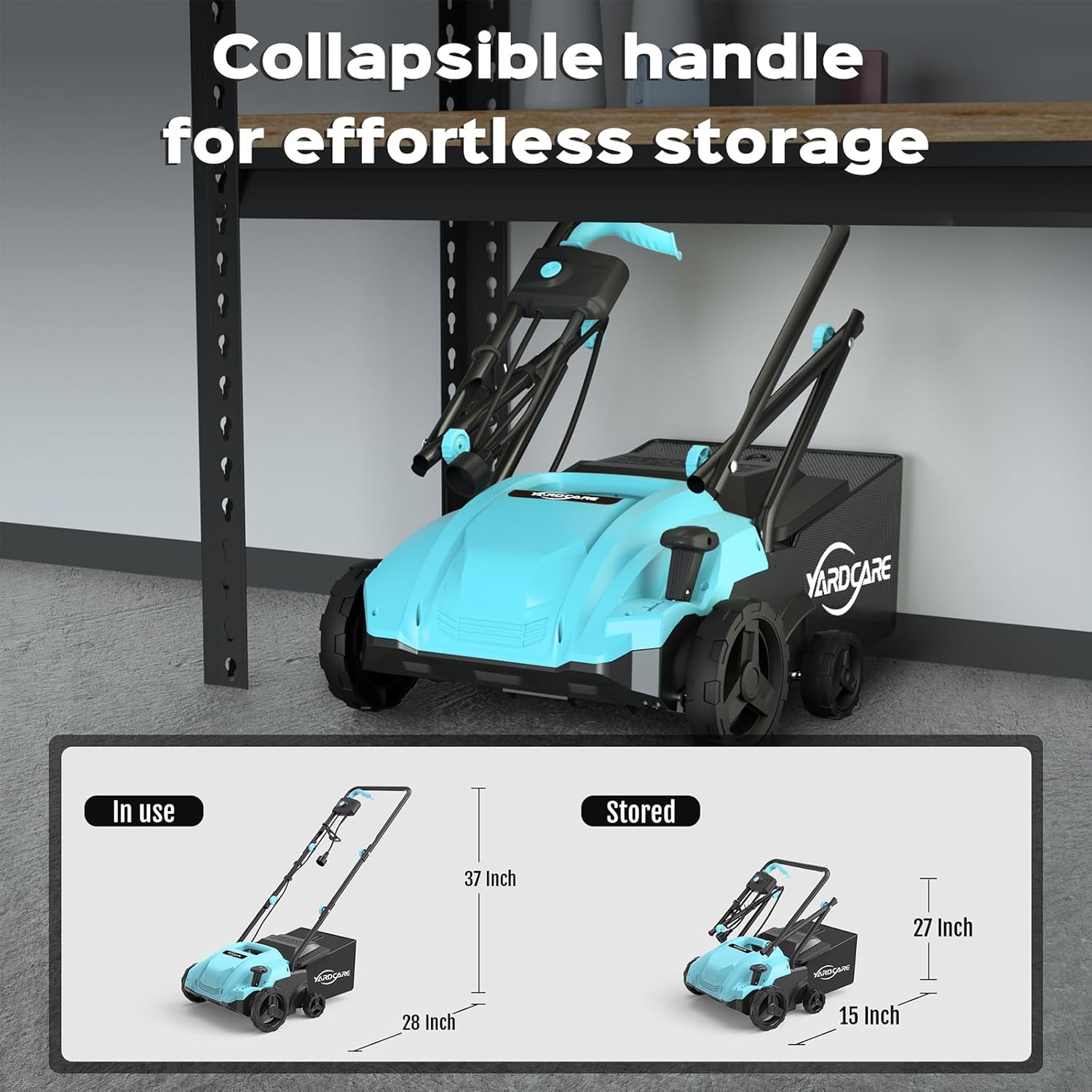

Figure 3: Collapsible handle for convenient storage.

Průvodce videem:

5. Návod k obsluze

Spuštění jednotky:

1. Ujistěte se, že je jednotka zapojena do vhodné elektrické zásuvky.
2. Stiskněte a podržte bezpečnostní tlačítko na rukojeti.
3. While holding the safety button, pull the operating lever towards you. The motor will start.
4. Jakmile se motor rozběhne, uvolněte bezpečnostní tlačítko.

Nastavení hloubky:

The unit features a depth adjustment lever, typically located near the wheels, allowing you to select from 4 different positions. Choose a shallow setting for light dethatching or a deeper setting for scarifying to stimulate root growth.

Figure 4: 4-Position depth adjustment for varied lawn conditions.

Dethatching/Scarifying Process:

• Begin by selecting the appropriate roller (dethatcher or scarifier) and depth setting for your lawn's condition.
• Start the unit as described above.
• Walk at a steady pace, pushing the unit across your lawn in overlapping rows.
• The 13-inch working path ensures efficient coverage.
• Periodically check and empty the 8-gallon collection bag to maintain optimal performance.

Figure 5: YARDCARE dethatcher with 30L collection bag in operation.

6. Údržba

Regular maintenance ensures the longevity and optimal performance of your YARDCARE unit.

Po každém použití:

• Odpojit napájení: Always unplug the unit from the power source.
• Prázdný sběrný vak: Remove and empty the 8-gallon collection bag. Clean any remaining debris from the bag.
• Čistá jednotka: Use a brush or cloth to remove grass clippings and debris from the housing, rollers, and wheels. Do not use water directly on the motor or electrical components.

Údržba válce:

• Inspect the dethatching tines or scarifying blades for wear or damage. Replace rollers if they are excessively worn or bent.
• Refer to the 'Setup and Assembly' section for instructions on changing rollers.

Skladování:

• Clean the unit thoroughly before storing.
• Složte rukojeť pro kompaktní skladování.
• Store the unit in a dry, secure location, away from children and moisture.

7. Řešení problémů

8. Specifikace

9. Záruka a podpora

For warranty information, technical support, or to order replacement parts, please refer to the contact information provided with your product packaging or visit the official YARDCARE webUschovejte si účtenku jako doklad o koupi pro případ reklamace.
