Ostwiki Rechargeable LED Light Bulbs A19 E26 9W 3000K Warm - Instruction Manual

1. Konec produktuview

The Ostwiki Rechargeable LED Light Bulbs are designed to function as standard A19 LED bulbs while also providing emergency lighting during power outages. These 9W bulbs feature a 3000K warm white light and fit E26/E27 threaded bases. They include a built-in battery backup for 2-8 hours of illumination.

Figure 1: Main product image of the Ostwiki Rechargeable LED Light Bulb, highlighting its A19 shape and E26 base.

2. Co je zahrnuto

Balíček obsahuje následující položky:

• 6 x Rechargeable LED Light Bulbs
• 4 x Portable Hooks
• 2 x zástrčkové krytky
• 2 x zásuvkový adaptér

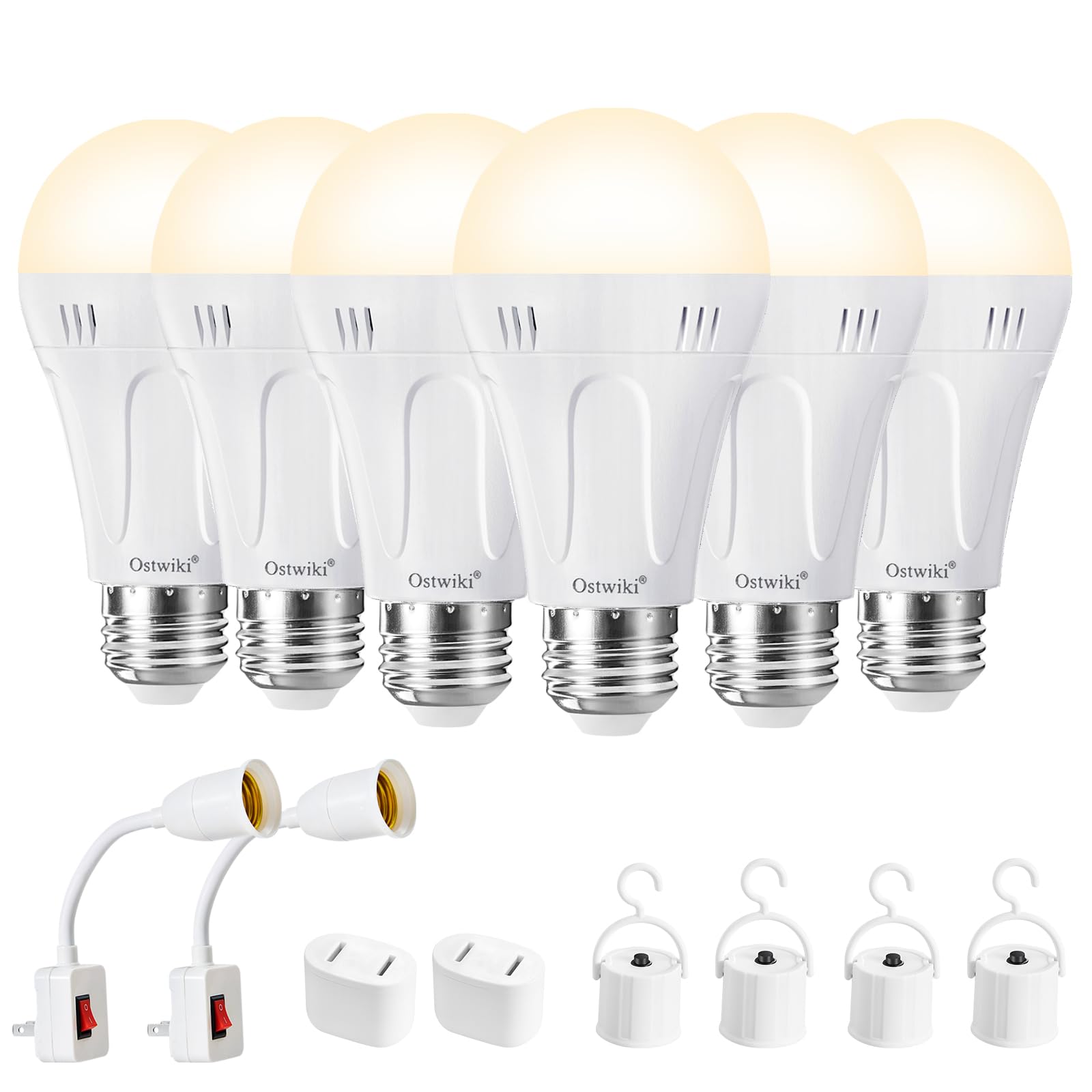

Figure 2: Contents of the Ostwiki Rechargeable LED Light Bulb package, including bulbs, portable hooks, plug caps, and socket adapters, with dimensions.

3. Nastavení

3.1 Počáteční nabíjení

Before first use, ensure the bulbs are fully charged to maximize emergency runtime. Screw the bulb into a powered E26/E27 socket. The bulb will automatically charge during daily lighting use.

Figure 3: A rechargeable LED bulb installed in a desk lamp, illustrating automatic charging during normal use.

3.2 Regular Use

Install the bulb into any standard E26/E27 threaded light fixture. Use it as a normal LED light bulb.

4. Návod k obsluze

4.1 Powering the Bulb

The emergency bulb requires a closed circuit to light. There are several ways to activate the bulb, especially during a power outage:

• Standardní zásuvka: Screw the bulb into a powered E26/E27 socket.
• Portable Hook: Attach the portable hook to the bulb's base. Press the button on the hook to turn the light on/off.
• Krytka zástrčky: Insert the bulb into the provided plug cap and then into a wall outlet. Use the switch on the plug cap to control the light.
• Dotyk prstu: To activate the bulb manually, touch both the metal screw base and the bottom contact point of the bulb simultaneously with your fingers or a wet cloth. This completes the circuit and turns the bulb on.

Figure 4: Diagram illustrating six different methods to illuminate the emergency light bulbs, including finger touch, charger, wet tissue, power hooks, plug cap, and fixtures.

4.2 Brightness Levels (Emergency Mode)

In emergency mode (when powered by the internal battery), the bulb offers three brightness levels. Cycle through these levels by quickly turning the bulb off and on using the switch on the portable hook or plug cap, or by repeatedly making and breaking the circuit with your fingers/wet cloth.

• 10% Brightness (110LM): Runtime 5-8 hours
• 50% Brightness (220LM): Runtime 4-5 hours
• 100% Brightness (450LM): Runtime 2-3 hours

Figure 5: Image displaying the three brightness levels (20%, 50%, 100%) available when the bulb is operating on battery power, along with estimated charging and emergency runtimes.

5. Údržba

For extended storage periods, recharge the bulb every 60 days to maintain battery health and ensure readiness for emergencies.

6. Řešení problémů

6.1 Bulb Not Lighting Up in Emergency Mode

• Zkontrolujte poplatek: Ensure the bulb has been sufficiently charged by being screwed into a powered socket for several hours.
• Closed Circuit: Verify that a closed circuit is established. If using the portable hook or plug cap, ensure the switch is in the "on" position. If manually activating, ensure both the metal screw base and the bottom contact point are touched simultaneously.
• Stav baterie: If stored for a long time without recharging, the battery might be depleted. Recharge the bulb for several hours.

7. Specifikace

8. Záruka a podpora

Informace o záruce nebo podporu k produktu získáte od oficiálního website or contact Ostwiki customer service directly. Keep your purchase receipt for any warranty claims.
