MCombo M7632 3-Motor Power Lift Recliner with Massage and Heat User Manual

1. Úvod

Thank you for choosing the MCombo M7632 3-Motor Power Lift Recliner. This manual provides essential information for the safe assembly, operation, and maintenance of your new recliner. Please read these instructions thoroughly before use and retain them for future reference.

Image 1.1: The MCombo M7632 Power Lift Recliner in Coffee color.

2. Bezpečnostní pokyny

• Ensure all connections are secure before operating the recliner.
• Udržujte děti a domácí zvířata v dostatečné vzdálenosti od pohyblivých částí křesla.
• Nedovolte dětem, aby si hrály s dálkovým ovladačem.
• Avoid placing hands or feet near the mechanism when operating the chair.
• Do not sit on the footrest when it is extended.
• Před čištěním nebo údržbou odpojte křeslo ze zásuvky.
• Do not use the recliner if any part is damaged or malfunctioning. Contact customer support immediately.
• Maximum weight recommendation: 158.76 kg (350 lbs). Do not exceed this limit.

3. Obsah balení

Verify that all components are present before beginning assembly. The package typically includes:

• Opěradlo
• Báze
• Levá loketní opěrka
• Pravá loketní opěrka
• Bederní polštář
• Napájecí adaptér a kabely
• Remote Controls (for recline/lift and massage/heat)
• Uživatelská příručka

Image 3.1: Illustration of the recliner components and their packaging.

4. Montážní návod

Assembly is designed to be straightforward and typically requires no tools. It can be completed in approximately 20 minutes for a novice.

1. Attach Armrests to Base: Slide the left and right armrests onto the metal brackets on the chair base. Ensure they are fully seated and locked into place.


Image 4.1: Attaching the armrests to the chair base.

2. Instalace opěradla: Align the backrest with the receiving brackets on the chair base and slide it down until it clicks securely into position.

Image 4.2: Installing the backrest.
3. Připojení kabeláže: Locate the various cables extending from the backrest and base. Connect them according to the color-coded or shape-matched connectors. Ensure all connections are firm.


Image 4.3: Electrical wiring connections.

4. Připojte napájecí adaptér: Plug the power adapter into the chair's power input, then plug the adapter into a wall outlet.

5. Návod k obsluze

Your MCombo M7632 recliner features a triple motor system allowing independent adjustment of the headrest, backrest, and footrest, along with massage and heat functions.

5.1 Recline and Lift Functions

Use the primary remote control to adjust the chair's position. This remote typically has directional arrows for movement and dedicated buttons for specific functions.

Image 5.1: Primary remote control for recline and lift functions.

• Elektricky ovládaná opěrka hlavy: Pomocí speciálních tlačítek opěrky hlavy ji můžete naklonit dopředu nebo dozadu pro optimální oporu krku.
• Backrest and Footrest: The triple motor allows independent adjustment. Use the backrest and footrest controls to find your desired position, from upright to a full lay-flat or zero-gravity position.

Image 5.2: Independent adjustment of chair components.
• Funkce výtahu: Press the "Lift Up" button to gently raise the chair, assisting you in standing up.
• Extended Footrest: The 4.7-inch extended footrest provides full leg support, preventing feet from dangling.


Image 5.3: Extended footrest for full leg support.

5.2 Masážní a tepelné funkce

The secondary remote controls the massage and heating features. These functions operate independently of the recline mechanism.

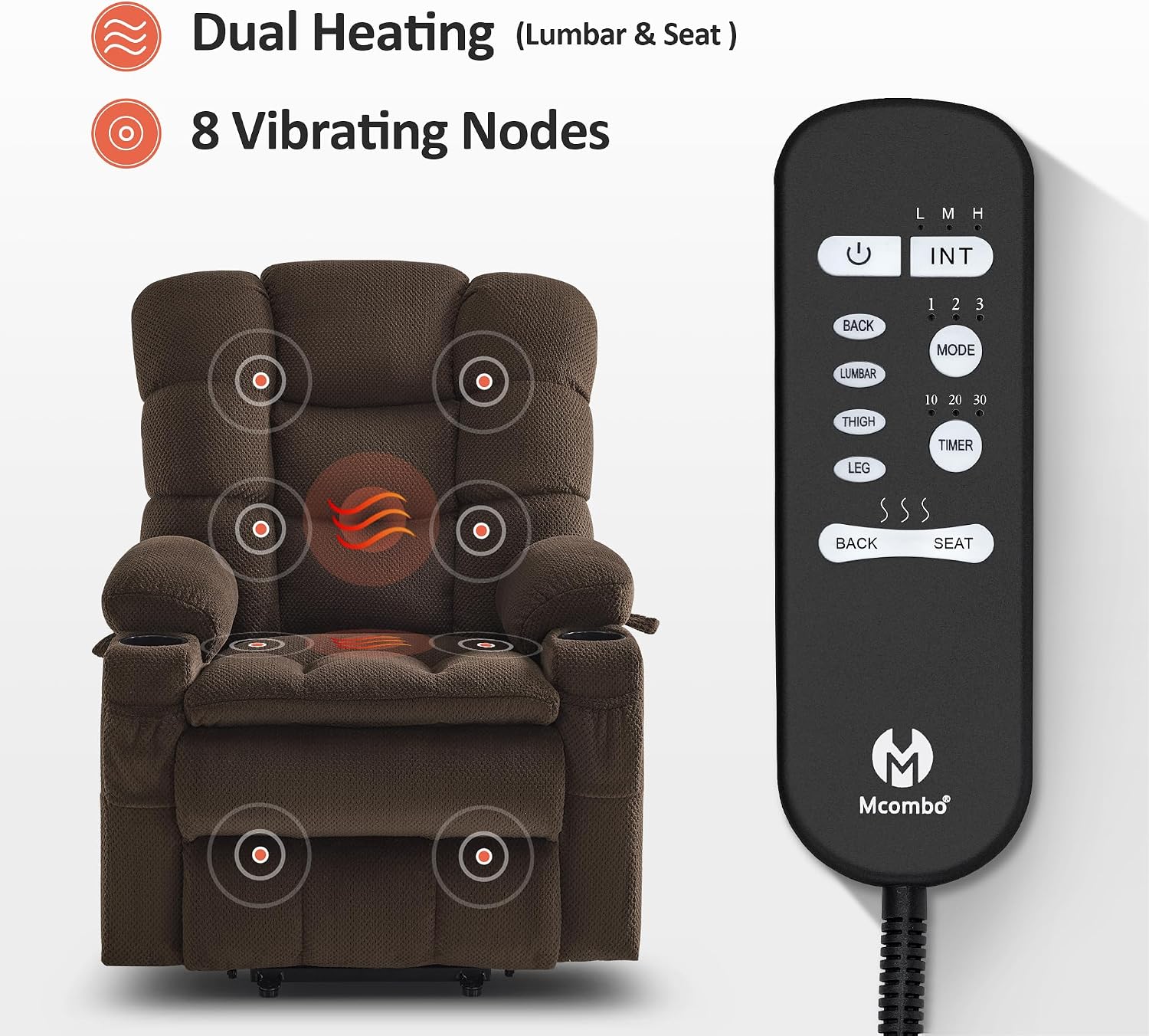

Image 5.4: Secondary remote control for massage and heat functions.

• Dual Heating: Activate heating for the lumbar and seat areas separately using the designated buttons.
• 8 Vibrating Modes: Select from various massage modes and intensity levels for different body zones (back, lumbar, thigh, leg).
• Funkce časovače: Set a timer for the massage and heat functions to automatically turn off.

5.3 Praktické funkce

• Porty USB a typu C: Located on the side, these ports allow you to charge your electronic devices.
• Držáky pohárů: Two 3.9-inch deep cup holders are integrated into the armrests.
• Úložné kapsy: Multiple side and front pockets provide convenient storage for remotes, magazines, or other small items.

Image 5.5: Convenient features including USB ports, cup holders, and pockets.

6. Údržba

• Čištění: Látkové čalounění čistěte dle potřeby. Použijte jemný čisticí prostředek aamp cloth. Do not saturate the fabric.
• Inspekce: Regularly inspect all electrical cords and connections for any signs of damage.
• Přesun židle: When moving the recliner, ensure it is in the upright, closed position and unplugged. Lift the chair rather than dragging it to prevent damage to the base or flooring.

7. Řešení problémů

• Předseda nereaguje: Check if the power cord is securely plugged into both the chair and the wall outlet. Ensure the wall outlet is functional. Verify all internal wiring connections are secure (refer to Image 4.3).
• Masáž/teplo nefunguje: Confirm the secondary remote is powered on and its cable is properly connected. Check for any loose connections specific to the massage and heat unit.
• Neobvyklé zvuky: If you hear grinding or unusual noises, discontinue use and inspect the mechanism for any obstructions. Do not attempt to force movement.
• Přerušovaná funkce: This may indicate a loose connection. Re-check all wiring as per assembly instructions.

If issues persist after troubleshooting, please contact MCombo customer support.

8. Specifikace

Obrázek 8.1: Rozměry produktu a maximální nosnost.

9. Informace o záruce

MCombo provides a Dvouletá omezená záruka výrobce for this product. This warranty covers:

• Reclining and Lift Mechanism
• Elektrické díly
• Materiál čalounění
• Polštáře
• Dřevěný a kovový rám

Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact MCombo customer service.

10. Kontaktní informace

For customer support, technical assistance, or warranty inquiries, please contact MCombo directly:

• Výrobce: MCombo
• Kontaktní adresa: 13515 STREAMSIDE DR LAKE OSWEGO OR 97035-1386 US
• Webmísto: MCombo Store on Amazon
