Zavedení
Thank you for choosing the EUHOMY 18 Bottle Compressor Wine Cooler Refrigerator. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation, and retain it for future reference.

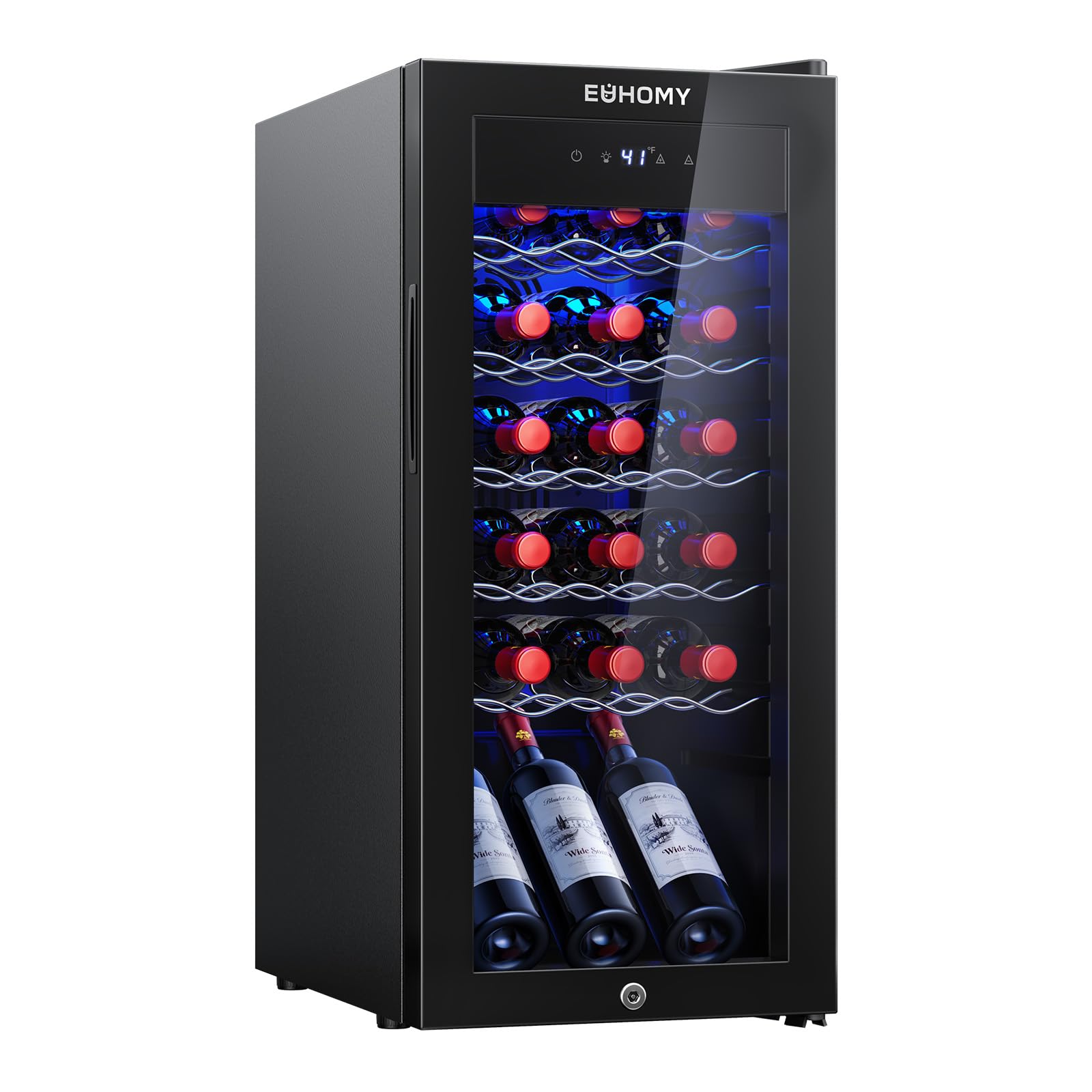

Image: The EUHOMY 18 Bottle Compressor Wine Cooler Refrigerator, showcasing its sleek design and glass door.
Bezpečnostní informace
Abyste snížili riziko požáru, úrazu elektrickým proudem nebo zranění při používání vašeho spotřebiče, dodržujte tato základní opatření:
- Před použitím spotřebiče si přečtěte všechny pokyny.
- V tomto spotřebiči neskladujte výbušné látky, jako jsou aerosolové plechovky s hořlavou hnací látkou.
- Tento spotřebič je určen pouze pro použití v domácnosti.
- Do not allow children to operate, play with, or crawl inside the appliance.
- Do not use abrasive cleaners or sharp objects to clean the interior.
- Zajistěte správné uzemnění pro elektrickou bezpečnost.
- Před čištěním nebo prováděním údržby spotřebič odpojte.
Nastavení
Vybalování
Carefully remove all packaging materials, including the foam base and any adhesive tape. Inspect the appliance for any damage during transit. Keep packaging materials away from children.
Umístění
Place the wine cooler on a flat, stable surface strong enough to support the unit when fully loaded. Ensure adequate ventilation around the unit. Maintain a minimum of 5 inches (12.7 cm) of space at the back and sides for proper air circulation. Avoid direct sunlight or heat sources.
Image: The wine cooler positioned in a living room, demonstrating its compact dimensions (13.5"W x 19.2"D x 30.9"H) for flexible placement in narrow spaces.
Vyrovnání spotřebiče
The wine cooler is equipped with adjustable leveling legs. Turn the legs clockwise to raise the unit or counter-clockwise to lower it. Ensure the appliance is level to prevent vibrations and ensure proper door sealing.
Obrázek: Podrobný view of the adjustable feet, showing how to adjust them for leveling the unit.
Připojení napájení
Plug the appliance into a dedicated, grounded 115V AC outlet. Do not use extension cords or adapters. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
První použití
After plugging in, allow the wine cooler to operate for approximately 24 hours to reach its set temperature before loading bottles.
Návod k obsluze
Ovládací panel
The wine cooler features an external touchscreen control panel for easy temperature adjustment and lighting control without opening the door.
- Tlačítko ON/OFF: Stiskněte pro zapnutí nebo vypnutí jednotky.
- Tlačítko LED světla: Stisknutím zapnete nebo vypnete modré vnitřní LED světlo.
- Tlačítka pro zvýšení (▲) / snížení (▼) teploty: Press to adjust the desired temperature. The temperature range is 41°F to 64°F (5°C to 18°C).
Image: The precise digital temperature control panel, showing the ON/OFF, LED Light, Temperature Up, and Temperature Down buttons, along with recommended temperatures for various wine types.
Nakládání lahví
The wine cooler can store up to 18 standard 750ml wine bottles. It includes 5 removable chrome-plated shelves and a specially designed upright holder for 3 opened bottles at the bottom.
- Lahve uspořádejte tak, aby byla zajištěna správná cirkulace vzduchu.
- The removable shelves can be adjusted to accommodate different bottle sizes.
- Use the bottom upright holder for opened bottles to prevent leakage.
Image: The interior of the wine cooler, illustrating its 18-bottle capacity, 5 removable wave shelves, and the dedicated bottom space for storing open bottles upright.
Vnitřní osvětlení
The soft blue LED lighting illuminates your wine collection, enhancing visibility without affecting the wine's flavor. It can be turned on or off via the control panel.
Image: A close-up of the soft blue LED light inside the wine cooler, providing clear visibility of the bottles.
Zámek dveří
The wine cooler is equipped with a lockable door and two keys for secure storage of your collection.
Obrázek: Podrobný view of the built-in safety lock and keys, designed to protect your wine collection.
UV-Resistant Glass Door
The double-layered glass door blocks harmful UV rays, helping to maintain a stable internal temperature and humidity, which is crucial for preserving wine flavor.
Image: The double-layered glass door, illustrating its UV protection capabilities and how it helps maintain cork moisture compared to single-layer doors.
Tichý provoz
The advanced compressor operates at a quiet 40 dB, ensuring minimal disturbance in your living space.
Image: The wine cooler in a quiet setting, demonstrating its low noise level (below 40dB) during operation.
Energetická účinnost
The unit consumes only 0.43 kWh per day, making it an energy-efficient choice for wine storage.
Image: The wine cooler in a home, emphasizing its energy efficiency with a display indicating 0.43 kWh/Day consumption.
Chladicí systém
The compressor cooling system, combined with 360° air cooling and fan-assisted precise temperature control, ensures even and stable temperatures throughout the cabinet, preserving the aroma and flavor of your wines.
Image: Visual representation of the 70W compressor for fast cooling, 360° even cooling, and fan-assisted precise temperature distribution.
Oficiální video produktu
Video: An official product video from EUHOMY showcasing the features and operation of the 18 Bottle Wine Cooler, including its control panel, capacity, UV-resistant glass door, and removable shelves.
Údržba
Čištění
- Interiér: Unplug the unit. Wash the interior surfaces with a solution of warm water and baking soda (2 tablespoons of baking soda to 1 quart of water). Rinse and dry thoroughly.
- Vnější: Vnější povrch čistěte jemným čisticím prostředkem a teplou vodou. Otřete dosucha měkkým hadříkem.
- Skleněné dveře: Use a glass cleaner or mild soap solution to clean the glass door. Avoid abrasive cleaners.
- Těsnění dveří: Pravidelně čistěte těsnění dvířek, aby bylo zajištěno správné utěsnění.
Rozmrazování
This wine cooler features a frost-free defrost system, eliminating the need for manual defrosting.
Shelf Care
The chrome-plated shelves can be removed for cleaning. Wash them with mild soap and water, then dry completely before returning them to the unit.
Dlouhodobé skladování
Pokud spotřebič nebudete delší dobu používat, odpojte jej ze zásuvky, vyčistěte vnitřek a nechte dvířka mírně pootevřená, abyste zabránili vzniku zápachu a růstu plísní.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Zařízení nefunguje | Není zapojeno do zásuvky; jistič se vypnul; teplota je nastavena příliš vysoko. | Ensure plug is secure; reset circuit breaker; set temperature lower. |
| Teplota není dostatečně nízká | Door not closed properly; frequent door openings; poor ventilation; excessive items inside. | Check door seal; reduce door openings; ensure proper clearance; do not overload. |
| Vibrace | Spotřebič není na úrovni. | Seřiďte vyrovnávací nožičky. |
| Hluk | Normal compressor operation; loose items inside. | This is normal; ensure bottles are stable on shelves. |
| Dveře se nezavírají správně | Appliance not level; gasket dirty or damaged; shelves out of position. | Vyrovnejte jednotku; očistěte/vyměňte těsnění; přemístěte police. |
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | FWC010-14BL |
| Rozměry produktu (D x Š x V) | 19.2 cm x 13.5 cm x 30.9 cm |
| Kapacita | 18 Bottles (750ml standard) / 1.58 Cubic Feet |
| Teplotní rozsah | 5 °C až 18 °C |
| Způsob chlazení | Kompresor |
| Odmrazovací systém | Bez mrazu |
| Počet polic | 5 (Removable, Chrome Plated) |
| Typ dveří | Double-Layered Glass, UV-Resistant |
| Úroveň hluku | ≤ 40 dB |
| Spotřeba energie | 0.43 kWh/day (Annual: 158 kWh/year) |
| svtage | 115 voltů (AC) |
| Hmotnost položky | 42.9 libry |
| Speciální funkce | Adjustable Shelves, Digital Temperature Control, Lockable Door, Hidden Handle, Adjustable Leveling Legs, Blue LED Light |
Záruka a podpora
This EUHOMY wine cooler is ETL certified for safety and reliability. It comes with a 1-year manufacturer's warranty. Your purchase also includes 12 months of technical support.
If you have any questions, require assistance, or need to claim warranty service, please contact our support team. We are committed to providing prompt assistance.
For support, please refer to the contact information provided on the EUHOMY official webwebu nebo v dokumentaci k nákupu.
