Zavedení
The RESTMO Turbo Oscillating Sprinkler is designed for efficient and customizable irrigation of lawns and gardens. This manual provides instructions for proper setup, operation, maintenance, and troubleshooting to ensure optimal performance.
Mezi klíčové vlastnosti patří:
- Pokrytí velké plochy: Capable of watering up to 3200 square feet, suitable for extensive lawns and gardens.
- Precision 4-Way Watering Control: Offers four distinct spray patterns (Left, Center, Right, Full) for targeted irrigation.
- 360° Rotating & Stable Base: Allows for flexible spray direction and maintains stability on various terrains.
- Customizable Water Flow: An adjustable knob controls water volume from a gentle mist to a strong stream.
Video: Konecview of the RESTMO Turbo Oscillating Sprinkler with Stable Base. This video demonstrates the general features and operation of the sprinkler.
Nastavení
Follow these steps to set up your oscillating sprinkler:
- Umístění: Place the sprinkler on a flat, stable surface within the area you wish to water. Ensure the base is firm to prevent tipping during operation.
- Připojení vodní hadice: Attach your standard garden hose to the water inlet connector on the sprinkler. Hand-tighten the connection to prevent leaks.
Image: The 360° rotatable water inlet, designed for easy hose connection and tangle-free operation.
Návod k obsluze
The RESTMO Turbo Oscillating Sprinkler offers flexible control over its watering patterns and flow.
Úprava stříkacích vzorů
Use the manual dial to select one of four watering patterns:
- Vlevo: Waters only the left side of the sprinkler's range.
- Centrum: Waters only the central area.
- Právo: Waters only the right side.
- Plný: Waters the entire range from left to right.
Image: Visual representation of the four manual spray modes: Full, Left, Center, and Right.
Changing Spray Direction
The sprinkler's base can be rotated 360 degrees to direct the spray precisely where needed.

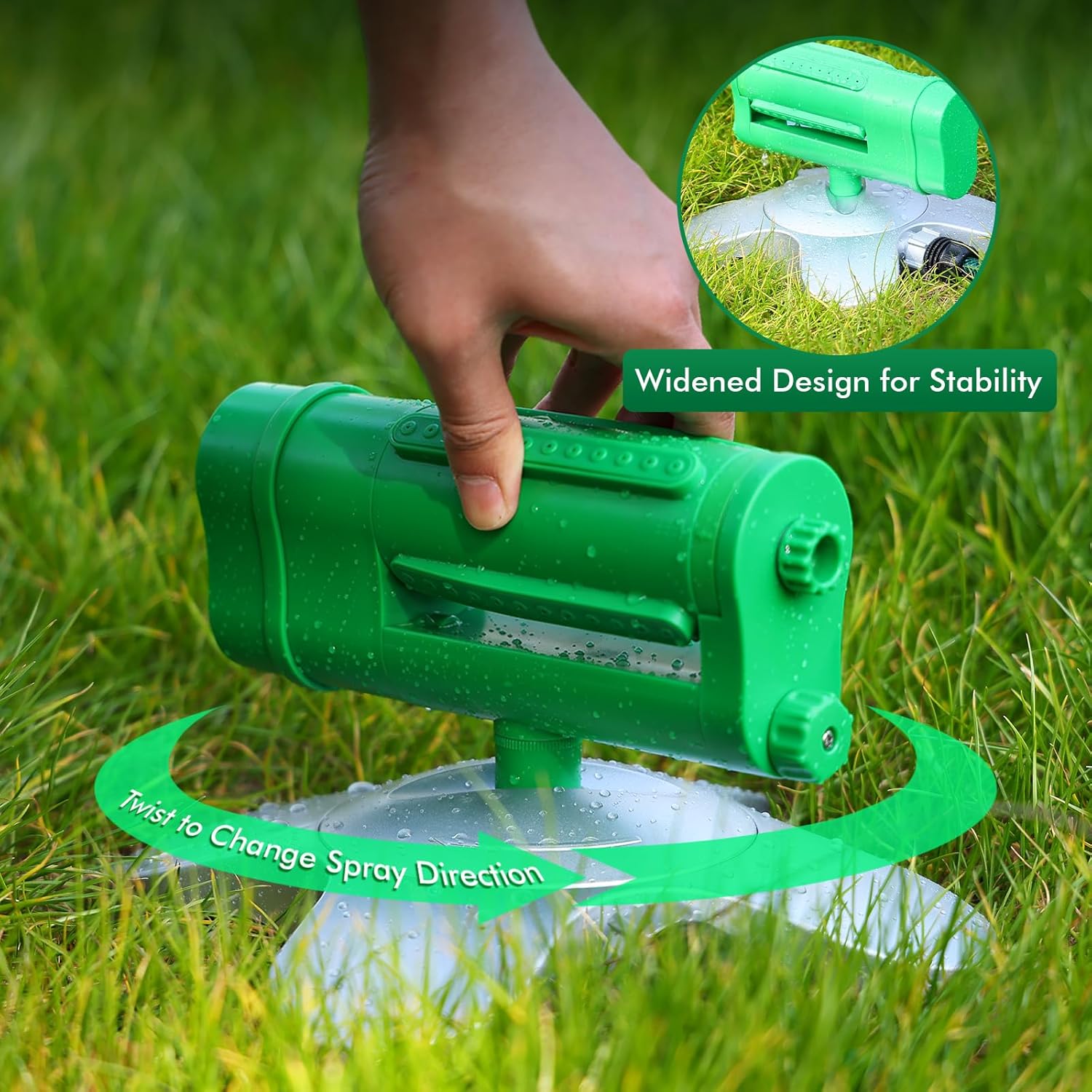

Image: A hand twisting the sprinkler head to adjust the spray direction on its rotating base.
Video: Instructions on how to change the watering areas by rotating the sprinkler base.
Nastavení průtoku vody
Rotate the easy-turn flow control knob to increase or decrease the water volume. This allows you to conserve water or provide deeper watering as required.
Image: A hand rotating the flow control knob to adjust the water output of the sprinkler.
Údržba
Regular maintenance ensures the longevity and optimal performance of your sprinkler.
Čištění trysek
Over time, mineral deposits or debris can clog the sprinkler nozzles. Use the integrated clean pin to clear any blockages.
- Locate the clean pin, usually found at one end of the sprinkler bar.
- Rotate and pull out the clean pin.
- Carefully insert the pin into each clogged nozzle to clear debris.
- Return the clean pin to its storage position after use.
Video: Demonstration on how to clean the sprinkler nozzles using the integrated clean pin.
Odstraňování problémů
If you encounter issues with your sprinkler, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Uneven or weak spray | Low water pressure; clogged nozzles; incorrect flow setting. | Ensure adequate water pressure from the source. Clean nozzles using the clean pin (refer to Maintenance section). Adjust the flow control knob to increase water volume. |
| Sprinkler not oscillating | Insufficient water pressure; internal mechanism obstruction. | Verify water pressure. Ensure the sprinkler is not obstructed by debris. If the issue persists, contact customer support. |
| Voda unikající z přípojek | Loose hose connection; worn washer. | Tighten the hose connection. Check the rubber washer inside the hose connector for wear and replace if necessary. |
Specifikace
Detailed specifications for the RESTMO Turbo Oscillating Sprinkler (Model O-LS-8-GN):
- Značka: Restmo
- Číslo modelu: O-LS-8-GN
- Barva: Green Oscillating Sprinkler
- Materiál: Plast
- Styl: Oscilující
- Rozměry položky (D x Š x V): 8.8 x 2.9 x 11.2 palce
- Oblast pokrytí: Up to 3200 square feet (with minimum 30 PSI water pressure)
- Počet položek: 1
Image: Diagram illustrating the dimensions of the sprinkler: 7.9 inches (length), 3.4 inches (height of sprinkler head), 6.1 inches (total height), and 8.2 inches (base width).
Záruka a podpora
For warranty information or technical support, please refer to the product packaging or contact Restmo customer service directly. Keep your purchase receipt for warranty claims.
