Zavedení
This manual provides essential information for the proper installation, operation, and maintenance of the Generic 36V Solenoid Replacement Part, designed for Ya-ma-ha G1 Electric Golf Carts. This solenoid (model HADICO27625, compatible with Ya-ma-ha part number J22-81950-01) is a critical component in the golf cart's electrical system, controlling the flow of high current to the motor. Please read these instructions thoroughly before proceeding with installation or use.
Bezpečnostní informace
Always observe the following safety precautions when working with electrical components:
- Odpojit napájení: Before beginning any work, ensure the golf cart's main battery pack is disconnected to prevent electrical shock or damage.
- Používejte ochranné pomůcky: Use appropriate personal protective equipment, including safety glasses and insulated gloves.
- Ověřte svtage: Confirm the golf cart's electrical system operates at 36V to ensure compatibility with this solenoid.
- Profesionální instalace: Pokud si nejste jisti některým krokem, poraďte se s kvalifikovaným technikem.
- Vyhněte se zkratům: Be careful not to short-circuit battery terminals or other electrical components during installation.
Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:
- 1x 36V Solenoid (Model HADICO27625, Product Part Number HADICO2116)
- Assorted Nuts
- Assorted Washers (flat and lock washers)
- 2x montážní držáky

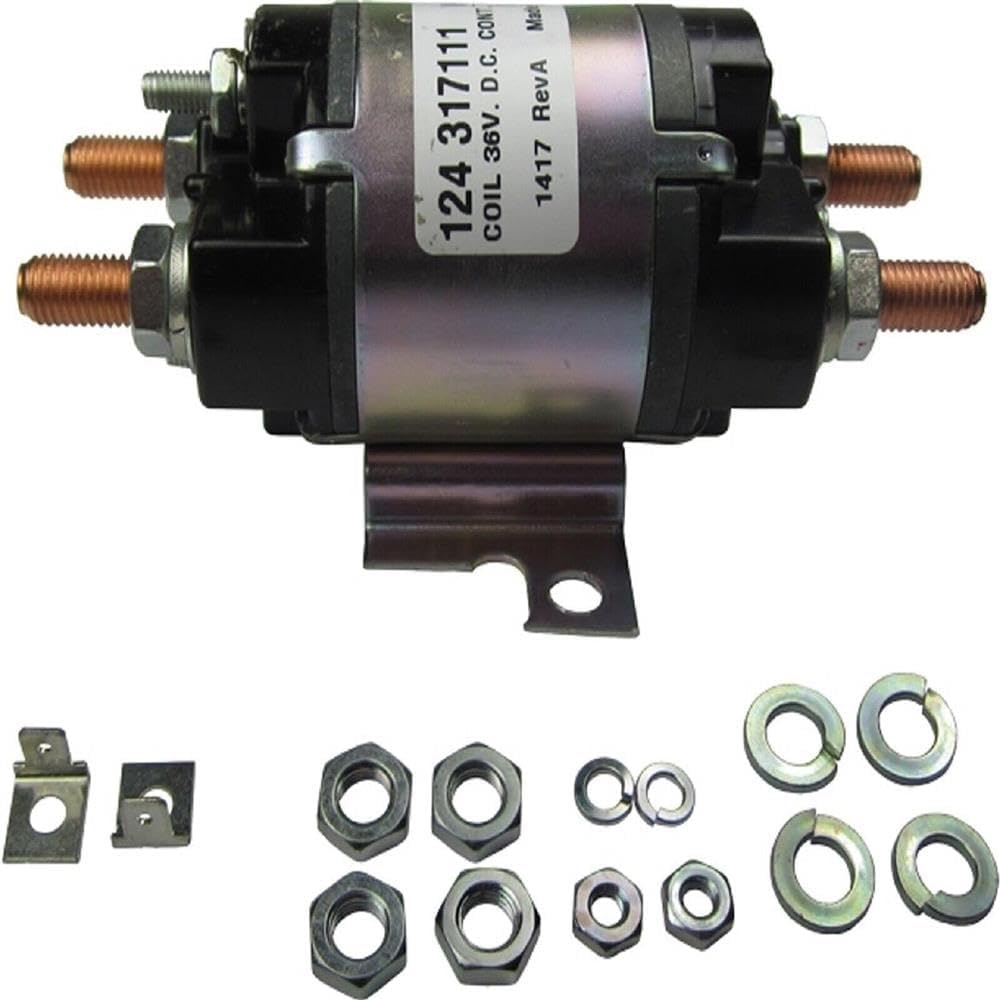

Figure 1: Solenoid and Included Hardware. This image displays the 36V solenoid unit, which features four threaded terminals for electrical connections. Below the solenoid, various fasteners are shown, including hexagonal nuts, flat washers, and split lock washers, along with two small metal mounting brackets. These components are essential for securing and connecting the solenoid within the golf cart's electrical system.
Instalace
Follow these steps to replace the solenoid in your Ya-ma-ha G1 Electric Golf Cart:
- Prepare the Golf Cart: Park the golf cart on a level surface. Engage the parking brake. Turn the key switch to the "OFF" position.
- Odpojit baterie: Locate the main battery pack. Disconnect the negative (-) terminal cable first, followed by the positive (+) terminal cable. This is a critical safety step.
- Vyhledejte starý solenoid: Identify the existing solenoid. It is typically a cylindrical or rectangular component with two large terminals and two smaller terminals. Note the wiring connections to each terminal. It is recommended to take a photograph for reference.
- Demontáž starého solenoidu: Carefully disconnect all wires from the old solenoid's terminals. Use appropriate tools to unbolt the solenoid from its mounting location.
- Montáž nového solenoidu: Position the new solenoid in the same location as the old one. Use the provided mounting brackets, nuts, and washers to secure it firmly. Ensure it is stable and does not vibrate.
- Připojení kabeláže: Reconnect the wires to the new solenoid's terminals. The two large terminals are for the main power circuit (battery and motor), and the two smaller terminals are for the control circuit (key switch, accelerator pedal switch). Refer to your golf cart's wiring diagram or the photograph taken in step 3 if needed. Ensure all connections are tight and secure.
- Reconnect Batteries: Reconnect the positive (+) battery terminal cable first, then the negative (-) battery terminal cable.
- Test funkčnosti: Turn the key switch to the "ON" position. Depress the accelerator pedal to check if the golf cart moves forward or backward as expected. Listen for a distinct "click" sound from the solenoid when the pedal is pressed, indicating it is engaging.
Operace
The solenoid acts as an electrical switch. When the key switch is turned on and the accelerator pedal is pressed, a small current flows through the solenoid's control circuit, energizing an electromagnet. This electromagnet pulls a plunger, closing a set of heavy-duty contacts that allow the main battery current to flow to the golf cart's motor, enabling movement. When the pedal is released, the control circuit de-energizes, the contacts open, and power to the motor is cut.
Údržba
Regular maintenance helps ensure the longevity and reliable operation of your solenoid:
- Kontrola připojení: Periodically check all electrical connections to the solenoid for tightness and corrosion. Loose or corroded connections can lead to poor performance or failure.
- Čisté terminály: If corrosion is present, disconnect the battery and clean the terminals and wire ends with a wire brush and battery terminal cleaner.
- Poslouchejte abnormální zvuky: While operating the golf cart, listen for any unusual clicking, buzzing, or grinding noises from the solenoid, which could indicate an issue.
- Udržujte v suchu: Ensure the solenoid remains dry and free from excessive moisture or debris.
Odstraňování problémů
If your golf cart is not operating correctly after solenoid replacement, consider the following:
| Příznak | Možná příčina | Řešení |
|---|---|---|
| Golf cart does not move, no click from solenoid. | Loose or incorrect control wiring; faulty key switch or accelerator pedal switch; low battery voltage. | Check all control circuit connections. Test key switch and pedal switch. Verify battery charge. |
| Solenoid clicks, but golf cart does not move. | Loose or incorrect main power wiring; faulty motor; solenoid contacts are not making good connection (internal fault). | Check main power connections to solenoid and motor. Test motor. If connections are good, solenoid may be faulty internally. |
| Solenoid gets excessively hot. | Continuous current draw; undersized wiring; internal resistance. | Ensure solenoid is not continuously engaged. Check wiring gauge. Solenoid may be faulty. |
Specifikace
- Compatible OEM Part Number: J22-81950-01
- Číslo dílu produktu: HADICO2116
- Číslo modelu produktu: HADICO27625
- svtage: 36V DC
- Kompatibilita: Ya-ma-ha G1 Electric Golf Carts
- Výrobce: HADICO25VN
- Zdroj napájení: Hand-powered (Refers to the golf cart's control mechanism)
Informace o záruce
According to the product specifications, there is no explicit warranty description provided for this replacement part. Please refer to your retailer's return policy for details regarding returns or exchanges.
Podpora
For further assistance or technical inquiries regarding this solenoid replacement part, please contact the retailer or the manufacturer directly. Ensure you have your product model number (HADICO27625) and compatible OEM part number (J22-81950-01) available when seeking support.
