Dolonm 3 Motor Electric Chair Instruction Manual

1. Bezpečnostní informace

Please read all safety instructions carefully before operating the Dolonm 3 Motor Electric Chair. Failure to follow these instructions may result in injury or damage to the product.

• Vždy sestavte podle přiloženého návodu.
• Keep fingers and loose clothing away from moving parts during operation.
• Nepřekračujte maximální hmotnostní limit 159 liber (72 kg).
• Use caution when adjusting the chair to prevent tip-over. Ensure the chair is stable before use.
• Keep children and pets away from the chair when in use or during assembly.
• Ensure the power cord is not pinched or damaged. Disconnect power before cleaning or maintenance.

2. Konec produktuview

The Dolonm 3 Motor Electric Chair is a versatile and adjustable treatment chair designed for various professional settings, including medical exams, facial treatments, spa services, eyelash extensions, tattooing, podiatry, and massage. It features a robust 3-motor system for independent control of the backrest, leg rest, and seat height, along with an upgraded hand remote for easy operation.

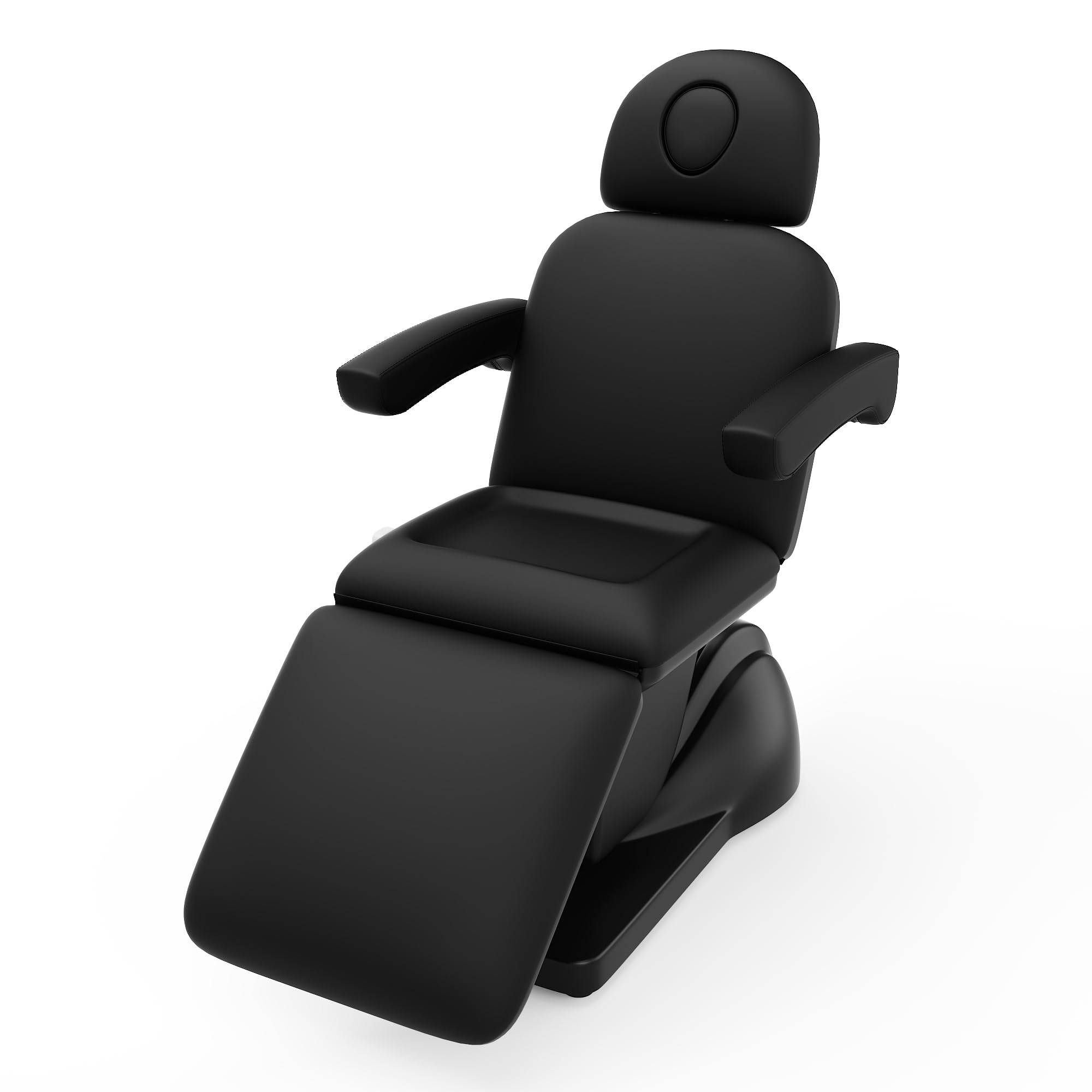

Figure 2.1: Dolonm 3 Motor Electric Chair, showcasinjeho design a funkčnost.

Klíčové vlastnosti:

• Efficient 3-Motor Adjustable System: Independently controls backrest angle, leg rest angle, and seat height for customized positioning.
• Automatic One-Touch Control: Upgraded hand remote allows effortless adjustments with a single press to start and stop movement.
• Všestranné aplikace: Suitable for facials, eyelash extensions, tattoos, massages, and podiatry care.
• Sturdy Structure & Comfortable Surface: Reinforced steel base for stability, soft PU leather, and high-density sponge for comfort. Water-resistant and easy to clean.
• Removable Pillow: The headrest features a removable pillow with a face hole, allowing for adjustable head distance and optimal client positioning.

3. Pokyny k nastavení

The Dolonm 3 Motor Electric Chair is shipped in two secure packages: one for the bed surface and one for the base. Follow these steps for quick and easy assembly.

3.1 Vybalení

1. Carefully open both packages. Ensure all components are present and undamaged.
2. Remove all packing materials. Keep them for future transport if needed.

Figure 3.1: The Dolonm Electric Chair is shipped in two separate packages for safe delivery.

3.2 Montáž

1. Umístěte základnu židle na rovný a stabilní povrch.
2. Carefully align the bed surface with the connection points on the base.
3. Secure the bed surface to the base using the provided hardware. Ensure all connections are tight and secure.
4. Connect the hand remote control cable to the designated port on the chair.
5. Zapojte napájecí kabel do vhodné elektrické zásuvky.

3.3 Leveling the Chair

The chair is equipped with four high-load leveling feet to ensure stability on uneven surfaces.

• To lower the height of a corner, turn the leveling foot to the right (clockwise).
• To raise the height of a corner, turn the leveling foot to the left (counter-clockwise).
• Adjust each foot until the chair is perfectly level and stable. This is crucial for safety and proper operation.

Figure 3.2: Adjusting the 4 high-load leveling feet to ensure chair stability.

4. Návod k obsluze

The Dolonm 3 Motor Electric Chair features an intuitive hand remote for precise control over its three independent motors.

4.1 Hand Remote Control

The upgraded hand remote allows for one-touch adjustments. Simply press a button once to initiate movement and press it again to stop at the desired angle or height.

Figure 4.1: The hand remote provides one-touch control for automatic position changes.

4.2 Nastavení opěradla

The backrest can be adjusted to an angle of up to 75 degrees, allowing for various client positions from upright to reclined.

Figure 4.2: Backrest adjustable function, demonstrating the range of motion.

4.3 Nastavení opěrky nohou

The leg rest can be adjusted up to 45 degrees, providing comfortable support for the client's legs.

Figure 4.3: Footrest adjustable function, illustrating its range of movement.

4.4 Adjusting the Height

The chair's height can be adjusted from 23 inches to 32.5 inches, allowing practitioners to maintain an ergonomic posture during treatments.

Figure 4.4: Height adjustable function, detailing the chair's dimensions and height range.

4.5 Removable Pillow and Headrest Adjustment

The chair features a removable pillow and an adjustable headrest to accommodate various client needs and treatment types.

• The headrest distance can be adjusted by sliding it in or out.
• The removable pillow reveals a face hole, ideal for massage or other prone treatments.

Figure 4.5: The removable pillow and adjustable headrest provide versatile client positioning.

4.6 Použití Přamples

The chair's adjustability makes it suitable for a wide range of professional applications:

Figure 4.6: Configuration for Facial Spa treatments, allowing clients to lie in a lower position for better access.

Figure 4.7: Configuration for Tattoo application, with independent backrest and leg rest adjustments.

Figure 4.8: Configuration as a Treatment Exam Chair, supporting ergonomic posture for practitioners and comfort for patients.

Figure 4.9: Configuration for Podiatry Treatment, with a sturdy frame and smooth motorized lift system.

4.7 Operational Video (Reference Only)

This video demonstrates the general operation and adjustability of a Dolonm electric chair. Please note: This video features a previous model. The remote control shown in the video has been upgraded to the new version, as displayed in the images above.

5. Údržba

Proper maintenance ensures the longevity and hygienic operation of your Dolonm 3 Motor Electric Chair.

5.1 Čištění čalounění

• The chair's soft PU leather surface is water-resistant and oil-resistant.
• Čistěte pravidelně s inzerátemamp hadříkem a jemným, neabrazivním čisticím prostředkem.
• Avoid harsh chemicals or solvents that may damage the material.
• Ihned po čištění otřete dosucha.

5.2 Removable Armrests

The armrests are designed to be removable for thorough cleaning and maintenance.

• Simply detach the armrests after each use for easy cleaning.
• Clean the armrests using the same method as the main upholstery.
• Ensure armrests are securely reattached before next use.

Figure 5.1: Removable armrests facilitate easy cleaning and maintenance.

5.3 Obecná péče

• Regularly inspect all moving parts and connections for wear or looseness.
• Keep the chair away from direct sunlight and extreme temperatures to prevent material degradation.
• Do not attempt to lubricate internal motor components unless specified by the manufacturer.

6. Řešení problémů

If you encounter any issues with your Dolonm 3 Motor Electric Chair, refer to the following troubleshooting guide.

If the problem persists after attempting these solutions, please contact Dolonm customer support for further assistance.

7. Specifikace

Detailed technical specifications for the Dolonm 3 Motor Electric Chair.

8. Záruka a podpora

Dolonm is committed to providing high-quality products and customer satisfaction.

8.1 Informace o záruce

For specific warranty details regarding your Dolonm 3 Motor Electric Chair, please refer to the warranty card included with your purchase or visit the official Dolonm webZáruka se obvykle vztahuje na výrobní vady za běžných podmínek používání.

8.2 Zákaznická podpora

If you have any questions, require technical assistance, or need to report an issue, please contact Dolonm customer support:

• Webmísto: Visit the official Dolonm Store on Amazon or their corporate webweb s nejčastějšími dotazy a zdroji podpory.
• E-mail: Refer to your product packaging or warranty documentation for customer service email addresses.
• Telefon: Kontaktní čísla mohou být k dispozici na oficiálních stránkách webdokumentaci k webu nebo produktu.

When contacting support, please have your product model (3 Motor Electric Chair) and purchase information readily available.
