Orient Electric Aquanova Neo 10L 5 Star Storage Water Heater User Manual

1. Úvod

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Orient Electric Aquanova Neo 10L 5 Star Storage Water Heater. Please read this manual thoroughly before installation and use, and retain it for future reference. Proper adherence to these instructions will ensure optimal performance and longevity of your appliance.

The Orient Electric Aquanova Neo 10L 5 Star Storage Water Heater is engineered for reliable and energy-efficient hot water supply. It features a durable Glassline tank, an Incoloy heating element, and Whirlflow Technology for enhanced heating efficiency. Designed to accommodate high water pressure, it is suitable for high-rise buildings. Its 5-star BEE rating signifies high energy efficiency, contributing to reduced electricity consumption.

2. Bezpečnostní pokyny

Vždy dodržujte následující bezpečnostní opatření, abyste snížili riziko požáru, úrazu elektrickým proudem, zranění nebo poškození spotřebiče.

• Ensure the water heater is installed by a qualified technician in accordance with local regulations and this manual.
• Do not operate the water heater if it is damaged or malfunctioning. Disconnect power immediately and contact customer service.
• The appliance must be properly grounded to prevent electric shock.
• Neblokujte nebo tamper with the pressure relief valve. Regular inspection of the valve is recommended.
• Udržujte hořlavé materiály mimo dosah ohřívače vody.
• Ensure the water heater is filled with water before switching on the power supply to prevent damage to the heating element.
• This appliance is equipped with multi-level safety features including a thermostat, auto thermal cut-off, safety valve, and a fire-proof body for enhanced user protection.

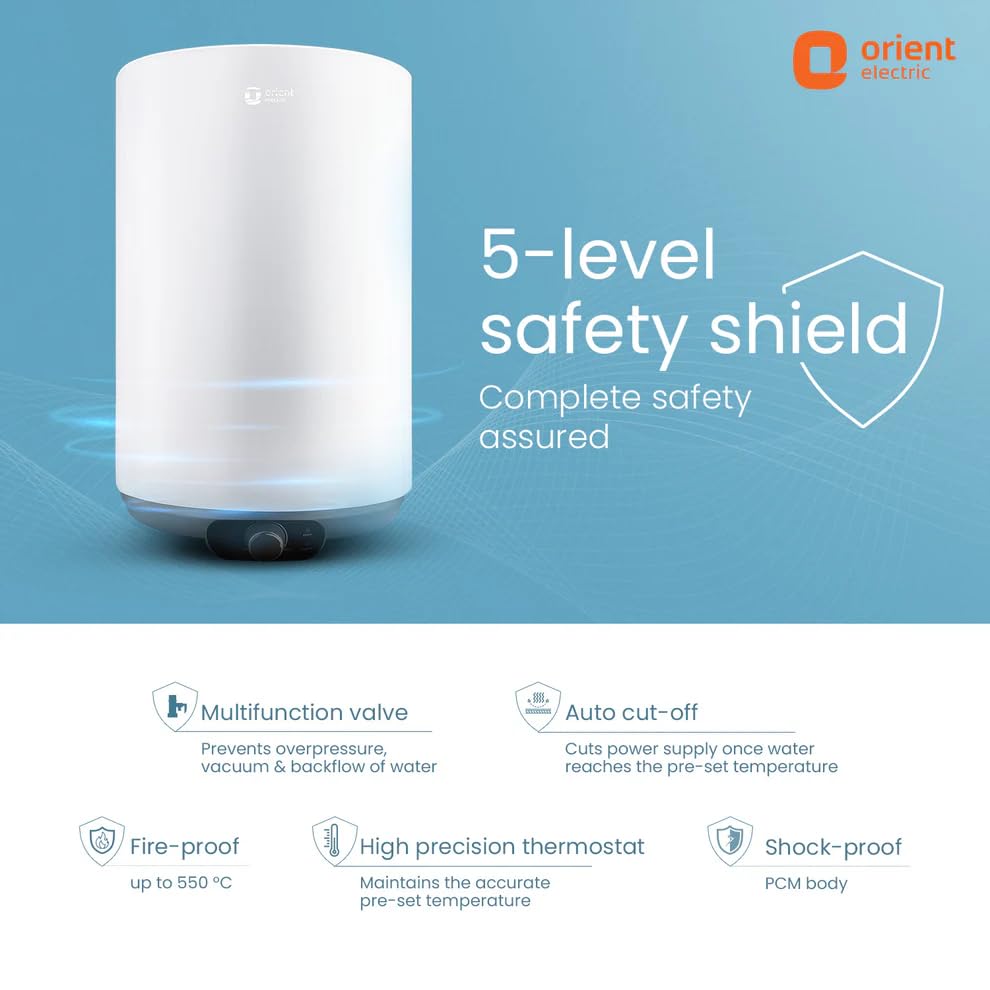

Figure 1: The Aquanova Neo water heater features a 5-level safety shield, including a multifunction valve, auto cut-off, fire-proof body, high precision thermostat, and shock-proof PCM body, ensuring complete safety during operation.

3. Vlastnosti produktu

The Orient Electric Aquanova Neo 10L water heater incorporates several features designed for performance, safety, and convenience:

• Triple Warranty Protection: Enjoy peace of mind with a 7-year warranty on the tank, 6 years on the heating element, and 2 years comprehensive warranty on the product.
• 5-Star BEE Rating: This appliance is rated 5-star by the Bureau of Energy Efficiency, indicating high energy efficiency and potential savings on electricity bills.

Figure 2: The 5-star BEE rating signifies significant electricity savings, making the Aquanova Neo an energy-efficient choice.

• Durable Glassline Storage Tank: The internal tank is coated with Glassline material, which prevents corrosion and extends the geyser's lifespan, especially beneficial in hard water areas.
• Incoloy Heating Element: A high-quality Incoloy heating element ensures long-lasting performance and rapid water heating.
• Whirlflow Technology: This innovative technology prevents the mixing of hot and cold water within the tank, leading to faster and more efficient heating.
• Multi-Level Safety: Integrated safety features include a thermostat, auto thermal cut-off, safety valve, and a fire-proof body for comprehensive protection.
• Ideal for High-Rise Buildings: Designed with high-pressure tolerance, this water heater ensures consistent hot water flow even in high-rise residential structures.

Figure 3: The Aquanova Neo is specially designed to be compatible with up to 8 bar pressure, making it suitable for high-rise apartments.

• Nastavitelná regulace teploty: Easily set your desired water temperature within a range of 30°C to 75°C.
• Free Installation Kit: The product includes durable connecting water pipes and mounting accessories for a hassle-free setup.
• Stylish & Reliable Design: Features a compact, splash-proof IPX4 body, combining aesthetics with Orient's trusted quality.

Figure 4: The Ultra Diamond Glassline tank provides exceptional toughness and resistance to corrosion, ensuring durability.

4. Nastavení a instalace

Installation should only be performed by a qualified professional. Ensure all safety guidelines are followed.

1. Výběr webu: Choose a suitable wall location that can support the weight of the water heater when full. Ensure adequate clearance for maintenance and ventilation. The unit is designed for vertical wall mounting.
2. Montáž: Securely mount the water heater to the wall using the provided mounting accessories.
3. Vodovodní přípojky: Connect the inlet and outlet water pipes. The inlet pipe (cold water) is typically marked blue, and the outlet pipe (hot water) is marked red. Use the durable connecting water pipes provided in the installation kit. Ensure all connections are tight to prevent leaks.
4. Přetlakový ventil: Install the pressure relief valve as per instructions. This is a critical safety component.
5. Plnění nádrže: Before connecting to power, open a hot water faucet in your home and then open the cold water supply valve to the water heater. Allow water to flow until all air is purged from the tank and a steady stream of water comes from the hot water faucet. Close the hot water faucet.
6. Elektrické připojení: Connect the water heater to a dedicated, properly grounded electrical circuit. Ensure the power supply matches the appliance's requirements (230 Volts, 2000 Watts).

5. Návod k obsluze

Once installed and filled with water, your water heater is ready for operation.

1. Zapnutí: Switch on the main power supply to the water heater. The power indicator light will illuminate.
2. Nastavit teplotu: Use the ergonomic temperature controller knob to select your desired water temperature. The adjustable range is typically between 30°C and 75°C.

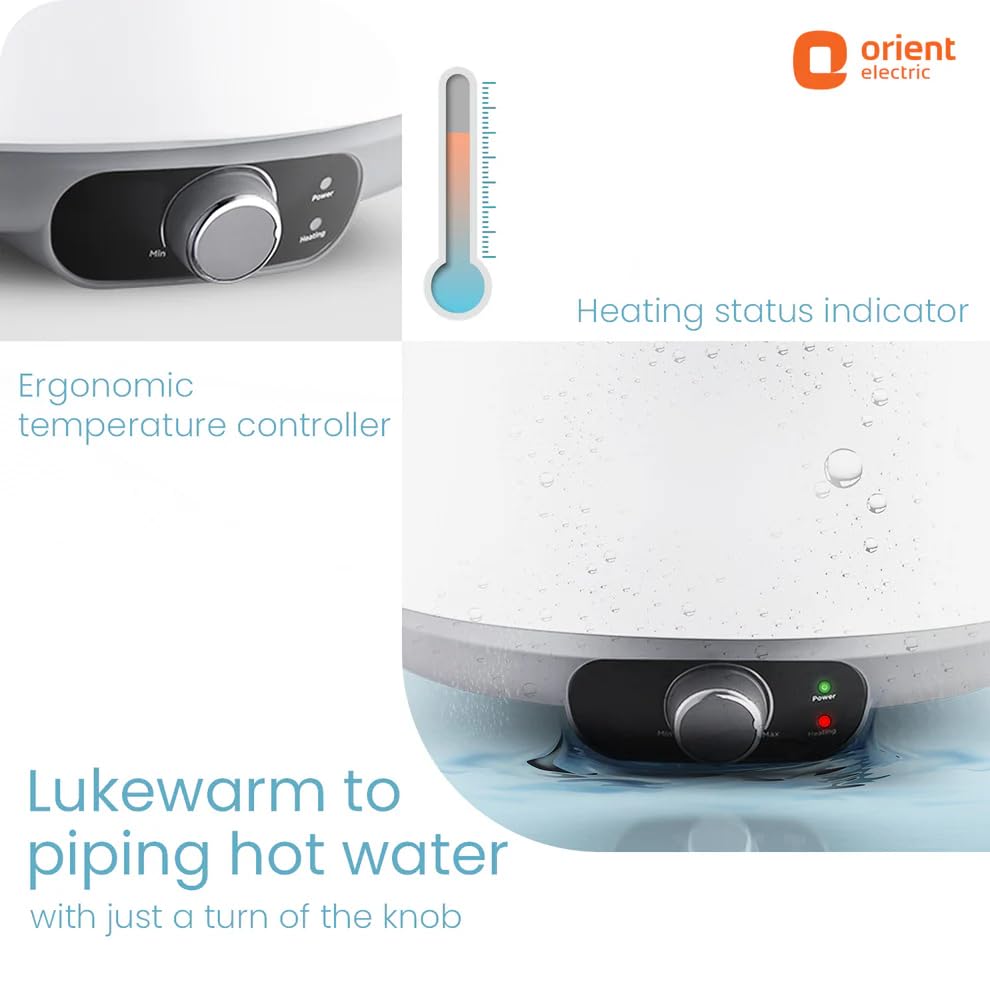

Figure 5: The ergonomic temperature controller allows precise adjustment from lukewarm to piping hot water, with a heating status indicator for convenience.

3. Indikátor topení: A heating status indicator light will show when the water heater is actively heating. It will turn off once the set temperature is reached.
4. Spotřeba teplé vody: Open your hot water faucets as needed. The water heater will automatically reheat water as it is consumed.

6. Údržba

Regular maintenance ensures efficient operation and extends the life of your water heater. Always disconnect power before performing any maintenance.

• Drain and Flush Tank (Annually): To remove sediment buildup, drain and flush the tank annually. This helps maintain heating efficiency and prevents corrosion.
• Inspect Pressure Relief Valve (Annually): Manually operate the pressure relief valve once a year to ensure it is not blocked and functions correctly. Follow manufacturer guidelines for this procedure.
• Zkontrolujte netěsnosti: Periodically inspect all water connections and the tank for any signs of leaks. Address any leaks promptly to prevent water damage.
• Čistý exteriér: Otřete vnější povrch ohřívače vody měkkým,amp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.

7. Řešení problémů

Refer to the following table for common issues and their potential solutions. For problems not listed or if solutions do not resolve the issue, contact customer support.

8. Specifikace

9. Záruka a podpora

Your Orient Electric Aquanova Neo 10L water heater comes with comprehensive warranty coverage:

• Nádrž: 7 roky
• Topné těleso: 6 roky
• Komplexní záruka na produkt: 2 roky

For warranty claims, technical assistance, or service requests, please contact:

• Výrobce: R.G. Industries Pvt Ltd, Kh No 31-23-3-1 36-3-2-1 Village - Nathupur Sonipat Haryana 131029
• Dovozce/Balicí firma: Orient Electric Limited, Unit - VIII, Plot No. 7, Bhoinagar, Bhubaneshwar, Orissa – 751012

Please have your model number (Aquanova Neo 10L) and purchase details ready when contacting support.
