Zavedení
This instruction manual provides essential information for the installation, operation, and maintenance of the Generic 308054123 Carburetor Kit. This kit is designed as a direct replacement for OEM part number 308054123 and is 100% compatible with RYi2300BT and RYi2300BTA Inverter Generators.
Důležité: Before proceeding with installation, verify that your generator's OEM part number matches 308054123 to ensure proper compatibility. Cross-reference your equipment's serial number if necessary.
Co je zahrnuto
The 308054123 Carburetor Kit includes the following components:
- 1x Precision Carburetor
- 1x Stepper Throttle Motor
- 1x Premium Spark Plug (E6TC)
- 1x High-Efficiency Fuel Filter
- 1x Sealing Gasket Set (includes multiple gaskets)
Image: The kit includes a spark plug, fuel filter, and a set of sealing gaskets, essential for a complete replacement.
Nastavení a instalace
Proper installation is crucial for the optimal performance and longevity of your generator. If you are unsure about any step, consult a qualified technician.
Bezpečnostní opatření:
- Always ensure the generator is turned off and cooled down before beginning any work.
- Odpojte kabel zapalovací svíčky, abyste zabránili náhodnému spuštění.
- Pracujte v dobře větraném prostoru.
- Používejte vhodné osobní ochranné prostředky (OOP), jako jsou rukavice a ochrana očí.
- S palivem zacházejte s maximální opatrností. Zabraňte rozlití a kontaktu s otevřeným ohněm.
Kroky instalace:
- Vypuštění paliva: Completely drain the fuel tank and carburetor bowl.
- Demontáž sestavy vzduchového filtru: Opatrně odpojte kryt vzduchového filtru a všechny související součásti, abyste se dostali ke karburátoru.
- Odpojení spojovacích prvků a hadic: Disconnect the fuel line, throttle linkage, choke linkage, and any electrical connections from the old carburetor. Note their positions for reassembly.
- Demontáž starého karburátoru: Unbolt and remove the old carburetor from the engine manifold. Be mindful of any gaskets.
- Instalace nových těsnění: Place the new sealing gaskets in their correct positions between the engine, insulator, and new carburetor.
- Instalace nového karburátoru: Mount the new carburetor, ensuring it is properly seated. Secure it with the mounting bolts, tightening them evenly.
- Připojení spojovacích prvků a hadic: Reconnect the fuel line, throttle linkage, choke linkage, and electrical connections to the new carburetor. Ensure all connections are secure and properly routed.
- Namontujte zapalovací svíčku: Replace the old spark plug with the new E6TC spark plug provided in the kit. Ensure it is tightened to the manufacturer's specifications.
- Instalace palivového filtru: Replace the old fuel filter with the new high-efficiency fuel filter, ensuring the flow direction is correct.
- Reassemble Air Filter Assembly: Reattach the air filter housing and all other components removed in step 2.
- Doplnění paliva: Add fresh, clean fuel to the generator's fuel tank.
- Počáteční spuštění: Follow the generator's manufacturer instructions for initial start-up after maintenance. Check for any fuel leaks or unusual operation.

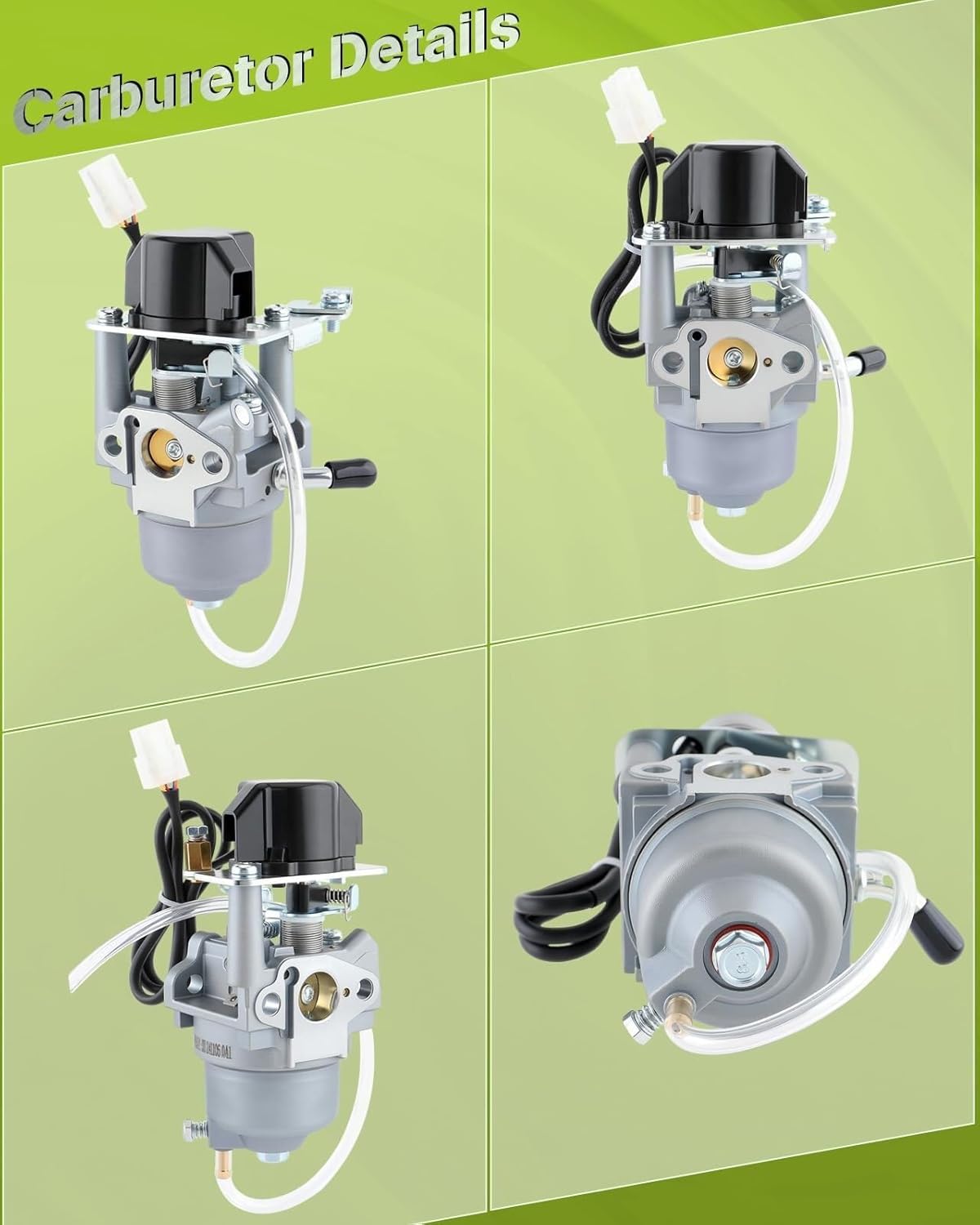

Obrázek: Vícenásobný views of the carburetor, highlighting its various components and connection points for installation reference.
Provozní směrnice
After installing the carburetor kit, follow these general operating guidelines to ensure efficient performance of your RYi2300BT or RYi2300BTA generator.
- Kvalita paliva: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel can cause carburetor issues.
- Obsluha sytiče: For cold starts, use the choke as recommended by your generator's manual. Gradually open the choke as the engine warms up.
- Otáčky motoru: Allow the engine to warm up for a few minutes before applying a load.
- Skladování: If storing the generator for an extended period, drain the fuel system or use a fuel stabilizer to prevent fuel degradation and carburetor clogging.
Údržba
Regular maintenance of your generator's fuel system components, including the carburetor, is essential for reliable operation.
- Výměna palivového filtru: Inspect and replace the fuel filter annually or more frequently if operating in dusty conditions or with questionable fuel quality.
- Kontrola zapalovací svíčky: Check the spark plug every 50 hours of operation or annually. Clean or replace if fouled or worn. The included E6TC spark plug is a direct replacement.
- Čištění karburátoru: If the generator experiences performance issues (e.g., rough idle, stalling), the carburetor may require cleaning. This typically involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner.
- Fuel System Flush: Periodically flush the fuel tank and lines to remove sediment.
Odstraňování problémů
This section addresses common issues you might encounter after installing the carburetor kit. Always refer to your generator's specific manual for detailed troubleshooting.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Motor se nespustí | No fuel, clogged fuel filter, faulty spark plug, incorrect choke setting, fuel line kinked. | Check fuel level. Replace fuel filter. Inspect/replace spark plug. Adjust choke. Check fuel lines for obstructions. |
| Motor běží nepravidelně nebo se zastavuje | Dirty carburetor jets, stale fuel, air leak around carburetor gaskets, improper throttle stepper motor function. | Clean carburetor. Use fresh fuel. Check gasket seating. Verify throttle stepper motor connections. |
| Úniky paliva | Loose fuel line connections, damaged carburetor bowl gasket, float needle issue. | Utáhněte všechny spoje palivového potrubíamps. Inspect and replace carburetor bowl gasket if damaged. Check float assembly. |
| Ztráta moci | Partially clogged fuel filter, dirty air filter, carburetor not adjusted correctly. | Replace fuel filter. Clean/replace air filter. Ensure carburetor is functioning optimally. |
Specifikace
Key specifications for the 308054123 Carburetor Kit:
- Číslo dílu OEM: 308054123
- Kompatibilita: RYi2300BT, RYi2300BTA Inverter Generators
- Součásti sady: Carburetor, Stepper Throttle Motor, Spark Plug (E6TC), Fuel Filter, Sealing Gasket Set
- Materiál: Aluminum (Carburetor exterior)
- Hmotnost položky: Approximately 1.1 pounds (entire kit)
- Rozměry produktu: Approximately 11.81 x 4.72 x 5.91 inches (packaging/overall kit size)
- Číslo modelu: HGHCCGHAC
Image: Detailed dimensions of the carburetor, showing measurements for critical components like the throttle stepper and main body.
Informace o záruce
Specific warranty details for this Generic product may vary. Please refer to the product packaging or contact the seller directly for information regarding warranty coverage and terms.
Zákaznická podpora
For any questions, technical assistance, or support regarding the 308054123 Carburetor Kit, please contact your retailer or the manufacturer's customer service. Refer to your purchase documentation for contact details.
Online zdroje: For additional information or troubleshooting tips, you may also consult online forums or resources dedicated to RYi2300BT and RYi2300BTA generator maintenance.
