HUANUO Standing Desk with LED Strip

Zavedení

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your HUANUO Standing Desk with LED Strip. This desk features a 63" x 31.5" desktop, dual-motor electric height adjustment, and integrated RGB LED lighting, designed for both gaming and office environments.

This image shows the HUANUO standing desk in a typical gaming environment, featuring dual monitors and peripherals. It highlights the desk's spacious surface and integrated LED lighting.

Bezpečnostní informace

Always follow the assembly instructions carefully. Ensure the desk is properly anchored to the floor to prevent tipping, especially when adjusting the height. Be cautious when handling the LED lights to avoid injury.

• Během provozu držte děti a domácí zvířata v dostatečné vzdálenosti od stolu.
• Nepřetěžujte stůl nad jeho maximální nosnost 220 liber.
• Ujistěte se, že všechny kabely jsou správně vedeny, aby se zabránilo zamotání během nastavování výšky.
• Avoid placing liquids directly on the desk surface without proper coasters.

Nastavení

The HUANUO Standing Desk requires assembly. Please refer to the separate, detailed assembly manual included in your product packaging for step-by-step instructions. Ensure all components are present before beginning assembly.

Klíčové kroky montáže:

1. Vybalte všechny součásti a ověřte je podle seznamu dílů.
2. Připevněte zvedací sloupky k nohám stolu.
3. Secure the desktop to the frame.
4. Install the control panel and connect all necessary cables.
5. Attach the LED strip and connect its power source.
6. Perform initial calibration as per the assembly manual.

A comprehensive diagram providing all key dimensions of the standing desk, including its adjustable height range and overall footprint.

A visual representation of the desk's generous dimensions, indicating a width of 63 inches and a depth of 31.5 inches, providing ample space for various setups.

Návod k obsluze

Nastavení výšky:

The desk features a dual-motor lift system for smooth and quiet height adjustments. The height can be adjusted from 27.9 inches to 46 inches.

• Tlačítka nahoru/dolů: Použijte ^ (Nahoru a v (Down) buttons on the control panel to manually adjust the desk to your desired height. The current height will be displayed on the digital screen.
• Předvolby paměti: The control panel includes three programmable memory presets (1, 2, 3) to save your preferred sitting and standing heights.
1. Nastavte stůl do požadované výšky pomocí tlačítek Nahoru/Dolů.
2. Stiskněte tlačítko S tlačítko. Na displeji se zobrazí „S-“.
3. Press the desired preset button (1, 2, or 3) within 3 seconds. The height is now saved.
4. To recall a saved height, simply press the corresponding preset button (1, 2, or 3).

This image details the intuitive control panel for the standing desk, featuring buttons for height adjustment, a digital display for current height, and three programmable memory presets.

RGB LED Strip:

The integrated RGB LED strip offers customizable lighting to enhance your environment.

• Řízení: The LED strip can be controlled via a dedicated app or remote control (if included). Refer to the LED strip's specific instructions for pairing and usage.
• Přizpůsobení: Choose from 16 million colors, various pulsating patterns, and adjustable brightness levels to create your desired ambiance.

This image focuses on the vibrant RGB LED strip, illustrating its dynamic lighting capabilities and the option for control via an app or remote.

The desk is shown with its integrated RGB LED strip active, showcasing the customizable lighting feature that enhances the gaming or work atmosphere.

Údržba

• Čištění: Otřete povrch stolu měkkým, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish or LED strip.
• Správa kabelů: Regularly check and organize cables to prevent strain or damage during height adjustments.
• Inspekce: Periodically inspect all screws and connections to ensure they are secure. Tighten if necessary.

Odstraňování problémů

• Stůl se nehýbe:
  • Zkontrolujte, zda je napájecí kabel bezpečně zapojený do stolu i do zásuvky.
  • Ujistěte se, že nejsou žádné překážky, které by bránily pohybu.
  • Perform a reset (refer to the assembly manual for specific reset procedures, typically involving holding down the 'v' button).
• Nerovnoměrná výška:
  • Ujistěte se, že stůl je na rovném povrchu.
  • Perform a reset to re-synchronize the motors.
• LED Strip Not Working:
  • Check the power connection for the LED strip.
  • Verify the remote control or app is properly paired and has working batteries (if applicable).
• Chybové kódy na displeji: If an error code appears, consult the assembly manual for specific meanings and solutions.

Specifikace

An image emphasizing the robust construction and dual-motor system, capable of supporting up to 220 pounds of equipment.

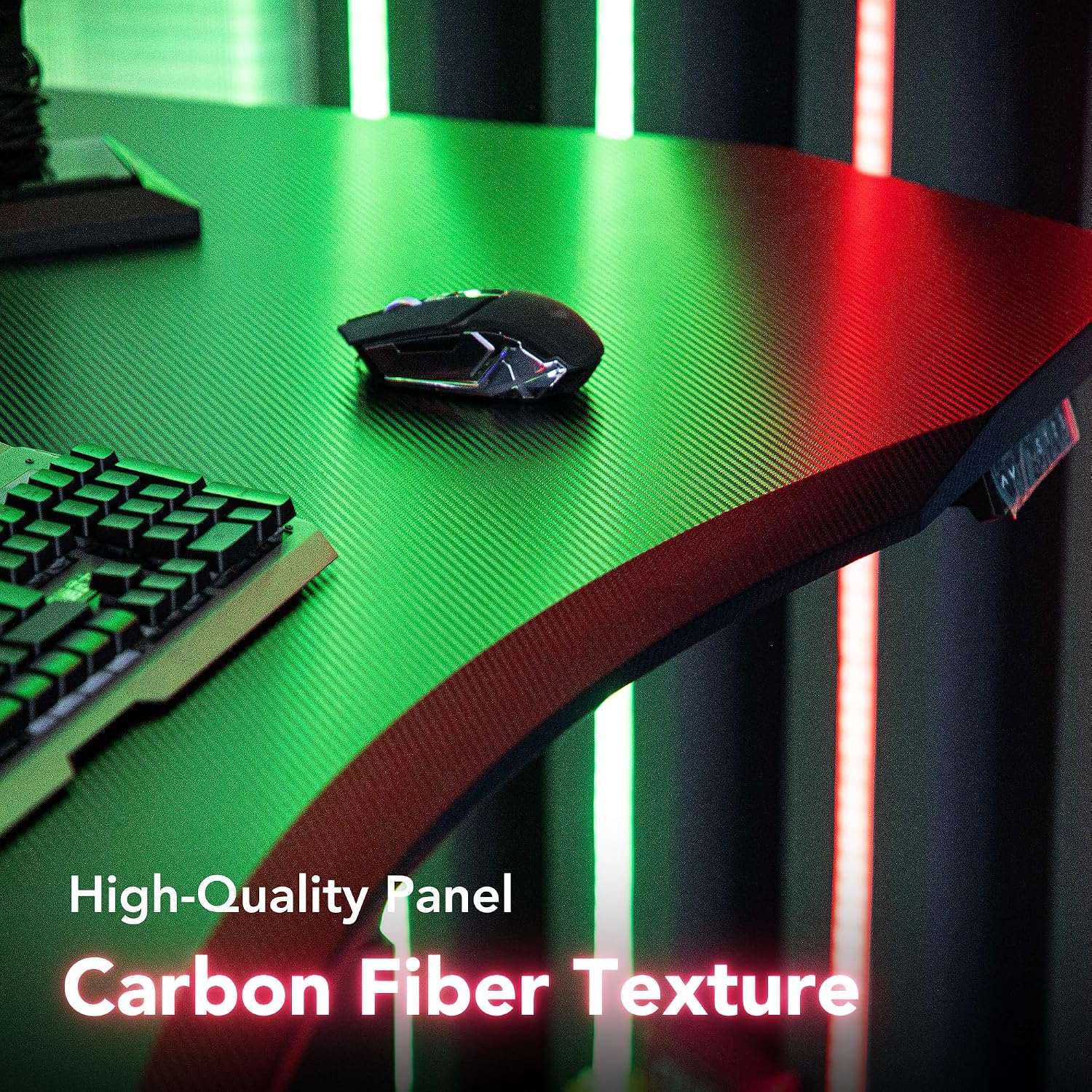

Detailní view of the desk's high-quality panel, showcasing its carbon fiber texture for a modern and durable finish.

Záruka

This HUANUO Standing Desk comes with a Limited Warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact HUANUO customer support.

Podpora

If you encounter any issues or have questions not covered in this manual, please contact HUANUO customer service for assistance. Contact information can typically be found on the product packaging, the HUANUO official webwebu nebo prostřednictvím svého prodejce.
