VGR V-196 & 996 Professional Barber Combo Hair Clipper & Trimmer Kit User Manual

1. Důležité bezpečnostní pokyny

Please read all instructions carefully before using the VGR V-196 & 996 Professional Barber Combo Hair Clipper & Trimmer Kit. Retain this manual for future reference.

• Bezpečnost dětí: Keep the appliance out of reach of children. Use only under adult supervision. Do not allow children to play with or clean the appliance.
• Vystavení vodě: Do not immerse the appliance in water or use it near water (e.g., bathtub, shower, sink).
• Zdroj napájení: Use only the provided USB charging cable. Ensure the power source voltage je kompatibilní se zařízením.
• Poškození: Do not operate the appliance if it has a damaged cord, plug, or if it is not working properly. Contact customer support for assistance.
• Čepele: Handle blades with care. Ensure blades are properly attached before use. Do not use if blades are damaged or bent.
• Čištění: Před čištěním vždy spotřebič vypněte a odpojte ze zásuvky.
• Skladování: Pokud spotřebič nepoužíváte, skladujte jej na suchém místě.

2. Konec produktuview

The VGR V-196 & 996 Professional Barber Combo is a versatile grooming kit designed for precise hair cutting and trimming. It features ceramic and titanium-coated blades for smooth performance, high-speed motors, and an LED display for monitoring battery and speed.

Image: The VGR V-196 clipper and V-996 trimmer side-by-side, showcasing their sleek design and LED displays.

Klíčové vlastnosti:

• Přesné řezání: Ceramic and titanium-coated blades for smooth, accurate trimming of hair, beard, and mustache.
• Baterie s dlouhou výdrží: 2000mAh lithium batteries provide up to 300 minutes runtime for the trimmer and 200 minutes for the clipper.
• Guide Comb Set: Includes 6 clipper guide combs (1.5 mm, 3 mm, 4.5 mm, 6 mm, 10 mm, 13 mm) and 4 trimmer guide combs (1.5 mm, 3 mm, 4.5 mm, 6 mm), plus 10 additional combs for versatile styling.
• LED displej: Digital display shows battery percentage and motor speed (up to 7000 RPM).
• Cordless & USB Charging: Offers cordless operation and convenient USB charging for portability.
• Profesionální kvalita: Designed for both professional and home use, ensuring consistent performance.

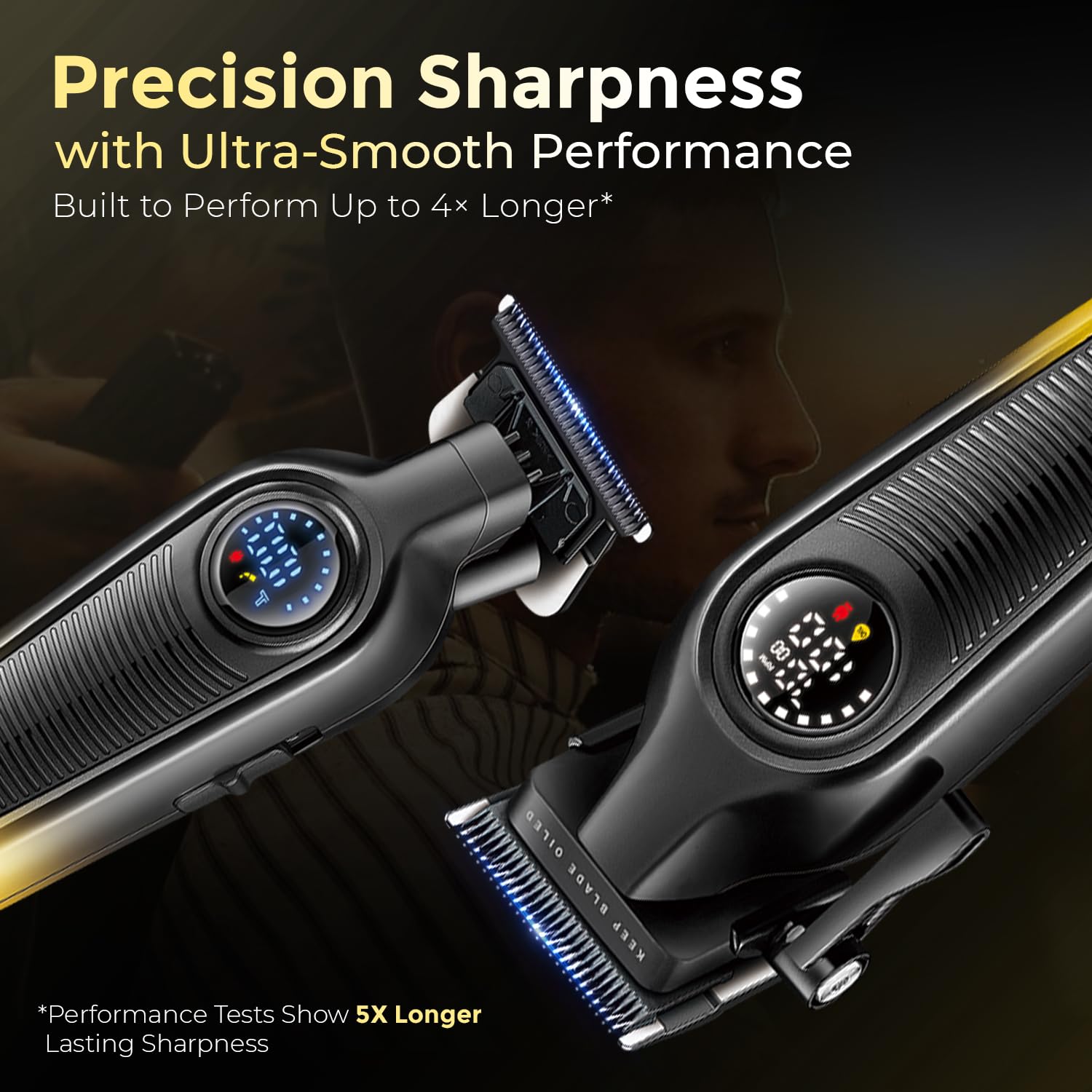

Obrázek: Detail view of the ceramic and titanium-coated blades on both the clipper and trimmer, highlighting their corrosion-free and rust-safe properties.

The blades are engineered for extended sharpness and smooth performance, reducing skin irritation.

Image: Illustration of the innovative vector motor in both devices, capable of up to 7000 RPM for powerful and efficient cutting.

Equipped with an innovative vector motor, these devices deliver high torque for maximum performance and consistent cutting power.

Image: An infographic highlighting key performance features of the VGR V-196 and V-996, including high torque, ceramic & titanium blades, ultra-precise cutting, cordless design, LED display, and high-speed motor.

Image: A barber using the VGR clipper on a client, with text indicating professional approval, emphasizing sharp detailing and long-lasting accuracy.

3. Zahrnuté komponenty

The VGR V-196 & 996 Professional Barber Combo Kit includes the following items:

• 1 × Hair Clipper (V-196)
• 1 × Hair Trimmer (V-996)
• 6 × Guide Combs for Hair Clipper (1.5 mm, 3 mm, 4.5 mm, 6 mm, 10 mm, 13 mm)
• 4 × Guide Combs for Hair Trimmer (1.5 mm, 3 mm, 4.5 mm, 6 mm)
• 10 × Additional Combs (various sizes for specific styling needs)
• 1 × Blade Protection Cap
• 1× čisticí kartáček
• 1 × Lubricating Oil Bottle
• 1 × nabíjecí kabel USB
• 1 × Uživatelská příručka

Image: The VGR V-196 clipper and V-996 trimmer displayed with their packaging and various included accessories like guide combs, oil, and brush.

4. Nastavení

4.1 Počáteční nabíjení

1. Before first use, fully charge both the hair clipper and trimmer.
2. Connect the USB charging cable to the charging port on the device and plug the other end into a compatible USB power adapter (not included) or a computer USB port.
3. The LED display will indicate the charging status and battery percentage. A full charge is indicated by 100% on the display.
4. Charging time for the clipper is approximately 3.5 hours for 200 minutes of runtime.
5. Charging time for the trimmer is approximately 5 hours for 300 minutes of runtime.

Image: The clipper and trimmer being charged via USB-C, illustrating the fast-charge technology and battery runtime.

4.2 Nasazení vodicích hřebenů

1. Ensure the device is turned off before attaching or detaching guide combs.
2. Vyberte požadovaný vodicí hřeben pro požadovanou délku vlasů.
3. Align the comb with the blade and push it firmly until it clicks into place.
4. Chcete-li hřeben sundat, jemně jej stáhněte z čepele.

5. Provoz

5.1 Obecné použití

1. Ensure your hair is clean and dry before trimming or clipping.
2. Select and attach the appropriate guide comb for the desired hair length.
3. Press the ON/OFF button to turn on the device. The LED display will show battery percentage and current speed.
4. For the clipper (V-196), you can adjust the blade lever for fine-tuning cutting lengths between 0.8mm and 2.0mm without a comb.
5. Gently move the device against the direction of hair growth for an even cut.
6. For best results, use slow, controlled movements.
7. After use, press the ON/OFF button to turn off the device.

Image: A hand holding the VGR V-196 clipper, demonstrating the adjustable blade lever for precise length control from 0.8mm to 2.0mm.

5.2 Hair Clipper (V-196)

• Ideal for cutting larger sections of hair and creating fades.
• Use the included 6 guide combs for lengths from 1.5mm to 13mm.
• The adjustable taper lever allows for seamless blending and precise cutting without a comb.

5.3 Hair Trimmer (V-996)

• Suitable for detailing, outlining, beard trimming, and achieving sharp lines.
• Use the included 4 guide combs for lengths from 1.5mm to 6mm.
• Can be used without a comb for a close trim.

6. Údržba

6.1 Čištění nožů

1. After each use, turn off the device and remove any attached guide comb.
2. Use the provided cleaning brush to remove loose hairs from the blades.
3. For a more thorough cleaning, the blades can be carefully detached (refer to specific instructions in the included user manual for blade removal). Rinse the blades under running water if they are detachable and washable. Ensure they are completely dry before reattaching.
4. Do not rinse the main body of the clipper/trimmer under water unless explicitly stated as waterproof.

6.2 Mazání nožů

1. After cleaning and drying the blades, apply a few drops of the provided lubricating oil to the teeth of the blades.
2. Turn on the device for a few seconds to allow the oil to distribute evenly.
3. Přebytečný olej setřete měkkým hadříkem.
4. Regular oiling ensures smooth operation and extends blade life.

6.3 Skladování

• Store the clipper and trimmer in a dry, cool place, away from direct sunlight and moisture.
• Always attach the blade protection cap when storing to prevent damage to the blades.

7. Řešení problémů

8. Specifikace

9. Záruka a zákaznická podpora

For warranty information, product support, or any inquiries, please contact VGR customer service using the details below:

• E-mail: customercare@vgrofficial.in
• Telefon: 9667796740
• Webmísto: www.vgrofficial.in
• Provozní doba: 10:00 AM to 6:00 PM, Monday to Saturday
• Výrobce: Společnost Ningbo VGR Electric Appliance Co., Ltd.
• Dovozce/Balicí firma: SA International / VGR India Official Private Limited

Uschovejte si prosím doklad o koupi pro případné reklamace.
